Creativity is the key......help on removal
07-30-08, 09:25 PM
#1
87 NA build in progress
Thread Starter
Join Date: Oct 2007
Location: Portland
Posts: 293
Likes: 0
Received 0 Likes
on
0 Posts
Creativity is the key......help on removal
I'm trying to remove the baffles (sp) on my NA housings for a better flow. Any suggestions on this? I have tried to jigsaw them out but it just burns the metal blades in a second or two without any results.
07-30-08, 10:11 PM
#2
There is one roll pin on each side of the housing. Weld a small bead to it then lock a pair of vice grips on the weld and pull them out. Replace them with turbo sleaves and new roll pins. Japan2LA had a bunch of turbo sleaves don't know if he still sells them. If you are serious about grinding them out then use grinding stones and a die grinder.
07-30-08, 10:30 PM
#3
87 NA build in progress
Thread Starter
Join Date: Oct 2007
Location: Portland
Posts: 293
Likes: 0
Received 0 Likes
on
0 Posts
There is one roll pin on each side of the housing. Weld a small bead to it then lock a pair of vice grips on the weld and pull them out. Replace them with turbo sleaves and new roll pins. Japan2LA had a bunch of turbo sleaves don't know if he still sells them. If you are serious about grinding them out then use grinding stones and a die grinder.
07-31-08, 02:51 PM
#5
87 NA build in progress
Thread Starter
Join Date: Oct 2007
Location: Portland
Posts: 293
Likes: 0
Received 0 Likes
on
0 Posts
07-31-08, 05:44 PM
#7
87 NA build in progress
Thread Starter
Join Date: Oct 2007
Location: Portland
Posts: 293
Likes: 0
Received 0 Likes
on
0 Posts
Trending Topics
08-01-08, 09:45 AM
#8
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Regular old hardware store grinding stones. I get the "Wolf" brand at $2.99 for a pack of two. Takes about half a stone to do one sleeve. Grind the corners of the "wings" and then snap them off. Now grind down the pillars. Even the cheap generic stones I get from Princess Auto at 10 for a dollar do the job just fine.
08-06-08, 01:45 PM
#9
87 NA build in progress
Thread Starter
Join Date: Oct 2007
Location: Portland
Posts: 293
Likes: 0
Received 0 Likes
on
0 Posts
Regular old hardware store grinding stones. I get the "Wolf" brand at $2.99 for a pack of two. Takes about half a stone to do one sleeve. Grind the corners of the "wings" and then snap them off. Now grind down the pillars. Even the cheap generic stones I get from Princess Auto at 10 for a dollar do the job just fine.
ummm...I sorta don't know what you mean, can you post a pic of the "stone" I would be getting? What kind of tool do I need to make it operate, I have a dremel, will that work?
08-06-08, 02:39 PM
#10
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts

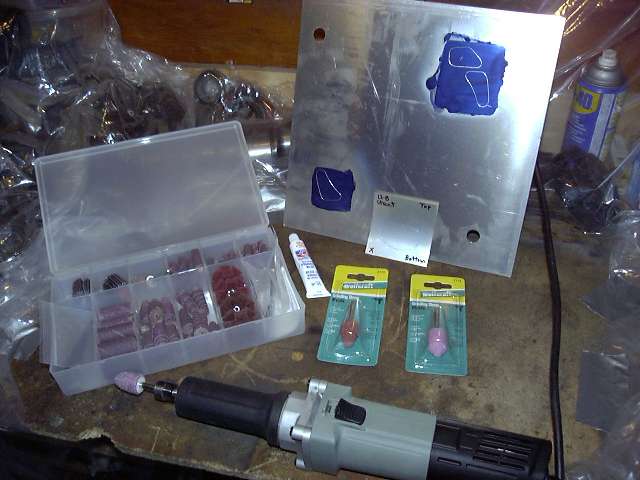

Stones are in green packages.
Writeup here:
http://www.aaroncake.net/rx-7/projec...ul152004-1.htm
Edit... A Dremel won't even come close to working. What you see in the picture is a 3/4 HP die grinder.
08-07-08, 05:22 PM
#13
They put splitter sleeves in the N/A exaust ports to help quiet the exaust down.
On a TII the turbo acts as an exellent noise suppressor, this allows a less restrictive exaust to be used and less attention be paid to little "tricks" to shut up the exaust. That is why un restricted NAs and NAs running turbo exausts are so
damn loud. The splitter sleeves, mixing of the exaust pulses in the stock manifold and mixing in the collecter of a stock style 2into 1 exaust all help deaden sound.
Any one may not do alot but together they all work together to make a difference.
The sleeves however seem to make very little difference one way or another on
mildly modded NAs. Also supposedly they have an effect on heat transfer, but, to each his own.
On a TII the turbo acts as an exellent noise suppressor, this allows a less restrictive exaust to be used and less attention be paid to little "tricks" to shut up the exaust. That is why un restricted NAs and NAs running turbo exausts are so
damn loud. The splitter sleeves, mixing of the exaust pulses in the stock manifold and mixing in the collecter of a stock style 2into 1 exaust all help deaden sound.
Any one may not do alot but together they all work together to make a difference.
The sleeves however seem to make very little difference one way or another on
mildly modded NAs. Also supposedly they have an effect on heat transfer, but, to each his own.
