couple of pics of projects
#1
Auto-Ex Noob
Thread Starter
iTrader: (1)
Join Date: Nov 2003
Location: new hampshire
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
couple of pics of projects

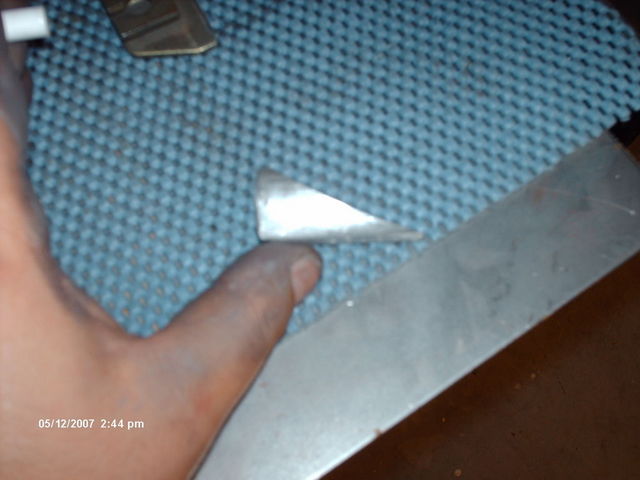

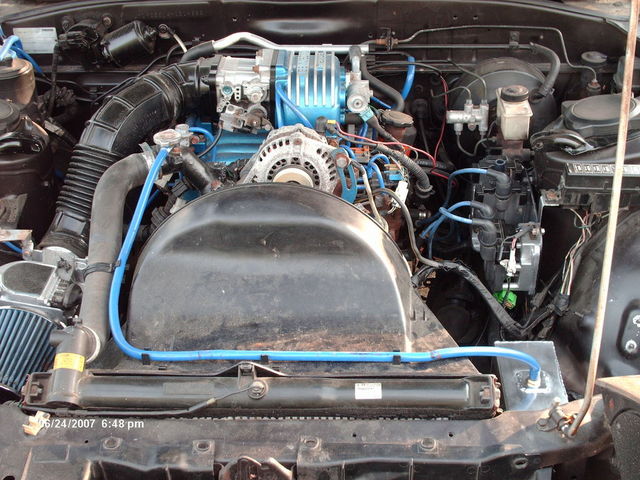

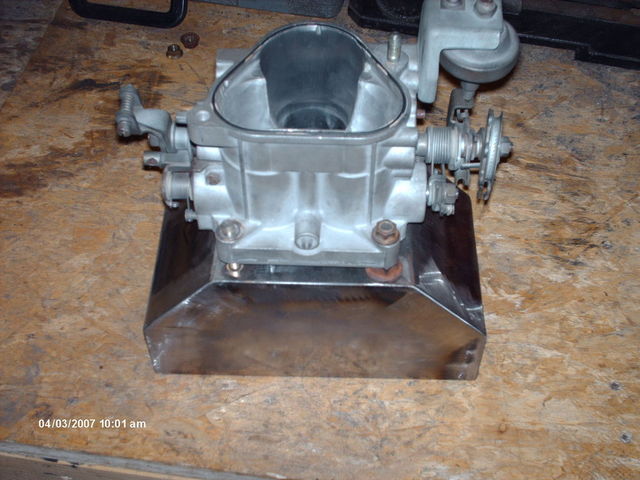

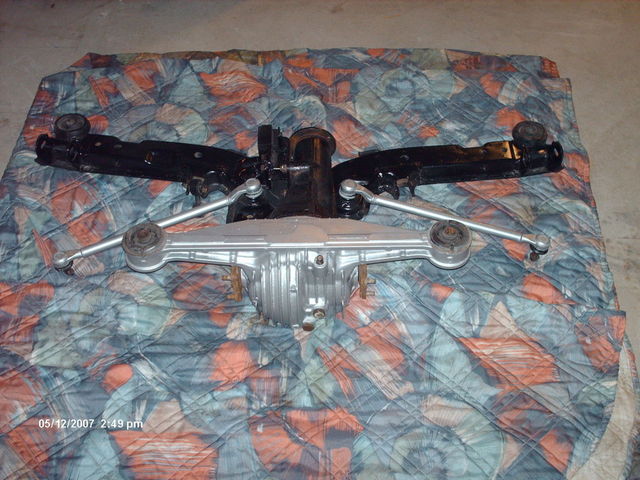

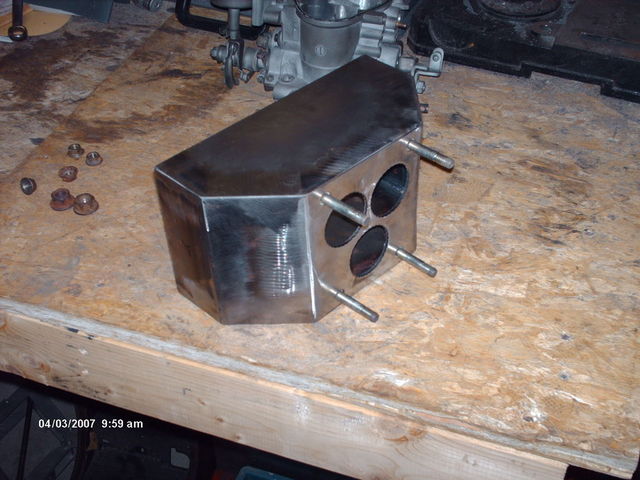

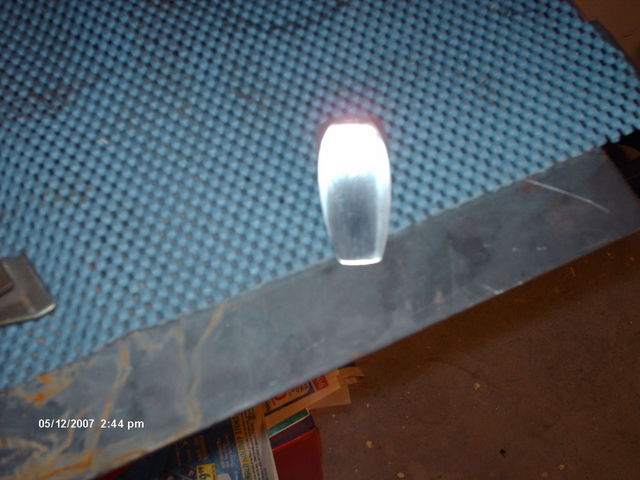

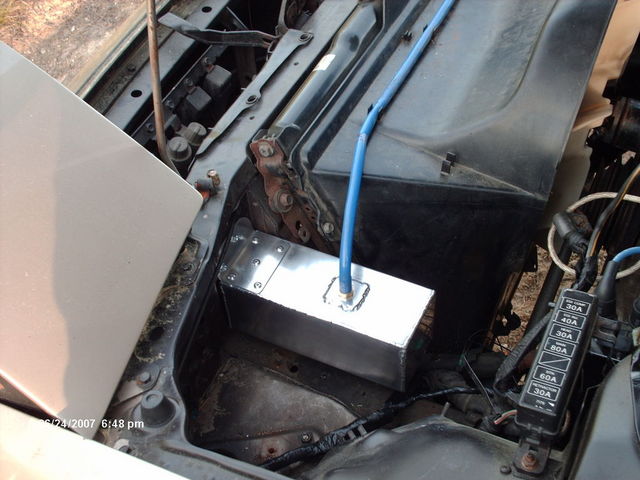

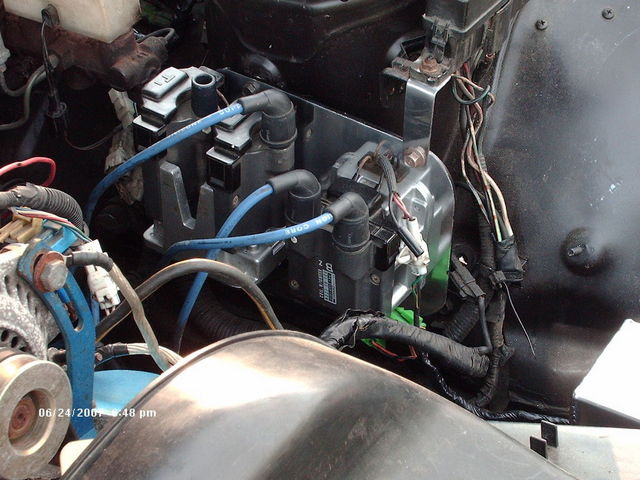

just a couple of projects iv been working on relocated coil packs, polished alum. catch can , and the start to a custom sheet metal intake mani, all this is for a set of garrett t3 50 trims i am mounting to a s4 n/a motor, lsd diff and sub frame, and a set of 5th and 6th port sleeves i mill out of 1" alum round stock
--joe
--joe
#4
Banned. I got OWNED!!!
mmmmmmmmmm, custom - bravo. One word of advice though, I would flip the catch can upside down. This way, when the coolant cools and contracts it will suck in the coolant, and not the air from the top. This way it becomes a recovery tank, not a catch tank.
#6
Lives on the Forum
Nice metal work...
I can tell that you're meticulous with your metalwork, and it shows.
You live in a rust prone area?
Some of that rust in the pics kinds scare me.
-Ted
I can tell that you're meticulous with your metalwork, and it shows.
You live in a rust prone area?
Some of that rust in the pics kinds scare me.
-Ted
Trending Topics
#8
Auto-Ex Noob
Thread Starter
iTrader: (1)
Join Date: Nov 2003
Location: new hampshire
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
yeah i live in NH so its pretty hard to aviod the rust, i've only been doing metal fab and tig welding for about a year, and no the res. isnt vented im not quite sure how i could vent it becuse isnt the cooling system a sealed system under vaccum? mabye with a check valve??
-joe

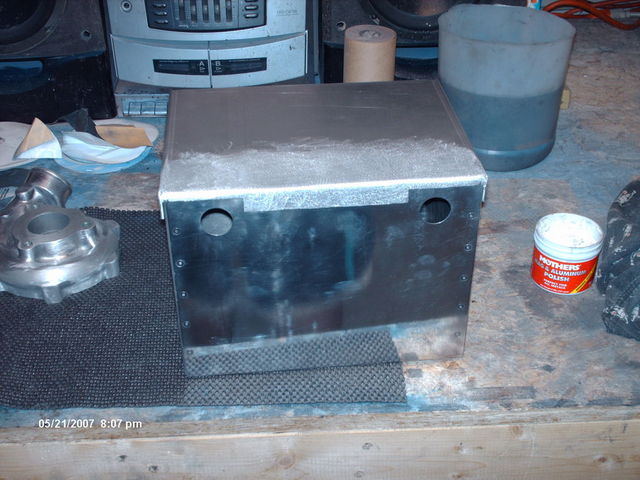

couple more pictures of the plemun and the port sleeves and a alum batt box i am working on finishing up
-joe
couple more pictures of the plemun and the port sleeves and a alum batt box i am working on finishing up
Last edited by fast87t2; 07-18-07 at 01:14 PM.
#9
Banned. I got OWNED!!!
The cooling system is sealed from the pressure cap back if you will. The recovery tank needs to be vented in order to accept the coolant as it expands from the syste, and allow it to be pulled in under vaccuum when the coolant cools. I plan on making a tank with the connection on the bottom for the above mentioned reasons, a filler on the top, and a vent tube that just runs strait down to the ground basically.
#10
I have the same rust where the old battery location was as well. I am praying it can be fixed though.
I like the work, it looks very nice and the engine bay is well organized.
#11
Auto-Ex Noob
Thread Starter
iTrader: (1)
Join Date: Nov 2003
Location: new hampshire
Posts: 209
Likes: 0
Received 0 Likes
on
0 Posts
well everyone seems to love the coil relocation , if anyone is intersted i can make about 5 more of the panels with all the brackets and hardware, the main panel is made outta .125 alum(1/8inch) and the small bracket is made out of .060(~1/16inch) alum they would deff be cheap cause its just scrap i have laying around.... i also have a fabbed battrey box like in the picture, its a bit bigger and i never got around to making the top but if anyone is intersted ill list the mesurements tommrow and ill throw in a piece of .060 alum big enough to make a top outta..
--joe
--joe
#12
Rotary Gearhead
iTrader: (6)
The reason I asked about venting the coolant tank is that with any container, liquid can't get in without displacing air. Conversely, a liquid can't escape without air taking it's place. Am I making sense? A small hole at the top would suffice, or a larger hole with a vent hose. Just don't fill coolant to the top. Coolant expands as it heats.
