Exclamation Connector ID request - pic

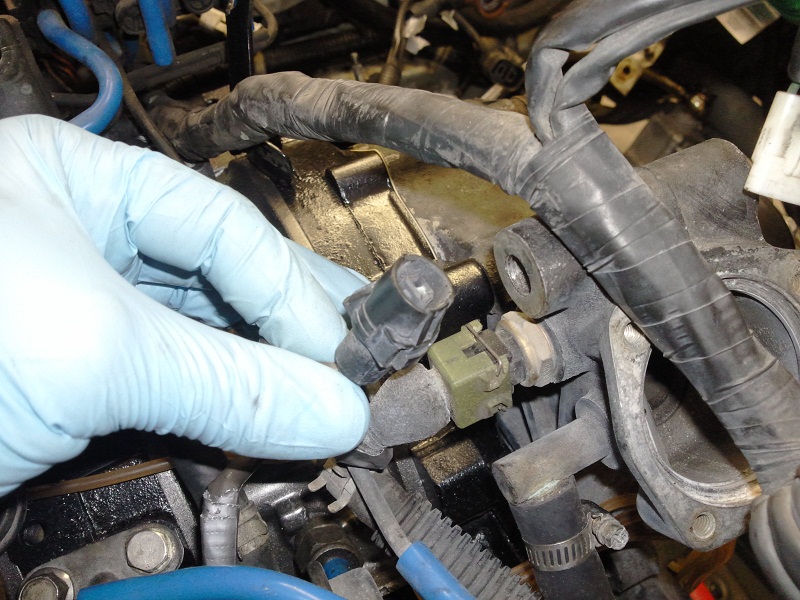

What is this for?
Behind the water pump. Round black plastic connector, one wire, this is S5 NA. I think it may have been loose when the motor came out....
Attached Thumbnails Connector ID request - pic-photo2410.jpg
Acroy is offline
Reply Like
Old 10-27-12, 12:58 PM
  #2
Cake or Death?

iTrader: (2)

clokker's Avatar

Join Date: Jan 2007
Location: Mile High
Posts: 10,249
Received 63 Likes on 53 Posts
Optional supplementary electric fan tempswitch.
clokker is offline
Reply Like
Old 10-27-12, 01:11 PM
  #3
Wanker Club

Thread Starter
iTrader: (3)

Acroy's Avatar

Join Date: Sep 2002
Location: Dallas
Posts: 293
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by clokker
Optional supplementary electric fan tempswitch.
Zounds - did you just make that up?
I thought no 2nd gen came with an electric fan
Acroy is offline
Reply Like
Old 10-27-12, 01:26 PM
  #4
Cake or Death?

iTrader: (2)

clokker's Avatar

Join Date: Jan 2007
Location: Mile High
Posts: 10,249
Received 63 Likes on 53 Posts
Some came with a small (10", IIRC) "helper fan" that went on the AC condenser.
Never seen one in person but it's definitely in the FSM.


Or, I made it up.
clokker is offline
Reply Like
Old 10-27-12, 01:26 PM
  #5
Law Breaker


Carzy Driver's Avatar

Join Date: Oct 2005
Location: S.F. Bay Area, California 510
Posts: 3,333
Likes: 0
Received 0 Likes on 0 Posts
some came with a small pusher fan, my TII did
Carzy Driver is offline
Reply Like
Old 10-27-12, 01:40 PM
  #6
Wanker Club

Thread Starter
iTrader: (3)

Acroy's Avatar

Join Date: Sep 2002
Location: Dallas
Posts: 293
Likes: 0
Received 0 Likes on 0 Posts
Disconnected it was, disconnected it is, and disconnected it shall remain. Thanks much. I had not run into the helper fan in the FSM.
Acroy is offline
Reply Like
Old 10-27-12, 02:00 PM
  #7
Moderator

iTrader: (1)

satch's Avatar

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 11,738
Received 12 Likes on 11 Posts
The small electric fan would be located in front of the radiator.
satch is offline
Reply Like

Trending Topics

Old 10-27-12, 02:37 PM
  #8
not a drifter

iTrader: (133)

87 t-66's Avatar

Join Date: Jun 2004
Location: Columbus, Ohio
Posts: 9,337
Received 5 Likes on 5 Posts


its the sensor under the thermoswitch
87 t-66 is offline
Reply Like
Old 10-27-12, 03:56 PM
  #9
Senior Member
iTrader: (2)

198713bt's Avatar

Join Date: Apr 2010
Location: Michigan
Posts: 258
Likes: 0
Received 0 Likes on 0 Posts
Is the helper fan worth having? I just finished restoring and installing mine lol
198713bt is offline
Reply Like
Old 10-27-12, 04:09 PM
  #10
Law Breaker


Carzy Driver's Avatar

Join Date: Oct 2005
Location: S.F. Bay Area, California 510
Posts: 3,333
Likes: 0
Received 0 Likes on 0 Posts
not really
Carzy Driver is offline
Reply Like
Old 10-27-12, 04:15 PM
  #11
Moderator

iTrader: (1)

satch's Avatar

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 11,738
Received 12 Likes on 11 Posts
Originally Posted by 198713bt
Is the helper fan worth having? I just finished restoring and installing mine lol
I believe it likes to turn on when the A/C is used to limit the extra heat created.
satch is offline
Reply Like
Old 10-27-12, 04:18 PM
  #12
'downgrading to upgrade..
iTrader: (11)

sclas90's Avatar

Join Date: Oct 2010
Location: Southern Oregon
Posts: 85
Likes: 0
Received 0 Likes on 0 Posts
I think they only came on models with ac, I had one on my t2. It ran when the key was on.
sclas90 is offline
Reply Like
Old 10-27-12, 06:52 PM
  #13
Wanker Club

Thread Starter
iTrader: (3)

Acroy's Avatar

Join Date: Sep 2002
Location: Dallas
Posts: 293
Likes: 0
Received 0 Likes on 0 Posts
My car did not have the fan- '90GTUs with ac. perhaps it was turbo only?
Acroy is offline
Reply Like
Old 10-27-12, 08:08 PM
  #14
Senior Member
iTrader: (2)

198713bt's Avatar

Join Date: Apr 2010
Location: Michigan
Posts: 258
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by satch

I believe it likes to turn on when the A/C is used to limit the extra heat created.
Hmm, I removed my A/C. If the fan serves no other purpose I may have to get creative to see if its worth having in the car...
198713bt is offline
Reply Like
Old 10-27-12, 08:20 PM
  #15
Cake or Death?

iTrader: (2)

clokker's Avatar

Join Date: Jan 2007
Location: Mile High
Posts: 10,249
Received 63 Likes on 53 Posts
In general, a pusher fan- especially a small one- coupled with a puller fan is a pretty crumby combination.
clokker is offline
Reply Like
Old 10-27-12, 09:41 PM
  #16
Law Breaker


Carzy Driver's Avatar

Join Date: Oct 2005
Location: S.F. Bay Area, California 510
Posts: 3,333
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Acroy
My car did not have the fan- '90GTUs with ac. perhaps it was turbo only?
GTUs didn't come with AC, someone added your AC system.
Carzy Driver is offline
Reply Like
Old 10-27-12, 10:01 PM
  #17
Full Member

Poker Player's Avatar

Join Date: Jan 2010
Location: West Coast!
Posts: 83
Likes: 0
Received 0 Likes on 0 Posts
I thought that was called a "water thermal something sensor"... oh well
Poker Player is offline
Reply Like
Old 10-27-12, 10:24 PM
  #18
Senior Member
iTrader: (2)

198713bt's Avatar

Join Date: Apr 2010
Location: Michigan
Posts: 258
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by clokker
In general, a pusher fan- especially a small one- coupled with a puller fan is a pretty crumby combination.
True...I'll prolly just leave it on there until I go FMIC. After spending the time to sandblast and paint it, it looks too good to take off. Lol
198713bt is offline
Reply Like
Old 10-28-12, 04:09 PM
  #19
Wanker Club

Thread Starter
iTrader: (3)

Acroy's Avatar

Join Date: Sep 2002
Location: Dallas
Posts: 293
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Carzy Driver
GTUs didn't come with AC, someone added your AC system.
$859 dealer installed option, according to my window sticker.

FYI this is a real GTUs, along with the fresh motor it is getting manual rack, RB steel flywheel, and ac removed. I'm holding onto all the original parts in case I (or the next owner) at some point want to restore it to 'original' condition

oooo, a blue FB I've never seen before just farted by. Must go meet the new neighbor.
