cold start assist sender bolt size! Please Help!
I just got my rebuild done and back together. Started the whole break in procedure, when I noticed that I still have a red plug in my oil pan. I freaked out. Strangley its holding well enough that oil isn't coming out. I figured out that its the cold start assist sender. I can't find the original sensor. I need a bolt size and pitch will fit in there so I can plug it up. I need to know quick. Otherwise I'll end up plugging it with some aluminium epoxy. Thanks guys.
08-16-06, 11:21 PM
#6
Full Member
Thread Starter
Join Date: Jan 2004
Location: California, San Diego
Posts: 211
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by HAILERS
Yeah I checked there, they don't have the Oil Thermo sender = (. Just the level sensor.
Trending Topics
08-17-06, 09:31 AM
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Originally Posted by wargoblin
Yeah I checked there, they don't have the Oil Thermo sender = (. Just the level sensor.
My bad. But, I found out that the union that screws into the front cover left side for the oil line, has the same threads.

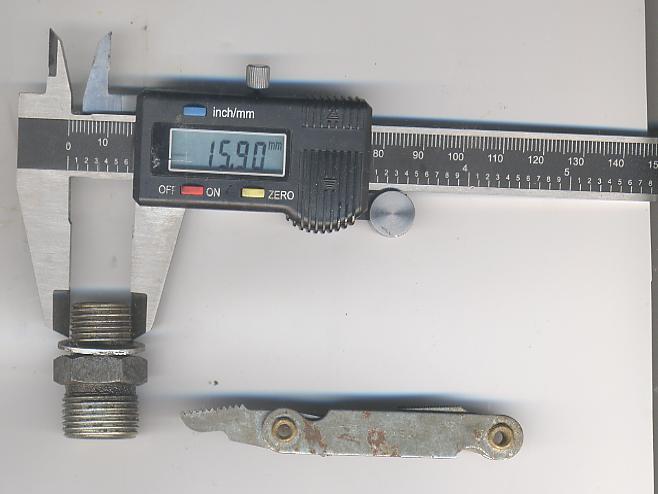

So I measured those threads and came up with 16mm size and used a thread gauge and find the threads are 1.5. So buy a bolt 16mm with 1.5 threads and use that to plug the hole. See attached jpg.
Last edited by HAILERS; 08-17-06 at 09:38 AM.
08-17-06, 01:49 PM
#9
Full Member
Thread Starter
Join Date: Jan 2004
Location: California, San Diego
Posts: 211
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by HAILERS
My bad. But, I found out that the union that screws into the front cover left side for the oil line, has the same threads.
So I measured those threads and came up with 16mm size and used a thread gauge and find the threads are 1.5. So buy a bolt 16mm with 1.5 threads and use that to plug the hole. See attached jpg.
So I measured those threads and came up with 16mm size and used a thread gauge and find the threads are 1.5. So buy a bolt 16mm with 1.5 threads and use that to plug the hole. See attached jpg.
HA me and you think alike, only you have the tools to figure things out better. I took the same oil cooler adapter and shoved it in there. Only I plugged it up the other end with a rubber nipple. Now that I know the thead and pitch, I can but a more attractive bolt to put there. Thanks a million! = ) = )
