BNR Stage 3, 4. When does it spool up
#1
Senior Member
Thread Starter
Join Date: Apr 2001
Location: BossTown, MA
Posts: 426
Likes: 0
Received 0 Likes
on
0 Posts
BNR Stage 3, 4. When does it spool up
I'm thinking of going BNR stage 3 or 4. My question is at what RPM does this start spooling up and at what RPM fully spool? Also, how is the response of the spool after those RPM if you go on/off throttle? thanks.
#2
Rotary Enthusiast
Join Date: May 2002
Location: Boston
Posts: 1,203
Likes: 0
Received 0 Likes
on
0 Posts
Check out Brians websight http://www.bnrturbos.com/2ndGen.htm
And call him up. Hes real cool guy more than willing to answer any questions about his turbos.
205-640-1193
And call him up. Hes real cool guy more than willing to answer any questions about his turbos.
205-640-1193
#4
HI!
Join Date: Mar 2003
Location: tatooine
Posts: 508
Likes: 0
Received 0 Likes
on
0 Posts
I have a stage 4 and it hits 7psi by 3200-3500 RPM on an untuned car. I am very pleased with the turbo and Brian is a great guy to deal with. I called him from Iraq and he answered all of my questions.
#5
tom port.. AKA streetport
iTrader: (6)
Join Date: Jan 2005
Location: ludlow, pa
Posts: 4,659
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by samperry007
I have a stage 4 and it hits 7psi by 3200-3500 RPM on an untuned car. I am very pleased with the turbo and Brian is a great guy to deal with. I called him from Iraq and he answered all of my questions.
that spools almost as fast as mine!!
stock turbo on a 6 port motor...
#6
Boost in..Apex seals out.
Join Date: Nov 2003
Location: Maryland, 21794
Posts: 1,931
Likes: 0
Received 0 Likes
on
0 Posts
And, 88rxn/a, that's on his turbo(4 port) motor I'm guessing. I would suppose the 6port motor will spool it even faster..? So it could spool just as fast, if not quicker than yours. :-D
#7
Banned. I got OWNED!!!
Join Date: May 2004
Location: San Antonio
Posts: 778
Likes: 0
Received 0 Likes
on
0 Posts
thats a fantastic spoolup...BUT is ur car ported? because i dont desire to do any porting...and id like to hit the 350hp range.... and spooling at that speed is EXACTLY what im looking for! ill be giving him a call!
Trending Topics
#10
I live in the lounge...
Join Date: Aug 2004
Location: lathrup, MI
Posts: 2,000
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by -efini-
Check out the bnr site. theres something on there they made 400+ whp on a stage 5. You should be able to make 350 on stock ports.
#12
Senior Member
Thread Starter
Join Date: Apr 2001
Location: BossTown, MA
Posts: 426
Likes: 0
Received 0 Likes
on
0 Posts
Thank you for the responses. The reason why I wanted to ask members is that i want real world opinions.
I want to make about 380whp, I do both drags and autox equally and I'm just trying to choose a turbo that would be a good ballance for both types of driving. I've thought about the GT38RS(disco potato). They spool up realy quick, but max out at around 320whp.
What stage would you guys recommend for me?
I want to make about 380whp, I do both drags and autox equally and I'm just trying to choose a turbo that would be a good ballance for both types of driving. I've thought about the GT38RS(disco potato). They spool up realy quick, but max out at around 320whp.
What stage would you guys recommend for me?
#13
I AM A THIEF!!! I AM A THIEF!!!
Join Date: Jan 2006
Location: Ontario Socal
Posts: 296
Likes: 0
Received 0 Likes
on
0 Posts
Sry about the stage 5...typo.
They made +400 Whp on a stage 4.
I would go with the BNR, people have had good experiences with them, and plus the guy who makes em is on THIS forum. I plan on running a stage 4 when i get around to it. Im hoping to make +350Whp on stock ports. As for the garrett Gt series turbos, yea there sick and all, but damn, to run it, you have to get a custom mani, wastgate, downpipe, and custom feed/return lines. **** that.
They made +400 Whp on a stage 4.
I would go with the BNR, people have had good experiences with them, and plus the guy who makes em is on THIS forum. I plan on running a stage 4 when i get around to it. Im hoping to make +350Whp on stock ports. As for the garrett Gt series turbos, yea there sick and all, but damn, to run it, you have to get a custom mani, wastgate, downpipe, and custom feed/return lines. **** that.
Last edited by -efini-; 04-02-06 at 08:05 PM.
#16
I AM A THIEF!!! I AM A THIEF!!!
Join Date: Jan 2006
Location: Ontario Socal
Posts: 296
Likes: 0
Received 0 Likes
on
0 Posts
A 60-1 is a t4 compressor blade. A fulle 60-1 setup meaning a t4 turbo, with appropiate manifold, external wastegate, and downpipe...preaty exspensive.
#17
No money. No love.
iTrader: (12)
Join Date: Jul 2004
Location: SACRAMENTO
Posts: 2,807
Likes: 0
Received 0 Likes
on
0 Posts
How the hell are you guys doing this?! I have stage 3 with 3" back exhaust and a straight intake to an HKS filter. (No afm since I'm running Mircotech) Had my car tuned by Steve Kahn and it sees FULL boost at 3500 rpm...I ran into some issues about the wastegate spring not being strong enough so I couldn't go past 11 psi where I made 300 rwhp with the ignition breaking up at 7K+ Hopefully I'll get all those issues worked out and make 350 rwhp at 16 psi
#18
spending too much money..
iTrader: (2)
Originally Posted by -efini-
A 60-1 is a t4 compressor blade. A fulle 60-1 setup meaning a t4 turbo, with appropiate manifold, external wastegate, and downpipe...preaty exspensive.

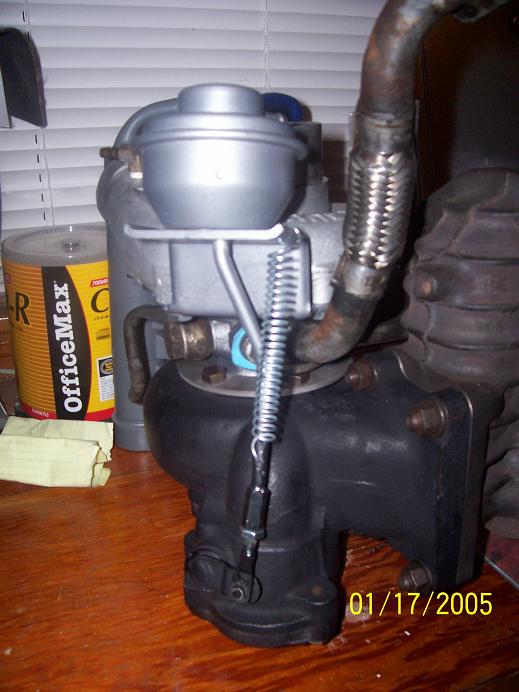

So smogsux what did you do to combat the problem with the wg opening up to early? I told brian I wanted to hold boost so he kept the hole that jrat (this is jrats old turbo) made further up on the wg actuator arm. He also welded a turn buckle on the arm so that i can change the arm length thus creating even more spring preload as well as putting an external spring on it for further resistance. He said the wg was now set to about 12psi so with my boost controller I should esily hit 15-17 psi. here is a pic.
Last edited by hondahater; 04-03-06 at 08:08 AM.
#19
Senior Member
Thread Starter
Join Date: Apr 2001
Location: BossTown, MA
Posts: 426
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by -efini-
A 60-1 is a t4 compressor blade. A fulle 60-1 setup meaning a t4 turbo, with appropiate manifold, external wastegate, and downpipe...preaty exspensive.
#20
Senior Member
Originally Posted by SmogSUX
How the hell are you guys doing this?! I have stage 3 with 3" back exhaust and a straight intake to an HKS filter. (No afm since I'm running Mircotech) Had my car tuned by Steve Kahn and it sees FULL boost at 3500 rpm...I ran into some issues about the wastegate spring not being strong enough so I couldn't go past 11 psi where I made 300 rwhp with the ignition breaking up at 7K+ Hopefully I'll get all those issues worked out and make 350 rwhp at 16 psi
#21
spending too much money..
iTrader: (2)
Originally Posted by SwiftTone
Thanks for clearing that up about the 60-1 thingy. Is the 60-1/T4 compressor blade supposed to be pretty beefy compared to other aftermarket turbos? Also, is this why they call it a "hybrid" turbo because they take a compressor blade form another turbo and stick it into a stock one? What is a "P" trim? I've also heard of "O" trim and have no idea what they're talking about.
yes the reason they call it hybrid is because they are taking a compressor from a bigger turbo and putting it on the stock hotside witch is smaller than a ptrim. Since the hotside is so much smaller it doesn't flow as much thus reducing the overall hp gain that a full turbo upgrade can achieve however with the bnr stage 4 he mills out the hotside to fit a ptrim wheel witch allows for better flow thus uping the hp to the 380-400mark.
#23
"your turbo source"
iTrader: (1)
Join Date: Aug 2005
Location: Birmingham, AL
Posts: 246
Likes: 0
Received 0 Likes
on
0 Posts
Hey all.
The external sping is an enexpensive way to extract more boost out of the factory wastegate actuator. If you do this to your actuator, you must check what kind of tension you have or else you will pop your engine if you don't have it set up correctly. You must hook a boost guage up to the wastegate and check for when the arm opens.
The expensive way to get more boost is to replace the actuator with one with higher spring pressure. This will be a bit more expensive b/c the actuator must be adapted to the turbocharger. I think if you are looking for 400 RWHP, the spring pressure should be based at 12-13 psi w/o a boost controller or possibly a bit more.
Having more sping pressure on your wastegate actuator, you will notice better spool up time and better overall power over the standard actuator.
Bryan@BNR
205 640 1193
The external sping is an enexpensive way to extract more boost out of the factory wastegate actuator. If you do this to your actuator, you must check what kind of tension you have or else you will pop your engine if you don't have it set up correctly. You must hook a boost guage up to the wastegate and check for when the arm opens.
The expensive way to get more boost is to replace the actuator with one with higher spring pressure. This will be a bit more expensive b/c the actuator must be adapted to the turbocharger. I think if you are looking for 400 RWHP, the spring pressure should be based at 12-13 psi w/o a boost controller or possibly a bit more.
Having more sping pressure on your wastegate actuator, you will notice better spool up time and better overall power over the standard actuator.
Bryan@BNR
205 640 1193
Last edited by Bryan@BNR; 04-10-06 at 12:50 AM.
#25
Alcohol Fueled!
iTrader: (2)
Originally Posted by slpin
cant you compensate it with an electric boost controller?
i know the hks evc 3 and up is suppose to "swing" the wastegate open by keeping it shut until last mintue...
i know the hks evc 3 and up is suppose to "swing" the wastegate open by keeping it shut until last mintue...
Problem with the BNR turbos are, they tend to blow the wastegates open at higher boost pressures, so the EBCs are powerless to stop this. Bryan is now aware of the problem and I believe he ships all NEW turbos with stronger springs. Those of us that had older BNR turbos had to get creative with turnbuckles, washers, or some other means of tightening the spring pressure.
My BNR stage 4 seemed to make about 7-10 ish in the early 3000 range with full boost (17) somewhere in the hood of 4500. I never got around to really getting the spring set right (it was sitting at about 7 PSI), so I would lose boost as the RPMs continued to climb.
Rat
Last edited by J-Rat; 04-10-06 at 03:27 PM.
