2nd Generation Specific (1986-1992) 1986-1992 Discussion including performance modifications and technical support sections.

Bits for Porting

Thread Tools

Search this Thread

Old Feb 1, 2007 | 02:07 AM
  #1
micah's Avatar
Thread Starter
Winter sucks
Tenured Member 05 Years

Joined: Jan 2004
Posts: 3,083
Likes: 0
From: Newberg, Oregon
Bits for Porting

I'm looking around for some budget carbide bits. I'm not going to waste my time with normal grinding bits, but at the same time I don't want to spend 20-30 bucks PER bit. I found a few options that I wanted some opinions on.

http://www.harborfreight.com/cpi/cta...temnumber=3745

http://www.wttool.com/category-exec/category_id/13978

http://cgi.ebay.com/20-U-S-Carbide-B...QQcmdZViewItem

http://cgi.ebay.com/10-pieces-Tungst...QQcmdZViewItem
(in hong kong, ick)

http://cgi.ebay.com/8pc-1-4-CARBIDE-...QQcmdZViewItem

http://cgi.ebay.com/8-PCS-DOUBLE-CUT...QQcmdZViewItem

Has anybody used any of these? are they good quality? will they last me an engine or two worth? Should I get two of each?

Let me know, I need to get some of these soon. My irons/housings aren't going to port themselves. heh.
Reply
Old Feb 1, 2007 | 09:50 AM
  #2
Aaron Cake's Avatar
Engine, Not Motor
Tenured Member: 20 Years
iTrader: (1)

Joined: Feb 2001
Posts: 29,798
Likes: 128
From: London, Ontario, Canada
Personally I've never had any luck with carbide bits. In my experience they dull really quickly unless you spend some serious money for good ones.

For big things like exhaust ports, hardware store grinding stones work well.

Intake ports require smaller stones. Check out the kits available from Standard Abrasives. I use a "cylinder head" porting kit that came with a bunch of different stones, paper rolls and various mandrels.
Reply
Old Feb 1, 2007 | 05:20 PM
  #3
micah's Avatar
Thread Starter
Winter sucks
Tenured Member 05 Years

Joined: Jan 2004
Posts: 3,083
Likes: 0
From: Newberg, Oregon
What no link?!
Reply
Old Feb 1, 2007 | 06:04 PM
  #4
papiogxl's Avatar
What's the point??
Tenured Member: 20 Years
iTrader: (6)

Joined: Oct 2005
Posts: 995
Likes: 0
From: Omaha, NE
My guess is: http://www.sa-motorsports.com/cat/p5.aspx or a smaller kit: http://www.sa-motorsports.com/cat/p6.aspx

P.S. It is quite odd for Aaron to not post a link isn't it?
Reply
Old Feb 1, 2007 | 06:41 PM
  #5
john ward's Avatar
oi oi oi
Tenured Member 05 Years
iTrader: (7)

Joined: Jan 2006
Posts: 611
Likes: 1
From: wilmot,oh
Summit racing sells their own brand and the standard abrasives products. Im pretty sure its free shipping too.
Reply
Old Feb 1, 2007 | 06:46 PM
  #6
micah's Avatar
Thread Starter
Winter sucks
Tenured Member 05 Years

Joined: Jan 2004
Posts: 3,083
Likes: 0
From: Newberg, Oregon
Originally Posted by papiogxl
P.S. It is quite odd for Aaron to not post a link isn't it?
Definately... Is everything okay at home Aaron? Do we need to talk? There there.....Everything is going to be O.K.
Reply
Old Feb 1, 2007 | 06:49 PM
  #7
micah's Avatar
Thread Starter
Winter sucks
Tenured Member 05 Years

Joined: Jan 2004
Posts: 3,083
Likes: 0
From: Newberg, Oregon
Those SA kits don't seem like they would hold up. I can't imagine them holding up better than a carbide bit. but then again, for the cost.. Do you think the large kit would be enough to port two motors?
Reply
Old Feb 2, 2007 | 10:01 AM
  #8
Aaron Cake's Avatar
Engine, Not Motor
Tenured Member: 20 Years
iTrader: (1)

Joined: Feb 2001
Posts: 29,798
Likes: 128
From: London, Ontario, Canada
No link because it could just be Googled.

I've been using my Standard Abrasives kit for 6 years now and it's held up fine. The smaller bits are a delicate but you'll have that problem with any kind of tool.
Reply
Old Feb 2, 2007 | 11:48 AM
  #9
HAILERS's Avatar
HAILERS
Tenured Member 10 Years

Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
http://www.mcmaster.com/ look under Carbide burrs.

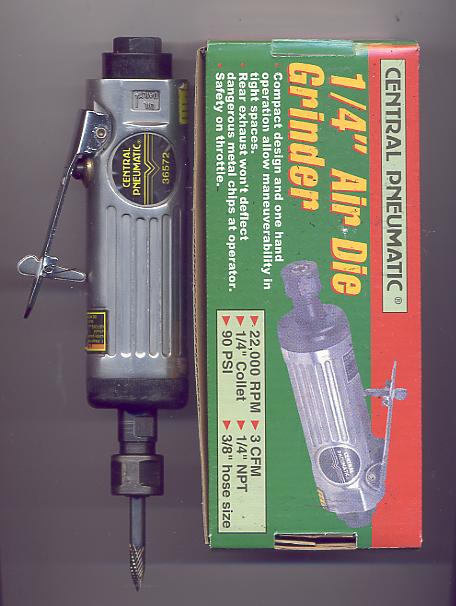

The rotary file cost b/t nine and ten bucks from Harbour Freight and I bought one. I used it for a day and it surprised me so much I went back and bough another before the price went up. They work very well, just remember to OIL them as you use them.

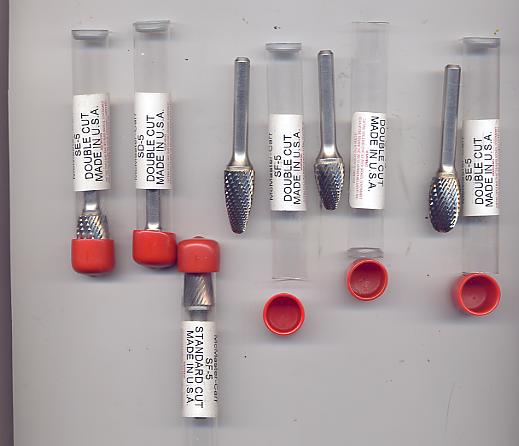

Rotary files from McMaster Carr for a couple of bucks more.

Carbide rotary files hold up very well. I don't understang the part about them not being durable. Oh well.
Attached Thumbnails Bits for Porting-harbourfreight.jpg   Bits for Porting-mcmastercarr.jpg

Last edited by HAILERS; Feb 2, 2007 at 11:58 AM.
Reply
Old Feb 2, 2007 | 01:50 PM
  #10
Will_s's Avatar
Senior Member
Tenured Member 10 Years
iTrader: (7)

Joined: Dec 2006
Posts: 352
Likes: 0
From: Lake Arrowhead Ca
Can a milling machine be used instead.
