2nd Generation Specific (1986-1992) 1986-1992 Discussion including performance modifications and technical support sections.

beeping noise

Thread Tools

Search this Thread

Old Jan 18, 2006 | 01:40 AM
  #1
rx7idgit's Avatar
Thread Starter
Full Member
Tenured Member 10 Years

Joined: May 2005
Posts: 153
Likes: 0
From: College Station, Tx
beeping noise

It stops when I turn the car off and back on. It starts randomly while driving normaly, and doesn't go off till I turn off the car. My speedometer line came loose while driving earlier so I think that might be it but want to be sure before I disregard the sound. This thing has given me enough trouble I'm about ready for that LS1 swap and just do away with whatever may be wrong with this motor that I don't completely understand, but I would really rather stay with the smaller motor, cause that's more what I'm into and love turbos and whatnot. Thanks in advance for any help offered.
Reply
Old Jan 18, 2006 | 01:46 AM
  #2
bcool's Avatar
Rest In Peace Dave
Tenured Member 15 Years

Joined: Feb 2004
Posts: 1,347
Likes: 1
From: Idaho
what kind of beep is it
like: - - - - two beeps pause two beeps (edit: wont let me put a space between my lines
or: _ _ _ _ constant beep
Reply
Old Jan 18, 2006 | 02:09 AM
  #3
rx7idgit's Avatar
Thread Starter
Full Member
Tenured Member 10 Years

Joined: May 2005
Posts: 153
Likes: 0
From: College Station, Tx
constant like beep...beep...beep...beep...etc.
Reply
Old Jan 18, 2006 | 02:44 AM
  #4
Kai's Avatar
Kai
Rotorphile.
Tenured Member 05 Years

Joined: Mar 2002
Posts: 1,296
Likes: 0
From: Richmond/NoVA
You want to swap over to a chevy engine just because you don't understand the car? Jesus, I wish smallblock swap kits didn't exist for this chassis, they give idiots an exuse to run away.

That said, dumping in a domestic engine probably won't fix the problem, it sounds like a wiring bug to me.
Reply
Old Jan 18, 2006 | 03:00 AM
  #5
rick_tj's Avatar
Rotary Enthusiast
Tenured Member 05 Years

Joined: Mar 2005
Posts: 940
Likes: 0
From: Ontario
Sounds like someone didn't read the FAQ....
Reply
Old Jan 18, 2006 | 05:47 AM
  #6
BlueTII's Avatar
Banzai Racing
Tenured Member 15 Years

Joined: Aug 2001
Posts: 2,632
Likes: 3
From: Indiana
It is most likely your power steering ECU. If it doesn't see a speed signal it will beep.
Reply
Old Jan 18, 2006 | 02:01 PM
  #7
rx7idgit's Avatar
Thread Starter
Full Member
Tenured Member 10 Years

Joined: May 2005
Posts: 153
Likes: 0
From: College Station, Tx
They said that I need a new throttle cable cause mine is broke, 190 installed. And they said that should make it stop beeping.
Reply
Old Jan 18, 2006 | 02:07 PM
  #8
DirkyDirka's Avatar
Rotary enthusiast
Tenured Member 05 Years

Joined: Dec 2005
Posts: 378
Likes: 0
From: Yuba city California
my car was beeeping but i found out it was cause i had no oil xD well low oil but ya so check that out too....everytime i turned it would beep then id go straight and itd stop sometimes >_> just an idea
Reply
Old Jan 18, 2006 | 02:29 PM
  #9
rx7idgit's Avatar
Thread Starter
Full Member
Tenured Member 10 Years

Joined: May 2005
Posts: 153
Likes: 0
From: College Station, Tx
it only does it after the car has been on for a while, and I check my oil every time I get gas... could be low oil pressure though, having that checked out too.
Reply
Old Jan 18, 2006 | 03:07 PM
  #10
Icemark's Avatar
Former Moderator. RIP Icemark.

Joined: Apr 2001
Posts: 25,896
Likes: 24
From: Rohnert Park CA
Please read the FAQ for FC sticky thread before posting. It has many of the commonly asked questions such as the one you started this thread with.

Again The following things can cause warnings in FC:

Power steering computer (see the FAQ for FC sticky thread for what the beeps mean)
Key in the ignition with the door open
Lights on and the door open
Over rev buzzer
Low oil buzzer
Low coolant buzzer.

Beeps generally are the power steering computer. Of course if you actually read the sticky threads at the top of this section then you might already know this. You would probably also know that without the speedo working, the power steering computer will beep an error code, as it does not know how fast the car is going.

And please sell the car now. If you are so clueless that you are ready to rip out the motor and stick a V8 in because you have a couple of beeps (that are not even related to the motor) then you need to get a different car... perhaps a Honda or Volkswagon would be a better choice as they are designed for the mass consumer.

Last edited by Icemark; Jan 18, 2006 at 03:09 PM.
Reply
Old Jan 18, 2006 | 03:39 PM
  #11
Chris Fraley's Avatar
Full Member
Tenured Member 05 Years

Joined: Aug 2004
Posts: 67
Likes: 0
From: LA, encino
I have a 5 beeps myself, if it annoys me too much i just disconnect the computer which disables my power steering but someitmes the beeps arnt worth it.

Reading the FAQ helped me find out what the beeps ment but i still dont know how to fix it, i've been told to it could be my steering wheel is misaligned but there are a few things that could be the cause of the beeps.

Find out exaclty how many times it beeps then go from there
Reply
Old Jan 18, 2006 | 03:42 PM
  #12
Icemark's Avatar
Former Moderator. RIP Icemark.

Joined: Apr 2001
Posts: 25,896
Likes: 24
From: Rohnert Park CA
Originally Posted by Chris Fraley
I have a 5 beeps myself, if it annoys me too much i just disconnect the computer which disables my power steering but someitmes the beeps arnt worth it.

Reading the FAQ helped me find out what the beeps ment but i still dont know how to fix it, i've been told to it could be my steering wheel is misaligned but there are a few things that could be the cause of the beeps.

Find out exaclty how many times it beeps then go from there
5 beeps does indicate the steering wheel has been mis-installed and the steering position sensor is not working correctly.

Do you have an aftermarket steering wheel on the car???
Reply
Old Jan 18, 2006 | 04:32 PM
  #13
rx7idgit's Avatar
Thread Starter
Full Member
Tenured Member 10 Years

Joined: May 2005
Posts: 153
Likes: 0
From: College Station, Tx
If I wanted a Honda or a Volkswagon then I would have gotten one, I,ve posted many problems I've had and now I found I need a tranny cause my shifting problem is being caused by bad syncros and bearings, and that is just a little bit discouraging considering how much I want to do to the car and how much I've spent on getting it running a way that I'm content with I'de had my front mount already.
Reply
Old Jan 19, 2006 | 01:54 AM
  #14
Chris Fraley's Avatar
Full Member
Tenured Member 05 Years

Joined: Aug 2004
Posts: 67
Likes: 0
From: LA, encino
Originally Posted by Icemark
5 beeps does indicate the steering wheel has been mis-installed and the steering position sensor is not working correctly.

Do you have an aftermarket steering wheel on the car???

Nope, its stock. I'm going to pull it off to see if its aligned right but i doubt anyone else would have pulled the stock wheel.
Reply
Old Jan 19, 2006 | 10:14 AM
  #15
Icemark's Avatar
Former Moderator. RIP Icemark.

Joined: Apr 2001
Posts: 25,896
Likes: 24
From: Rohnert Park CA
Originally Posted by Chris Fraley
Nope, its stock. I'm going to pull it off to see if its aligned right but i doubt anyone else would have pulled the stock wheel.
The most common thing is the position sensor bushing. What you are looking for is there is a round (about 1 inch dia) plastic bushing, that has two 3/16 inch tabs that stick up about a quarter inch or so. These pins that stick up, match up to the back of the steering wheel (or hub adapter if an aftermarket steering wheel is used).

Most often, the wheel gets removed, and when it gets reinstalled, the pins are not aligned with the holes in the back of the wheel. So then they get pushed/smushed down and press the whole bushing down against the position sensor jamming it and pushing it out of alignment. Then the power steering computer throws the error code, as it is only getting an intermittent signal as the bushing and sensor are out of alignment (and often the turn signals don't turn off as well after you complete a turn).

So that is what I would be looking at first.

If the wheel is aligned properlly with the position sensor bushing, then I would be looking at either a bad power steering CPU (if the turn signals do work fine), or a unplugged position sensor or a Bad position sensor (in that order).

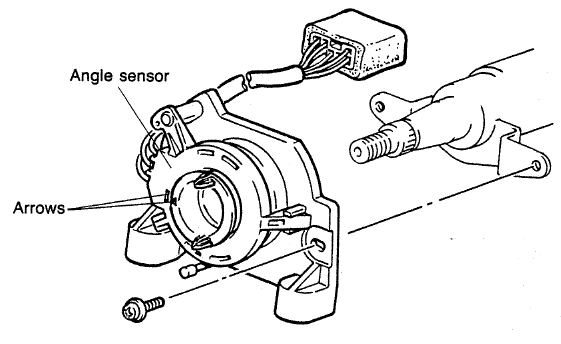

Here is a picture of the sensor. You can see the two tabs that I mention as well as the alignement location:
Attached Thumbnails beeping noise-fcpowersteeringpositionsensor.gif

Last edited by Icemark; Jan 19, 2006 at 10:52 AM.
Reply
Old Jan 19, 2006 | 10:27 AM
  #16
loquin23's Avatar
Full Member
Tenured Member 05 Years

Joined: May 2004
Posts: 193
Likes: 0
From: mount vernon
if you disconect the power stering computer will that stop the beeping? mine beeps to but my power steering dosent work anyways dont bother me though just another excuse to keep my girlfriend from driving my car.....lol but i hate the beeping
Reply
Old Jan 19, 2006 | 10:29 AM
  #17
Icemark's Avatar
Former Moderator. RIP Icemark.

Joined: Apr 2001
Posts: 25,896
Likes: 24
From: Rohnert Park CA
Originally Posted by loquin23
if you disconect the power stering computer will that stop the beeping? mine beeps to but my power steering dosent work anyways dont bother me though just another excuse to keep my girlfriend from driving my car.....lol but i hate the beeping
Yes, but unplugging it on a fuctioning system will disable the entire power steering system and add considerable wheel effort.
Reply
Old Jan 19, 2006 | 10:38 AM
  #18
loquin23's Avatar
Full Member
Tenured Member 05 Years

Joined: May 2004
Posts: 193
Likes: 0
From: mount vernon
the system is allready shot and drives just like there is no power stering anyways .. thanks icemark
Reply
