Bad OUTER coolant seal on rear iron...
#1
MECP Certified Installer
Thread Starter
Bad OUTER coolant seal on rear iron...
Never heard of it happening before really, but apparently, I have a pinhole leak on the rear iron outer coolant seal. I just happened to notice it yesterday. I would have never known had I not shined the flashlight down there. I have searched around and having found anything about outer seals leaking, except for maybe into the oil pan.

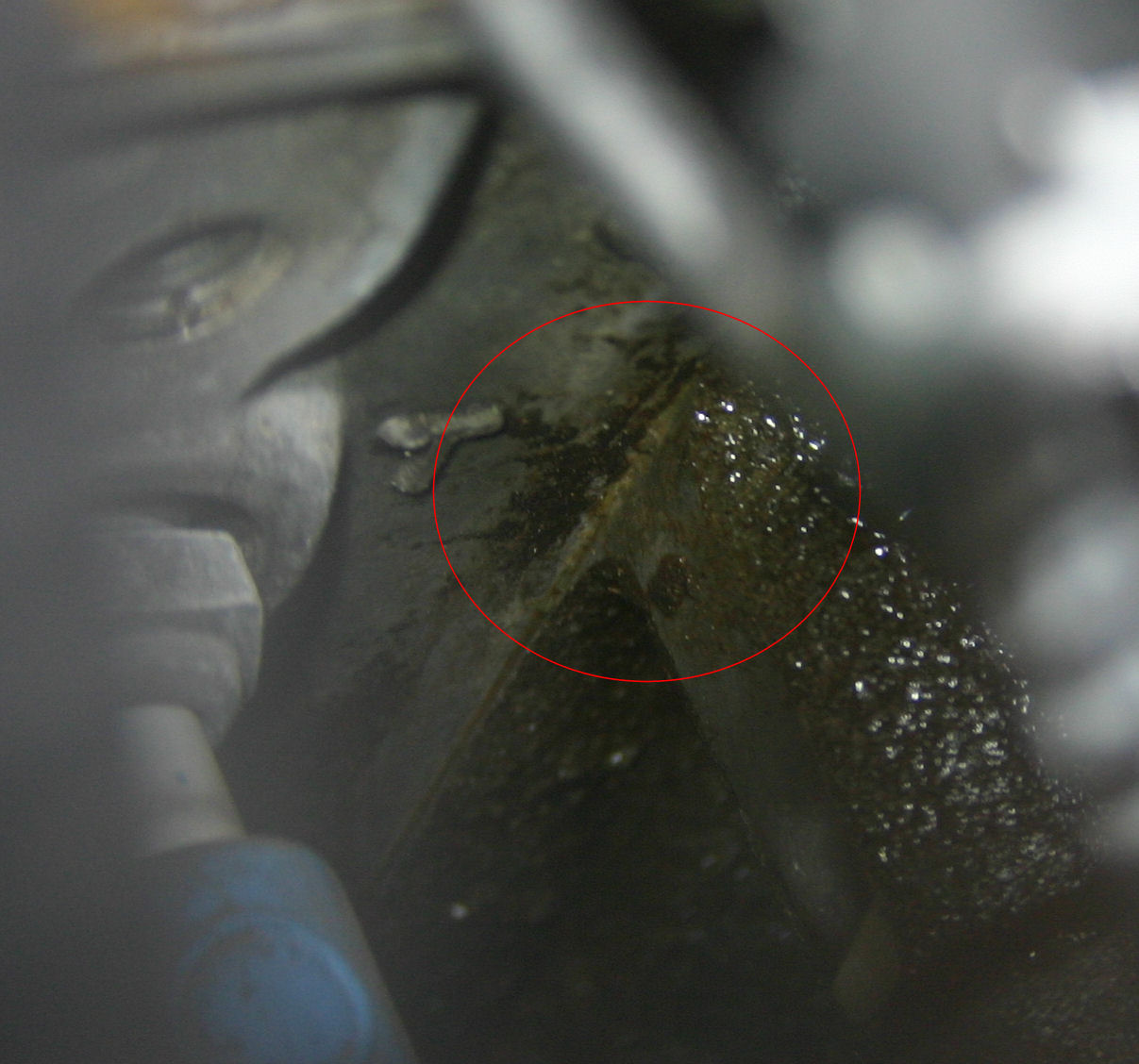

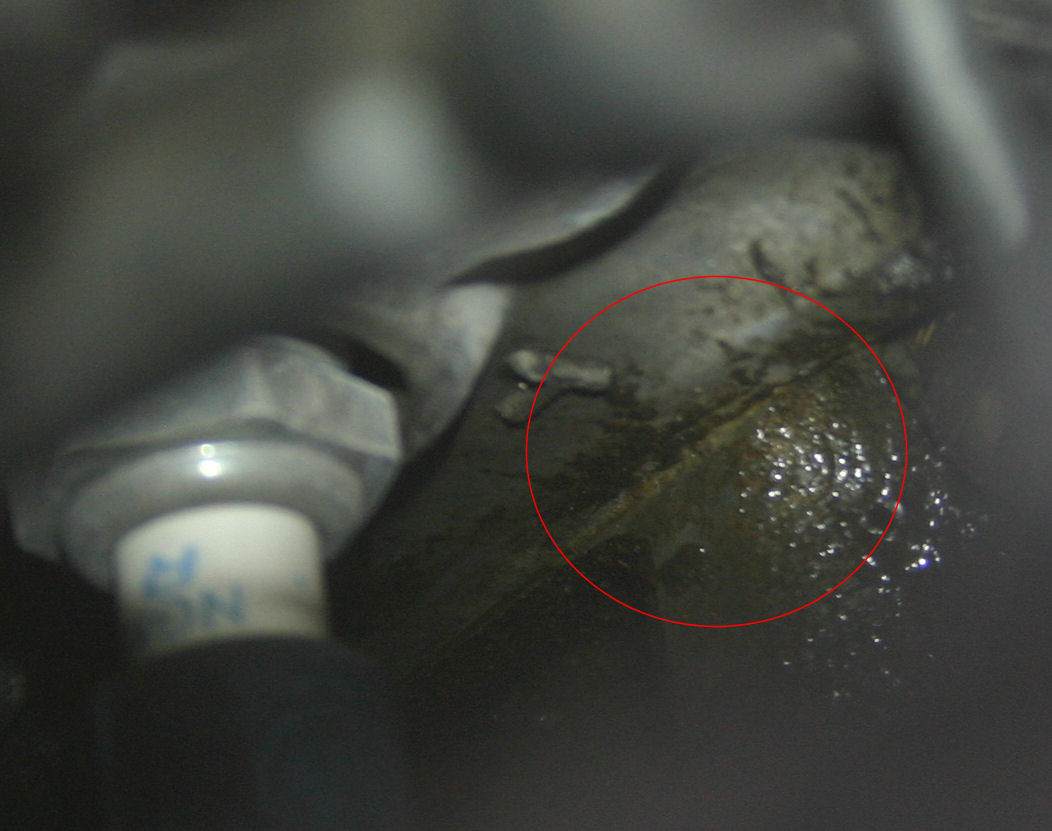

It seems to be leaking where the rotor housing and the rear iron meets the rear rotor housing, just to the side of the coolant temp guage sensor, under the filter pedestal. The whole reason I was down there was to clean all the crud off the motor so i could see how bad the filter pedestal was leaking.
I'll get some pics later, but it basically looks like a tear drop of green coolant...and that is after HEAVY driving.
My question is, is this an "OH MY GOD" big deal or just the signs of an aging motor. I'd like the motor to last me at least another year before I drop a new engine in it. Thoughts on stop leak since it seems to be so very small?
I am going to go drive the 7 around and get it nice and hot, then take pics.
It seems to be leaking where the rotor housing and the rear iron meets the rear rotor housing, just to the side of the coolant temp guage sensor, under the filter pedestal. The whole reason I was down there was to clean all the crud off the motor so i could see how bad the filter pedestal was leaking.
I'll get some pics later, but it basically looks like a tear drop of green coolant...and that is after HEAVY driving.
My question is, is this an "OH MY GOD" big deal or just the signs of an aging motor. I'd like the motor to last me at least another year before I drop a new engine in it. Thoughts on stop leak since it seems to be so very small?
I am going to go drive the 7 around and get it nice and hot, then take pics.
#4
MECP Certified Installer
Thread Starter
It is definately seeping. Like an eye dropper full of fluid after lots and lots of driving. This leak is almost impossibly small. I want to cuss and scream. I wish i could get better pics since it is so small, but all I have is an SLR and it doesn't fit between all of those hoses.
#6
MECP Certified Installer
Thread Starter
This fortunately is very tiny. Like I said, I would have found it unless I was cleaning and using a flashlight in the process.
Trending Topics
#8
MECP Certified Installer
Thread Starter
#10
MECP Certified Installer
Thread Starter
Essentially, yes. If I can make it okay until the holidays this year I'll be solid.
I am wondering if the oil pedestal leak could have caused this. The oil comes off the pedestal in the back and rolls down the seam where the rear iron and rear rotor housing meet. I would assume oil can get into that tiny crack and possibly swell the seal over time. Could also be the tension bolts I suppose. I had a seep at my water filler neck after I changed my radiator and putting a 1/2 lb. extra torque on the bolts stopped that. Who knows, it is just speculation.
I'll try to get some better shots tommorow just so folks can see it, and maybe go and inspect thier own vehicle for such a teeny tiny leak. It is stupid small.
I am wondering if the oil pedestal leak could have caused this. The oil comes off the pedestal in the back and rolls down the seam where the rear iron and rear rotor housing meet. I would assume oil can get into that tiny crack and possibly swell the seal over time. Could also be the tension bolts I suppose. I had a seep at my water filler neck after I changed my radiator and putting a 1/2 lb. extra torque on the bolts stopped that. Who knows, it is just speculation.
I'll try to get some better shots tommorow just so folks can see it, and maybe go and inspect thier own vehicle for such a teeny tiny leak. It is stupid small.
#11
Rotary Revolutionary
iTrader: (16)
Time to revive this thread, as I have not been able to find any others that deal with outer coolant seal "seepage".
I have this same leak as well as a leak between the center iron and both the front and rear housing at the spark plug level. There is also a leak between the center iron and the front housing right above the front primary injector.
Did the block sealer work? Which one did you use?
I have this same leak as well as a leak between the center iron and both the front and rear housing at the spark plug level. There is also a leak between the center iron and the front housing right above the front primary injector.
Did the block sealer work? Which one did you use?
