Anyone tried one of these nipples for boost gauge ?
02-11-09, 08:32 PM
#1
1.3 liter piston eater
Thread Starter
iTrader: (2)
Join Date: Nov 2005
Location: Cheyenne,WY
Posts: 382
Likes: 0
Received 0 Likes
on
0 Posts
Anyone tried one of these nipples for boost gauge ?
So I'm doing rats nest removal among many other upgrades this winter, and I'm wondering if any particular nipple on the intake manifold is better than others. With the rats nest gone I have many to choose from. I'm looking at the one in the pic below. It sits right between the two oil injection nozzles on the inside of the manifold. The other one I'm looking at is just below the subzero start thing on the inside of the manifold. Both are just about centered in the manifold. Or am I looking into this way too much, and should I stick with one of the available nipples on the throttle body ? My gauge right now is plumbed into a fitting that I drilled and tapped on the firewall side of the manifold, but at higher boost levels the gauge flutters and bugs the crap out of me.
02-11-09, 08:59 PM
#2
Senior Member
iTrader: (1)
Join Date: Oct 2007
Location: Nova Scotia, Canada
Posts: 568
Likes: 0
Received 0 Likes
on
0 Posts
The one between your oil injectors needs a line from the firewall side of the throttle body and if I understand its purpose properly it flosw air past the fuel injector nozel to help atomize the fuel better. I'm not sure if it will show vaccume on that nipple.
I don't believe you'll get anything off the sub-zero assist niples.
For a boost guage, just 'T' off the line that goes to your MAP sensor.
I don't believe you'll get anything off the sub-zero assist niples.
For a boost guage, just 'T' off the line that goes to your MAP sensor.
02-13-09, 01:00 AM
#5
1.3 liter piston eater
Thread Starter
iTrader: (2)
Join Date: Nov 2005
Location: Cheyenne,WY
Posts: 382
Likes: 0
Received 0 Likes
on
0 Posts
cool thanks for the info. I'd rather not "T" into any line if I don't have to. I just want a nice smooth signal going to my gauge without the flutter.
I figured if I said "nipples" I'd get somebody's input. LOL ha ha !!!
I figured if I said "nipples" I'd get somebody's input. LOL ha ha !!!
02-13-09, 08:11 AM
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Well, remove the boost sensor line and connect your gauge line to the nipple the boost sensor was connected to. Then start the engine and see if your gauge is still fluttering or not.
If it is, then you might just as well reinstall the boost sensor line and tee off it.

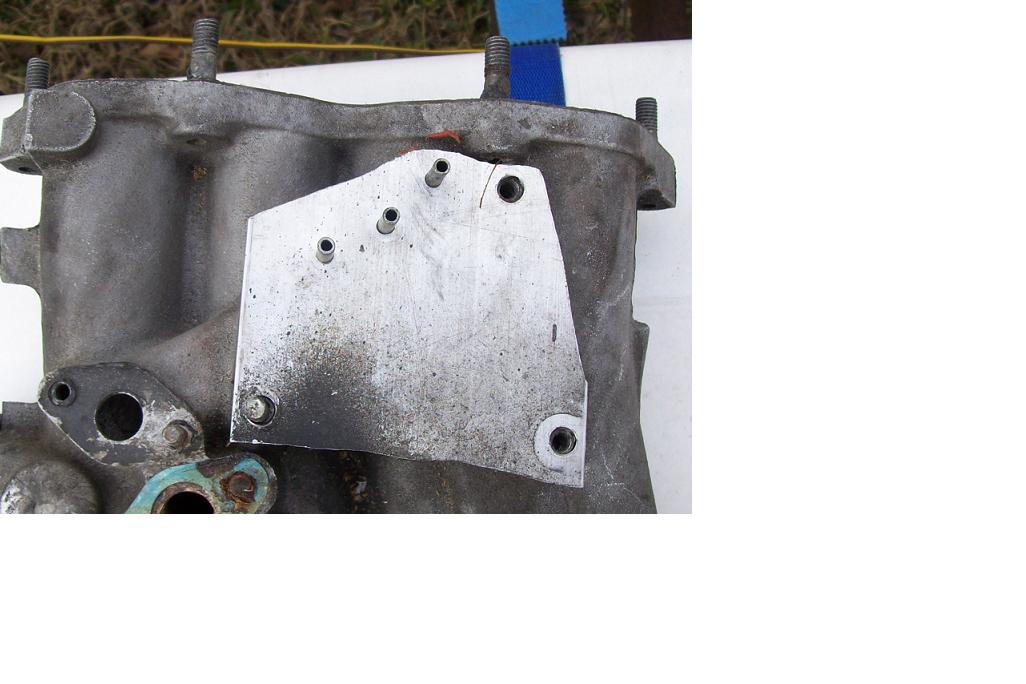

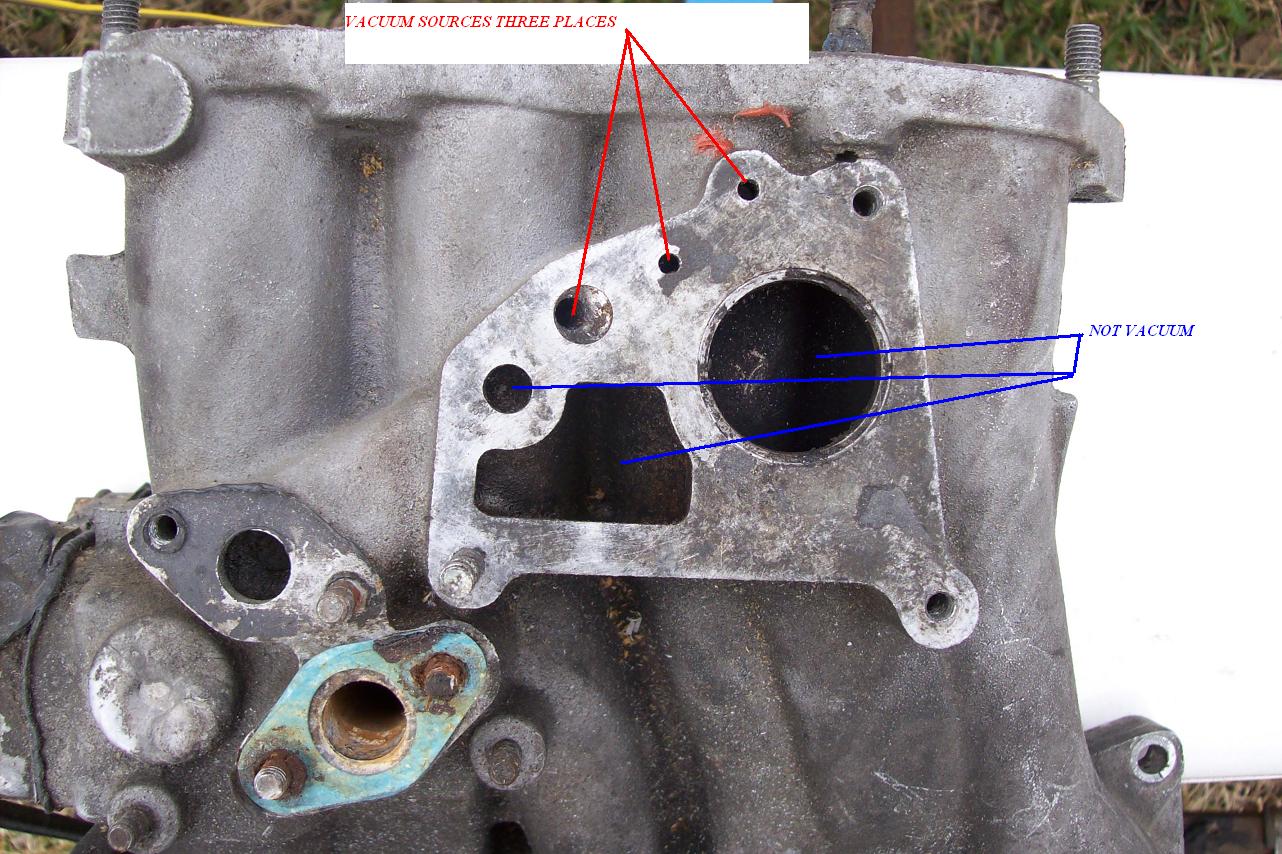

If you remove your ACV, then make a blockoff plate for it and add one to three vacuum nipples to it as shown the jpgs attached. You have to drill for the nipples in the places noted on the jpgs and have to use a gasket on your blockoff plate. Each of those nipples shown goes either to the front primary runner or the rear primary runner.

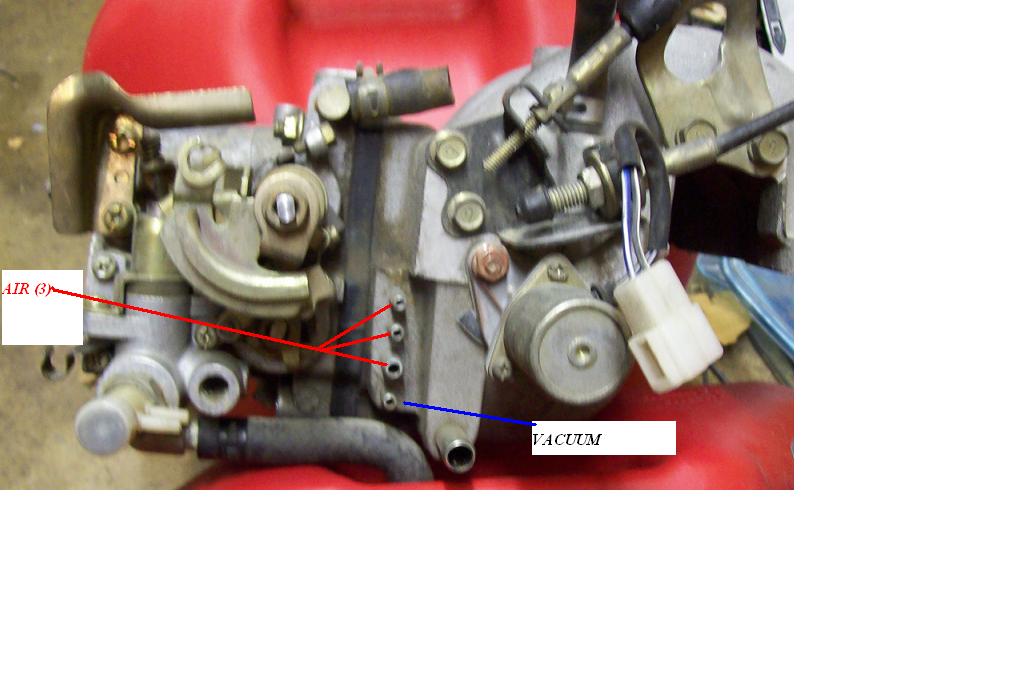

The last jpg shows the four nipples on the back of the throttle body. Only the bottom one will show boost and vacuum. Normally it's used for activating the double throttle diaphram thru a water thermo valve. So if you don't need/use double throttle diaphram, then use the bottom nipple for the gauge.
If it is, then you might just as well reinstall the boost sensor line and tee off it.
If you remove your ACV, then make a blockoff plate for it and add one to three vacuum nipples to it as shown the jpgs attached. You have to drill for the nipples in the places noted on the jpgs and have to use a gasket on your blockoff plate. Each of those nipples shown goes either to the front primary runner or the rear primary runner.
The last jpg shows the four nipples on the back of the throttle body. Only the bottom one will show boost and vacuum. Normally it's used for activating the double throttle diaphram thru a water thermo valve. So if you don't need/use double throttle diaphram, then use the bottom nipple for the gauge.
02-13-09, 11:01 AM
#7
187 RX7 Gone To Heaven
Join Date: Apr 2008
Location: Lakeland, Florida
Posts: 232
Likes: 0
Received 0 Likes
on
0 Posts
would the nipple in that same location but on the opposite side of the throttle body (facing the front of the car not the firewall) work?.. the nipple thats at the very bottom like that one is.
Trending Topics
02-13-09, 02:27 PM
#9
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

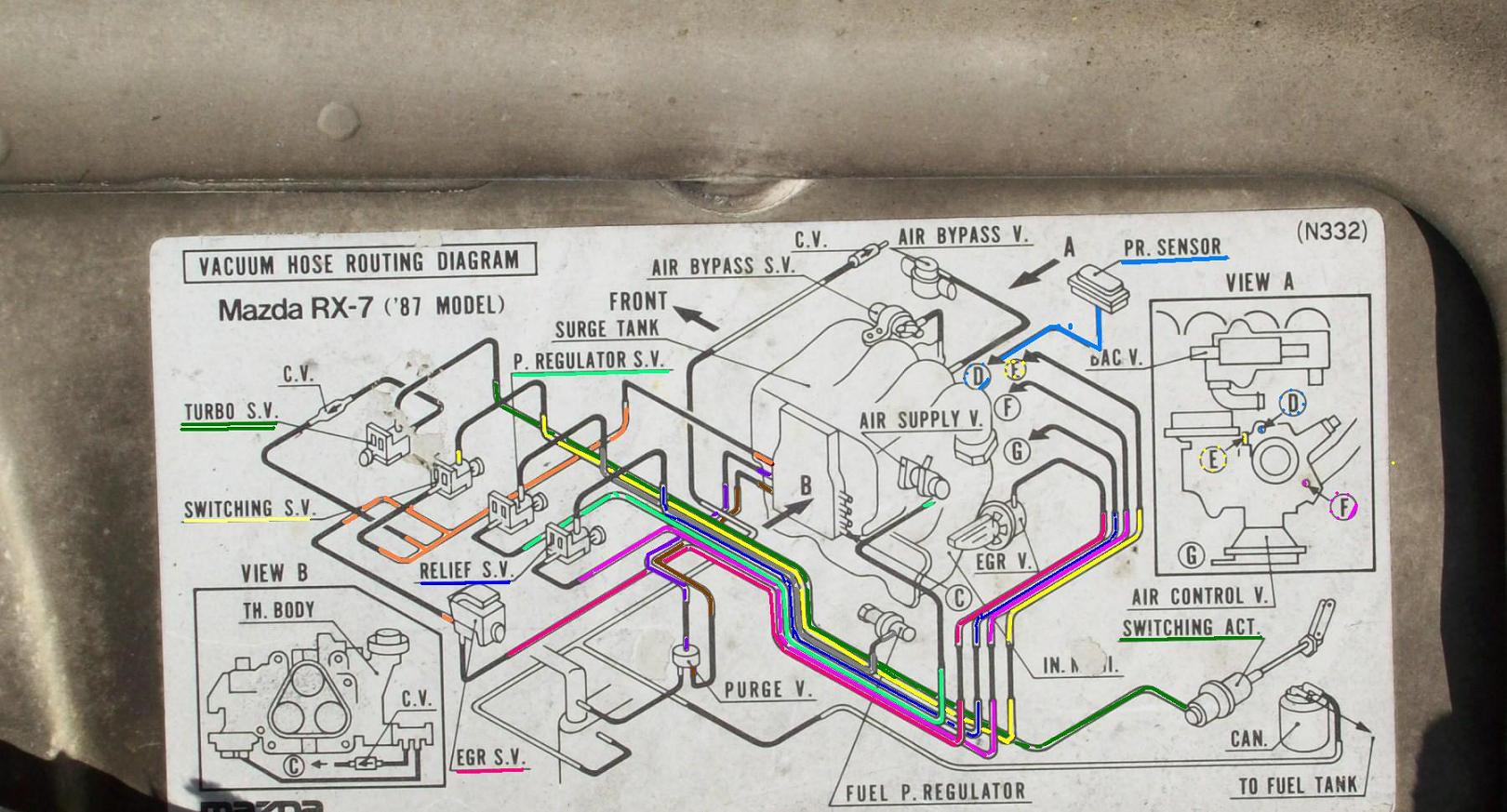

Like the decal off the hood of a turboII shows, the top front nipple is vacuum for the vacuum rack, but the other two *should *also work. Seems a long way to go for a gauge. Rear is closer.
Nobody should ever buy a ACV blockoff plate unless it has nipples on it. Boycott the ACV blockoff plate makers. They can't cut the mustard.
Nobody should ever buy a ACV blockoff plate unless it has nipples on it. Boycott the ACV blockoff plate makers. They can't cut the mustard.
02-13-09, 11:28 PM
#10
Senior Member
iTrader: (1)
Join Date: Oct 2007
Location: Nova Scotia, Canada
Posts: 568
Likes: 0
Received 0 Likes
on
0 Posts
Like the decal off the hood of a turboII shows, the top front nipple is vacuum for the vacuum rack, but the other two *should *also work. Seems a long way to go for a gauge. Rear is closer.
Nobody should ever buy a ACV blockoff plate unless it has nipples on it. Boycott the ACV blockoff plate makers. They can't cut the mustard.
Nobody should ever buy a ACV blockoff plate unless it has nipples on it. Boycott the ACV blockoff plate makers. They can't cut the mustard.
Oh dear god I hope i'm not turning into Ted...
02-14-09, 02:28 PM
#12
1.3 liter piston eater
Thread Starter
iTrader: (2)
Join Date: Nov 2005
Location: Cheyenne,WY
Posts: 382
Likes: 0
Received 0 Likes
on
0 Posts
Thanks HAILERS. That's what I was looking for. I've got no emissions with all block off plates. So i'll be adding a port or three to my block off plate. Thanks again.
05-17-09, 11:58 AM
#14
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The nipple in the middle is for the primary fuel injectors air bleed. Air is routed from BEFORE the throttle plates to that nipple. That nipple leads to passages that lead to the air bleeds below the primary fuel injectors.
The rotors on their intake stroke, pull air thru that nipple b/t the oil injectors and that air mixes with the fuel injected.
Almost the same thing happens with the top nipple on those two oil injectors. Air from before the throttle plates is routed to those nipples. When the rotor is on its intake stroke it pulls air thru those nipples to mix with the oil injected by the oil injectors.
Something like that.
05-17-09, 11:58 AM
#15
05-17-09, 12:09 PM
#16
The nipple in the middle is for the primary fuel injectors air bleed. Air is routed from BEFORE the throttle plates to that nipple. That nipple leads to passages that lead to the air bleeds below the primary fuel injectors.
The rotors on their intake stroke, pull air thru that nipple b/t the oil injectors and that air mixes with the fuel injected.
Almost the same thing happens with the top nipple on those two oil injectors. Air from before the throttle plates is routed to those nipples. When the rotor is on its intake stroke it pulls air thru those nipples to mix with the oil injected by the oil injectors.
Something like that.
The rotors on their intake stroke, pull air thru that nipple b/t the oil injectors and that air mixes with the fuel injected.
Almost the same thing happens with the top nipple on those two oil injectors. Air from before the throttle plates is routed to those nipples. When the rotor is on its intake stroke it pulls air thru those nipples to mix with the oil injected by the oil injectors.
Something like that.
05-17-09, 12:22 PM
#17
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
I don't have a jpg of the three one above the other. BUT I'm sure the bottom one is vacuum on either throttle body. Idle the engine warm someday and reach back there and pull the bottom line off and feel at the metal nipple for the suction/vacuum. I'd bet money on it that the bottom nipple on both throttle bodies is vacuum. The others of course are NOT vacuum.
05-17-09, 12:49 PM
#19

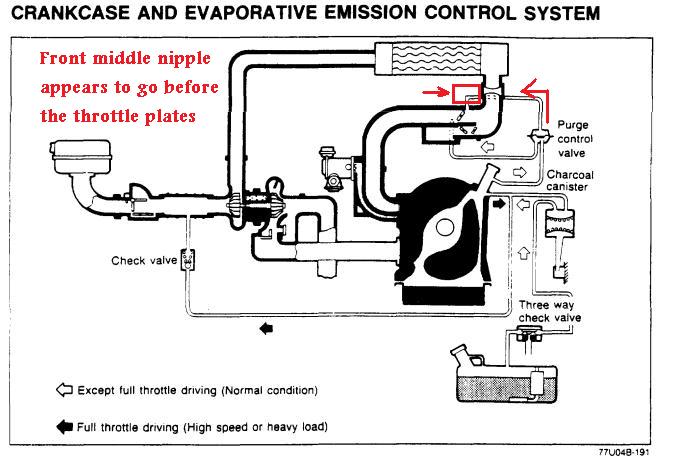

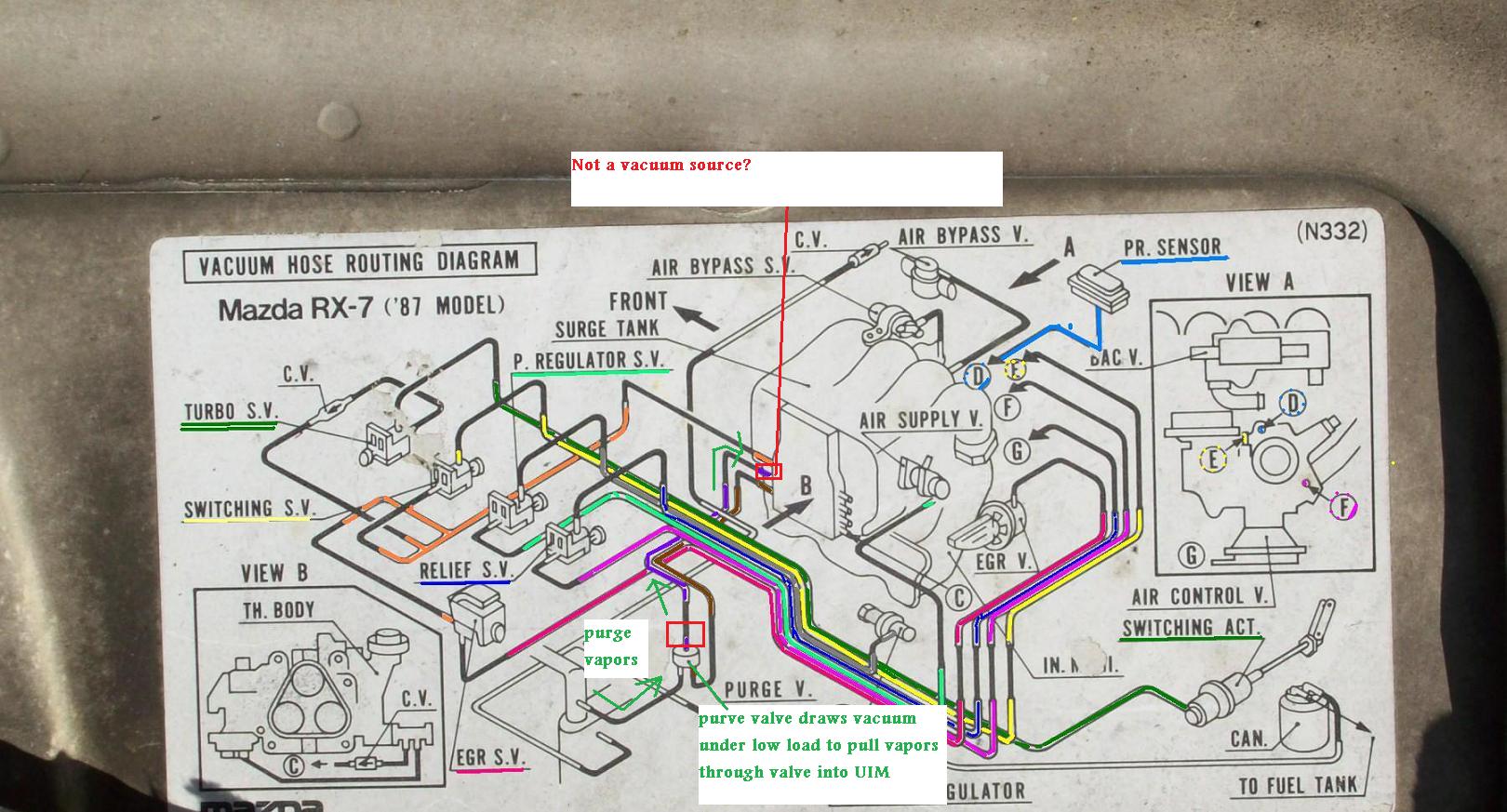

I am positive that the front bottom nipple is vacuum/boost. I run my GM MAP sensor off that. I suspect that the middle nipple on the front of the UIM is not a vacuum source and in fact goes before the throttle plates based on the FSM diagrams.
I am experimenting with hooking up my primary air bleeds to the one in question (and my secondary bleeds to the top rear nipple), so once I get my motor running we'll see if I'm correct.
I am experimenting with hooking up my primary air bleeds to the one in question (and my secondary bleeds to the top rear nipple), so once I get my motor running we'll see if I'm correct.
