Any downside to using 2 tralling coil packs instead of 1 of each?
#1
Learned alot | Alot to go
Thread Starter
iTrader: (2)
Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,232
Likes: 0
Received 0 Likes
on
0 Posts
Any downside to using 2 tralling coil packs instead of 1 of each?
Ok, i am going to be doing my engine swap and wiring in a wolfv4 starting sunday. On pg 44 of the instalation manual for the wolf it talks about multi-coil ignitions for rotary engines and there wiring. There is a side note mentioning that
"We (wolf) strongly recommend using one coil pack per sparkplug in all rotary applications. This is because of the high-energy requirement placed on ignition systems used on rotary engines. Dual Output coils, although having a high secondary voltage, are biased to one of their outputs, causing one output to have weaker spark than the other."
Just looking at the wiring diagram for 4 individual coil packs and the wiring on the coil's makes me belive that this would be an extra 2 min of wiring, so that I am not worried about
I was wondering though if there is a downside to using 2 trailing coil packs? Are they weaker than the leading coil pack etc?
-Jacob
"We (wolf) strongly recommend using one coil pack per sparkplug in all rotary applications. This is because of the high-energy requirement placed on ignition systems used on rotary engines. Dual Output coils, although having a high secondary voltage, are biased to one of their outputs, causing one output to have weaker spark than the other."
Just looking at the wiring diagram for 4 individual coil packs and the wiring on the coil's makes me belive that this would be an extra 2 min of wiring, so that I am not worried about
I was wondering though if there is a downside to using 2 trailing coil packs? Are they weaker than the leading coil pack etc?
-Jacob
#7
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
We already have one coil/ignitor per trailing spark plug, so I presume you mean replacing the leading coil with two seperate ones (thread title says trailing). I've seen many cars make a lot of power on the stock coils without probs, so unless you're aiming for really big power I wouldn't be too concerned.
Trending Topics
#8
Rotary Enthusiast
Join Date: Dec 2002
Location: Darwin, NT, Australia
Posts: 1,228
Likes: 0
Received 0 Likes
on
0 Posts
I guess it really depends on wether or not the Wolf V4 is setup for using two leading ignitors or one? Or has it got just one 'trigger' output that you can daisy chain external ignitors off? .. sorry i don't know squat about the Wolf ECU's..
If you have the option, you might aswell run dual leading ignitors/coils.. IMHO.
(having said that i'm running the stock leading coil.. )
If you have the option, you might aswell run dual leading ignitors/coils.. IMHO.
(having said that i'm running the stock leading coil.. )
#9
Lives on the Forum
1) I dunno how you're going to adapt the "trailing pack" to the leadings?
Do you realize that the trailing coil pack uses one signal channel and one toggle channel.
Does the Wolf3D has some kinda control to handle running the toggle on the leadings?
2) Running single coils on the leadings does not guarantee you retain the wastespark "far trailing" spark that cleans up the combustion chamber.
Does the Wolf3D explicitly state you keep this extra spark?
-Ted
Do you realize that the trailing coil pack uses one signal channel and one toggle channel.
Does the Wolf3D has some kinda control to handle running the toggle on the leadings?
2) Running single coils on the leadings does not guarantee you retain the wastespark "far trailing" spark that cleans up the combustion chamber.
Does the Wolf3D explicitly state you keep this extra spark?
-Ted
#10
Learned alot | Alot to go
Thread Starter
iTrader: (2)
Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,232
Likes: 0
Received 0 Likes
on
0 Posts
The online version of the manual i am quoting this from is here
http://wolfems.com/products/enginema...nstallshortcut
Pg's 44-45 (ill upload screenshots of the diagrams also)
From what i understand of wolf's wiring dagram, there is no 'toggle channel' output from wolf to either set of coils. Wolf simply runs one ING output to each coil (one to each trailing ignotor, and 1 to the leading pack)
Im pretty sure judging by the wiring diagram that i would retain the wastespark running 2 seperate coils because the ING output that goes the the leading coil is simply split and run to both seperate leading coils
Isnt the leading coil the duel output single coil? I only say that because the trailing coil is 2 seperate coils and the leading is one large unit. Am I wrong?
I have a feeling that there is a bunch of confusion as to what i am trying to so

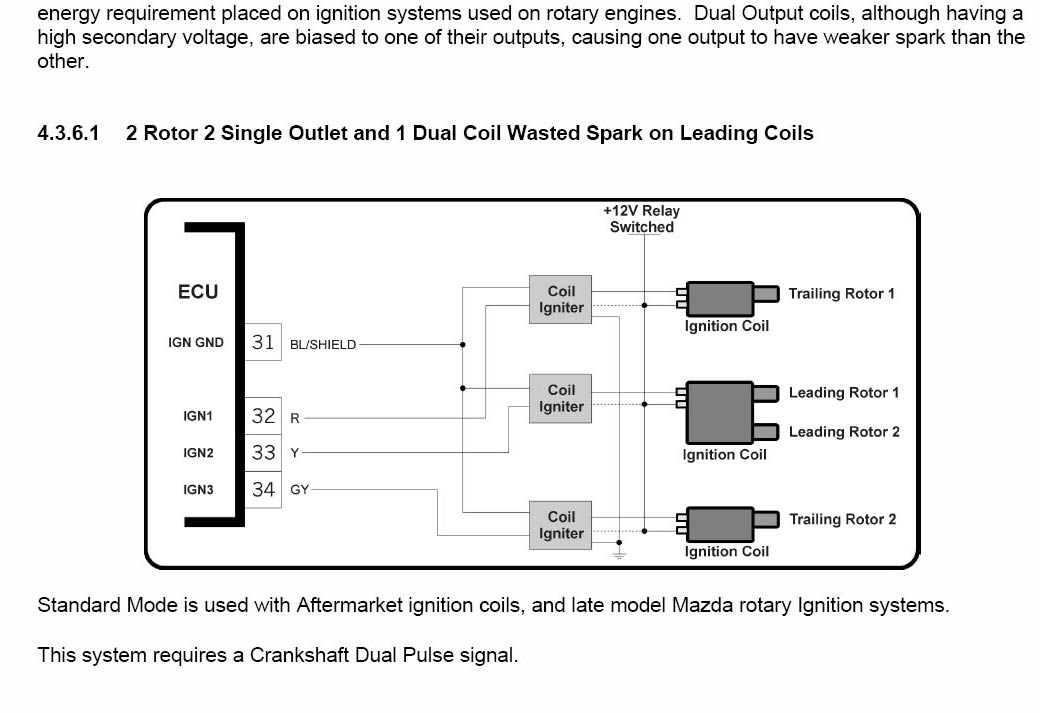

So the first attachment is what i would wire if i used the stock coil/ignitor configuration with the wolf

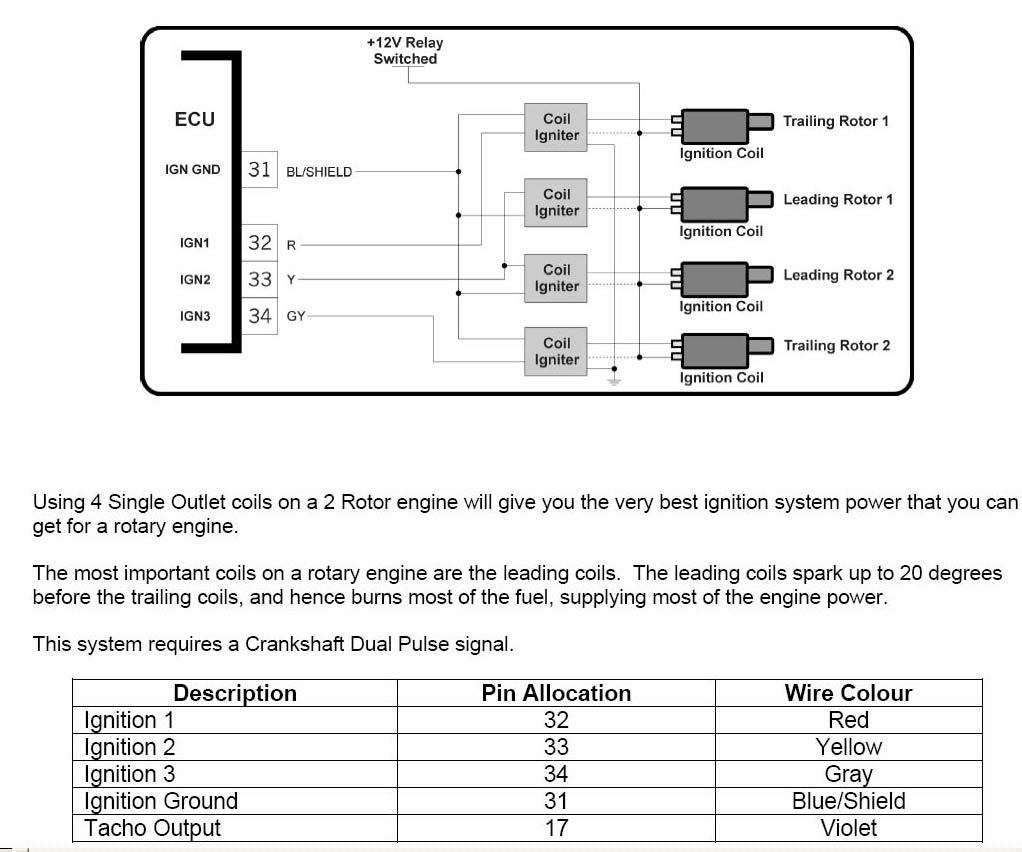

The second attachment is what I am wondering if i can do using 2 <b>TRAILING</b> coil packs. Again i say trailing because from looking at them visualy it looks as if the trailing is 2 seperate coil's, and the leading is one single coil with output's to both leading plug's
-Jacob
http://wolfems.com/products/enginema...nstallshortcut
Pg's 44-45 (ill upload screenshots of the diagrams also)
From what i understand of wolf's wiring dagram, there is no 'toggle channel' output from wolf to either set of coils. Wolf simply runs one ING output to each coil (one to each trailing ignotor, and 1 to the leading pack)
Im pretty sure judging by the wiring diagram that i would retain the wastespark running 2 seperate coils because the ING output that goes the the leading coil is simply split and run to both seperate leading coils
Isnt the leading coil the duel output single coil? I only say that because the trailing coil is 2 seperate coils and the leading is one large unit. Am I wrong?
I have a feeling that there is a bunch of confusion as to what i am trying to so
So the first attachment is what i would wire if i used the stock coil/ignitor configuration with the wolf
The second attachment is what I am wondering if i can do using 2 <b>TRAILING</b> coil packs. Again i say trailing because from looking at them visualy it looks as if the trailing is 2 seperate coil's, and the leading is one single coil with output's to both leading plug's
-Jacob
#11
Rotary Enthusiast
Join Date: Dec 2002
Location: Darwin, NT, Australia
Posts: 1,228
Likes: 0
Received 0 Likes
on
0 Posts
Ok basically you can´t use the trailing ´pack´ at all....
You could use the coils, but you need after market ignitors, probably bosch ones.
for the leading it would appear that you COULD use the stock ignitor/coil combo.
OR you could divide the signal, like i thought earlier, to power two seperate ignitors and two separate coils.
but for the trailing, since the wolf has two outputs, one for each coil you cannot use the stock trailing ignitor. You need two seperate ones.
You could use the coils, but you need after market ignitors, probably bosch ones.
for the leading it would appear that you COULD use the stock ignitor/coil combo.
OR you could divide the signal, like i thought earlier, to power two seperate ignitors and two separate coils.
but for the trailing, since the wolf has two outputs, one for each coil you cannot use the stock trailing ignitor. You need two seperate ones.
#12
Lives on the Forum
Originally Posted by CrackHeadMel
From what i understand of wolf's wiring dagram, there is no 'toggle channel' output from wolf to either set of coils. Wolf simply runs one ING output to each coil (one to each trailing ignotor, and 1 to the leading pack)
Isnt the leading coil the duel output single coil? I only say that because the trailing coil is 2 seperate coils and the leading is one large unit. Am I wrong?
It's called a "dual tower" coil, so it's a single input that fires off two spark plugs at the same time.
-Ted
#14
Lives on the Forum
Originally Posted by Kenteth
Can you guys just quickly correct me if I'm wrong, Leadings fire simulatnoisouly, and the trailing fire independantly. And... why?
That wastespark'd leading fires as a "far trailing", so each rotor face actually sees three sparks on combustion!
You can't do this with the trailings; if you did, the wastespark'd trailing will fire too early in the other rotor.
-Ted
#15
Learned alot | Alot to go
Thread Starter
iTrader: (2)
Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,232
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RETed
If this is true, you can't use the stock trailing toggle ignition coil pack at all?
https://www.rx7club.com/showpost.php...54&postcount=1
There are 2 wires to the trailing pack, im not thamliar with what these actualy go to 100% though so i cannot say 'its right'
Coils
IGN1 - RED Trailing Coil 1
IGN2 - YELLOW Leading Coil (1 & 2)
IGN3 - GREY Trailing Coil 2
Wolf Color ---------------- Mazda Color
RED-------------- RED Trailing Coil
GREY ----------- WHITE Trailing Coil
YELLOW ---------- RED Leading Coil
IGN1 - RED Trailing Coil 1
IGN2 - YELLOW Leading Coil (1 & 2)
IGN3 - GREY Trailing Coil 2
Wolf Color ---------------- Mazda Color
RED-------------- RED Trailing Coil
GREY ----------- WHITE Trailing Coil
YELLOW ---------- RED Leading Coil
As for the ignitors, this is the first i have hurd of needing an aftermarket ignitor for the trailing coil pack, I guess ill call around to find out about this. It doesnt mention that the wolf cannot use the pack anywhere in the manual. With the rotary specific diagram it gives with the leading and trailing packs, If it wasnt compadiable you would think they would mention something
-Jacob
#16
Like Ghandi with a gun
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RETed
You can't do this with the trailings; if you did, the wastespark'd trailing will fire too early in the other rotor.
-Ted
-Ted
#17
Rotary Enthusiast
Join Date: Dec 2002
Location: Darwin, NT, Australia
Posts: 1,228
Likes: 0
Received 0 Likes
on
0 Posts
CrackHeadMel, just call your wolf dealer that your bought the ECU from and ask them if your ECU is setup to fire the stock trailing ignitor/coil or two aftermarket ignitors/coils.
#18
Rotary Enthusiast
Join Date: Dec 2002
Location: Darwin, NT, Australia
Posts: 1,228
Likes: 0
Received 0 Likes
on
0 Posts
Okie with about 2secs of searching, "The only problem i can see is the ignitor, but thats an easy fix with the bosch 2 channel one. "
that was from 'Fatty_FC3S' in https://www.rx7club.com/forum/showthread.php?p=3359183 that thread.
that was from 'Fatty_FC3S' in https://www.rx7club.com/forum/showthread.php?p=3359183 that thread.
#20
Learned alot | Alot to go
Thread Starter
iTrader: (2)
Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,232
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by White_FC
Okie with about 2secs of searching, "The only problem i can see is the ignitor, but thats an easy fix with the bosch 2 channel one. "
that was from 'Fatty_FC3S' in https://www.rx7club.com/forum/showthread.php?p=3359183 that thread.
that was from 'Fatty_FC3S' in https://www.rx7club.com/forum/showthread.php?p=3359183 that thread.
Is that as specific as i need to be when i go to a parts counter? a bosch 2 channel ignitor?
-Jacob
#21
Learned alot | Alot to go
Thread Starter
iTrader: (2)
Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,232
Likes: 0
Received 0 Likes
on
0 Posts
NM, i found the wiring and the part number for the reccomended bosch ignitor
Its here on page 5
http://wolfems.com//freestyler/gui/f...20Tech%205.PDF
Its here on page 5
http://wolfems.com//freestyler/gui/f...20Tech%205.PDF
#23
Learned alot | Alot to go
Thread Starter
iTrader: (2)
Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,232
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by totallimmortal
this thread makes my head hurt
I wasnt able to find the ignitor. I went to VW and they had one similar however it had 2 plug's and 4 more spade connectors than the one reccomended. they also wanted $327. After that I went to the only auto parts store in my area that anybody knew that sold bosch ignitors. They were able to bring up listing for the reccomended bosch 200 however it was a special order and he couldnt get me a time frame, or a price untill it came in. He did however tell me it was a porsche ignitor and a porsche dealer might have one instock (i can only imagin how much that is going to be)
Being that I coulnt find the reccomended ignitor at a cost i can afford, can i run 2 single channel ignitors?
-Jacob
#24
Rotary Enthusiast
iTrader: (5)
Yes this is correct, you cant use the stock trailing ignitor. I called up Chris (wolfems dealer) and he told me to just disconnect mine for now and run just the leading, til I get an ignitor for my trailing.
I took the CAS out and was spinning it by hand and watching the sparks, the ones comming out of the leading coil were very strong and looked good. I had the tailing wired up same way as you would a haltech, but the spark was very very weak and wasnt as often as the leading spark.
Anyone see anything horribly bad about not running the trailing spark for now, while I get myself an ignitor? Chris told me its fine and they used to run them that way back in the day all the time.
I took the CAS out and was spinning it by hand and watching the sparks, the ones comming out of the leading coil were very strong and looked good. I had the tailing wired up same way as you would a haltech, but the spark was very very weak and wasnt as often as the leading spark.
Anyone see anything horribly bad about not running the trailing spark for now, while I get myself an ignitor? Chris told me its fine and they used to run them that way back in the day all the time.
#25
Learned alot | Alot to go
Thread Starter
iTrader: (2)
Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,232
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Net Seven
Yes this is correct, you cant use the stock trailing ignitor. I called up Chris (wolfems dealer) and he told me to just disconnect mine for now and run just the leading, til I get an ignitor for my trailing.
I took the CAS out and was spinning it by hand and watching the sparks, the ones comming out of the leading coil were very strong and looked good. I had the tailing wired up same way as you would a haltech, but the spark was very very weak and wasnt as often as the leading spark.
Anyone see anything horribly bad about not running the trailing spark for now, while I get myself an ignitor? Chris told me its fine and they used to run them that way back in the day all the time.
I took the CAS out and was spinning it by hand and watching the sparks, the ones comming out of the leading coil were very strong and looked good. I had the tailing wired up same way as you would a haltech, but the spark was very very weak and wasnt as often as the leading spark.
Anyone see anything horribly bad about not running the trailing spark for now, while I get myself an ignitor? Chris told me its fine and they used to run them that way back in the day all the time.
-Jacob
