Another Turbo Vacuum Q

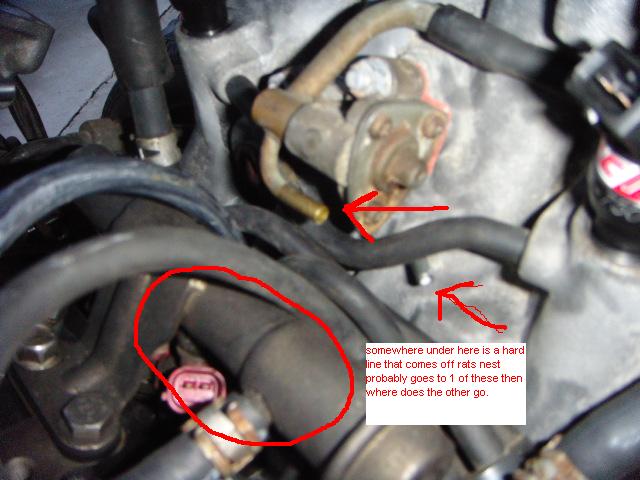

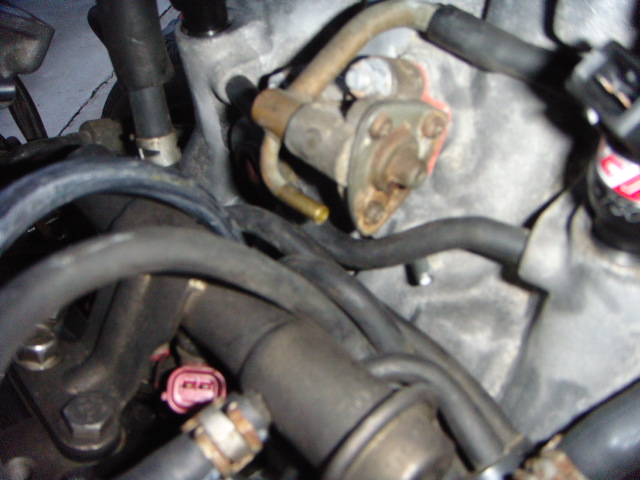

Ok hooking everything back up and I thought I took enough pics but I have a 3 lines I need to see where they go. I have the FSM I think 2 of the lines hook up to each other but the book is a little vague I dont have the routing under the hood. I looked at the entire FSM and could not find the part in the middle of the pic. there is the nipple right under it and i will post another pic but the 3rd is under the primary fuel rail its a hard metal line.
#5
Plan Golf
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: Savannah, GA
Posts: 227
Likes: 0
Received 0 Likes
on
0 Posts
yes the nipple on the LIM and the unit right above it where you can see a vacuum line once was also out of sight in the pic is a hard metal line coming off the rats nest near the primary injectors the car is all stock minus a couple things that dont effect this anyone that rebuilt a S5 TII engine should hopefully know what im looking for. Like I said before I have the FSM I cant find the part in the middle of the pic anywhere in the book.
Thanks
Thanks
#7
Plan Golf
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: Savannah, GA
Posts: 227
Likes: 0
Received 0 Likes
on
0 Posts
Think ur right I removed the coolant box but not that cause this is the 1st my engine has been out. I was looking in a 90 FSM and my car is an 89 I think by 90 they deleted that system also my JDM intake did not have it but I used the factory intake because it is ported to match the engine. thanks for the input I was racking my brain completely forgot about that subzero start system.
Thanks
Thanks
Trending Topics
#8
Plan Golf
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: Savannah, GA
Posts: 227
Likes: 0
Received 0 Likes
on
0 Posts
Crack kills! I figured it all out Im now a vacuum routing god. Had to slow down and just look at the puzzle don't know why I didn't see it the first time.
Thanks to all that replied
Ed
Thanks to all that replied
Ed
