alternator upgrade
#1
mmm doritos
Thread Starter
iTrader: (4)
Join Date: Apr 2006
Location: lancaster PA
Posts: 2,107
Likes: 0
Received 0 Likes
on
0 Posts
alternator upgrade
im looking to upgrade my S4 alt due to some mods...i need something big! im debating on using the FD alt or a big GM one wire alt,what do you guys reccomend? ive heard alot about the FD alt but not much on the GM one wire
#3
Rotary Freak
Join Date: Dec 2006
Location: New Hampshire
Posts: 1,791
Likes: 0
Received 0 Likes
on
0 Posts
FD alt you will need to run one new wire from the battery and try to get a pulley and spacer machined to fit on the FD shaft. You can usually find these on ebay. I think 2 members sell them too.
I would keep the 3 wire system so you will know when the alternator fails.
I would keep the 3 wire system so you will know when the alternator fails.
#5
Originally Posted by RotaMan99
FD alt you will need to run one new wire from the battery and try to get a pulley and spacer machined to fit on the FD shaft. You can usually find these on ebay. I think 2 members sell them too.
I would keep the 3 wire system so you will know when the alternator fails.
I would keep the 3 wire system so you will know when the alternator fails.
i am looking to fit an E fan so was going to fit an FD alt, why do i need to replace the wire to the battery?, is it too small?
I have put my battery in the boot and used a junction box in the engine bay, the wire going to the battery from the engine bay to the battery is 0 gauge so thats definately big enough, should i just replace the wire from the feed peg on the alternator to the junction box.?
What size do people recomend?
#6
Rotaries confuse me
iTrader: (7)
You don't need to replace the battery. I think you misread.
This may also help. https://www.rx7club.com/2nd-generation-specific-1986-1992-17/fd-alt-question-605711/
This may also help. https://www.rx7club.com/2nd-generation-specific-1986-1992-17/fd-alt-question-605711/
#7
Originally Posted by My5ABaby
You don't need to replace the battery. I think you misread.
This may also help. https://www.rx7club.com/showthread.php?t=605711
This may also help. https://www.rx7club.com/showthread.php?t=605711
who said the battery needs replacing?, someone mentioned a new wire, is this an additional wire or replacing an old one.
Trending Topics
#8
mmm doritos
Thread Starter
iTrader: (4)
Join Date: Apr 2006
Location: lancaster PA
Posts: 2,107
Likes: 0
Received 0 Likes
on
0 Posts
^ stop hijacking my thread.... I have quite a few mods that i know will be way to much for the stock S4 alt. i have a black magic E-fan that pulls 3300 CFM and also crazy amounts of juice, aftermarket stereo system,custom upgraded headlights and meth injection pump..
#10
Winter sucks
Join Date: Jan 2004
Location: Newberg, Oregon
Posts: 3,083
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by My5ABaby
What "mods"? Depending, just use the FD alt. I'm not sure about the GM one, but the FD is pretty much just a drop in.
#15
Winter sucks
Join Date: Jan 2004
Location: Newberg, Oregon
Posts: 3,083
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Soma
Take your stock alt to an electrical shop and have it rewound!
They can easily bump up the amperage!
They can easily bump up the amperage!
#18
Winter sucks
Join Date: Jan 2004
Location: Newberg, Oregon
Posts: 3,083
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Soma
If I remember right, the shop I went to said they would do it for a little over $100. I remember it being close to the cost of a new stock alt.
#19
Rotaries confuse me
iTrader: (7)
Originally Posted by micaheli
I think there's more to it than just dropping it in.. you need to find a pulley that fits.. and you need either an S5 or FD harness plug to retro onto the S4.. but I suppose you said 'pretty much'.
#21
Winter sucks
Join Date: Jan 2004
Location: Newberg, Oregon
Posts: 3,083
Likes: 0
Received 0 Likes
on
0 Posts
Which pulley to get is the hard part.... gotta raid the junk-yard. There's a good alternator write-up on nopistons: http://www.nopistons.com/forums/inde...howtopic=41986
Pretty good info.... and I don't think the thread is done yet.
Pretty good info.... and I don't think the thread is done yet.
#22
Rotary Freak
Join Date: Dec 2006
Location: New Hampshire
Posts: 1,791
Likes: 0
Received 0 Likes
on
0 Posts
why do i need to replace the wire to the battery
#23
Turbo Waggin
iTrader: (5)
Join Date: Sep 2004
Location: El Segundo Sunny State
Posts: 1,166
Likes: 0
Received 0 Likes
on
0 Posts

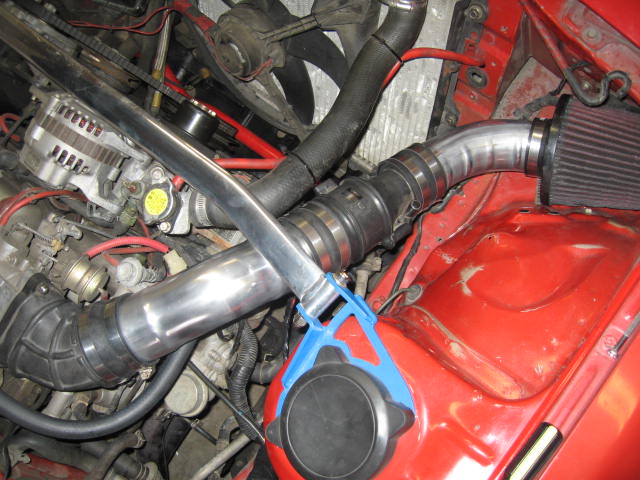

as far as fitment goes, anyone have an experience with the FD alt mod in conjunction with a strut tower bar? is there sufficient room for this upgrade to the larger alternator? or am i assuming it bigger than it really is?
#24
Rotary Freak
Join Date: Dec 2006
Location: New Hampshire
Posts: 1,791
Likes: 0
Received 0 Likes
on
0 Posts
I think this depends on the strut brace its self. I had one off of ebay a few years back and the alt would touch the bar. This was slightly fixed with shorter belts. If you can find a strut bar the goes in front of the alt, you are better off, mind went above it. I don't have it anymore.
#25
Turbo Waggin
iTrader: (5)
Join Date: Sep 2004
Location: El Segundo Sunny State
Posts: 1,166
Likes: 0
Received 0 Likes
on
0 Posts
I think this depends on the strut brace its self. I had one off of ebay a few years back and the alt would touch the bar. This was slightly fixed with shorter belts. If you can find a strut bar the goes in front of the alt, you are better off, mind went above it. I don't have it anymore.
Also, has anyone done this using a serpantine belt instead of the double skinnys?
