Two more things:
- Why are you so hung up on exhaust temps? Lower EGT's do not always equate to more power.
- I have EGT (with record capability and peak) and 100% denatured alcohol on my Stealth. I've done testing from 431 cc/min up to 883 cc/min keeping AFR's at 11.5:1 solid on 94 octane fuel. As I progressively ramp up the amount of alcohol injected my EGTs continue to drop. Care to comment?
- Why are you so hung up on exhaust temps? Lower EGT's do not always equate to more power.
- I have EGT (with record capability and peak) and 100% denatured alcohol on my Stealth. I've done testing from 431 cc/min up to 883 cc/min keeping AFR's at 11.5:1 solid on 94 octane fuel. As I progressively ramp up the amount of alcohol injected my EGTs continue to drop. Care to comment?
#102
Super Raterhater
iTrader: (6)
Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,624
Likes: 0
Received 2 Likes
on
2 Posts
EGT's give you a better idea of what's going on inside the chamber than the intake before it, which is why EGT's would prove useful here, considering with enough alcohol EGT's can raise, thus why we asked for it rather than intake.
#104
Senior Member
Join Date: Nov 2001
Location: Tucson, AZ. USA
Posts: 329
Likes: 0
Received 0 Likes
on
0 Posts
- Increased EGT's after changing AFR's, fuel type/quality, or timing are not necessarily indicative of more knock or (again) a loss of power.
- Show me an example of EGT's increasing with the addition of more alcohol at the same load point and overall AFR.
- Show me an example of EGT's increasing with the addition of more alcohol at the same load point and overall AFR.
#105
Super Raterhater
iTrader: (6)
Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,624
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by Trevor
- Increased EGT's after changing AFR's, fuel type/quality, or timing are not necessarily indicative of more knock or (again) a loss of power.
- Show me an example of EGT's increasing with the addition of more alcohol at the same load point and overall AFR.
- Show me an example of EGT's increasing with the addition of more alcohol at the same load point and overall AFR.
#106
ERTW
iTrader: (1)
Join Date: Oct 2002
Location: Ottawa, Canada
Posts: 4,328
Likes: 0
Received 0 Likes
on
0 Posts
lol, this is the most hostile and informative thread ever! haha
keep it coming, this is some great stuff though.
J-Rat does the alcohol injection have a tuneable duty cycle of sorts? or does it just spray some constant linear amount?
keep it coming, this is some great stuff though.
J-Rat does the alcohol injection have a tuneable duty cycle of sorts? or does it just spray some constant linear amount?
#107
Full Member
Join Date: Mar 2005
Location: Alton, Godfrey, & Macomb IL
Posts: 231
Likes: 0
Received 0 Likes
on
0 Posts
wouldn't everyone's location also affect EVERY aspect of this as well? alcohol might work better in more humid locations, whereas water injection would just make the air more thick? and im assuming that either would work well in arid climates? just some thoughts, but this is an amazing thread guys!
#108
I am 2Furious
Join Date: Sep 2004
Location: NJ / Philly
Posts: 846
Likes: 0
Received 0 Likes
on
0 Posts
"The effect of water on the induction charge will be somewhat greater in drier climates where more water can be evaporated into the air. However this should not be taken as an indication that it is not useful in more humid climates. Once the induction charge gets heated it will always have room to accept the evaporated water whether the initial relative humidity was high or low - and this evaporation will always absorb heat from the induction charge.
As the water absorbs heat the droplet sizes will decrease and the surface area of the water droplets will increase. Any additional volume from this reaction will be more than made up for by the reduction of the charge temperature and its resulting increased density. Water is not displacing the volume or weight of air in the induction charge and actually working to increase the volume and weight of air that reaches the cylinder. Sizeable droplets of water will reach the cylinder with significant heat absorbing potential intact."
source: www.waterinjection.info
As the water absorbs heat the droplet sizes will decrease and the surface area of the water droplets will increase. Any additional volume from this reaction will be more than made up for by the reduction of the charge temperature and its resulting increased density. Water is not displacing the volume or weight of air in the induction charge and actually working to increase the volume and weight of air that reaches the cylinder. Sizeable droplets of water will reach the cylinder with significant heat absorbing potential intact."
source: www.waterinjection.info
#109
Passing life by
Originally Posted by coldfire
J-Rat does the alcohol injection have a tuneable duty cycle of sorts? or does it just spray some constant linear amount?
#110
Originally Posted by coldfire
lol, this is the most hostile and informative thread ever! haha
keep it coming, this is some great stuff though.
J-Rat does the alcohol injection have a tuneable duty cycle of sorts? or does it just spray some constant linear amount?
keep it coming, this is some great stuff though.
J-Rat does the alcohol injection have a tuneable duty cycle of sorts? or does it just spray some constant linear amount?
I dont think its hostile.. At least not from my perspective. Everyone that has joined up has posted good information..
My injection is just a nozzle with a voltage controlled pump, as Iceblue has mentioned.
#112
I am 2Furious
Join Date: Sep 2004
Location: NJ / Philly
Posts: 846
Likes: 0
Received 0 Likes
on
0 Posts
Yup, I would definitely read it all the way through from beginning to end. My own knowledge of water injection increased by 100% through all the research I had to do to try to give water injection a good name.
#113
Interesting article on a Alchy powered projected 6 sec car..
http://www.gmhightechperformance.com...11htp_charged/
http://www.gmhightechperformance.com...11htp_charged/
the most common means to this end is some wild racing engine with an enormous bore and stroke running on high octane, leaded race fuel and at the edge of its limits; Sanchez wanted to go a different route. He wanted something that was cheaper to run and maintain, and also capable of producing maximum horsepower.
With this in mind Ray and Jamie Wagner of Performance Solutions put their heads together to develop one of the first fuel injected engines to use alcohol as the main fuel source.
With this in mind Ray and Jamie Wagner of Performance Solutions put their heads together to develop one of the first fuel injected engines to use alcohol as the main fuel source.
#114
Some interesting info on why using alcohol tends to get FCs through emissions:
Blending Alcohol and Gasoline
Mixing alcohol with gasoline produces gasohol. Advantages of fuel blends are that alcohol tends to increase the octane rating, which is particularly important in unleaded fuel, and reduce carbon monoxide (CO) emissions from the engine.
The primary disadvantage of mixing methyl and ethyl alcohol with gasoline is that under certain conditions these alcohols may separate from the gasoline. An engine adjusted to burn gasoline efficiently will produce less power from alcohol should it separate from the gasoline. Separation is caused by the polar nature of the alcohol molecules and their tendency to absorb water, also a polar substance. Methyl alcohol is the most likely to separate, butyl alcohol the least likely. The tendency for separation increases as the temperature decreases, the quantity of water absorbed increases, and the quality of the gasoline decreases.
My head hurts...
All I can definately say, is that pure water is not as prevalent as it used to be (based on research), and that the 50/50 or 70/30 alcohol/water seems to be the standard. I couldnt find any comparison between the blend and straight alcohol.
But hey, it works on my car!!..
Good night all! Round 3 tomorrow?
Blending Alcohol and Gasoline
Mixing alcohol with gasoline produces gasohol. Advantages of fuel blends are that alcohol tends to increase the octane rating, which is particularly important in unleaded fuel, and reduce carbon monoxide (CO) emissions from the engine.
The primary disadvantage of mixing methyl and ethyl alcohol with gasoline is that under certain conditions these alcohols may separate from the gasoline. An engine adjusted to burn gasoline efficiently will produce less power from alcohol should it separate from the gasoline. Separation is caused by the polar nature of the alcohol molecules and their tendency to absorb water, also a polar substance. Methyl alcohol is the most likely to separate, butyl alcohol the least likely. The tendency for separation increases as the temperature decreases, the quantity of water absorbed increases, and the quality of the gasoline decreases.
My head hurts...
All I can definately say, is that pure water is not as prevalent as it used to be (based on research), and that the 50/50 or 70/30 alcohol/water seems to be the standard. I couldnt find any comparison between the blend and straight alcohol.
But hey, it works on my car!!..
Good night all! Round 3 tomorrow?
Last edited by J-Rat; 07-19-05 at 11:53 PM.
#115
I am 2Furious
Join Date: Sep 2004
Location: NJ / Philly
Posts: 846
Likes: 0
Received 0 Likes
on
0 Posts
bring it!
actually, I think most of the argument when just considering using cooling to reduce knock has been dealt with, since it's probably the most easily understood and therefore debated well. All that remains in my eyes is exact equations and numbers (maybe from a SAE paper? which i'm not willing to pay for) for info on when water and methanol reach their limits. Also, more info on the effect of extra heat from burning methanol. For now, without raw data, I can only speculate. And I speculate that their effect is only seconday to the cooling factor. Maybe more info detailing how water and methanol each affect the actual combustion process. That would be interesting as well.
actually, I think most of the argument when just considering using cooling to reduce knock has been dealt with, since it's probably the most easily understood and therefore debated well. All that remains in my eyes is exact equations and numbers (maybe from a SAE paper? which i'm not willing to pay for) for info on when water and methanol reach their limits. Also, more info on the effect of extra heat from burning methanol. For now, without raw data, I can only speculate. And I speculate that their effect is only seconday to the cooling factor. Maybe more info detailing how water and methanol each affect the actual combustion process. That would be interesting as well.
#116
Full Member
Join Date: Jan 2005
Location: Los Angeles
Posts: 115
Likes: 0
Received 0 Likes
on
0 Posts
Tuning is sort of an art. My tuner tuned the system for around 11.5 or so AFR, which is relatively safe on Alcohol, of course you have to reduce the amount of fuel in order to allow the alcohol to balance the mix.
and when you said it cleans out the carbons, so if i had a newly rebuilt engine, then it would always be clean?
sorry if they're newby questions i just wanted to get that strait.
#117
I am 2Furious
Join Date: Sep 2004
Location: NJ / Philly
Posts: 846
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by FCsForMe
so does this mean that i can save gas and have the same power?
and when you said it cleans out the carbons, so if i had a newly rebuilt engine, then it would always be clean?
sorry if they're newby questions i just wanted to get that strait.
and when you said it cleans out the carbons, so if i had a newly rebuilt engine, then it would always be clean?
sorry if they're newby questions i just wanted to get that strait.
If you're using methanol injection, then you need to turn down the gas even more, since methanol is itself a fuel, resulting in even greater gas savings, but you pay for it in methanol, so it's actually much more expensive.
And yes, your new engine will always be clean. On old engines with carbon deposits, you always run the risk of dislodging these deposits the first time you run water injection, but after that your car will be fine.
Last edited by gingenhagen; 07-20-05 at 01:41 AM.
#118
I am going to make a point here:
Straight water wont allow you to turn down the gas any signifigant amount. Alcohol and methanol will allow you to turn down the gas signifigantly. I could show you if I could post a screen shot of my Haltech Maps.
Reason being is that water isnt a substitute for fuel, but alcohol or a mixture of water and alcohol, or meth, or a mix, etc... can be substituted for small amounts of fuel.
So yeah, when I am spraying I am actually saving gas.. sort of.. Might explain why I get 20 MPG on a big turbo setup/12 sec car?
Straight water wont allow you to turn down the gas any signifigant amount. Alcohol and methanol will allow you to turn down the gas signifigantly. I could show you if I could post a screen shot of my Haltech Maps.
Reason being is that water isnt a substitute for fuel, but alcohol or a mixture of water and alcohol, or meth, or a mix, etc... can be substituted for small amounts of fuel.
So yeah, when I am spraying I am actually saving gas.. sort of.. Might explain why I get 20 MPG on a big turbo setup/12 sec car?
#119
Haven't we ALL heard this

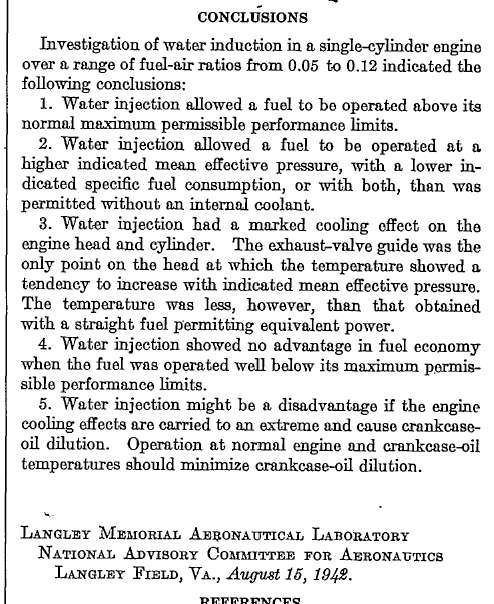

I have an old paper made up by NACA...
Here were the final conclusions... I have the whole thing if somebody wants to host it (1mb)
EDIT : Found where it is hosted... GREAT reading there
http://not2fast.wryday.com/NACA/
Here were the final conclusions... I have the whole thing if somebody wants to host it (1mb)
EDIT : Found where it is hosted... GREAT reading there
http://not2fast.wryday.com/NACA/
Last edited by Wankel7; 07-20-05 at 12:41 PM.
#120
I am 2Furious
Join Date: Sep 2004
Location: NJ / Philly
Posts: 846
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by J-Rat
I am going to make a point here:
Straight water wont allow you to turn down the gas any signifigant amount. Alcohol and methanol will allow you to turn down the gas signifigantly. I could show you if I could post a screen shot of my Haltech Maps.
Reason being is that water isnt a substitute for fuel, but alcohol or a mixture of water and alcohol, or meth, or a mix, etc... can be substituted for small amounts of fuel.
So yeah, when I am spraying I am actually saving gas.. sort of.. Might explain why I get 20 MPG on a big turbo setup/12 sec car?
Straight water wont allow you to turn down the gas any signifigant amount. Alcohol and methanol will allow you to turn down the gas signifigantly. I could show you if I could post a screen shot of my Haltech Maps.
Reason being is that water isnt a substitute for fuel, but alcohol or a mixture of water and alcohol, or meth, or a mix, etc... can be substituted for small amounts of fuel.
So yeah, when I am spraying I am actually saving gas.. sort of.. Might explain why I get 20 MPG on a big turbo setup/12 sec car?
some guy: "What's your mileage?"
you: "Infinity."
#122
Originally Posted by gingenhagen
You could get inifinite mpg if you started using so much alcohol that it completely replaced the gas. Hahaha.
some guy: "What's your mileage?"
you: "Infinity."
some guy: "What's your mileage?"
you: "Infinity."
#125
lots of good info here.
from what i have read im thinking that an alcahol\watter mix would be the best compromise.
but what about nitrous oxide?
if you are spraying the watter alcahol mix and then start spraying nitro would the nitrous freeze the watter as its entering the engine? does ice crystals + rotors=extra wear and tear?
also with the watter\alcahol doing its steam cleaning thing, keeping carbon off of everything should extra lube (2 stroke oil pre mix) be used?
from what i have read im thinking that an alcahol\watter mix would be the best compromise.
but what about nitrous oxide?
if you are spraying the watter alcahol mix and then start spraying nitro would the nitrous freeze the watter as its entering the engine? does ice crystals + rotors=extra wear and tear?
also with the watter\alcahol doing its steam cleaning thing, keeping carbon off of everything should extra lube (2 stroke oil pre mix) be used?
