Fc3s_d1jp

Should the car start if the AFM is disconnected?

Alex Rodriguez

iTrader: (137)

it might turn over from left over fuel in the lim but it will def not stay on

Fc3s_d1jp

Well that really makes me feel better!!! I'm almost 99% sure I messed up my AFM. And I was just trying to see if the car would start up with out it. And it doesn't, so I'm just trying to make sure something else isn't wrong with the car!!! I've been a week 3 days with out my car and it really sucks!! Xterra's are comfortable but there is nothing like driving an FC!!

Alex Rodriguez

iTrader: (137)

so what problems are you noticing ....reply back with the symptoms your are noticing when you try to turn her over..

Sideways7

iTrader: (7)

Generally it will fire up then immediately die if its unplugged.

Fc3s_d1jp

Crap!! Well I my pulsation dampner went out so I ended getting my injectors cleaned and hgot a banjo bolt. I ended up changing the vacuum hoses, and put a new gasket on and cleaned my motor. Well in the process I sprayed down my Afm with throttle body cleaner really bad. So i started her up and instantly the car ran like it had no power!! There were no vacuum leaks, the car was idling like as 300rpm. So my dum *** thought there was a leak maybe from injectors, or not enough pressure so i took everything off and made sure the injectors were correctly plugged into harness, then once more i sprayed down the afm!! and now it wont start at all!! So im guessing i f*** the afm up!!

Fc3s_d1jp

What was i thinking, I wasn't!!!

Fc3s_d1jp

It sounds just like it would normally start up, it just never catches.

Sideways7

iTrader: (7)

If it fires up fine then dies, then you most likely screwed up the afm. If determined that is your problem, I've got an s5 AFM for sale, it thats what you need.

mightymite

iTrader: (1)

i have a good s4 afm off a 86 gxl for sale

Fc3s_d1jp

I already got an AFM that should be coming in tomorrow, but thanks anyways.

Fc3s_d1jp

Well plugd in the new afm and the car still wont start wtf!!! what can I do??? how can i check if the fuel system is working???

vipers

iTrader: (8)

well, if everything worked the first time, then didnt the second time.. sounds like you just left something unplugged...

HAILERS

Simple.

Disable the fuel pump by disconnecting it's plug at the fuel pump.

Buy a can of Starter Fluid. Spray no more than three seconds into the intake snorkel (prior to the afm).

Start the car. If it starts and then dies each time you spray/start, then there's something wrong with the fuel system.

IF it does not start, then it isn't fuel that's giving you problems.

spot_skater

Make sure you've got spark, too.

Sideways7

iTrader: (7)

You sure the new one's good?

Fc3s_d1jp

I'm hoping so, the guy I bought it said he used it on his car until the engine went out, so i'm taking his word for it. What ways are ther to check for spark?

Fc3s_d1jp

By the way thanx for ya'lls help!

Fc3s_d1jp

Well there must be spark because I used the started fluid and the car started for a second.

Fc3s_d1jp

The only thing diffrent in my fuel system other than the banjo bolt mod are the cleaned injectors, and from what i hear the primaries and secondaries are the same.

Fc3s_d1jp

how can i test my afm? other than taking it to the dealer and getting charged $90!!!

spot_skater

There should be resistance checks in the FSM/Haynes manual for it. You'll need a DVOM or something equivalent to do them. Maybe the car is just really badly flooded? Have you tried to unflood it yet?

My5ABaby

iTrader: (7)

FSM.

spot_skater

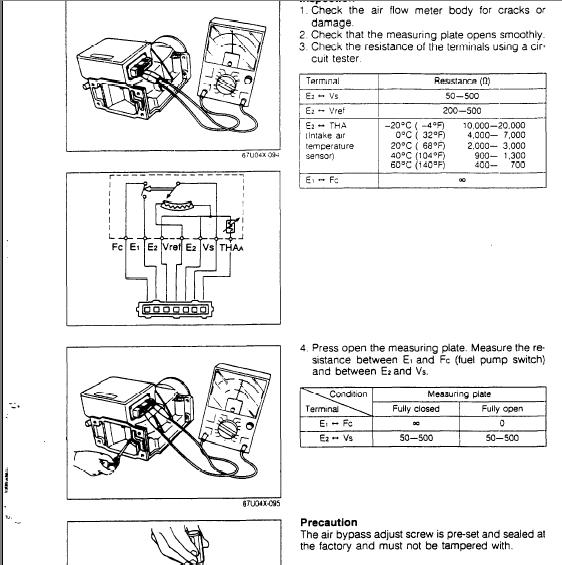

Here, this should help.

My5ABaby

iTrader: (7)

When will people learn that you can find what you need to know (percent of the time):

93% FSM
97% Searching
34% Outside Pages (Aaroncake, Rotaryressurection, etc.)
49% Haynes Manual

Yes, that's over 100%. Yes, I meant to do that.
