87FCna

iTrader: (3)

Im having some werid problems with this car. Its an gxl s5 here's the link to the car. https://www.rx7club.com/2nd-generation-rx-7-1986-1992-vehicles-108/1990-s5-na-gxl-black-black-1000101/

Here's a youtube video of the situation im having. Im thinking maybe a bad ground, trans or injectors related. I need help! I have no clue! btw terrible clip..

https://www.youtube.com/watch?v=Ozg-...e_gdata_player

Thanks,

satch

iTrader: (1)

Have you checked for error codes?

87FCna

iTrader: (3)

No codes....

87FCna

iTrader: (3)

Any help????

satch

iTrader: (1)

Can you rev the engine while in neutral just fine?

87FCna

iTrader: (3)

After warm up nope.

satch

iTrader: (1)

Did you 'physically' check for codes or did you just turn the key to on to check for codes?

87FCna

iTrader: (3)

I actually took it to aamaco.... 5 mins from my house

satch

iTrader: (1)

To check for codes all you have to do is find the Green check connector near the leading coil which has a single Orange wire. Ground this wire and w/key to on if there are any codes then they will be displayed. I rather doubt the business you took your car to knows how to pull codes as the method for doing so on your car does not match the method used on newer cars, which they are familiar with as it uses a completely different system. Physically checking for codes takes all but a minute or two to do and it would be suggested for you to spend these two minutes at most.

87FCna

iTrader: (3)

Display of codes?? How do i know what code goes to what?

satch

iTrader: (1)

RX7 FD & Series 5 Error Codes

CALPICO

iTrader: (4)

possibly an OMP failure and going into limp mode? no check engine lights? does it only do it when its warmed up or right from a cold start? if you pull the codes and code 26 or 27 come up, you need to change pumps or start running premix

87FCna

iTrader: (3)

How would long are the flashes usually? Like an "long flash" ... 5? ,10 sec? 1min? How long is a "short flash"?

satch

iTrader: (1)

A short flash is very quick and the longer flashes take longer. If you have a long flash followed by quick flashes then there will be a pause between the long flash and the short flash(es). Watch the vid for exercise.

87FCna

iTrader: (3)

Warm up or cold? Doesnt matter?

87FCna

iTrader: (3)

this video is confusing me, is this video showing me one code being repeated?

satch

iTrader: (1)

Oh Boy!!!!!!!!!!!!! It shows one long flash followed by two quick flashes which is a code 12. Then there is a pause then one long flash followed by a pause then seven quick flashes which is a code 17. Then a pause folllowed by one long flash, a pause, then 8 quick flashes which is a code 18. Then the whole process repeats one more time thus showing a 12,17 and 18 error codes.

87FCna

iTrader: (3)

Would an 8k reman motor omp go up?

satch

iTrader: (1)

All you have to do is check for error codes and it will tell you for it really is that simple.

87FCna

iTrader: (3)

Thanks satch!!

CALPICO

iTrader: (4)

reman motors dont come with reman OMPs...just saying. good luck with your bogging issue.

87FCna

iTrader: (3)

Where is the omps located?

CALPICO

iTrader: (4)

under the air pump, at the bottom of the motor. it should have 4 oil lines coming from it...

87FCna

iTrader: (3)

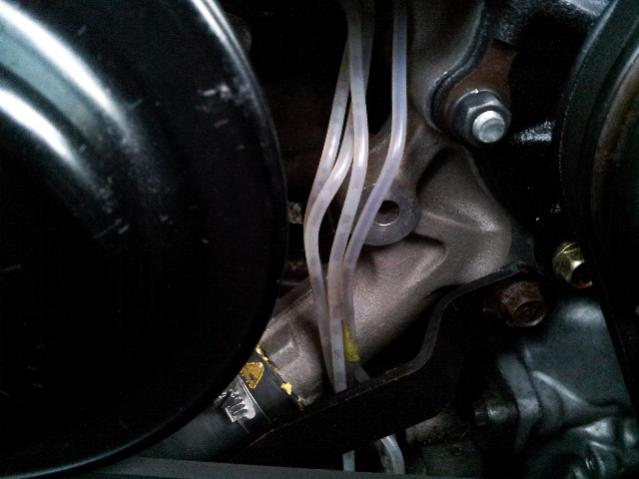

If you look at the lines.... There bigs air pockets & barley runs thru the lines. I assume omp went up causeing my ecu to act up, not allow
My car to revs fast or past 4k. & what type of wire should i use to pull up codes?


Any ideas??

satch

iTrader: (1)

Post #9.
