88 Turbo Throttle Body removal-coolant hose
#1
88 Turbo Throttle Body removal-coolant hose
Is there a trick to removing the coolant hose between the TB and engine? I think its holding me up for removing the TB. I'm not sure I even see it? Looks like a hose under there with the clamp inaccessible. Any pointers??
#4
Moderator
iTrader: (1)
Look at pic #4 in the link below. Is this the hose you speak of?
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/s5-convertible-tii-extras-swap-project-pictures-877625/
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/s5-convertible-tii-extras-swap-project-pictures-877625/
#5
That red convertible is spectacular in the picture!
But the hose in #4 is basically the same as my 90 NA. It is routed on top the engine above to the TB. The turbo, from looks of the FSM, looks like a small hose completely beneath the TB/dynamic chamber.
I was hoping there was a trick to it.
But the hose in #4 is basically the same as my 90 NA. It is routed on top the engine above to the TB. The turbo, from looks of the FSM, looks like a small hose completely beneath the TB/dynamic chamber.
I was hoping there was a trick to it.
#7

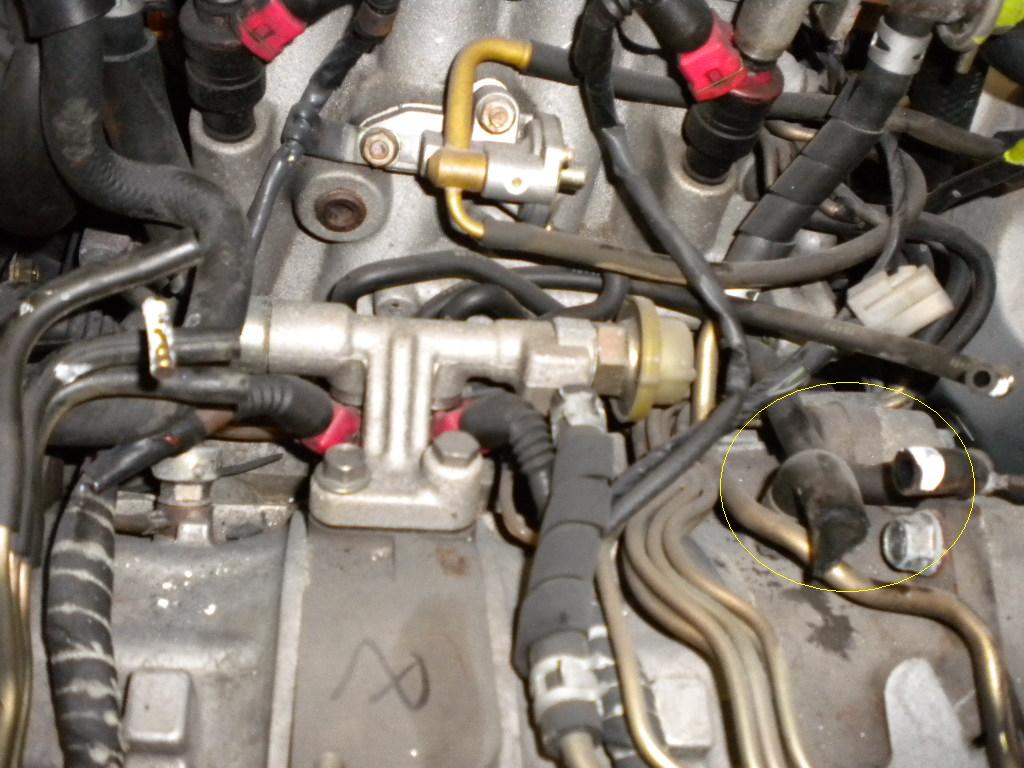

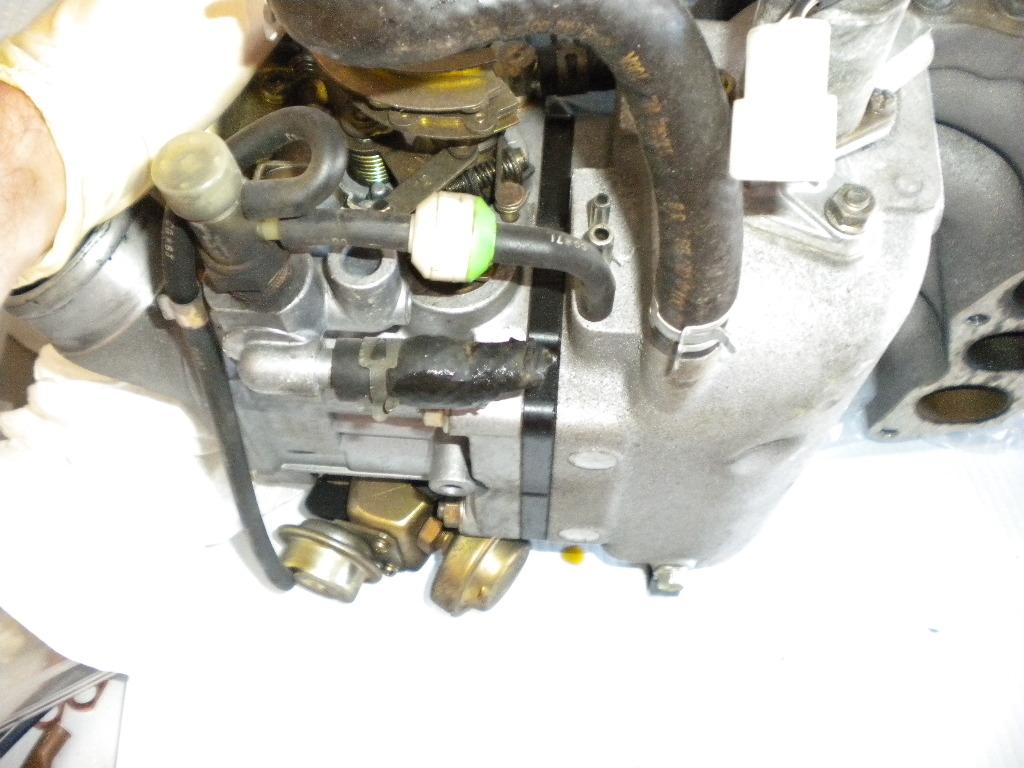

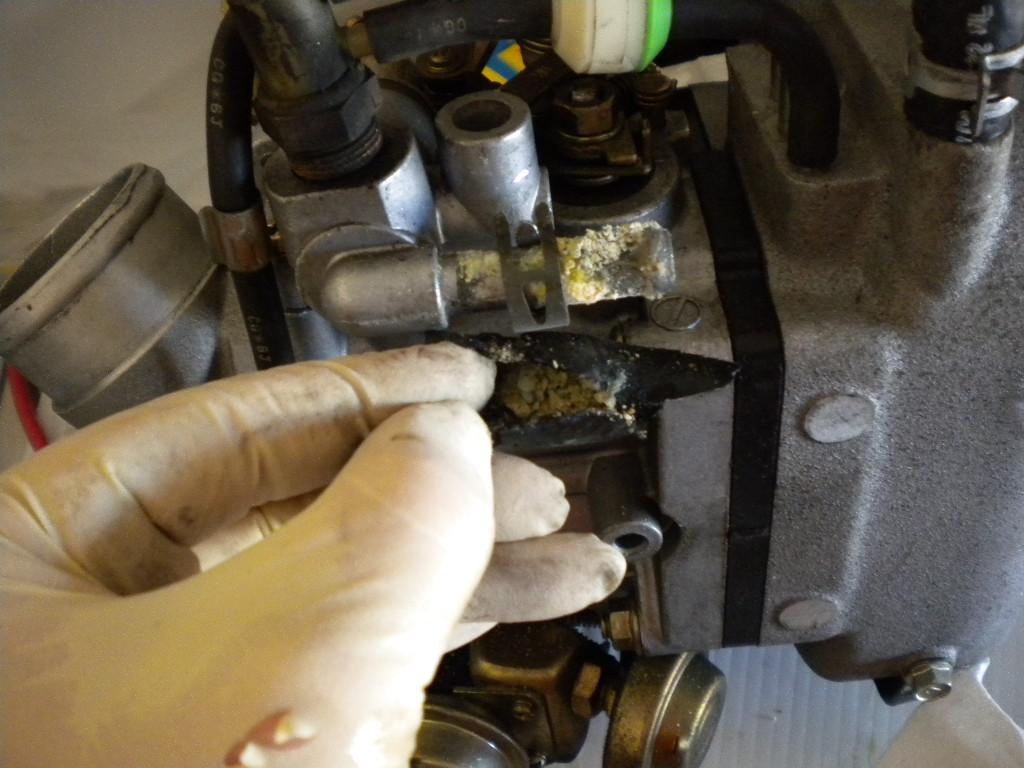

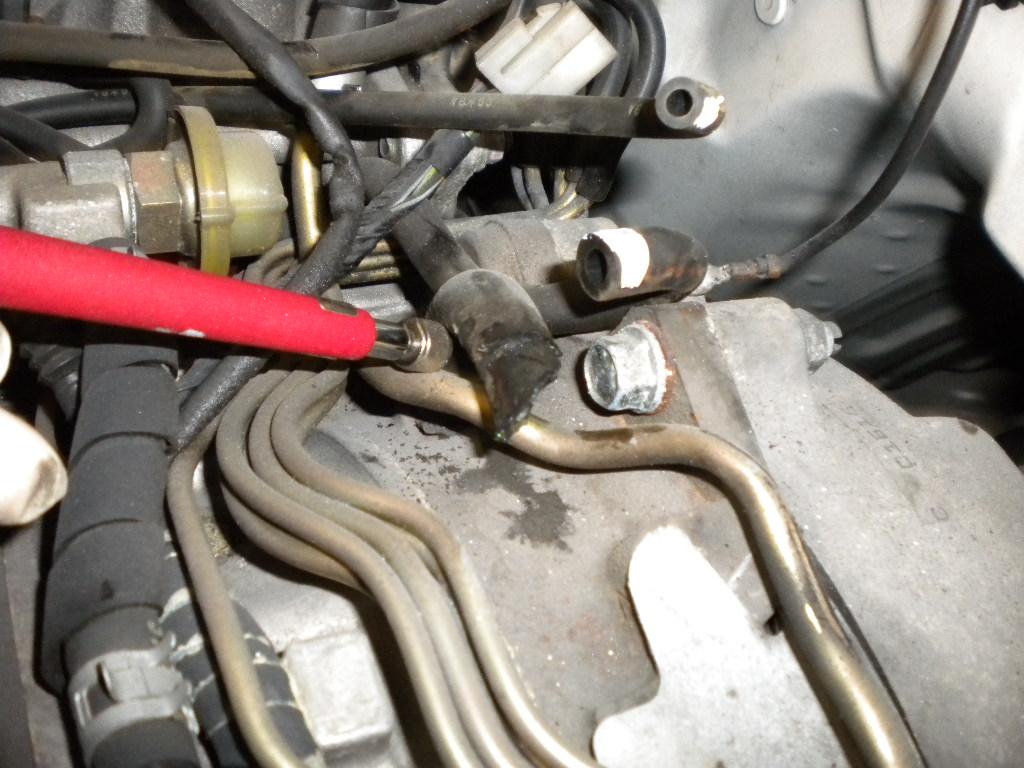

I got it. Cut it with an xacto knife. It cut like butter so I think it was in terrible shape (22 years old). There was also a large amount of corrosion between the hose and engine outlet tube. Here's some pics of the hose cut so anyone about to remove the TB will know where it is. Thanks for yall's help.
Trending Topics
#8
Top Down, Boost Up
iTrader: (7)
I almost always end up slicing old hoses in half, if I plan on replacing them anyway. And gear clamps do make removing them a second time much easier. Those spring loaded clips Mazda used don't always make the best seal anyhow.
On a side note...While you're in there, you can go ahead and remove that cold start assist mechanism. One less useless thing to clutter the bay.
On a side note...While you're in there, you can go ahead and remove that cold start assist mechanism. One less useless thing to clutter the bay.
#9
Banned. I got OWNED!!!
Join Date: Aug 2006
Location: Virginia, USA
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
that is the only hose that gives me trouble, i hate it. I just cut it every time I remove the UIM, which really bites, but i end up ordering extras anyway. The best part is trying to get that little sucker on.
#11
rx-for-my-7
iTrader: (1)
You keep it because it provides coolant for the thermowax unit, there is no need to remove it and it serves a good purpose when operating correctly. Unless you like to have a car than won't idle at all when cold. Don't fool yourself into thinking it's better to remove it, that's just for those who don't understand the system.
The key for this hose is to ROTATE the UIM once everything else is disconnected, you will be able to reach the clamps and remove without cutting anything.
The key for this hose is to ROTATE the UIM once everything else is disconnected, you will be able to reach the clamps and remove without cutting anything.
#12
BDC Motorsports
You keep it because it provides coolant for the thermowax unit, there is no need to remove it and it serves a good purpose when operating correctly. Unless you like to have a car than won't idle at all when cold. Don't fool yourself into thinking it's better to remove it, that's just for those who don't understand the system.
The key for this hose is to ROTATE the UIM once everything else is disconnected, you will be able to reach the clamps and remove without cutting anything.
B
#13
BDC Motorsports
- After cutting the short hose attached from the back of the engine block to the base of the throttle body, replace it with a much longer hose that will enable easier removals in the future
- Remove it entirely and plug/clamp it
- "loop" it from the back iron straight to the back of the water pump housing
Good luck.
B
#14
Banned. I got OWNED!!!
Join Date: Aug 2006
Location: Virginia, USA
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
I've kept everything stock. My problem is actually getting my hand in there to put on or take off this hose, there's barely enough room to work it on. Taking it off, I tried to rotate the UIM around a bit, but was nervous about setting it anywhere else on the engine, maybe if i had someone to hold it up. Just don't put it on and forget the hose clamp :P
