87 TII w/o ABS Wiring Diagram
01-29-03, 08:09 PM
#26
What Subscription?
Thread Starter
Join Date: Apr 2001
Location: Aiken SC USA
Posts: 5,926
Likes: 0
Received 0 Likes
on
0 Posts

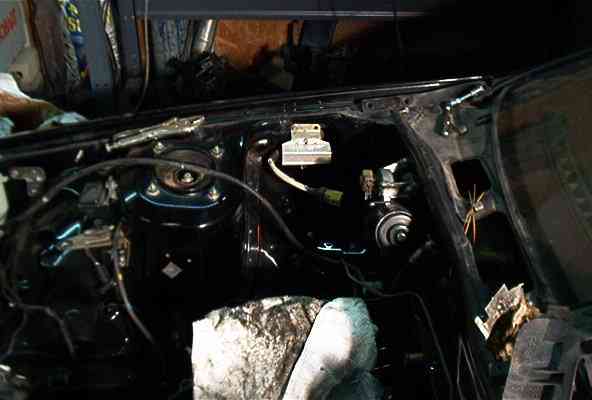

Here is the new location of the fuel pump resistor pack. The boost sensor has also been relocated. This will allow the wire harness to be routed completely away from the Turbo heat
Last edited by banzaitoyota; 01-29-03 at 08:14 PM.
01-30-03, 12:26 AM
#27
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Aw screw it. You said turboii and I thought I'd layed the truboii on the scanner. I sent n/a. I'll redo it in about an hour or so. I'd a bet money I'd done the turboii. Woulda lost my behind.
