Until I can afford a Standalone ECU, I decided to revamp my very worn and BRITTLE TII Emmissions harness (Engine). The exisiting harness covering was missing/brittle/worn beyond belief. The injector connections were trash.
The goal of this endevor are:
a. Replace all broken connections
b. Replace all brittle wiring
c. Remove all un-needed connections (ie "Rats Nest Wiring")
d. Protect the wiring from future damge
In the past 2 evenings I have the following progress.
1. Removed existing harness covers and wraps. Temporary Tie-wraps are used to maintain harness branch locations.
2. Solenoid Valve Connections and wiring have been deleted from the harness back to the ECU plugs
This has resulted in a large quantity of trash by the workbench.
The next stage is to place the harness on the engine to determine optimum routing and branch lengths.
Then the individual runs will be replaced with Tefzel Mil Spec Wire MS-22759/16 and new connectors. The branches will be wrapped in High Temperature Silicone Tape. Then a vinyl protective cover will be placed over it.
Pics to come soon

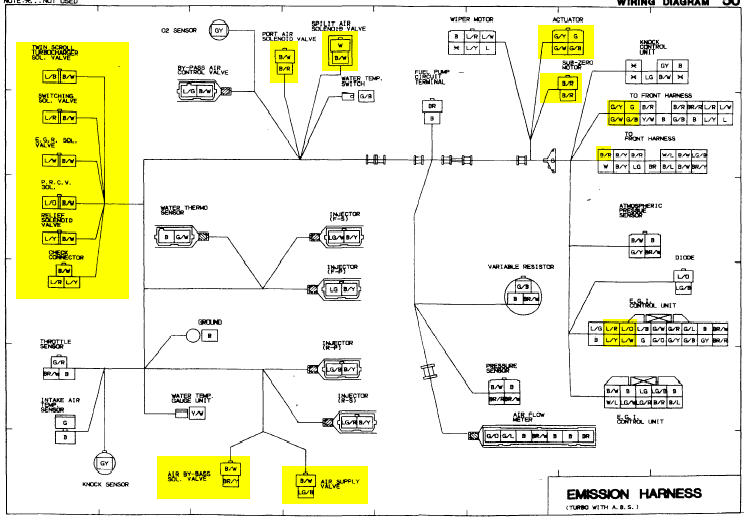

Connectors and Pins hi-lighted in yellow have been BANISHED from the harness
The goal of this endevor are:
a. Replace all broken connections
b. Replace all brittle wiring
c. Remove all un-needed connections (ie "Rats Nest Wiring")
d. Protect the wiring from future damge
In the past 2 evenings I have the following progress.
1. Removed existing harness covers and wraps. Temporary Tie-wraps are used to maintain harness branch locations.
2. Solenoid Valve Connections and wiring have been deleted from the harness back to the ECU plugs
This has resulted in a large quantity of trash by the workbench.
The next stage is to place the harness on the engine to determine optimum routing and branch lengths.
Then the individual runs will be replaced with Tefzel Mil Spec Wire MS-22759/16 and new connectors. The branches will be wrapped in High Temperature Silicone Tape. Then a vinyl protective cover will be placed over it.
Pics to come soon
Connectors and Pins hi-lighted in yellow have been BANISHED from the harness
01-29-03, 12:38 PM
#9
What Subscription?
Thread Starter
Join Date: Apr 2001
Location: Aiken SC USA
Posts: 5,926
Likes: 0
Received 0 Likes
on
0 Posts
Until I can afford a Standalone ECU, I decided to revamp my very worn and BRITTLE TII Emmissions harness (Engine). The exisiting harness covering was missing/brittle/worn beyond belief. The injector connections were trash.
The goal of this endevor are:
a. Replace all broken connections
b. Replace all brittle wiring
c. Remove all un-needed connections (ie "Rats Nest Wiring")
d. Protect the wiring from future damge
In the past 2 evenings I have the following progress.
1. Removed existing harness covers and wraps. Temporary Tie-wraps are used to maintain harness branch locations.
2. Solenoid Valve Connections and wiring have been deleted from the harness back to the ECU plugs
This has resulted in a large quantity of trash by the workbench.
The next stage is to place the harness on the engine to determine optimum routing and branch lengths.
Then the individual runs will be replaced with Tefzel Mil Spec Wire MS-22759/16 and new connectors. The branches will be wrapped in High Temperature Silicone Tape. Then a vinyl protective cover will be placed over it.
Pics to come soon
Connectors and Pins hi-lighted in yellow have been BANISHED from the harness
The goal of this endevor are:
a. Replace all broken connections
b. Replace all brittle wiring
c. Remove all un-needed connections (ie "Rats Nest Wiring")
d. Protect the wiring from future damge
In the past 2 evenings I have the following progress.
1. Removed existing harness covers and wraps. Temporary Tie-wraps are used to maintain harness branch locations.
2. Solenoid Valve Connections and wiring have been deleted from the harness back to the ECU plugs
This has resulted in a large quantity of trash by the workbench.
The next stage is to place the harness on the engine to determine optimum routing and branch lengths.
Then the individual runs will be replaced with Tefzel Mil Spec Wire MS-22759/16 and new connectors. The branches will be wrapped in High Temperature Silicone Tape. Then a vinyl protective cover will be placed over it.
Pics to come soon
Connectors and Pins hi-lighted in yellow have been BANISHED from the harness
Last edited by banzaitoyota; 01-29-03 at 12:41 PM.
01-29-03, 12:48 PM
#10
~~~~~~~~~~~~~~~~~~~~~~~
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
I think if you are going to run all new wires and want to keep them safe; you could try to route them through the hole on the drivers side of the firewall and run the wires over the top of the motor. This would move all the important wires away from the exhaust which is what probably cause most of the wear on them.
01-29-03, 02:35 PM
#22
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Some of these did not get thru. Shoulda been one thru nine. The first couple were emissions, then I remembered the other emissions page which should have been maybe seven thru nine. I'm running late. Maybe late tonite or early morning. I really have not read this full post yet. I'll read it thru later tonite. The dirty mouse and having to log on and off to post these is taking too much time right now. I post a jpg, wait, get a site not resopnding, go back, then log off, then log back on to see if its been taken. Takes too much time right now.
01-29-03, 02:38 PM
#23
~~~~~~~~~~~~~~~~~~~~~~~
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
Another idea! You could drill a new hole through the firewall right behind the throttle body and run all of the wires right through there. The boost sensor could even be moved to inside the car. You probably wouldn't see any wires.
01-29-03, 03:03 PM
#25
~~~~~~~~~~~~~~~~~~~~~~~
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
This is why I try not to come on here and ask to many questions. You always end up with some new idea that will set you back a month and a few hundred bucks.
