2 mystery wires need help
#1
2 mystery wires need help

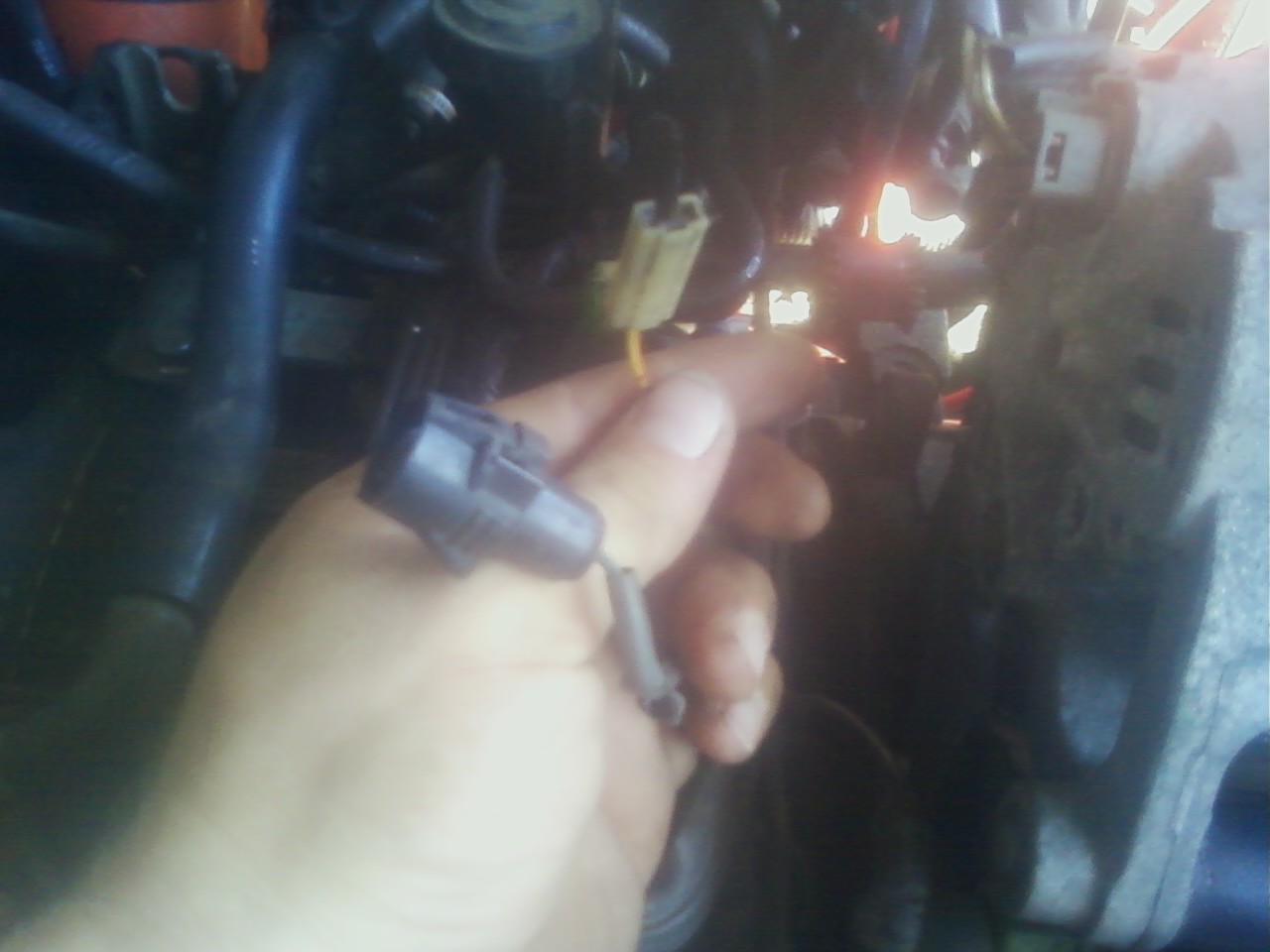

found these two wires under intake manifold car is an 89 with s4 keg but everything was swapped over to s5 full emissions the black clip has a blue wire with black stripe and white clip is yellow with red stripe and looks like oil pressure wire
Last edited by kendark2light; 08-17-12 at 01:00 PM. Reason: add some details
#3
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,770
Received 2,562 Likes
on
1,822 Posts
yellow wire is oil pressure. the other is the fan switch, only the T2 and automatics have it, but every car has the plug
#7
Moderator
iTrader: (1)
The Y/R wire of the sender comes from the Engine harness which then connects to the Front harness. Both Front and Emission harness wires "can" run to the ECU, but some don't. There's a Y/R wire at pin 1B but this Y/R wire goes to a Green check connector plug w/two other Yellow wires and a B/W wire located near the leading coil. If you believe the wire in the pic goes to the ECU then a continuity test should prove that one way or the other.
Trending Topics
#8
got back from working on car. the y/r wire in picture is in the harness that goes to ecu my oil sender has a y/r wire hooked up to it that leads to the other harness the engine harness/ ecu harness is out of a 91 the ecu is 89 from this car tho
thank you guys for your help so far
thank you guys for your help so far
