Is this a 13B-RE?

Thread Tools

Search this Thread

Old 03-24-06, 07:44 AM
  #1
Registered Dumb Ass

Thread Starter

steward88rx7's Avatar

Join Date: Sep 2005
Location: Lynchburg, Ohio
Posts: 30
Likes: 0
Received 0 Likes on 0 Posts
Is this a 13B-RE?
I want to know if this is a 13B-RE motor or not. Here's some pic's..

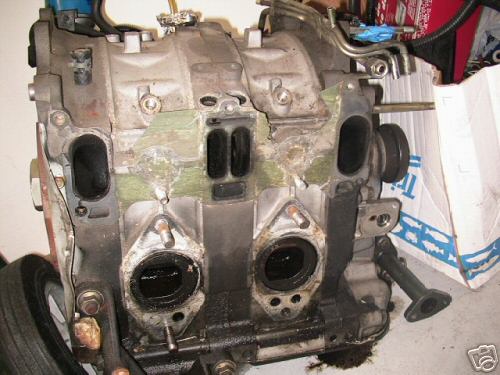

Attached Thumbnails Is this a 13B-RE?-52_12.jpg
Attached Images
steward88rx7 is offline
Reply Like
Old 03-24-06, 08:00 AM
  #2
Lives on the Forum


RETed's Avatar

Join Date: Feb 2001
Location: n
Posts: 26,664
Likes: 0
Received 16 Likes on 15 Posts
Can you attach the full sized pics of the bottom two pics?
It's hard to tell if the exhaust ports have the inserts and there should be the extra hole for the auto trans on the opposite side...


-Ted
RETed is offline
Reply Like
Old 03-24-06, 08:03 AM
  #3
Registered Dumb Ass

Thread Starter

steward88rx7's Avatar

Join Date: Sep 2005
Location: Lynchburg, Ohio
Posts: 30
Likes: 0
Received 0 Likes on 0 Posts
here ya go..
Attached Images
steward88rx7 is offline
Reply Like
Old 03-24-06, 08:05 AM
  #4
Drift FC

iTrader: (8)

CyborgRyu's Avatar

Join Date: Nov 2003
Location: Cincinnati, OH
Posts: 1,602
Likes: 0
Received 1 Like on 1 Post
Nope, still not working.
CyborgRyu is offline
Reply Like
Old 03-24-06, 08:07 AM
  #5
Registered Dumb Ass

Thread Starter

steward88rx7's Avatar

Join Date: Sep 2005
Location: Lynchburg, Ohio
Posts: 30
Likes: 0
Received 0 Likes on 0 Posts
pic!!

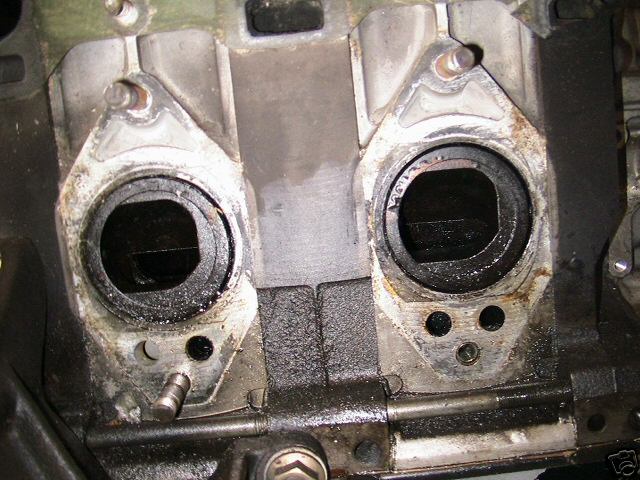

Attached Thumbnails Is this a 13B-RE?-8e_3.jpg
steward88rx7 is offline
Reply Like
Old 03-24-06, 08:08 AM
  #6
Registered Dumb Ass

Thread Starter

steward88rx7's Avatar

Join Date: Sep 2005
Location: Lynchburg, Ohio
Posts: 30
Likes: 0
Received 0 Likes on 0 Posts
other pic!!

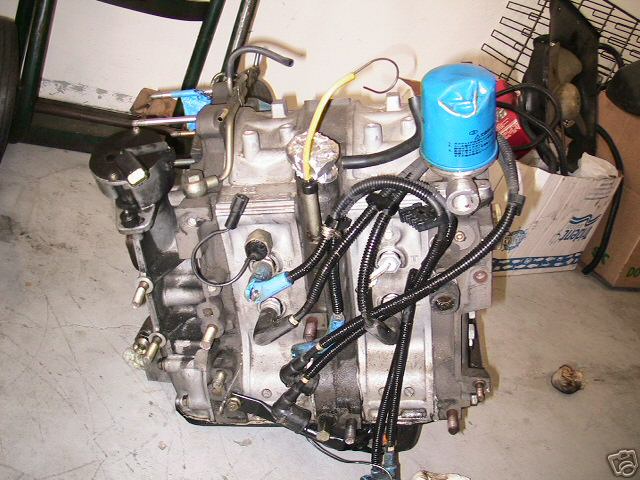

Attached Thumbnails Is this a 13B-RE?-e3_3.jpg
steward88rx7 is offline
Reply Like
Old 03-24-06, 08:15 AM
  #7
Drift FC

iTrader: (8)

CyborgRyu's Avatar

Join Date: Nov 2003
Location: Cincinnati, OH
Posts: 1,602
Likes: 0
Received 1 Like on 1 Post
I'm 90% sure it is.
CyborgRyu is offline
Reply Like

Trending Topics

Old 03-24-06, 08:17 AM
  #8
400WHP or bust

iTrader: (7)

Nismo Convert86's Avatar

Join Date: Oct 2003
Location: Walkerton, Ontario Canada
Posts: 4,048
Likes: 0
Received 0 Likes on 0 Posts
Yeah Looks like a RE to me. Also the oil cooler fittings seem to be in the RE locations, not the normal 13bt ones.
Nismo Convert86 is offline
Reply Like
Old 03-24-06, 08:18 AM
  #9
Drift FC

iTrader: (8)

CyborgRyu's Avatar

Join Date: Nov 2003
Location: Cincinnati, OH
Posts: 1,602
Likes: 0
Received 1 Like on 1 Post
I change my mind, I'm 100% sure it is.

The Coolant drain plug and motor mount bolt looks identical to a BRE. Also the oil pan isn't rounded like the FC motors. Definitely not BT motor. Are you selling it
CyborgRyu is offline
Reply Like
Old 03-24-06, 08:19 AM
  #10
400WHP or bust

iTrader: (7)

Nismo Convert86's Avatar

Join Date: Oct 2003
Location: Walkerton, Ontario Canada
Posts: 4,048
Likes: 0
Received 0 Likes on 0 Posts
Yeah and motor mount studs are at the rear of the motor.
Nismo Convert86 is offline
Reply Like
Old 03-24-06, 08:20 AM
  #11
Registered Dumb Ass

Thread Starter

steward88rx7's Avatar

Join Date: Sep 2005
Location: Lynchburg, Ohio
Posts: 30
Likes: 0
Received 0 Likes on 0 Posts
no looking to buy it
steward88rx7 is offline
Reply Like
Old 03-24-06, 08:23 AM
  #12
Registered Dumb Ass

Thread Starter

steward88rx7's Avatar

Join Date: Sep 2005
Location: Lynchburg, Ohio
Posts: 30
Likes: 0
Received 0 Likes on 0 Posts
so it's defently a 13B-RE Cosmo.. If so im buyin the sum bitch. and cyborgryu i see your from Cincy.
steward88rx7 is offline
Reply Like
Old 03-24-06, 08:25 AM
  #13
400WHP or bust

iTrader: (7)

Nismo Convert86's Avatar

Join Date: Oct 2003
Location: Walkerton, Ontario Canada
Posts: 4,048
Likes: 0
Received 0 Likes on 0 Posts
Yeah it's a RE.
Nismo Convert86 is offline
Reply Like
Old 03-24-06, 08:26 AM
  #14
Drift FC

iTrader: (8)

CyborgRyu's Avatar

Join Date: Nov 2003
Location: Cincinnati, OH
Posts: 1,602
Likes: 0
Received 1 Like on 1 Post
Yes, I'm actually in Batavia.

I think its like 45 minutes away from you. My ex lives out in Blanchester/Mt Orab
CyborgRyu is offline
Reply Like
Old 03-24-06, 08:27 AM
  #15
Registered Dumb Ass

Thread Starter

steward88rx7's Avatar

Join Date: Sep 2005
Location: Lynchburg, Ohio
Posts: 30
Likes: 0
Received 0 Likes on 0 Posts
know Batavia well i went to school in Bethel.
steward88rx7 is offline
Reply Like
Old 03-24-06, 08:30 AM
  #16
Banned. I got OWNED!!!
iTrader: (11)

stevensimon's Avatar

Join Date: Aug 2003
Location: salt lake ut
Posts: 3,575
Likes: 0
Received 5 Likes on 5 Posts
is that a pressure sensor on the front housing? i havent actually ever seen a bre
stevensimon is offline
Reply Like
Old 03-24-06, 08:33 AM
  #17
Registered Dumb Ass

Thread Starter

steward88rx7's Avatar

Join Date: Sep 2005
Location: Lynchburg, Ohio
Posts: 30
Likes: 0
Received 0 Likes on 0 Posts
im trying to figure all this out so i can buy it. i don't want to get ripped off, pressure sensor hell i never felt any pressure so i guess my sensor is broke!
steward88rx7 is offline
Reply Like
Old 03-24-06, 08:33 AM
  #18
Drift FC

iTrader: (8)

CyborgRyu's Avatar

Join Date: Nov 2003
Location: Cincinnati, OH
Posts: 1,602
Likes: 0
Received 1 Like on 1 Post
The thing above the Trailing plug? I don't know... I'd like to know myself
CyborgRyu is offline
Reply Like
Old 03-24-06, 08:48 AM
  #19
400WHP or bust

iTrader: (7)

Nismo Convert86's Avatar

Join Date: Oct 2003
Location: Walkerton, Ontario Canada
Posts: 4,048
Likes: 0
Received 0 Likes on 0 Posts
Knock Sensor.
Nismo Convert86 is offline
Reply Like
Old 03-24-06, 08:50 AM
  #20
Banned. I got OWNED!!!
iTrader: (11)

stevensimon's Avatar

Join Date: Aug 2003
Location: salt lake ut
Posts: 3,575
Likes: 0
Received 5 Likes on 5 Posts
ahh.. makes sense.
stevensimon is offline
Reply Like
Old 03-24-06, 08:57 AM
  #21
Senior Member


onefastrx7's Avatar

Join Date: Apr 2005
Location: TX
Posts: 402
Likes: 0
Received 0 Likes on 0 Posts
Yes, it is a 13B RE definitely.
We have several of them here.
Tall intake ports, exhaust port sleeves, rear mounts, Cosmo crank sensor plug, short ignition wires, oil cooler fittings
onefastrx7 is offline
Reply Like
Old 03-24-06, 11:42 AM
  #22
Full Member

iTrader: (1)

ggoldfingerd's Avatar

Join Date: May 2005
Location: Milwaukee
Posts: 103
Received 0 Likes on 0 Posts
It is an RE. What plans do you have for that engine?
ggoldfingerd is offline
Reply Like
Old 03-24-06, 12:10 PM
  #23
Reverse Cerberus

iTrader: (1)

evileagle's Avatar

Join Date: Apr 2002
Location: Vancouver, WA
Posts: 1,788
Received 11 Likes on 7 Posts
You buyin it from someone on here?
evileagle is offline
Reply Like
Old 03-26-06, 04:39 AM
  #24
Registered Dumb Ass

Thread Starter

steward88rx7's Avatar

Join Date: Sep 2005
Location: Lynchburg, Ohio
Posts: 30
Likes: 0
Received 0 Likes on 0 Posts
hopfuly i will build the hell out of it. get about 350 hp or more. and try and i say TRY to do some drifting and autox
steward88rx7 is offline
Reply Like
Old 03-26-06, 04:56 AM
  #25
Registered Dumb Ass

Thread Starter

steward88rx7's Avatar

Join Date: Sep 2005
Location: Lynchburg, Ohio
Posts: 30
Likes: 0
Received 0 Likes on 0 Posts
no not on here some where else, all i can tell you is that the block was forged in the fondrys of hell or some thing like that
steward88rx7 is offline
