2nd Generation Non-Technical and pictures Show off your car & view 2nd gen RX-7 pictures here.
Sponsored by:

FINALLY a quiet exhaust!

Thread Tools

Search this Thread

Old 11-16-08, 10:27 PM
  #26
Not Even Foo

iTrader: (13)

finishline's Avatar

Join Date: Oct 2006
Location: South Bay, CA
Posts: 8,999
Likes: 0
Received 0 Likes on 0 Posts
i like. really mild exhaust, low key.
Old 11-17-08, 12:30 AM
  #27
They call me - Hybrid!


rksti89's Avatar

Join Date: Jun 2008
Location: Austin/Round Rock
Posts: 565
Likes: 0
Received 0 Likes on 0 Posts
wow that is quiet.....makes me want to completely fix my entire exhaust when i get enough money haha

i like mine right now but i need to re weld and get new gaskets and fix an exhaust leak near my manifold...cant tell if its off the housing or the flange that connects to pre cat eliminators after fixing all that it'll still loud and i would like a nicer set up, like yours, but that will come when the car is further along its tuning life haha
Old 11-17-08, 05:56 AM
  #28
Senior Member

Thread Starter
iTrader: (5)

pistones's Avatar

Join Date: Oct 2005
Location: nyc
Posts: 726
Received 0 Likes on 0 Posts
yea will do,
Old 11-17-08, 08:57 AM
  #29
Rotary Enthusiast
iTrader: (8)

Gregory Casimir's Avatar

Join Date: Jun 2004
Location: Miami , Florida
Posts: 1,388
Received 8 Likes on 8 Posts
wow that **** is quite how much did that setup run you?
Old 11-17-08, 11:08 AM
  #30
LAN
Rotary Enthusiast

iTrader: (1)

LAN's Avatar

Join Date: Aug 2003
Location: USA
Posts: 992
Likes: 0
Received 0 Likes on 0 Posts

I thought it was quiet? hehe

Mine - Page 2
https://www.rx7club.com/2nd-generation-non-technical-pictures-198/lans-fc-779372/page2/

Old 11-17-08, 05:18 PM
  #31
Senior Member

Thread Starter
iTrader: (5)

pistones's Avatar

Join Date: Oct 2005
Location: nyc
Posts: 726
Received 0 Likes on 0 Posts
custom downpipe and mid muffler cost me 350, plus 70 ish off ebay for the magnaflow. old N1 cat back came with the car so that was a freebee, and the WS II cost me 200 off ebay. plus another 80 to weld it on. so about 700 bux. i would have just bought a full exhaust but i didn't like the ones available and it would have needed to be modified because of the new turbo system.

it is really quiet from inside the car! i drove home and i can hear only the engine while cruising. when i get it on the lift this weekend i will take full pics from underneath. the tone has also changed dramatically, it is much deeper than the N1 and there isn't that drone while cruising. i will eventually redo from the cat back to reposition the muffler a little farther in, but for now it will do.( and it will stop toasting my bumper)

i highly recommend this muffler, unfortunately Apexi never made a full cat back. if you are looking for something that is quieter but can still flow well then this should do.
Old 11-17-08, 05:34 PM
  #32
FC guy

iTrader: (8)

Rob XX 7's Avatar

Join Date: Oct 2002
Location: Long Island, New York
Posts: 8,714
Received 16 Likes on 16 Posts
I think my racing beat is as quiet as that or quieter- why do you not like dual exausts?
My system is not all racing beat, but the mufflers, pre-silencer, and y-pipe are all rev II parts.

if someone was ready to spend $700 and does not have access to a exaust shop I would suggest the RB system
Old 11-17-08, 06:29 PM
  #33
Senior Member

Thread Starter
iTrader: (5)

pistones's Avatar

Join Date: Oct 2005
Location: nyc
Posts: 726
Received 0 Likes on 0 Posts
i don't know why, i just prefer single. less pipes, i like the look of a single better.
i agree, if you don't have access to a welder or fabrication skills the just buy an exhaust. but i didn't like what was offered so i made my own.
Old 11-17-08, 11:56 PM
  #34
Rotary Enthusiast

iTrader: (7)

ohayou88's Avatar

Join Date: Jun 2006
Location: Oakland CALI!
Posts: 961
Likes: 0
Received 0 Likes on 0 Posts
Is the Ws2 muffler straight through? Im looking for new exhaust as my friend is asking for his RB back.
Old 11-18-08, 12:20 AM
  #35
Pistons are gay

iTrader: (11)

Boosted11's Avatar

Join Date: Dec 2006
Location: Prince George, BC
Posts: 1,973
Likes: 0
Received 0 Likes on 0 Posts
Sounds about as quiet as the racing beat, maybe even a bit quieter.
Old 11-18-08, 07:48 AM
  #36
FC guy

iTrader: (8)

Rob XX 7's Avatar

Join Date: Oct 2002
Location: Long Island, New York
Posts: 8,714
Received 16 Likes on 16 Posts
Originally Posted by pistones
i don't know why, i just prefer single. less pipes, i like the look of a single better.
i agree, if you don't have access to a welder or fabrication skills the just buy an exhaust. but i didn't like what was offered so i made my own.

im the same way, in the end it always ends up costing me more money but at least its the way I like it.
Old 11-18-08, 02:24 PM
  #37
Emerald Triangle for life

iTrader: (5)

ScrapFC's Avatar

Join Date: Jan 2002
Location: Fort Collins, CO
Posts: 552
Likes: 0
Received 0 Likes on 0 Posts
Thanks for posting the clips! I like the sound of that. One reason to go single is for WEIGHT! A single would have to be SUPER heavy to come anywhere near the weight of the typical dual exhaust.
Old 11-18-08, 05:07 PM
  #38
Senior Member

Thread Starter
iTrader: (5)

pistones's Avatar

Join Date: Oct 2005
Location: nyc
Posts: 726
Received 0 Likes on 0 Posts
yea the WS II is straight through. i agree, a single is lighter and when i work on my car it is less stuff to remove.
Old 11-18-08, 07:05 PM
  #39
They call me - Hybrid!


rksti89's Avatar

Join Date: Jun 2008
Location: Austin/Round Rock
Posts: 565
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by pistones
yea the WS II is straight through. i agree, a single is lighter and when i work on my car it is less stuff to remove.
so it is straight through?? so in other words if you didnt have that magnaflow pre-silencer it would be alot louder huh??
Old 11-19-08, 12:10 AM
  #40
Rotary Enthusiast

iTrader: (7)

ohayou88's Avatar

Join Date: Jun 2006
Location: Oakland CALI!
Posts: 961
Likes: 0
Received 0 Likes on 0 Posts
which magnaflow resonator/muffler did you use?
Old 11-19-08, 03:58 PM
  #41
Senior Member

Thread Starter
iTrader: (5)

pistones's Avatar

Join Date: Oct 2005
Location: nyc
Posts: 726
Received 0 Likes on 0 Posts
http://www.magnaflow.com/02product/s...e=main&id=7911
this is the one i used. it is much cheaper on ebay, like almost half price. i had this before i put in the WS II muffler and it was still loud, so i don't think that it helped that much. there is room for the 5" round muffler.
Old 11-19-08, 04:08 PM
  #42
Senior Member

Thread Starter
iTrader: (5)

pistones's Avatar

Join Date: Oct 2005
Location: nyc
Posts: 726
Received 0 Likes on 0 Posts
NY took it out for a spin today

her is my video from today. acceleration from 1st through 5th gear up to 80 mph. 10 psi GT35R turbo, WS II muffler.

http://www.youtube.com/watch?v=EoYeitOcJ5w

i measured the muffler by eye today, it is approximately 14" long, 11"wide and about 8" high. overall length is about twenty something inches due to the tip and 3 inches of pipe at the inlet. yea it is big, i am going to remove the heat shield and put some heat tape on the gas tank, since it taps a little bit.
Old 11-19-08, 04:14 PM
  #43
Not Even Foo

iTrader: (13)

finishline's Avatar

Join Date: Oct 2006
Location: South Bay, CA
Posts: 8,999
Likes: 0
Received 0 Likes on 0 Posts
commented your video. =]
Old 11-19-08, 09:34 PM
  #44
Senior Member

Thread Starter
iTrader: (5)

pistones's Avatar

Join Date: Oct 2005
Location: nyc
Posts: 726
Received 0 Likes on 0 Posts
oh that was you? thanks bro, soon i will retune for more boost. that should be fun.
Old 11-20-08, 04:10 AM
  #45
They call me - Hybrid!


rksti89's Avatar

Join Date: Jun 2008
Location: Austin/Round Rock
Posts: 565
Likes: 0
Received 0 Likes on 0 Posts
hey do you have a suggestion on where to put a pre-silencer on my car if i want to keep the main cat in the stock position??
Old 11-20-08, 01:09 PM
  #46
Senior Member

iTrader: (1)

rotaryracer1's Avatar

Join Date: Dec 2001
Location: Salt Lake City
Posts: 655
Likes: 0
Received 0 Likes on 0 Posts
OMG i love the sound of that exhaust. i must have watched the acceleration video like 20 times in a row. very nice
Old 11-20-08, 04:57 PM
  #47
Senior Member

Thread Starter
iTrader: (5)

pistones's Avatar

Join Date: Oct 2005
Location: nyc
Posts: 726
Received 0 Likes on 0 Posts
NY

Originally Posted by rksti89
hey do you have a suggestion on where to put a pre-silencer on my car if i want to keep the main cat in the stock position??
it sucks that you have to have the cat. the magnaflow took the place of the cat. i suggest putting a similar muffler before that cat, but then you would have to have a custom downpipe.
Old 11-20-08, 05:00 PM
  #48
Senior Member

Thread Starter
iTrader: (5)

pistones's Avatar

Join Date: Oct 2005
Location: nyc
Posts: 726
Received 0 Likes on 0 Posts
Originally Posted by rotaryracer1
OMG i love the sound of that exhaust. i must have watched the acceleration video like 20 times in a row. very nice
thanks man, i will dedicate the next video for you. next video will be an outside shot and hopefully more boost.
Old 11-20-08, 06:25 PM
  #49
They call me - Hybrid!


rksti89's Avatar

Join Date: Jun 2008
Location: Austin/Round Rock
Posts: 565
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by pistones
it sucks that you have to have the cat. the magnaflow took the place of the cat. i suggest putting a similar muffler before that cat, but then you would have to have a custom downpipe.
well i can run a muffler as a test pipe but my exhaust would be louder when getting tested for smog haha besides i like the air pipe plugged in for my na's extra ports to open up but it wont be too much trouble to put the silencer on the my down pipe its already straight piping anyways lol
Old 11-24-08, 07:25 PM
  #50
Senior Member

Thread Starter
iTrader: (5)

pistones's Avatar

Join Date: Oct 2005
Location: nyc
Posts: 726
Received 0 Likes on 0 Posts

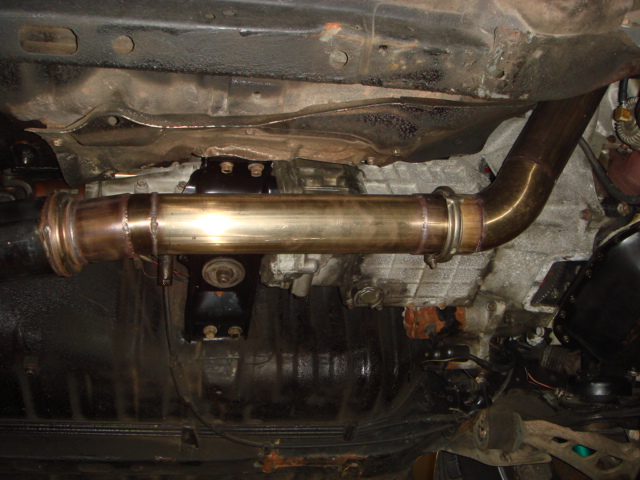

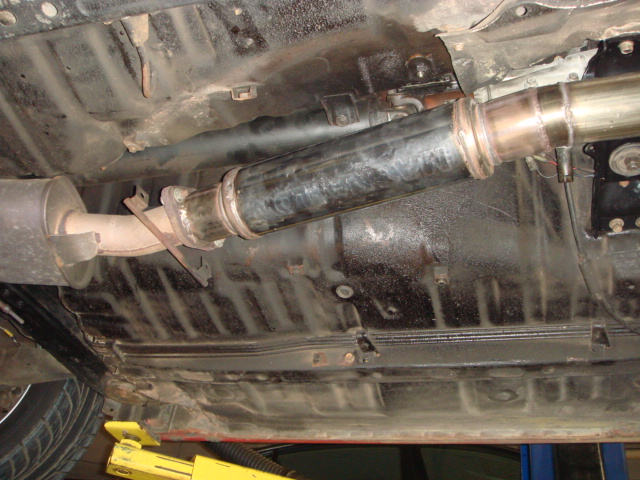

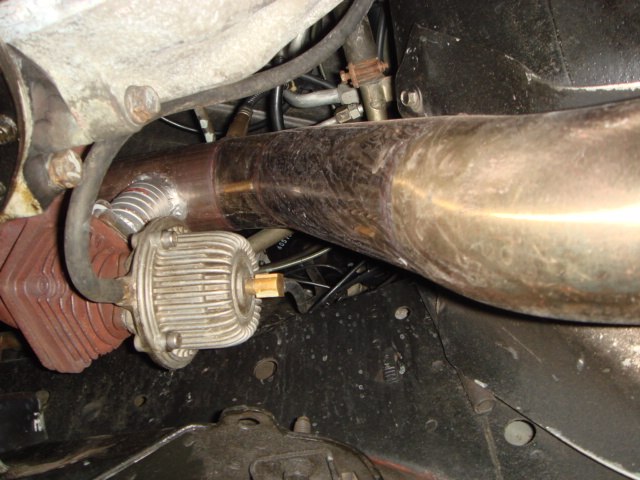

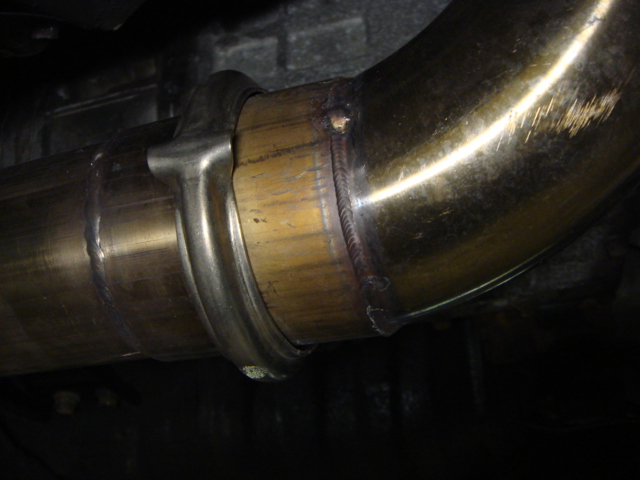

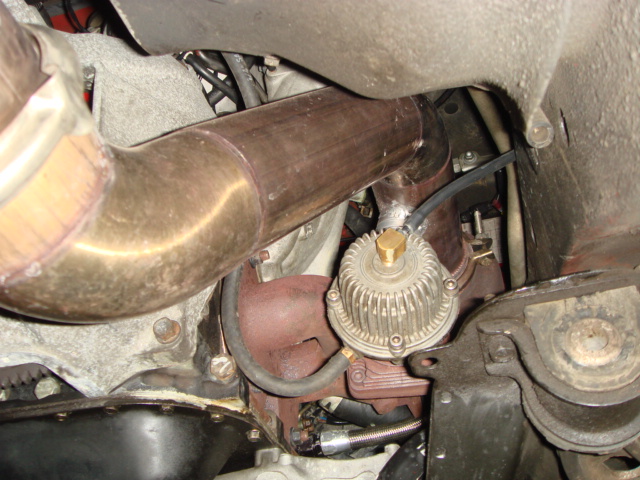

NY took some pics of the exhaust system

3" downpipe, hks standard wastegate(recirculated),V band flange, to magnaflow 4" round muffler.
Attached Thumbnails FINALLY a quiet exhaust!-dsc00946.jpg   FINALLY a quiet exhaust!-dsc00947.jpg   FINALLY a quiet exhaust!-dsc00958.jpg   FINALLY a quiet exhaust!-dsc00950.jpg   FINALLY a quiet exhaust!-dsc00951.jpg
