Can anybody identify these wires
#1
Full Member
Thread Starter
Can anybody identify these wires
Hey there, i bought an 87 turbo II and am still chasing down all the info i can about it because it has quite a few aftermarket mods. I was wondering of anybody can identify the purpose of these two wires in the picture. they were located behind the coil pack closest to the firewall. Any information would be appreciated
#2
Rotary Freak
iTrader: (10)
Well I don't think anyone call tell you the purpose of the aftermarket wire without knowing where it's going (maybe at one time used for an aftermarket tach?), but the little black box is what Mazda refers to as a condenser. It's a capacitor used to filter noise on B+ line from the ignition coils.
The following users liked this post:
mslo (02-03-20)
#4
Rotary Freak
iTrader: (10)
Originally Posted by mslo
Thank you for the quick reply, Should the condensor be grounded it never was and just kind of suffed underneath the coil pack?
The following users liked this post:
mslo (02-03-20)
The following users liked this post:
mslo (02-03-20)
#7
Rotary Freak
iTrader: (10)
Originally Posted by clokker
The original Mazda location of that condenser is on one of the clutch slave cylinder mounting bolts.
To be slightly more specific than Daniel, it smooths the signal to the oil pressure gauge.
To be slightly more specific than Daniel, it smooths the signal to the oil pressure gauge.

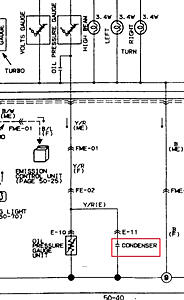

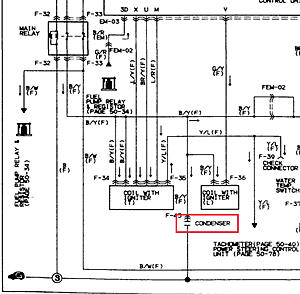

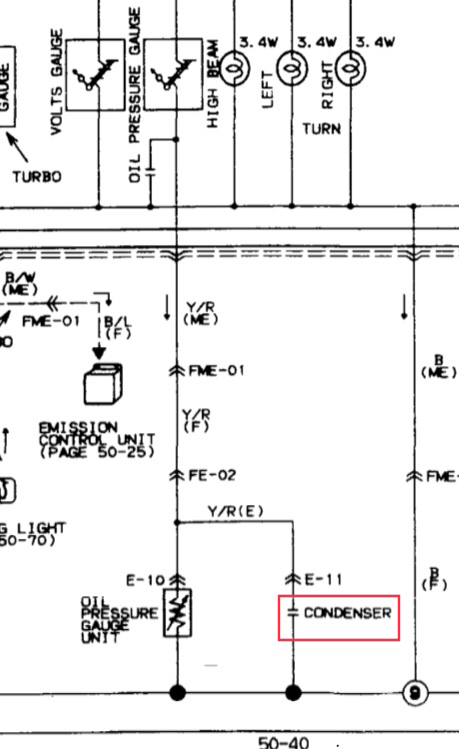

OP, for your reference I've attached the schematics from the FSM, if you're curious.
Last edited by DC5Daniel; 02-02-20 at 11:18 AM.
The following users liked this post:
mslo (02-03-20)
Trending Topics
The following users liked this post:
mslo (02-03-20)
#9
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,604 Likes
on
1,847 Posts
the one for the coils is on the lover bolt of the bracket for the coils.
the one for the oil pressure circuit is either on the slave cylinder, or on the little access cover right next to the slave cylinder (slave gets changed a lot so these things move)
the one for the oil pressure circuit is either on the slave cylinder, or on the little access cover right next to the slave cylinder (slave gets changed a lot so these things move)
