Minimum Safe Oil Pan Depth
#1
Rebreaking things
Thread Starter
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts
Minimum Safe Oil Pan Depth
In an effort to reduce the amount of hacking I have to do/pay to be done to the firewall/transmission I want to try to lower the motor as much as possible without eating into the ground clearance too much. With that in mind I have taken a closer look at the oil pan in the 20b, FD, and RX8. Here is what I have found. All measurements were taken from the deepest point.
RX8: 45mm -RX8 forum member
RX7: 85mm -Rotary News article stating that the RX8 pan is 40mm shallower than the FD pan.
20B: 101mm. -Measured by RotorMtr's father at the deepest point. He said 'about' 4" so I don't have a lot of faith in this number. If someone can confirm I'd appreciate it. Otherwise I'll have the engine builder verify it later this week
If the above info is correct the RX8 oil pan is less than 1/2 the depth of the 20b pan. Is there any reason the 20b pan cannot be reduced to 45-50mm while still having an adaquate safety margin for oil slosh under high Gs? Bear in mind that the stock 20b pan does not cover the length of the block (see attached pics).
RX8: 45mm -RX8 forum member
RX7: 85mm -Rotary News article stating that the RX8 pan is 40mm shallower than the FD pan.
20B: 101mm. -Measured by RotorMtr's father at the deepest point. He said 'about' 4" so I don't have a lot of faith in this number. If someone can confirm I'd appreciate it. Otherwise I'll have the engine builder verify it later this week
If the above info is correct the RX8 oil pan is less than 1/2 the depth of the 20b pan. Is there any reason the 20b pan cannot be reduced to 45-50mm while still having an adaquate safety margin for oil slosh under high Gs? Bear in mind that the stock 20b pan does not cover the length of the block (see attached pics).
Last edited by CCarlisi; 05-29-05 at 11:11 AM. Reason: forum error
#2
Rebreaking things
Thread Starter
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts

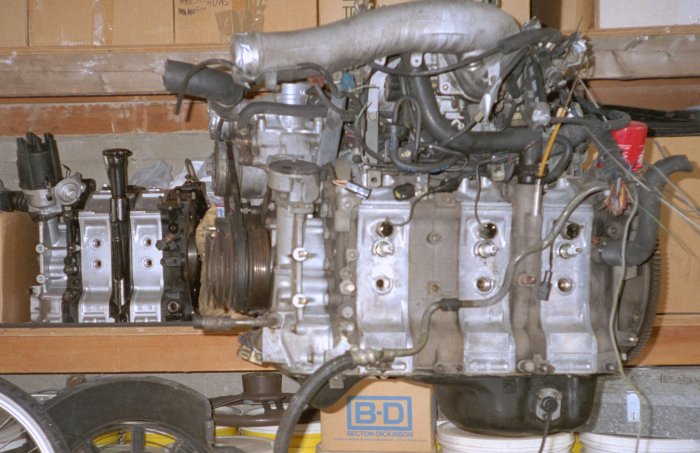

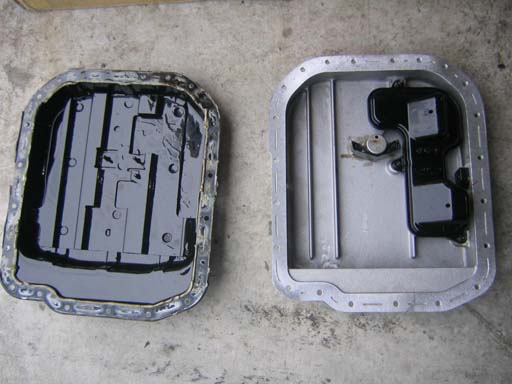

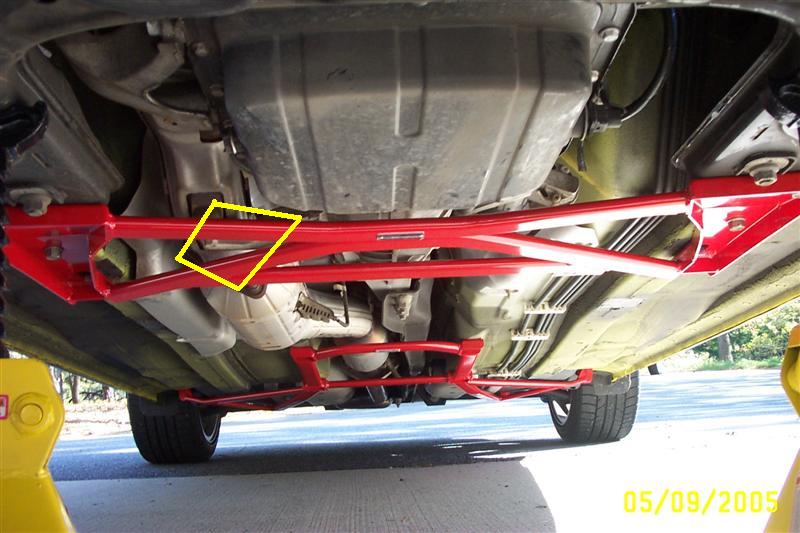

20b stock, 20b oil feed line route, rx8 stock (black) RX8 Greddy (silver-what is that black thing in the pan???), RX8 bottom view.
#5
DRIVE THE ROTARY SPORTS
iTrader: (5)
Join Date: May 2003
Location: CA (Bay Area)
Posts: 4,150
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Zero R
Oh yeah, deepest point in the pan is 102mm so he's pretty close.
#7
****** of disaster
iTrader: (1)
Join Date: Aug 2001
Location: Santa Monica, CA
Posts: 1,115
Likes: 0
Received 0 Likes
on
0 Posts
Is it just me or does it look as if the RX8 oilpan would fit on the older 13B's?
This is of particular interest to me as I am about to embark on swapping the Cosmo 13B-RE into the RX8 and had not heard of this external oil reservoir.
The black thing in the oilpan is some kind of baffle, and there is also an electrical device (you can see it as the small round silver thing) which uses a connector from the outside of the pan. Not sure what that is yet, my guess would be some kind of oil level sensor.
This is of particular interest to me as I am about to embark on swapping the Cosmo 13B-RE into the RX8 and had not heard of this external oil reservoir.
The black thing in the oilpan is some kind of baffle, and there is also an electrical device (you can see it as the small round silver thing) which uses a connector from the outside of the pan. Not sure what that is yet, my guess would be some kind of oil level sensor.
Last edited by thetech; 06-28-05 at 08:48 PM.
Trending Topics
#8
****** of disaster
iTrader: (1)
Join Date: Aug 2001
Location: Santa Monica, CA
Posts: 1,115
Likes: 0
Received 0 Likes
on
0 Posts
UPDATE: turns out there is no external reservoir, at lease there is no mention of it in the lubrication section of the service manual. The black thing in the oilpan is indeed the baffle, and the electrical switch is indeed the oil level warning switch.
#10
****** of disaster
iTrader: (1)
Join Date: Aug 2001
Location: Santa Monica, CA
Posts: 1,115
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by CCarlisi

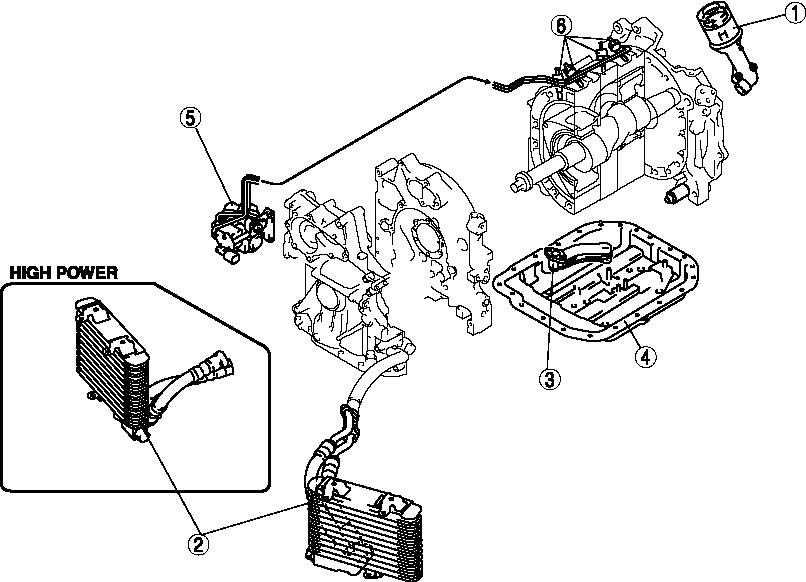

Thanks for posting the diagram Hakeem. Do you happen to have a shot of the oil pickup coming off the block?
#12
****** of disaster
iTrader: (1)
Join Date: Aug 2001
Location: Santa Monica, CA
Posts: 1,115
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RX-Heven
Minimum is zero depth, at least thats what I have
It's definitely interesting to note though that the RX8 is able to function on such a shallow oilpan depth. I am hoping that I can modify my Greddy pan slightly on the Cosmo engine and get the engine down as low as the Renesis used to sit.
Sorry for hijacking the 20B forum with my RX8 monstrosity, but it seems most of the interesting theoretical discussion takes place in here!
#13
Rebreaking things
Thread Starter
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts
I spoke to Roger again today about the pan. He is starting to backpedal on 45mm being adaquate for use on the track. He is going to take a closer look at it and get back to me.
Dave,
Unfortunately going from 45mm to zero (really more like 10mm) costs another $3,000 :o. The other benefit to using a dry sump is that the oil system then has the capacity to safely go over 8000rpms for sustained time.
Dave,
Unfortunately going from 45mm to zero (really more like 10mm) costs another $3,000 :o. The other benefit to using a dry sump is that the oil system then has the capacity to safely go over 8000rpms for sustained time.
#14
****** of disaster
iTrader: (1)
Join Date: Aug 2001
Location: Santa Monica, CA
Posts: 1,115
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by CCarlisi
I spoke to Roger again today about the pan. He is starting to backpedal on 45mm being adaquate for use on the track. He is going to take a closer look at it and get back to me.
#15
Rebreaking things
Thread Starter
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts

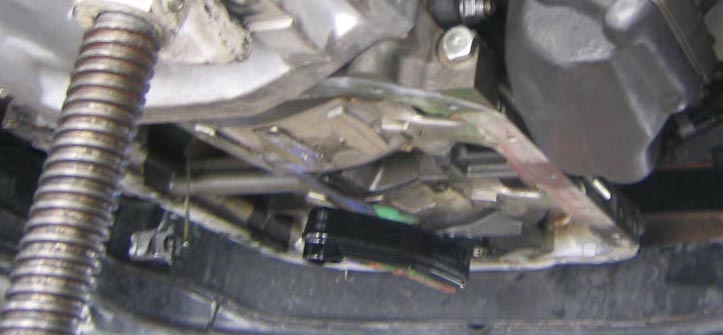

An RX8 forum member was nice enough to send me this pictures.
Notice How far toward the front of the motor and pan the pickup point is. The RX8 pickup appears to feed from under the front rotor while the 20b pickup feeds from under the intermediate. There also appears to be a slight backstop to the pickup that may slow the movement of oil to the rear of the motor during acceleration. I still can't figure out how the giant black 'baffle' that is bolted to the bottom of the pan works
Notice How far toward the front of the motor and pan the pickup point is. The RX8 pickup appears to feed from under the front rotor while the 20b pickup feeds from under the intermediate. There also appears to be a slight backstop to the pickup that may slow the movement of oil to the rear of the motor during acceleration. I still can't figure out how the giant black 'baffle' that is bolted to the bottom of the pan works
Last edited by CCarlisi; 06-29-05 at 08:46 PM.
