20b triple turbo?
Thread Starter
SOLD THE RX-7!
Joined: Mar 2001
Posts: 7,451
Likes: 0
From: Vancouver, BC, Canada
20b triple turbo?
anyone ever make one? I'm just wondering if a local shop will be the first
it's going into an FC... they havn't mounted the engine yet to look for enough space... but the owner wants it and has $$$ so LOL....
it's going into an FC... they havn't mounted the engine yet to look for enough space... but the owner wants it and has $$$ so LOL....
Joined: Mar 2001
Posts: 31,833
Likes: 3,232
From: https://www2.mazda.com/en/100th/
i've talked to k2rd about a single manifold, and they want to make me a triple (they have a dual for the fd). i dunno where the turbos would go, maybe the trunk....
mike
mike
Thread Starter
SOLD THE RX-7!
Joined: Mar 2001
Posts: 7,451
Likes: 0
From: Vancouver, BC, Canada
ya... he can make everything himself. he builds SS headers, exhausts, and IC pipes etc all the time
just a matter of space...
I'm just curious if it's been done and any pics.
FYI this is for the guys "street" car LOL... his tube chasis drag race frame is currently being made now too for a different 3 rotor LOL..
hmm.. I wonder what he's gona do with his R100 with it's single turbo FD engine and NOS...
just a matter of space...I'm just curious if it's been done and any pics.
FYI this is for the guys "street" car LOL... his tube chasis drag race frame is currently being made now too for a different 3 rotor LOL..
hmm.. I wonder what he's gona do with his R100 with it's single turbo FD engine and NOS...
Trending Topics
Thread Starter
SOLD THE RX-7!
Joined: Mar 2001
Posts: 7,451
Likes: 0
From: Vancouver, BC, Canada
Originally posted by wptrx7
why would you do this again? the advantages?
luigi
why would you do this again? the advantages?
luigi

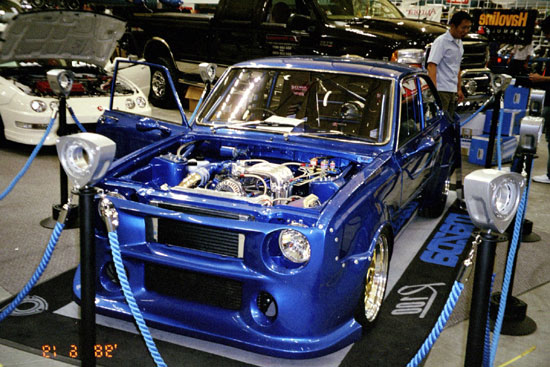

FYI this is the customer's current car.... r100 with single turbo FD engine and NOS
Old [Sch|F]ool
Joined: May 2001
Posts: 12,862
Likes: 568
From: Cleveland, Ohio, USA
Well since it's apparently going to be a show queen, it doesn't have to run or anything. Just bolt some turbo housings together and attach 'em with painted PVC piping to a 20B "shell" with no internals.
Hell, even better.... make a fake 4-rotor using a bunch of 13B rotor housings and intermediate housings.
Hell, even better.... make a fake 4-rotor using a bunch of 13B rotor housings and intermediate housings.
Thread Starter
SOLD THE RX-7!
Joined: Mar 2001
Posts: 7,451
Likes: 0
From: Vancouver, BC, Canada
Originally posted by Racer 13B
Cool post some more pics.
Cool post some more pics.
http://www.1300cc.com/r100-2.jpg
http://www.1300cc.com/r100-3.jpg
Rotorhead
Joined: Feb 2001
Posts: 9,136
Likes: 39
From: Charlottesville, Virginia, USA
Originally posted by protlewski
Ok i'll see if this works. I made the pic smaller I think
Ok i'll see if this works. I made the pic smaller I think
http://www.geocities.com/evilaviator/axia
I really like the car, but IMO the 3-turbo setup is a complete waste of money except for those advertising their automotive specialty business.
Full Member
Joined: Jul 2002
Posts: 166
Likes: 0
From: Orange County, CA
I would tend to opt for a single turbo.
Think about this: as far a plumbing and distribution of exhaust energy goes, twin isn't what I would call ideal on anything with three exhaust ports.
Sure the factory does twins, but IIRC, this is a log manifold piped into a single exhaust housing containing two turbines with actuators directing exhuast in one direction or the other for 'sequential' opertation. Not to mention most 20B owners seem anxious to remove this set-up.
Running a 20B like three seperate engines on a common e-shaft sounds better to me. Obviously the turbine housing choice would need to reflect the fact that we were getting 1/3 the exhaust pulses. I would expect that the flow capacity of three small turbine housings will out-perform two large units too. The end result will definately be something that wants to run on the top end. The RB land speed car is a perfect example of this.
On the street I see no use for it, it's just another way to up the 'mines bigger than yours' ante. The power delivered will be very difficult to connect to the ground in a street chassis whenever it peaks.
On the dragstrip or lake-bed purpose built chassis were it belongs, maybe they've got something there. I would consider using three water-to-air coolers and a 3-barrel throttle body to make the whole science project worth studying.
Think about this: as far a plumbing and distribution of exhaust energy goes, twin isn't what I would call ideal on anything with three exhaust ports.
Sure the factory does twins, but IIRC, this is a log manifold piped into a single exhaust housing containing two turbines with actuators directing exhuast in one direction or the other for 'sequential' opertation. Not to mention most 20B owners seem anxious to remove this set-up.
Running a 20B like three seperate engines on a common e-shaft sounds better to me. Obviously the turbine housing choice would need to reflect the fact that we were getting 1/3 the exhaust pulses. I would expect that the flow capacity of three small turbine housings will out-perform two large units too. The end result will definately be something that wants to run on the top end. The RB land speed car is a perfect example of this.
On the street I see no use for it, it's just another way to up the 'mines bigger than yours' ante. The power delivered will be very difficult to connect to the ground in a street chassis whenever it peaks.
On the dragstrip or lake-bed purpose built chassis were it belongs, maybe they've got something there. I would consider using three water-to-air coolers and a 3-barrel throttle body to make the whole science project worth studying.
