Wires near starter, not sure where their home is...
#1
Wires near starter, not sure where their home is...

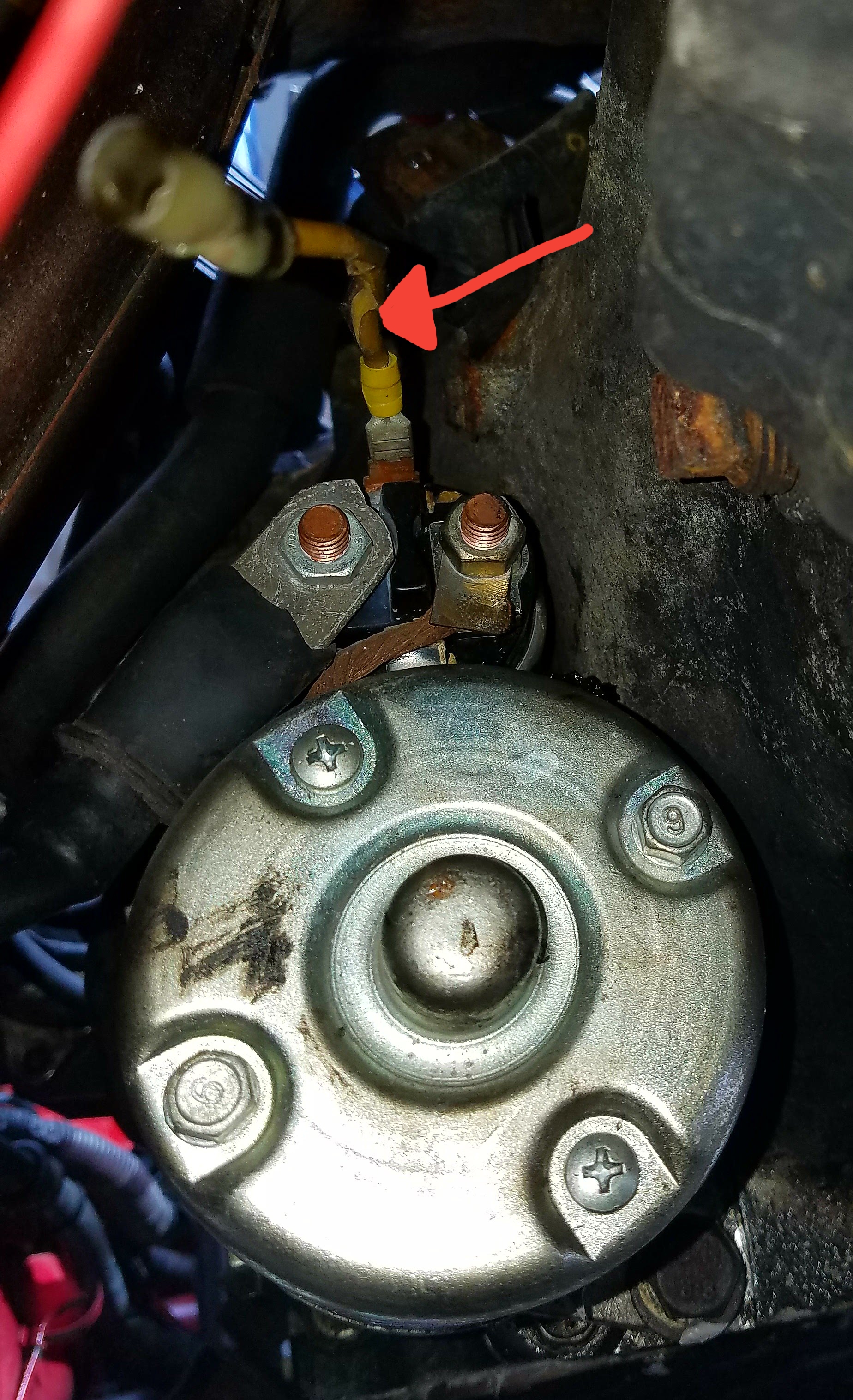

The spade connector from the starter has a short wire with a butt connector on the end. Obviosuly not original. Where would this wire go to?

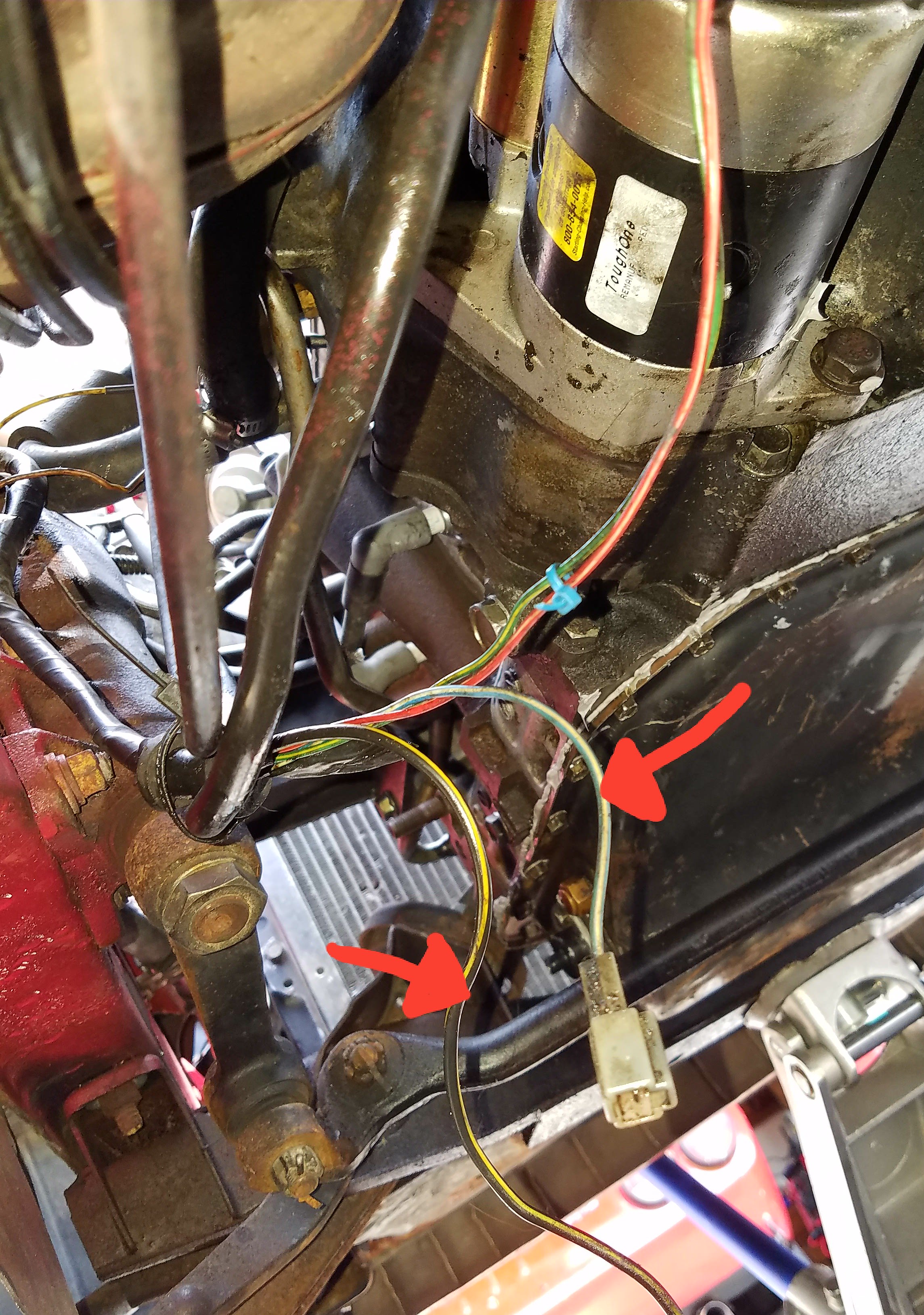

The other 2 wires are coming from the harness that eventually leads into the firewall. Both look original and the light blue with yellow stripe has the original connector on it. The black with yellow stripe has been cut.
Not sure where these go either...?
Any help would be appreciated.
See pics below for reference.
The other 2 wires are coming from the harness that eventually leads into the firewall. Both look original and the light blue with yellow stripe has the original connector on it. The black with yellow stripe has been cut.
Not sure where these go either...?
Any help would be appreciated.
See pics below for reference.
#3
Thanks!
The level sensor in my pan is gone and the other is well, not really needed in my case. So I'll tape those up.
For the starter trigger wire, where does this go to? I would assume 12v from the ignition switch?
The level sensor in my pan is gone and the other is well, not really needed in my case. So I'll tape those up.
For the starter trigger wire, where does this go to? I would assume 12v from the ignition switch?
Last edited by sen2two; 01-20-18 at 02:24 PM.
#7
Never Follow
iTrader: (18)
The large Black/yellow wire you have shown there goes to the spade connector on the top of the starter solenoid. Whatever that mess is on your starter now (in your first pic) I would just remove then put a fresh female spade connector on the black/yellow and connect it there.
You're correct, it sees 12v from the ignition switch when you turn it to "start".
You're correct, it sees 12v from the ignition switch when you turn it to "start".
Trending Topics
#8
Out In the Barn
iTrader: (9)
In the second pic, that blue wire with the push connector is for the hot start assist. That connector connected to a fusible link that then gets connected to the starter main power stud. It's labeled A2. Most first gens have that fusible link missing. I removed mine and just made my own pigtail.
