I have 2 MSD 6AL boxes and I was wondering if I hooked both boxes up to the leading magnetic pick up, then each box to thier own coil, then each coil directly to thier own leading spark plug, would this work?

john smack

iTrader: (12)

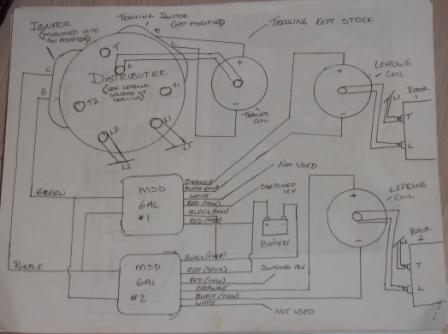

I have a picture that I made but I dont know how to get it on here

REVHED

There's no need for two boxes. You can use one 6AL to run two leading coils in parallel or a dual post coil.

john smack

iTrader: (12)

I thought there was a problem with splitting the "spark" to two coils, and that it cuts the power in half. Besides I have two boxes just sitting around. I am just wondering what I have to do to utilize them

FirebirdSlayer666

iTrader: (3)

Technically it doesn't "split" the spark between both leading plugs due to the fact that both leading plugs aren't firing at the same time. Rotor 2 is 90* behind Rotor 1 so 1 fires then 2 fires. If I'm wrong someone will correct me. Makes sense to me though

john smack

iTrader: (12)

Hopefully here is a picture

john smack

iTrader: (12)

well i guess i dont know how to put up pictures

john smack

iTrader: (12)

I thought both eladings will fire at the same time all the time you will just have a wasted spark

gsl-se addict

iTrader: (3)

Yes, you could wire both MSD boxes to the leading pickup and use 1 per leading coil. No worth it IMO, but you can give it a shot. You would be best off either:

- 1 MSD leading firing a dual post coil (like the 2nd gen one or a twin post MSD coil)
- 1 MSD firing 2 1st gen coil (or MSD Blaster 2 or similar) coils in parallel

You could use the 2nd MSD box on trailing, but there is no real benefit there. I would just use 1 box and sell the other (or keep as a spare).

john smack

iTrader: (12)

how do you wire the msd to the mag pick up? do I need to gut an ignitor?

john smack

iTrader: (12)

Ha I finally figured it out how to get pics on here.

gsl-se addict

iTrader: (3)

If you gut the ignitor, make sure it is a dead one. No need to kill a perfectly good ignitor.

larrymcclendon

I actually tried this set up recently, using two Summit Racing digital ignition boxes and two second generation trailing coils for leading, with the trailing still stock. Worked beautifully.

john smack

iTrader: (12)

I only have good ones...... Is gutting the ignitor the only way to hook up an msd like this?

john smack

iTrader: (12)

how did you hook your boxes up to the magnetic pick up?

gsl-se addict

iTrader: (3)

I think that I have 1 or 2 bad ones. I could send one to you for no cost. You can also remove the leading ignitor and use filed down spade terminal to connect to the pickups. Search under Jeff20B. He had done connections this way and I know that he has a picture of it on here somewhere.

Edit: Here is what Jeff did (some examples with gutted ignitors, some with the filed disconnects).

https://www.rx7club.com/showthread.p...filed+terminal

Jeff20B

iTrader: (13)

Filed male quick disconnects are far easier, quicker and it works perfectly every time I do it. I haven't gutted one in four years.

john smack

iTrader: (12)

Ahhh Jeff I knew you would see this, your just the guy I was looking for.
I already bought another MSD coil and when I bought my car it already had 2 MSD Boxes in it unhooked so right now I just have 1 running the leading coil in stock setup. I want to utilize both boxes will this setup work?
So I just take the ignitor off and hook the green and purple wires into the little two prong jack on the side of the distributor? Then splice the two purple and green wires together so each box gets a signal?

john smack

iTrader: (12)

It works!!!!
I havent got a chance to run it for any period of time but it starts.
It was late last night when I got done, my car is so loud and my neighbours wouldn't have been too happy about me starting my car.
Today at lunch though I will be going home to start it and let it run for a bit

Siraniko

iTrader: (13)

I do since Im wacky and I have enough supply to last until the next century

john smack

iTrader: (12)

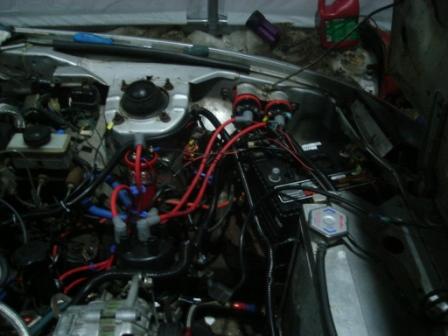

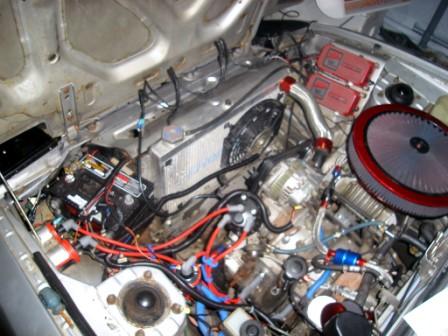

Here are som pics... This is just a rough draft.... The coils will stay where they are but all the MSD wiring will be hidden after tonight

gsl-se addict

iTrader: (3)

Well, some of us don't have the luxury of having every J-109 from every wrecked 7 in SoCal.

:Wacky leaving the wrecking yard:
:police officer approaches:

Officer: Sir, why are your socks buldging out like that?
Wacky: Officer, ummm... it is a rare medical condition called umm.. ignitoritis. It causes these strange bumps on my ankles.
Officer: Okay... but why does it look like you have a gas tank under your shirt?
Wacky: Umm... uhhh... I can explain that. It's another stange medical condition called... ummm..

john smack

iTrader: (12)

why does anyone need these ignitors??
just file som male connectors.

john smack

iTrader: (12)

What can i do to test this setup to be sure it is working well?
Do I have to do anything with the timing or vacume advance?
