where to add seafoam/oil on SE 13b?
#1
Senior Member
Thread Starter
iTrader: (1)
Join Date: May 2006
Location: State College, PA
Posts: 459
Likes: 0
Received 0 Likes
on
0 Posts
where to add seafoam/oil on SE 13b?

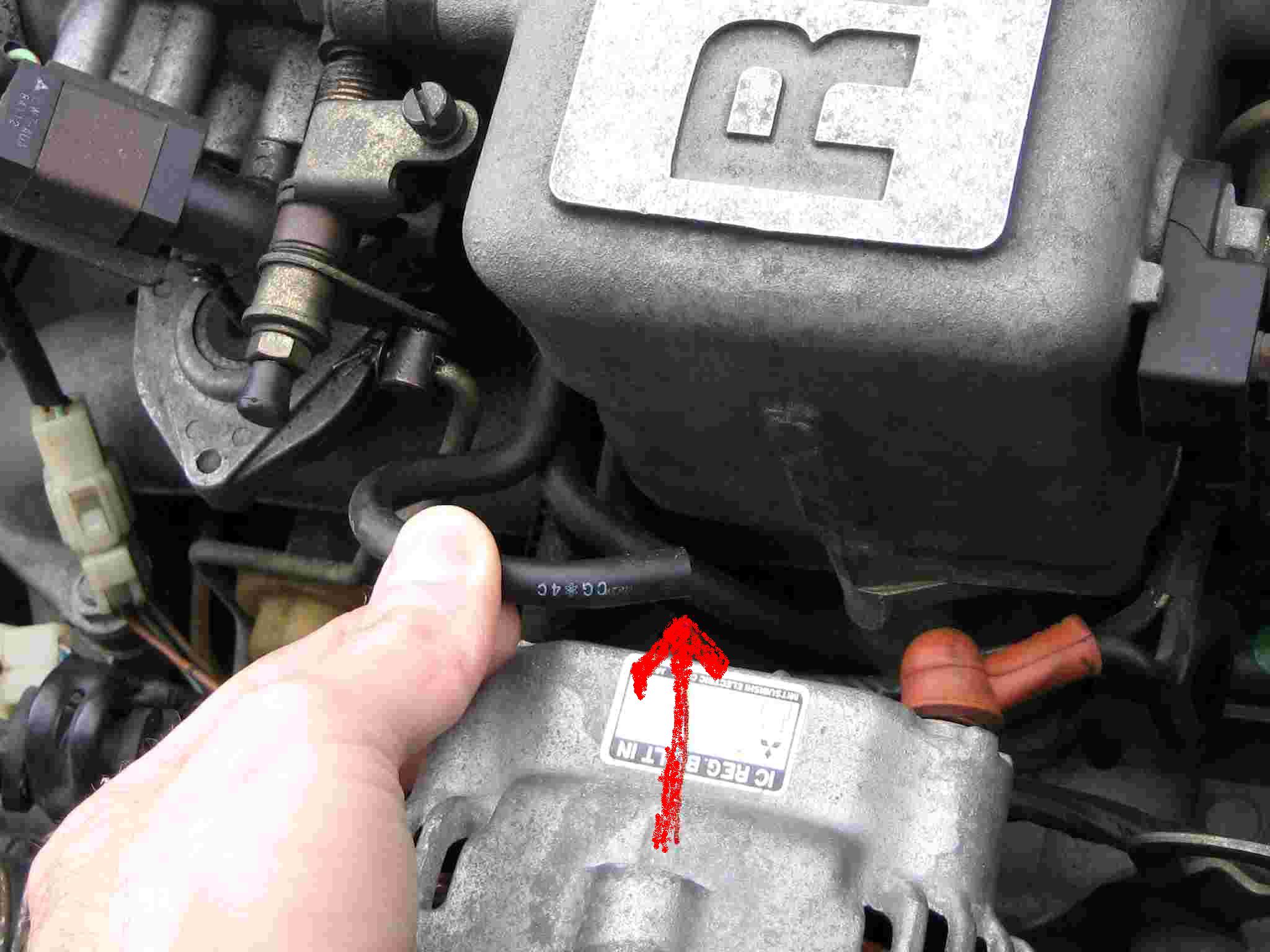

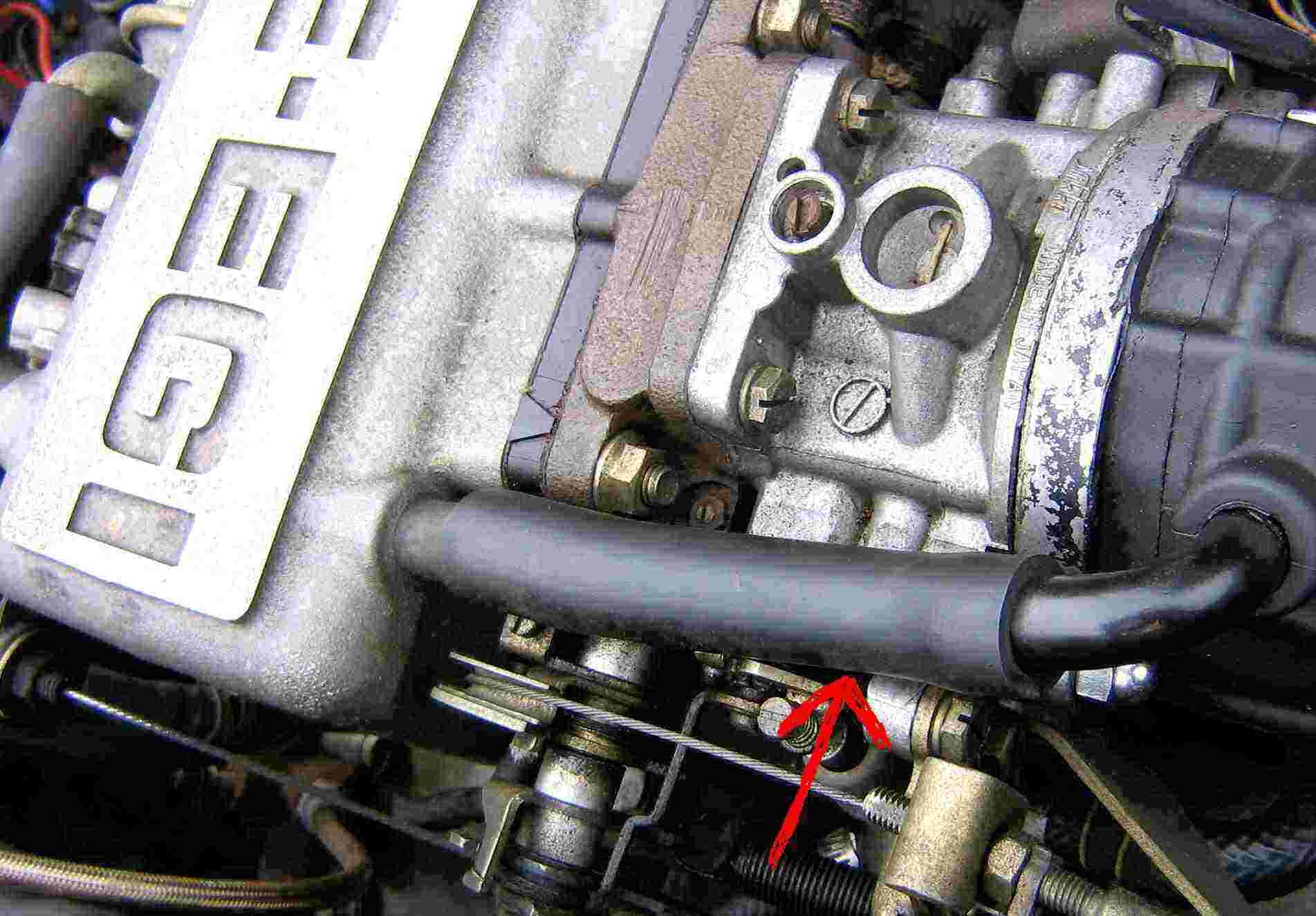

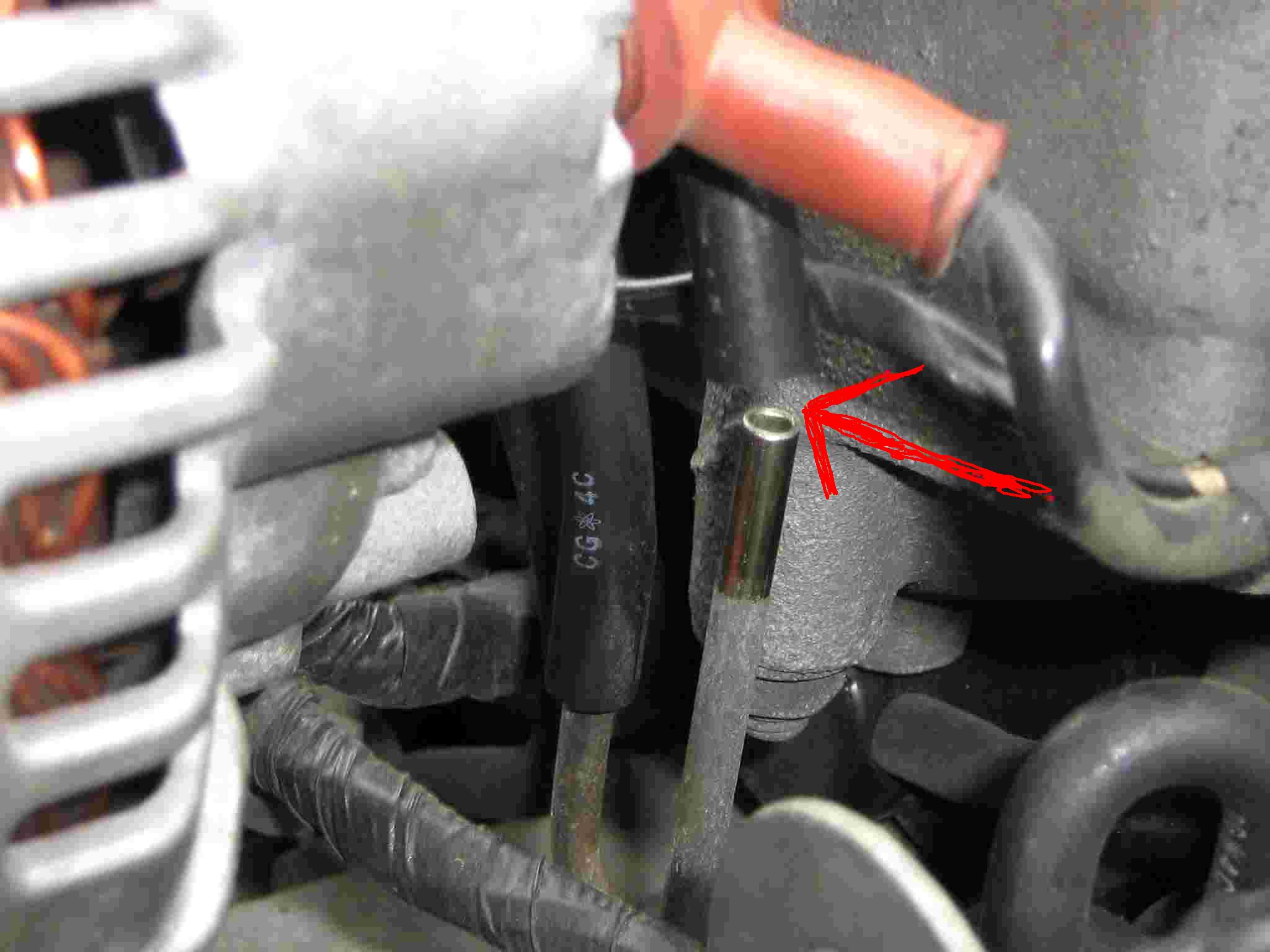

Where is the best place to introduce seafoam for cleaning treatment or oil for winter storage with the F.I. SE? I used to use the brake booster vacuum line, but I read somewhere on here it only goes to the rear rotor. What about the large rubber line that bypasses the butterflies in the throttle body?(pic01) Everytime I pull the one end off, the car dies... What about one of the two small vacuum lines right behind the alternator?(pic02,03) Does one of these feed into both rotors?
I've studied every vacuum diagram I could find, I'd like a definative answer from a fellow owner. Could someone post a photo or better diagram please?
I've studied every vacuum diagram I could find, I'd like a definative answer from a fellow owner. Could someone post a photo or better diagram please?
Last edited by sevens4me; 10-04-08 at 04:58 PM.
#7
Senior Member
Thread Starter
iTrader: (1)
Join Date: May 2006
Location: State College, PA
Posts: 459
Likes: 0
Received 0 Likes
on
0 Posts
Does anyone see any harm in trying to get oil for winter storage introduced through the large hose in pic01? It seems like a real PITA to try and spray oil into each rotor housing and try to get all the faces of the rotor to store it for winter. It will be stored and not started for at least 4-5 months, and I want the inside of the engine treated with something...Nobody has any different vacuum diagrams than the commonly found ones?
Trending Topics
#8
Rotary Enthusiast
iTrader: (3)
Remove distributor rotor, remove ECU fuse, unplg any vaccume line on intake manny. insert vaccume line into oil container, insert key into ignition, turn engine over. This is what i did prior to my last deployment. I marked the container with a sharpie marker before i turned motor over and the engine drew in about 5 ounces. once I was satisfied with the oil consumption i removed the vaccume line from container and rotated the engine over for about 5 more seconds to lubricate the engine. When i was gone i hade my GF go about once a month to the storae unit and turn they key for 5 more seconds and leave. when i got home plugged everything back in. primed the carb and fired up right away. I also put a fuel preservative in the tank.
#9
Senior Member
Thread Starter
iTrader: (1)
Join Date: May 2006
Location: State College, PA
Posts: 459
Likes: 0
Received 0 Likes
on
0 Posts
Any vacuum line? One of the two that I have pictured above? They terminate into hard lines right behind and below the alternator, but I don't know where the other ends end up at...
