Lee Lyons

I tried posting on the wheel/brake specific but no reply. So I thought I would post here. I need some help getting rims for my 81. I have looked everywhere and on just about every site that I know. But when I find a rim I realize that it won't fit the bolt pattern on my 81. Anyone with a 79-85 with pics and any info on where they found their rims would be extremely helpful. I want to get this car finished but I need something to help finish it off.

hornbm

There are a few konig rims that fit but thats about it. Your best bet is to swap over to a GSL-SE suspension setup. Theres endless aftermarket rims for the SE.

rhinor61

The bigger question is what size rim are you looking to get?

Stock wheels are 13" on your car, but Mazda did have a Limited Edition 14" in 1983, although rare not that hard to find. Kind of a BBS style mesh wheel that ran a 195/60/14 tire, so it kept the speedo accurate.

If you want to go 15" ROH Synper are avalible in 4x110mm lug pattern.



Link to JD Wheels

mar3

iTrader: (8)

More...

Ultimate Wheel Thread???

Ooof....it's been gutted, time to find a new "Ultimate Wheel Thread" but not right now...

branca

iTrader: (1)

http://www.tirerack.com/servlet/Call...filterSpecial=

yayo420

iTrader: (3)

I have some LE wheels W/ brand new yokahomas Ill sell for $500

Rx7carl

And they're 15x7. Thats what I want if I cant find panas at a decent price.

theweasel

We have a guy at Konig that will make us 17" tantrums if anyone knows the backspacing.

theweasel

OOH, I bet I can get them to make the heliums (15x7, 10.8 lbs) instead.

Steaminbeeman

if you go to http://www.cpracing.ca or maybe its http://www.atlantarx7.com you can get a conversion from 4 lug to 5 lug for about 350$ I believe. Then you'd have alot of options

Lee Lyons

hmm k cool...I'll take alook at the lug conversion kit but I think I might just swapping out the front suspension with a gsl-se suspension front and rear.

yayo420

iTrader: (3)

you PMed me wanting a pic of the LE rims

CHEF_EG_1

What about 17's?


I'd LOVE to see a set of 17" Heliums on both of my cars. And 15" for the autoX

rhinor61

15" for AutoX, yikes in a class where you have to stay with stock gearing, you will find that you want 13"x8" wheels for cone patrol.

17" for the street.....Not me even in California the roads are not that smooth, its tough enough keeping 15" wheels from getting bent. Little alone from chipping your teeth.

my .02¢

John

theweasel

Just an update if anyone is interested. Konig cannot make the helium in our bolt pattern. They say there is not enough material on them. Jim is going to do some research to find out what they can make for us. If anyone else is interested let me know.

gonzz

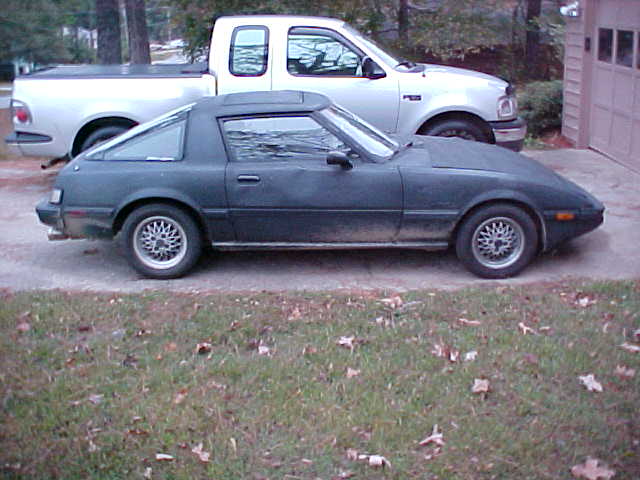

Mine: Just Installed

theweasel

Hey gonzz, where'd you get the front airdam?

rotarydankus again

mine 16'' offset drilled my hubs for press in studs, increased pattern to more plentifull one.

rxtasy3

iTrader: (2)

^ That would have been my suggestion. Having a machine shop re-drill the 4 bolt pattern to 4x4.25 would open up a really good selection of wheels and would be alot cheaper than a conversion.

frigidmonkey

what's it cost to get the redrilling done? and what about konig rewinds? can we get those in our bolt pattern? and we need a negative not a postive backspacing right? I noticed the koseis had postive offset of 17. wouldn't that pull the wheels up under the car?

frigidmonkey

what's it cost to get the redrilling done? and what about konig rewinds? can we get those in our bolt pattern? and we need a negative not a postive backspacing right? I noticed the koseis had postive offset of 17. wouldn't that pull the wheels up under the car?

Jon_Valjean

I'd seriously suggest you consider changing stud patterns. As I'm running a 13B-T with a T04 Garret and fuel injection, I've opted for an EB Ford Falcon 4-spider LSD in the rear (five stud) and Nissan Skyline R33 Turbo front brakes (same stud pattern). Limitless selection for alloy wheels

frigidmonkey

I'm currently happy with my current wheels , MSW "mesh" style, 13's. BUT, I want to put some fender flares on , like selctmaz, or cp racing, and I'm thinking I'm going to need something wider to fill out the flares... maybe I should just forget the flares, LOL

gamble302

arent R33 brakes much like the Z32 300zx turbo brakes?
howd they do your front brake conversion? mill off the outer part of the 4x110 rotor and use it as a mounting surface for the r33 brakes?

Jon_Valjean

The entire mounting point of the bearing needs to be modified, it's extensive work and you can't use any of the original 4x110 rotor. The R33 brakes are the same as the Z32 300ZX cars, only the GTR spec brakes were radically different (factory Brembo 4-pot calipers etc..)

It's not something you should consider unless you're very keen, trust me
