What the hell did i do!

Thread Tools

Search this Thread

Old 06-25-14, 07:42 PM
  #1
Senior Member
Thread Starter
iTrader: (1)

thecody59's Avatar

Join Date: Jul 2013
Location: minnesota
Posts: 498
Likes: 0
Received 0 Likes on 0 Posts
What the hell did i do!
I hooked my my new battery wrong black to red and red to black when I did the box next to in smoked now my car is dead what happened?
thecody59 is offline
Reply Like
Old 06-25-14, 07:46 PM
  #2
Out In the Barn


iTrader: (9)

KansasCityREPU's Avatar

Join Date: Mar 2005
Location: KC
Posts: 6,055
Received 1,015 Likes on 801 Posts
You toasted the fuseable links. Hope that's all you toasted.
KansasCityREPU is offline
Reply Like
Old 06-25-14, 07:49 PM
  #3
Senior Member
Thread Starter
iTrader: (1)

thecody59's Avatar

Join Date: Jul 2013
Location: minnesota
Posts: 498
Likes: 0
Received 0 Likes on 0 Posts
How much will that cost me?
thecody59 is offline
Reply Like
Old 06-25-14, 07:59 PM
  #4
RX for fun

iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,926
Likes: 0
Received 22 Likes on 19 Posts
Go to a partshouse and purchase new fusible links. Best to search as many have replaced those darn links with 30-40 amp fuses
Siraniko is offline
Reply Like
Old 06-25-14, 08:01 PM
  #5
Impractical

iTrader: (1)

Spannerhead's Avatar

Join Date: Jan 2005
Location: Chattanooga, TN
Posts: 167
Likes: 0
Received 0 Likes on 0 Posts
Twist the fusible links back together if there's anything left of them. Then hook the battery back up the correct way. Report on your findings.
Spannerhead is offline
Reply Like
Old 06-25-14, 08:06 PM
  #6
Senior Member
Thread Starter
iTrader: (1)

thecody59's Avatar

Join Date: Jul 2013
Location: minnesota
Posts: 498
Likes: 0
Received 0 Likes on 0 Posts
what do you mean twist we are talking about the little black box to the right of the battery with the little things hanging out you can pull out right
thecody59 is offline
Reply Like
Old 06-25-14, 08:10 PM
  #7
Senior Member
Thread Starter
iTrader: (1)

thecody59's Avatar

Join Date: Jul 2013
Location: minnesota
Posts: 498
Likes: 0
Received 0 Likes on 0 Posts
if your talking about the box that has the fuzes that some out with the strings that's it when I pulled each one out the middle one snapped on me
thecody59 is offline
Reply Like

Trending Topics

Old 06-25-14, 08:18 PM
  #8
Rotary Powered Boobies

iTrader: (1)

luiml73's Avatar

Join Date: Oct 2001
Location: Miami Beach
Posts: 2,530
Likes: 0
Received 0 Likes on 0 Posts

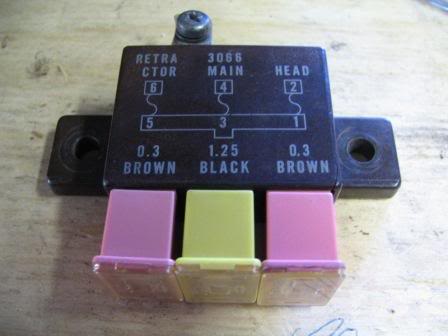

replace the little strings with these.

Name: IMG_2125.jpg Views: 37 Size: 20.0 KB
luiml73 is offline
Reply Like
Old 06-25-14, 08:21 PM
  #9
Senior Member

Arcolithe's Avatar

Join Date: Jul 2013
Location: South Beach
Posts: 303
Likes: 0
Received 0 Likes on 0 Posts
at any autoparts store, get some FLF bussman fusible links
20/40/20

from top to bottom
Arcolithe is offline
Reply Like
Old 06-25-14, 10:14 PM
  #10
Impractical

iTrader: (1)

Spannerhead's Avatar

Join Date: Jan 2005
Location: Chattanooga, TN
Posts: 167
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by thecody59
what do you mean twist we are talking about the little black box to the right of the battery with the little things hanging out you can pull out right
Yes. Those things. Check to see if the wire inside one or more is broken. If so, twist it back together and try the car again with the battery hooked up correctly.
Spannerhead is offline
Reply Like
Old 06-26-14, 08:50 AM
  #11
Waffles - hmmm good

iTrader: (1)

t_g_farrell's Avatar

Join Date: Jul 2004
Location: Lake Wylie, N.C.
Posts: 8,783
Received 282 Likes on 232 Posts
Don't twist em together, just get the bussman fusible links, they fit right in and look like they
belong there.
t_g_farrell is offline
Reply Like
Old 06-26-14, 08:54 AM
  #12
Impractical

iTrader: (1)

Spannerhead's Avatar

Join Date: Jan 2005
Location: Chattanooga, TN
Posts: 167
Likes: 0
Received 0 Likes on 0 Posts
Twisting together = diagnosis. The long term fix would obviously be either a replacement or the bussman fusible links, although let's just say that I would be...impressed if the OP installed the bussman links.
Spannerhead is offline
Reply Like
Old 06-26-14, 09:32 AM
  #13
Mazda Tech
iTrader: (4)

MazdaMike02's Avatar

Join Date: Nov 2007
Location: Tottenham, ON
Posts: 1,589
Likes: 0
Received 1 Like on 1 Post
Hope you didnt fry every ground in the wiring harness as well..
MazdaMike02 is offline
Reply Like
Old 06-26-14, 09:44 AM
  #14
Senior Member
Thread Starter
iTrader: (1)

thecody59's Avatar

Join Date: Jul 2013
Location: minnesota
Posts: 498
Likes: 0
Received 0 Likes on 0 Posts
There isn't enough wire in the middle one to twist back together just a stub on both side all I know is when it happened the box starting smoking. How much will the new links cost.
thecody59 is offline
Reply Like
Old 06-26-14, 10:29 AM
  #15
Rotary Powered Boobies

iTrader: (1)

luiml73's Avatar

Join Date: Oct 2001
Location: Miami Beach
Posts: 2,530
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by thecody59
There isn't enough wire in the middle one to twist back together just a stub on both side all I know is when it happened the box starting smoking. How much will the new links cost.
A few bucks
luiml73 is offline
Reply Like
Old 06-26-14, 12:20 PM
  #16
1 bar boost

iTrader: (4)

notveryhappyjack's Avatar

Join Date: Jun 2005
Location: Seattle, Washington
Posts: 2,753
Received 5 Likes on 3 Posts
wow, battery terminals are different sizes, you had to have gorilla armed it onto the post to even get it to fit at all
notveryhappyjack is offline
Reply Like
Old 06-26-14, 12:22 PM
  #17
Mazda Tech
iTrader: (4)

MazdaMike02's Avatar

Join Date: Nov 2007
Location: Tottenham, ON
Posts: 1,589
Likes: 0
Received 1 Like on 1 Post
Originally Posted by notveryhappyjack
wow, battery terminals are different sizes, you had to have gorilla armed it onto the post to even get it to fit at all
Not always but yeah its pretty difficult on an RX7..
Dude the fuses are so cheap like 50 cents or a dollar each.
MazdaMike02 is offline
Reply Like
Old 06-26-14, 12:35 PM
  #18
Senior Member
Thread Starter
iTrader: (1)

thecody59's Avatar

Join Date: Jul 2013
Location: minnesota
Posts: 498
Likes: 0
Received 0 Likes on 0 Posts
Well the black cable is pretty banged up and corroded the red one is new the shop should of just replaced the black cable it's pretty bad.
thecody59 is offline
Reply Like
Old 06-28-14, 04:52 PM
  #19
Senior Member
Thread Starter
iTrader: (1)

thecody59's Avatar

Join Date: Jul 2013
Location: minnesota
Posts: 498
Likes: 0
Received 0 Likes on 0 Posts
Can anyone help me find the fuse links I went all around town and no auto parts store had them and I have been looking online to and can't find them unless I am not looking in the right spots.
thecody59 is offline
Reply Like
Old 06-28-14, 05:03 PM
  #20
RX for fun

iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,926
Likes: 0
Received 22 Likes on 19 Posts

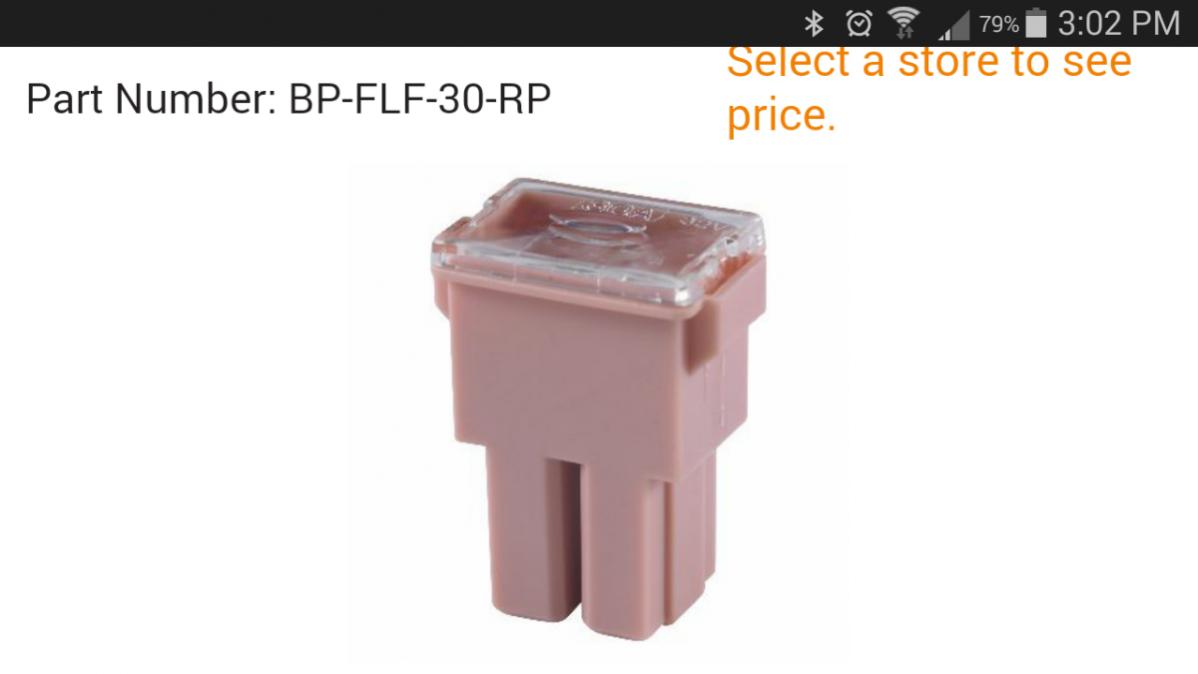

See post #8. http://m.autozone.com/autozone-mobil...9cih5?id=32385
Attached Thumbnails What the hell did i do!-forumrunner_20140628_150322.jpg
Siraniko is offline
Reply Like
Old 06-28-14, 05:12 PM
  #21
Senior Member
Thread Starter
iTrader: (1)

thecody59's Avatar

Join Date: Jul 2013
Location: minnesota
Posts: 498
Likes: 0
Received 0 Likes on 0 Posts
Does it matter what colors I get what ones do I need for my car?
thecody59 is offline
Reply Like
Old 06-28-14, 05:14 PM
  #22
RX for fun

iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,926
Likes: 0
Received 22 Likes on 19 Posts
Fuses have different ratings and they are colored coded. Someone posted the ratings several posts above
Siraniko is offline
Reply Like
Old 06-28-14, 05:21 PM
  #23
Senior Member
Thread Starter
iTrader: (1)

thecody59's Avatar

Join Date: Jul 2013
Location: minnesota
Posts: 498
Likes: 0
Received 0 Likes on 0 Posts
Will the pink and yellow work for me looks like the same box
thecody59 is offline
Reply Like
Old 06-28-14, 05:36 PM
  #24
RX for fun

iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,926
Likes: 0
Received 22 Likes on 19 Posts
On my SA and FB with s5 alternator, i changed mine to 80 main. The 2 other pigtails can be 20 or 30 amp IIRC
Siraniko is offline
Reply Like
Old 06-28-14, 05:47 PM
  #25
Senior Member
Thread Starter
iTrader: (1)

thecody59's Avatar

Join Date: Jul 2013
Location: minnesota
Posts: 498
Likes: 0
Received 0 Likes on 0 Posts
So your saying about 30amp on the ends and 80 amps for the middle one?
