What does this attach to? carb question

alright guys i've been working on this now for ever to try to sort it out ... i'm down to one last thing ... its the connector that goes inbetween the 2 clear hose (i think that they're for the oil or something, they have hose clamps at the end of them at the carb.) the connector is prob about 3/8 inches thick bubble head ... does that go to the cannister? can i just plug it?
Reply
Old Aug 20, 2005 | 01:31 PM
  #2
Dan_s_young's Avatar
Turbo widebody FB
Tenured Member 10 Years
iTrader: (1)

Joined: May 2004
Posts: 3,733
Likes: 3
From: Alberta Canada
what would really help is a picture, I believe the 2 clear hoses you are talking about are your omp lines, but from there on im confused as to what you are describing.
Reply
Old Aug 20, 2005 | 01:36 PM
  #3
Kentetsu's Avatar
Lives on the Forum
Tenured Member 15 Years

Joined: Jun 2004
Posts: 11,359
Likes: 14
From: Grand Rapids Michigan
If they are the hoses that lead to the oil metering pump, then they connect to the carb. There should be two metal tubes (like vacuum line connections) side by side. Should be pretty easy to find, they're like the only connections that will line up with them.
Reply
Old Aug 20, 2005 | 02:13 PM
  #4
dj55b's Avatar
Thread Starter
Banned. I got OWNED!!!
iTrader: (2)

Joined: Oct 2004
Posts: 6,122
Likes: 1
From: London, Ontario
hey,

I know where those 2 lines go ... but its the one thats inbetween them that i don't know ... i cant find my digi cam ri ght now thats why i have no pics ...
Reply
Old Aug 20, 2005 | 02:26 PM
  #5
rxtasy3's Avatar
Moderator
Tenured Member: 20 Years
iTrader: (2)

Joined: Jun 2002
Posts: 9,579
Likes: 290
From: Spartanburg, SC
if it's the one i'm thinking of, u don't really need it if u've already removed all the emissions stuff.
Reply
Old Aug 20, 2005 | 06:38 PM
  #6
dj55b's Avatar
Thread Starter
Banned. I got OWNED!!!
iTrader: (2)

Joined: Oct 2004
Posts: 6,122
Likes: 1
From: London, Ontario
all my emmissions are still there ...
Reply
Old Aug 20, 2005 | 06:44 PM
  #7
IanS's Avatar
Ricer
Tenured Member 15 Years
iTrader: (4)

Joined: Jun 2004
Posts: 4,424
Likes: 1
From: Washington, Iowa
Doesnt that have somethig to do with the cold start assist? I know when doing the emissions removal, it is plugged. I am pretty sure its cold start assist. Should go to the clear (most likely now yellow colored) bottle on pass side up next to firewall.
Reply
Old Aug 20, 2005 | 09:59 PM
  #8
64mgb's Avatar
Go Hawks!
iTrader: (1)

Joined: May 2004
Posts: 1,952
Likes: 3
From: Cedar Rapids, Iowa
I think that's correct, ricer...er, I mean Ian I think it goes to the cold start assist bottle.

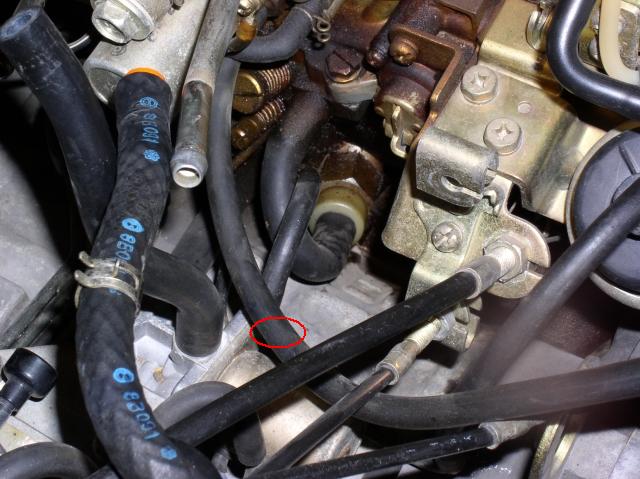

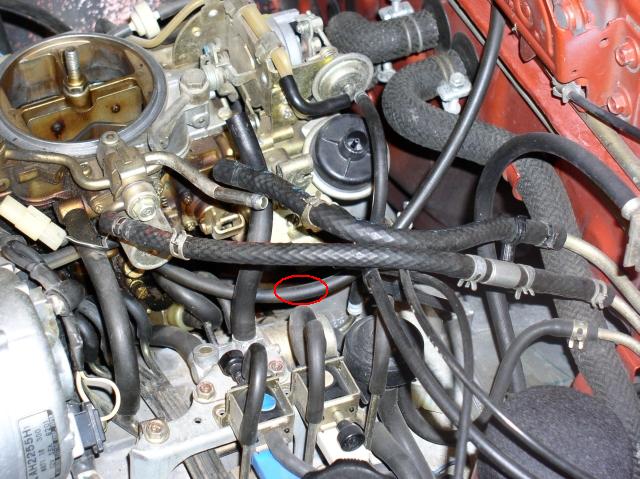

Yep. I just went out and checked, and the line that's marked in the attachments goes to the cold start assist bottle. This is on a '79.

Rich
Attached Thumbnails What does this attach to? carb question-mazda_carb_20040425_09a.jpg   What does this attach to? carb question-mazda_carb_20040425_11a.jpg
Reply
Old Aug 21, 2005 | 10:26 PM
  #9
dj55b's Avatar
Thread Starter
Banned. I got OWNED!!!
iTrader: (2)

Joined: Oct 2004
Posts: 6,122
Likes: 1
From: London, Ontario
hey thanks 64mb ... that all that i wanted .... helped me also find out what the other thing that i screwed up on was ... thanks ...
Reply
Old Aug 22, 2005 | 10:14 AM
  #10
64mgb's Avatar
Go Hawks!
iTrader: (1)

Joined: May 2004
Posts: 1,952
Likes: 3
From: Cedar Rapids, Iowa
Glad to be able to help...good luck!

Rich
