What is this??
#1
Junior Member
Thread Starter
Join Date: Apr 2019
Location: sugarcreek
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
What is this??

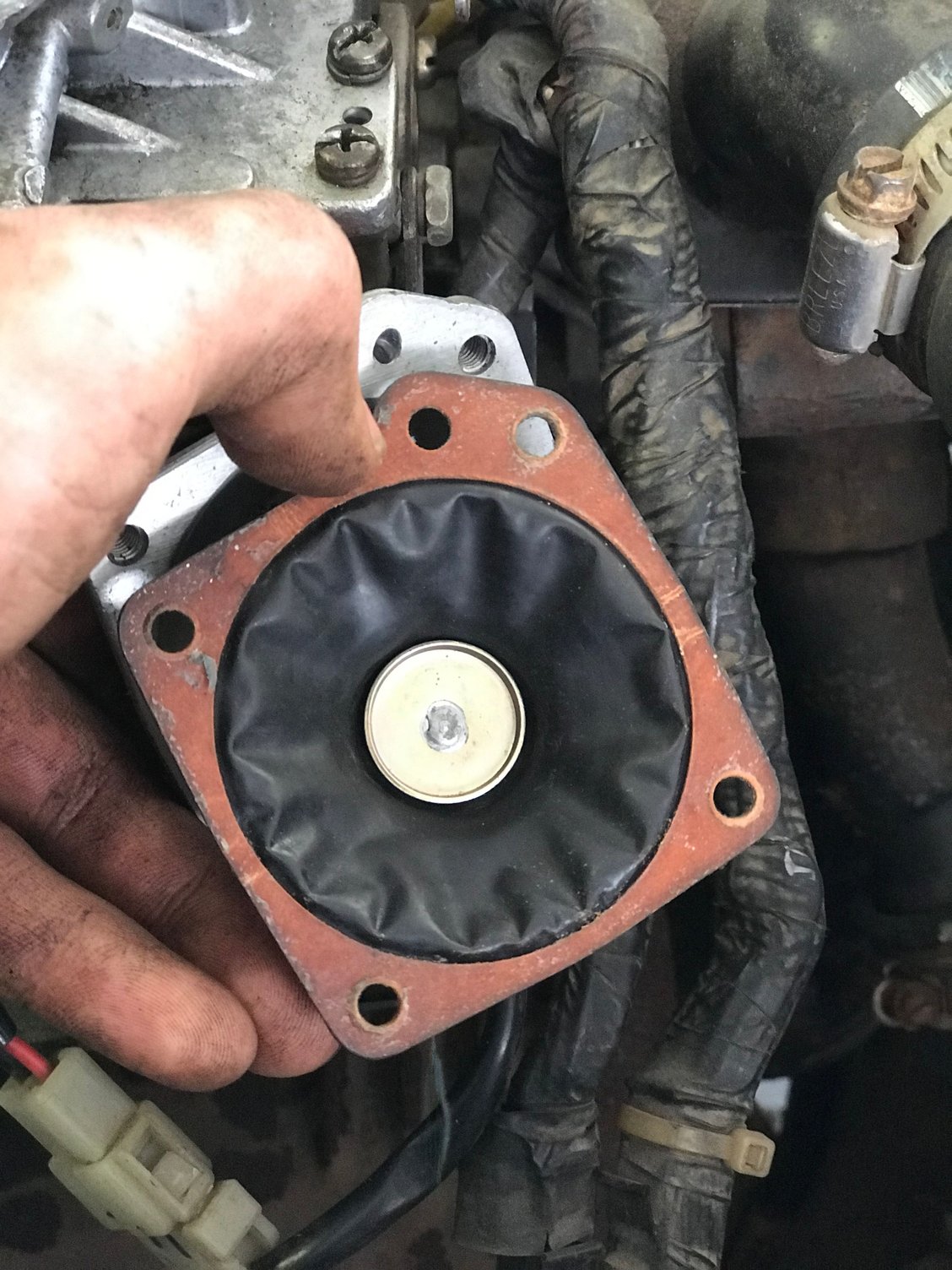

Can anyone tell me what the part is called. I’ve recently discovered that this thing is the reason my rx7 won’t start/ stay running. Can anyone tell me what it’s called and best place to get a replacement.
#2
Slowly getting there...
iTrader: (1)
That's the diaphragm out of this, right?........
That's the vacuum pot for the secondaies on your carb. You need that, unless you're stripping the carb down and converting to mechanical opening only. It looks to be in pretty good condition, other than being apart.
That's the vacuum pot for the secondaies on your carb. You need that, unless you're stripping the carb down and converting to mechanical opening only. It looks to be in pretty good condition, other than being apart.
#4
Junior Member
Thread Starter
Join Date: Apr 2019
Location: sugarcreek
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
#5
Slowly getting there...
iTrader: (1)
Where it bolts to the carb there are 3 bolt holes and a vacuum port (the little black tit). Did you block off that port on the carb, or are you saying it now runs better with that vacuum leak??
If you didn't block the hole, then I think the vacuum leak created is leaning the mix (on the secondary side) to a better ratio. That would mean gas was coming through the secondaries when it shouldn't, or too much or something along that line.
If you removed the Vacuum pot and blocked the hole, and now it seems to start and run better, then yes there was something wrong with the pot. Leaking gasket, gasket, stuck open or closed, something.
Either way, your secondaries will not function without it unless you modify the carb for mechanical secondary operation. There are plenty of write-ups on how to do that. But on a street car you may have to adjust your pedal foot technique slightly.
If you didn't block the hole, then I think the vacuum leak created is leaning the mix (on the secondary side) to a better ratio. That would mean gas was coming through the secondaries when it shouldn't, or too much or something along that line.
If you removed the Vacuum pot and blocked the hole, and now it seems to start and run better, then yes there was something wrong with the pot. Leaking gasket, gasket, stuck open or closed, something.
Either way, your secondaries will not function without it unless you modify the carb for mechanical secondary operation. There are plenty of write-ups on how to do that. But on a street car you may have to adjust your pedal foot technique slightly.
Last edited by Maxwedge; 05-10-19 at 08:32 AM.
#6
Junior Member
Thread Starter
Join Date: Apr 2019
Location: sugarcreek
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Where it bolts to the carb there are 3 bolt holes and a vacuum port (the little black tit). Did you block off that port on the carb, or are you saying it now runs better with that vacuum leak??
If you didn't block the hole, then I think the vacuum leak created is leaning the mix (on the secondary side) to a better ratio. That would mean gas was coming through the secondaries when it shouldn't, or too much or something along that line.
If you removed the Vacuum pot and blocked the hole, and now it seems to start and run better, then yes there was something wrong with the pot. Leaking gasket, gasket, stuck open or closed, something.
Either way, your secondaries will not function without it unless you modify the carb for mechanical secondary operation. There are plenty of write-ups on how to do that. But on a street car you may have to adjust your pedal foot technique slightly.
If you didn't block the hole, then I think the vacuum leak created is leaning the mix (on the secondary side) to a better ratio. That would mean gas was coming through the secondaries when it shouldn't, or too much or something along that line.
If you removed the Vacuum pot and blocked the hole, and now it seems to start and run better, then yes there was something wrong with the pot. Leaking gasket, gasket, stuck open or closed, something.
Either way, your secondaries will not function without it unless you modify the carb for mechanical secondary operation. There are plenty of write-ups on how to do that. But on a street car you may have to adjust your pedal foot technique slightly.
Last edited by Sinnett99; 05-10-19 at 08:44 AM.
#7
Slowly getting there...
iTrader: (1)
all ik as of rn is that if we pull it it allows the car to idle and start up. i had my undle pull it one time while i fired it up and he could control the idle by pulling it or pushing it in. and no theres nothing blocked off. everything that needs to with the emissions delete is blocked off
So even though you can artificially get the car running on the secondaries, you can't drive around like that. Carb needs a full cleanout and rebuild, or primary linkage corrected if it's out of wack.
Where are our rotary mechanics? GSL-SEforme? Bueler? Bueler?
Last edited by Maxwedge; 05-10-19 at 10:03 AM.
Trending Topics
#8
ancient wizard...
You rang? I would start with a full disassemble and thorough cleaning of carb,assembled with fresh gaskets. Try to reuse original needles/seats.
Before taking anything apart,while engine can still be started,look closely at fuel levels in primary/secondary float bowl windows. May need a mirror to look at rear bowl/window level. Both should be at 1/2 full in window and must be when reinstalled. If they are,don’t do any “adjusting”. Thorough cleaning of all passageways of fuel/air circuits,jets,air bleeds will restore full function of carb. Don’t change anything,”lightly” turn idle mixture screw clockwise til it bottoms- no force needed here- and count and record how many turns it takes to lightly bottom. You need to remove this to clean passageway behind it and return mixture screw adjustment to what you recorded,this will allow car to start and run and warm up and final adjustments to mixture/idle speed can be done after checking/setting ignition timing which should be done at this time.
Leave idle speed screw where it is,no need to remove and will also allow car to idle while warming up. Final idle speed adjustment is done last.
Before taking anything apart,while engine can still be started,look closely at fuel levels in primary/secondary float bowl windows. May need a mirror to look at rear bowl/window level. Both should be at 1/2 full in window and must be when reinstalled. If they are,don’t do any “adjusting”. Thorough cleaning of all passageways of fuel/air circuits,jets,air bleeds will restore full function of carb. Don’t change anything,”lightly” turn idle mixture screw clockwise til it bottoms- no force needed here- and count and record how many turns it takes to lightly bottom. You need to remove this to clean passageway behind it and return mixture screw adjustment to what you recorded,this will allow car to start and run and warm up and final adjustments to mixture/idle speed can be done after checking/setting ignition timing which should be done at this time.
Leave idle speed screw where it is,no need to remove and will also allow car to idle while warming up. Final idle speed adjustment is done last.
#10
Junior Member
Thread Starter
Join Date: Apr 2019
Location: sugarcreek
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
You rang? I would start with a full disassemble and thorough cleaning of carb,assembled with fresh gaskets. Try to reuse original needles/seats.
Before taking anything apart,while engine can still be started,look closely at fuel levels in primary/secondary float bowl windows. May need a mirror to look at rear bowl/window level. Both should be at 1/2 full in window and must be when reinstalled. If they are,don’t do any “adjusting”. Thorough cleaning of all passageways of fuel/air circuits,jets,air bleeds will restore full function of carb. Don’t change anything,”lightly” turn idle mixture screw clockwise til it bottoms- no force needed here- and count and record how many turns it takes to lightly bottom. You need to remove this to clean passageway behind it and return mixture screw adjustment to what you recorded,this will allow car to start and run and warm up and final adjustments to mixture/idle speed can be done after checking/setting ignition timing which should be done at this time.
Leave idle speed screw where it is,no need to remove and will also allow car to idle while warming up. Final idle speed adjustment is done last.
Before taking anything apart,while engine can still be started,look closely at fuel levels in primary/secondary float bowl windows. May need a mirror to look at rear bowl/window level. Both should be at 1/2 full in window and must be when reinstalled. If they are,don’t do any “adjusting”. Thorough cleaning of all passageways of fuel/air circuits,jets,air bleeds will restore full function of carb. Don’t change anything,”lightly” turn idle mixture screw clockwise til it bottoms- no force needed here- and count and record how many turns it takes to lightly bottom. You need to remove this to clean passageway behind it and return mixture screw adjustment to what you recorded,this will allow car to start and run and warm up and final adjustments to mixture/idle speed can be done after checking/setting ignition timing which should be done at this time.
Leave idle speed screw where it is,no need to remove and will also allow car to idle while warming up. Final idle speed adjustment is done last.
#11
ancient wizard...
1st,having a hard time following your grammar.2nd,other than what you were told by the seller,do you KNOW the carburetor was rebuilt(professionally) and what was the reason for the rebuild? Has this car run since you've owned it and have you driven it and how much?
Something doesn't add up,if the car you just bought won't run,shouldn't you be talking to the person that sold you the car-or did you buy it as is? I put very little credence in what a seller tells me-until i can prove it myself.
So,you and your buddy worked on it and found the idle mixture screw did nothing,are either of you mechanics? I ask this because of removing the part(secondary actuator diaphragm) that allows the car to run does not make any sense,other than allowing you to manipulate secondary linkage to allow air and fuel in for the engine to run-this is indicating the primary side of carb,including the idle circuit is doing nothing. Anytime adjusting the idle mixture screw makes no difference in how the car runs? would indicate a problem internal to the carburetor or a sizeable vacuum leak which brings us back to you needing to be clear about what you're saying.
To answer your question, mechanical secondary conversion is not the answer to your problem,nor is taking off the secondary actuator. The original REAL problem must be identified and repaired,taking parts off a carburetor is never a fix or the route to take.
We can assist you in determining how to go about diagnosing what the underlying problem is but without specific information from you,we can't help you. Start by answering the questions i have asked you as clearly as possible to allow us to point you in a direction to take. Reread my last post regarding float levels and include that in your response.
Something doesn't add up,if the car you just bought won't run,shouldn't you be talking to the person that sold you the car-or did you buy it as is? I put very little credence in what a seller tells me-until i can prove it myself.
So,you and your buddy worked on it and found the idle mixture screw did nothing,are either of you mechanics? I ask this because of removing the part(secondary actuator diaphragm) that allows the car to run does not make any sense,other than allowing you to manipulate secondary linkage to allow air and fuel in for the engine to run-this is indicating the primary side of carb,including the idle circuit is doing nothing. Anytime adjusting the idle mixture screw makes no difference in how the car runs? would indicate a problem internal to the carburetor or a sizeable vacuum leak which brings us back to you needing to be clear about what you're saying.
To answer your question, mechanical secondary conversion is not the answer to your problem,nor is taking off the secondary actuator. The original REAL problem must be identified and repaired,taking parts off a carburetor is never a fix or the route to take.
We can assist you in determining how to go about diagnosing what the underlying problem is but without specific information from you,we can't help you. Start by answering the questions i have asked you as clearly as possible to allow us to point you in a direction to take. Reread my last post regarding float levels and include that in your response.
#12
Junior Member
Thread Starter
Join Date: Apr 2019
Location: sugarcreek
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
1st,having a hard time following your grammar.2nd,other than what you were told by the seller,do you KNOW the carburetor was rebuilt(professionally) and what was the reason for the rebuild? Has this car run since you've owned it and have you driven it and how much?
Something doesn't add up,if the car you just bought won't run,shouldn't you be talking to the person that sold you the car-or did you buy it as is? I put very little credence in what a seller tells me-until i can prove it myself.
So,you and your buddy worked on it and found the idle mixture screw did nothing,are either of you mechanics? I ask this because of removing the part(secondary actuator diaphragm) that allows the car to run does not make any sense,other than allowing you to manipulate secondary linkage to allow air and fuel in for the engine to run-this is indicating the primary side of carb,including the idle circuit is doing nothing. Anytime adjusting the idle mixture screw makes no difference in how the car runs? would indicate a problem internal to the carburetor or a sizeable vacuum leak which brings us back to you needing to be clear about what you're saying.
To answer your question, mechanical secondary conversion is not the answer to your problem,nor is taking off the secondary actuator. The original REAL problem must be identified and repaired,taking parts off a carburetor is never a fix or the route to take.
We can assist you in determining how to go about diagnosing what the underlying problem is but without specific information from you,we can't help you. Start by answering the questions i have asked you as clearly as possible to allow us to point you in a direction to take. Reread my last post regarding float levels and include that in your response.
Something doesn't add up,if the car you just bought won't run,shouldn't you be talking to the person that sold you the car-or did you buy it as is? I put very little credence in what a seller tells me-until i can prove it myself.
So,you and your buddy worked on it and found the idle mixture screw did nothing,are either of you mechanics? I ask this because of removing the part(secondary actuator diaphragm) that allows the car to run does not make any sense,other than allowing you to manipulate secondary linkage to allow air and fuel in for the engine to run-this is indicating the primary side of carb,including the idle circuit is doing nothing. Anytime adjusting the idle mixture screw makes no difference in how the car runs? would indicate a problem internal to the carburetor or a sizeable vacuum leak which brings us back to you needing to be clear about what you're saying.
To answer your question, mechanical secondary conversion is not the answer to your problem,nor is taking off the secondary actuator. The original REAL problem must be identified and repaired,taking parts off a carburetor is never a fix or the route to take.
We can assist you in determining how to go about diagnosing what the underlying problem is but without specific information from you,we can't help you. Start by answering the questions i have asked you as clearly as possible to allow us to point you in a direction to take. Reread my last post regarding float levels and include that in your response.
