Water Temp Gauge-->Normal Reading?
#1
Water Temp Gauge-->Normal Reading?
Hey guys, I think my 85 FB might be running a little hotter then she should be. On the stock water temp gauge, where are most of you guys running/should be running. On a cool night out, say 60, my car's temp gauge reads a little in front of the two marks towards the left. But on a day like say 80, while sitting and idling, the needle is almost completley verticle. Is this normal??
PS- I don't have the stock fan, it's about half the size and electric (guessing this is my problem)
Also I have a larger 3 row radiator Pic:
Thanks guys!
PS- I don't have the stock fan, it's about half the size and electric (guessing this is my problem)
Also I have a larger 3 row radiator Pic:
Thanks guys!
#2
completely wankelfied
Join Date: Aug 2002
Location: Bloomington IN
Posts: 195
Likes: 0
Received 0 Likes
on
0 Posts
Wow. I just pm'd you about your wheels! You might want to think about a bigger fan. Keepin' it cool makes your wankel happy. Do you have it set on a temp controlled relay? Or do you cycle it manually? And I notice you have pics of two different oil filters. I hope you're not using that big goofy one. A large oil filter doesn't stand up to the enormous oil pressure generated by the rotary and in some cases will expand while under pressure and cause a leak . The stock Mazda filters (although more expensive) work the best. I like your engine torsion bar does it make a noticable difference?
#3
Thanks man! Just sent you a pm. I just bought the car about a month ago the way it is. I am guessing the engine tq brace does make a difference considering at idle the engine does move somewhat from side to side. So I honeslty don't know if it really makes that big of a diff since I got the car like this. BTW manual switch for the fan
So where are your guy's needles at on the temp gauges?!?!
So where are your guy's needles at on the temp gauges?!?!
#4
completely wankelfied
Join Date: Aug 2002
Location: Bloomington IN
Posts: 195
Likes: 0
Received 0 Likes
on
0 Posts
It shouldn't really go past the half way. But having it fluxuate like that is't so good either. Because the block is aluminum and cast iron its bad to have them keep expanding and contracting, since these materials do that at different rates you run a greater risk of blowing a seal. I would try to get a temp controlled relay for the fan or an aftermarket temp gauge to keep more accurate tabs on it.
Trending Topics
#9
Too old to act my age
Join Date: Feb 2005
Location: Tulsa, Ok.
Posts: 3,164
Likes: 0
Received 0 Likes
on
0 Posts
Needs more fan area. The way that one is setup, it doesn't pull air across the entire width of the rad, plus it sits off to the side.
I'm guessing you don't have much of an issue when running down the highway, regardless of outside temp.
I'm guessing you don't have much of an issue when running down the highway, regardless of outside temp.
#10
Committee Member #2
iTrader: (29)
85 SE- streetported 13B- electric fan in the center of radiator hooked up to a relay that turns fan on as soon as ignition is on- pull configuration (air pulls into engine compartment) guage never passes the 1/4 mark- S. Fl temp usually 80+
Hope this answers all your questions.
L8R
Hope this answers all your questions.
L8R
#11
Cool guys, thanks! Ya I just picked this car up so I am in the process of fixing all the idiotic things that the gomer that owned her did.
Rogue Wulff-0> Ya no problem when the car is moving w/ the temp, but if I get stuck in traffic for a while, I start worrying. I think I am either A. going to put the stock fan back on or B. My brother has 2 8in fans I could hook up. Either way, this bitch has got to stay cool.
Rogue Wulff-0> Ya no problem when the car is moving w/ the temp, but if I get stuck in traffic for a while, I start worrying. I think I am either A. going to put the stock fan back on or B. My brother has 2 8in fans I could hook up. Either way, this bitch has got to stay cool.
#13
Too old to act my age
Join Date: Feb 2005
Location: Tulsa, Ok.
Posts: 3,164
Likes: 0
Received 0 Likes
on
0 Posts
Moving the current fan to the pass side of the rad, may actually increase the time needed before it starts getting warmer at lights. Since the water pump is pulling from that side of the rad, it has a tendancy to pull the hotter water back into the motor. Water, like anything else, will take the path of least resistance.
Not sure how well 2 X 8" fans would work, but prolly be an improvement over the current setup.
Stock fan should be plenty to eliminate it all together (assuming you put the shroud back on as well), but it will cause drag on the engine....
Not sure how well 2 X 8" fans would work, but prolly be an improvement over the current setup.
Stock fan should be plenty to eliminate it all together (assuming you put the shroud back on as well), but it will cause drag on the engine....
#16
Too old to act my age
Join Date: Feb 2005
Location: Tulsa, Ok.
Posts: 3,164
Likes: 0
Received 0 Likes
on
0 Posts
My personal choice, is the Black Magic by Flex-A-Lite. Has a built-in thermostat, along with the ability to wire to a manual switch and the A/C circuit, all at the same time. A little pricey, but I have seen one keep a 300+ HP V8 cool without any issues, on the track.
I haven't checked how well this would fit in a 1st gen, but I plan to do so soon.
I haven't checked how well this would fit in a 1st gen, but I plan to do so soon.
#21
Lives on the Forum
I'm currently running only one of my two-fan setup, and I never get past 1/4 on the gauge. You should check into picking up a used MR2 fan, they really kick out the air. Also, you can get an adjustable fan controller from Autozone for 18 bucks that works great.

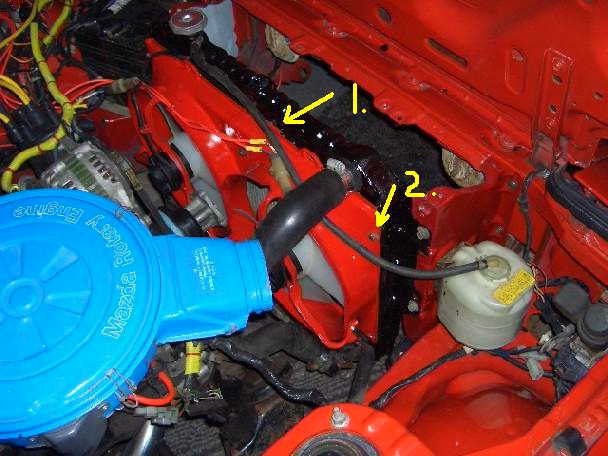

Mounting the MR2 fans couldn't be easier. It's like a five minute job tops. Here's a pic of what's involved:
1. This is a little lip on the fan shroud that hangs the assembly on the lip on the radiator.
2. Here is where you drill a hole in the fan shroud on each side, then use one of the stock shroud's mounting bolts in the stock location on the radiator.
Mounting the MR2 fans couldn't be easier. It's like a five minute job tops. Here's a pic of what's involved:
1. This is a little lip on the fan shroud that hangs the assembly on the lip on the radiator.
2. Here is where you drill a hole in the fan shroud on each side, then use one of the stock shroud's mounting bolts in the stock location on the radiator.
#24
My wife bought me 2 RX-7s
Join Date: Aug 2001
Location: Saskatoon, Saskatchewan, Canada
Posts: 2,328
Likes: 0
Received 2 Likes
on
2 Posts
Good call on the MR2 fan Kentesu!
Just an FYI, on my car with the stock fan/rad the temp gauge never ever goes past 1/4 unless I'm doing some heavy Solo II events in very hot weather, even then only to 1/3 or so. I wouldn't expect any less from an e-fan install. If my temps were going to half-way I'd start being VERY concerned.
Just an FYI, on my car with the stock fan/rad the temp gauge never ever goes past 1/4 unless I'm doing some heavy Solo II events in very hot weather, even then only to 1/3 or so. I wouldn't expect any less from an e-fan install. If my temps were going to half-way I'd start being VERY concerned.
