blwfly

iTrader: (4)

ok im installing the fmoc
iv had a look at scotts oil cooler thread im gonna use his method of muffler brakets for mounting but maybe not still pondering on that


iv left the larger radiator from the beehive since the short ones i have are kinda ****

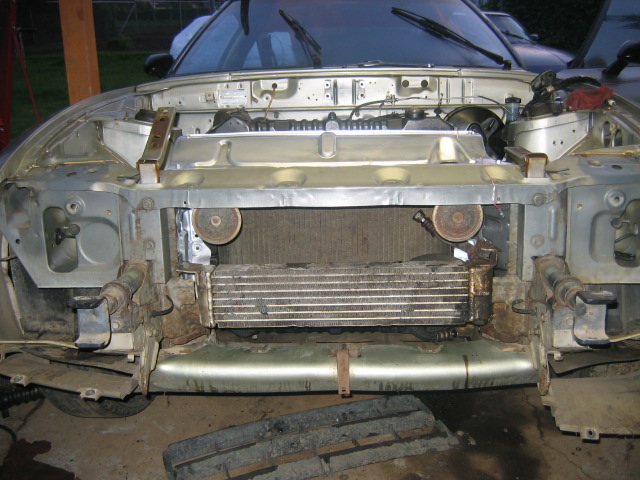

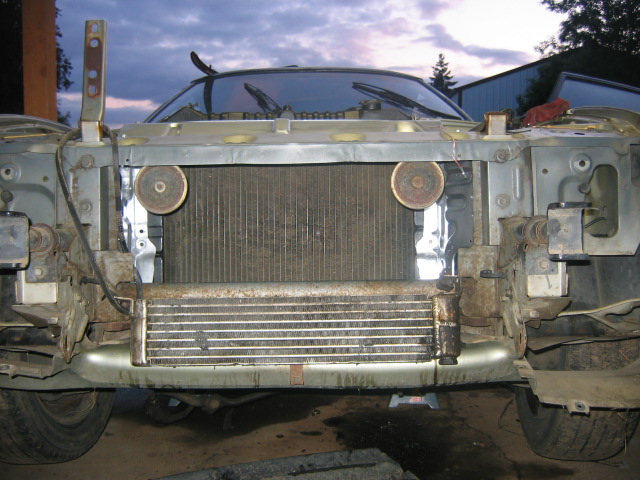

i just want some opinions if where i want it mounted
it wont cause problems...

Holley12A

id go with the setup you have in the first picture seems like it would be fine. Unless your worried your radiator would get to hot? But i think you would get enough flow to keep cool.

blwfly

iTrader: (4)

yeak well since its alot larger than my last radiator i though it would be sufficent enough

Keegan

see if the pm i sent you worked there is somting wrong with the comp

trochoid

iTrader: (6)

1st pic. You don't want it to low that it hits a curb when parking, etc..

blwfly

iTrader: (4)

is vibration a problem with the fmoc

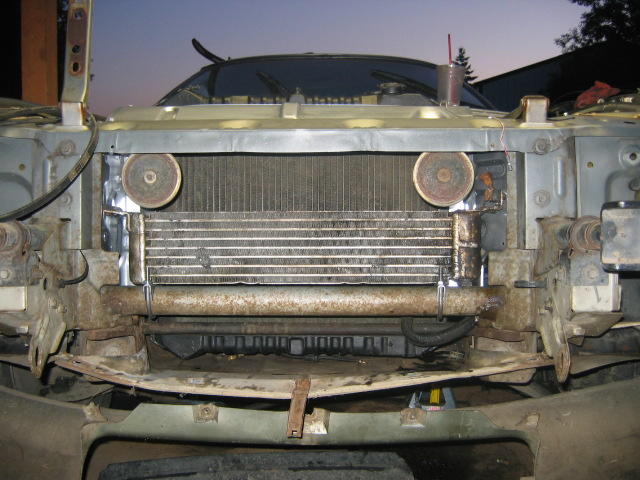

heres where iv decided to put it.
i can just run 4 bolts through the tabs on the fmoc into the radiator shield and use muffler clamps to steady the bottom tight


it souldnt cause to much trouble for a tall radiator?
since its actually smak bang in the middle

Siraniko

iTrader: (13)

I will go with the first or 3rd pix. Thats how GSL-SE OC's are mounted.

if you have it mounted like in the last pix, cooling takes begin in the middle of radiator since heat rises. So you dont want it there.

blwfly

iTrader: (4)

hmmm this is gonna test my idea skills as iv never had to make brackets from steal before
the 3rd pic was the easeyest way i can mount without makin somthin

but if it will affect the cooling i guess in front of the bar it goes

Siraniko

iTrader: (13)

Since you have to get custom OC lines, then why not in front of the bar.

blwfly

iTrader: (4)

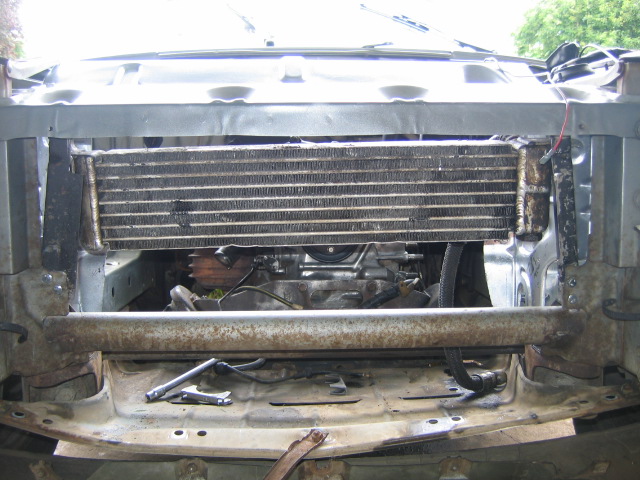

well after lookin at what i have tool wise and metal i had lting around heres what i did yes i know its not straight i have another pair to make for best aligment i think there should be enough air flow since ill have a electric fan..

what ya think the way its mounted its very study and the way the bracket are angled keeps it in the center
ohh and i will make the bracket look the same to it was just an error testing moment
