Unknown camber plates
#1
Unknown camber plates

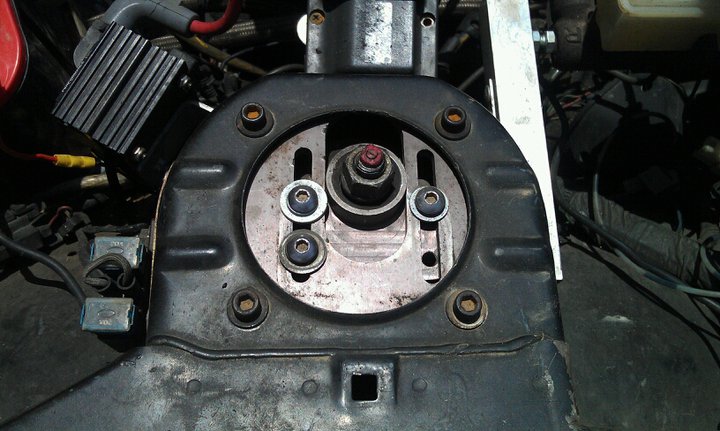

Hey I got these a while back and the bearings need to be replaced, and I need new front struts. Might as well do both at the same time. I'm going to get the MR2 ones because I run 300 lb springs in the front. Anyone know for sure who made these. I was told they might be Mazdatrix. Anyway, I need to replace the bearing and I need to know what size to get. Any help would be awesome.
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,832
Received 2,599 Likes
on
1,846 Posts
if its an aluminum upper plate, and caster adjustable with a flat bearing like the front stack of the engine, its ground control.
i actually have a set, i could measure the bearing if you want...
or hell we have updated k2rd sliders/bearings that'll work too
i actually have a set, i could measure the bearing if you want...
or hell we have updated k2rd sliders/bearings that'll work too
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,832
Received 2,599 Likes
on
1,846 Posts
be nice if they warrantied them, those plates are older than 2000!
i have time to go to the shop today
i have time to go to the shop today
Trending Topics
#8
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,832
Received 2,599 Likes
on
1,846 Posts
ok bearing is
1.18 O.D. around, I.D. is about .43"
height of the race is .492" and total height is .629"
very close to K7 http://www.fkrodends.com/KSERIES38.html obviously they don't by from FK though..
1.18 O.D. around, I.D. is about .43"
height of the race is .492" and total height is .629"
very close to K7 http://www.fkrodends.com/KSERIES38.html obviously they don't by from FK though..
#9
Junior Member
The policy that GC has is for you to send us the camber plate parts, and we inspect them to see if they are defective, and if they are not defective but just worn out, we replace the bearings for the cost of the bearing (no labor).
I will tell you that I bet the bearings are STILL good, but the spacers may be wrong, the strut shaft machined wrong, or just plain dirty needle bearings (underneath, not shown).
Triple check that you actually do have a bearing problem, that is a special expensive Aurora aerospace bearing, and they easily last 100,000 miles or more.
otherwise email me
Jay
#10
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,832
Received 2,599 Likes
on
1,846 Posts
hey jay, we have met, but it was probably when you built those plates, you guys were still in rancho!
anyways, pretty cool you're willing to stand behind a 15 year old product!
anyways, pretty cool you're willing to stand behind a 15 year old product!
#11
I just called in 2 seconds ago and spoke to Trevor on the phone and I just e-mailed him. LOL! I'm however not the origional purachaser and I'm 99% sure the bearing is bad you can see it moving when you press down on the car. Click clack, click clack. It only does it on one side and it's rather annoying. I can't send mine in since it's my daily driver.
#13

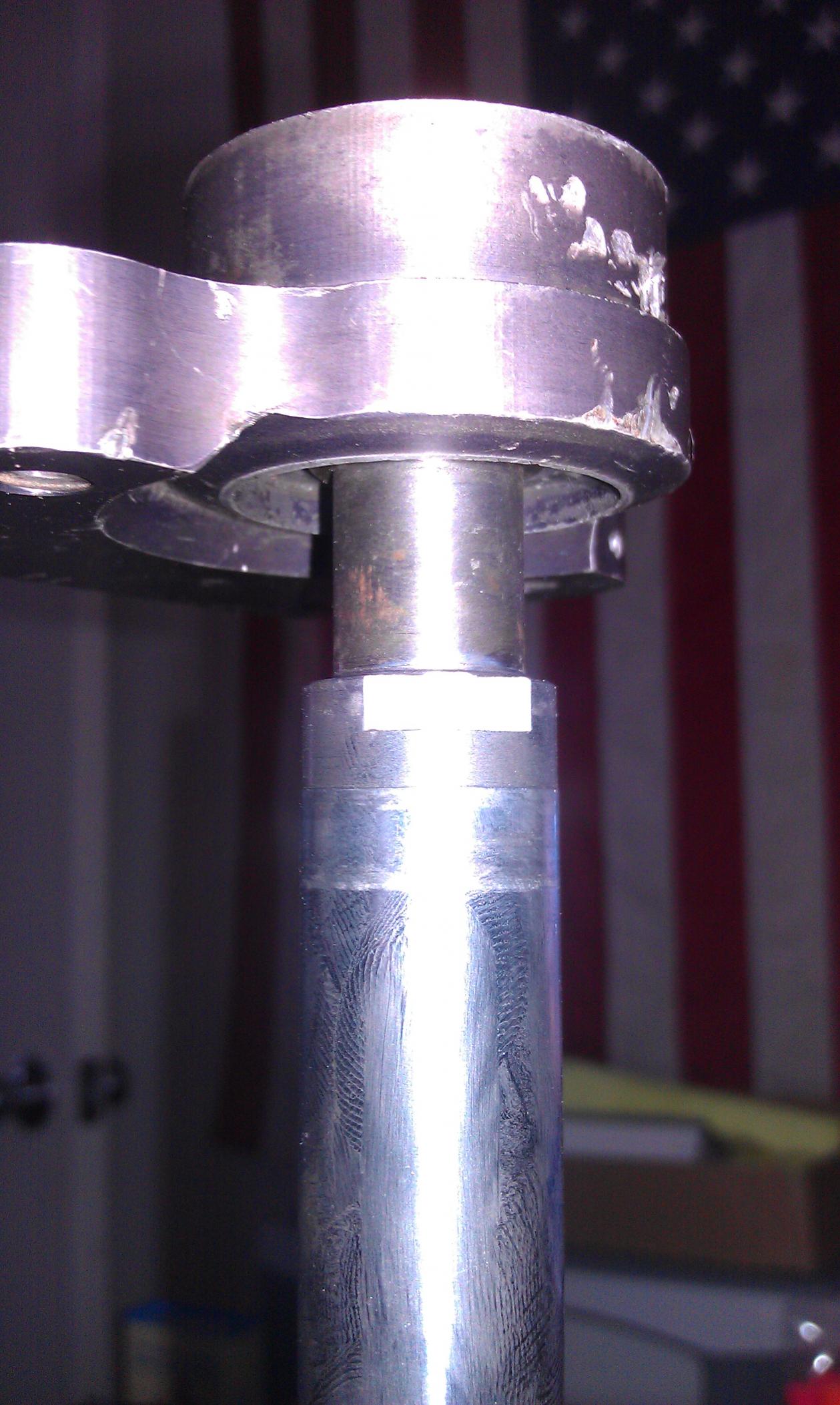

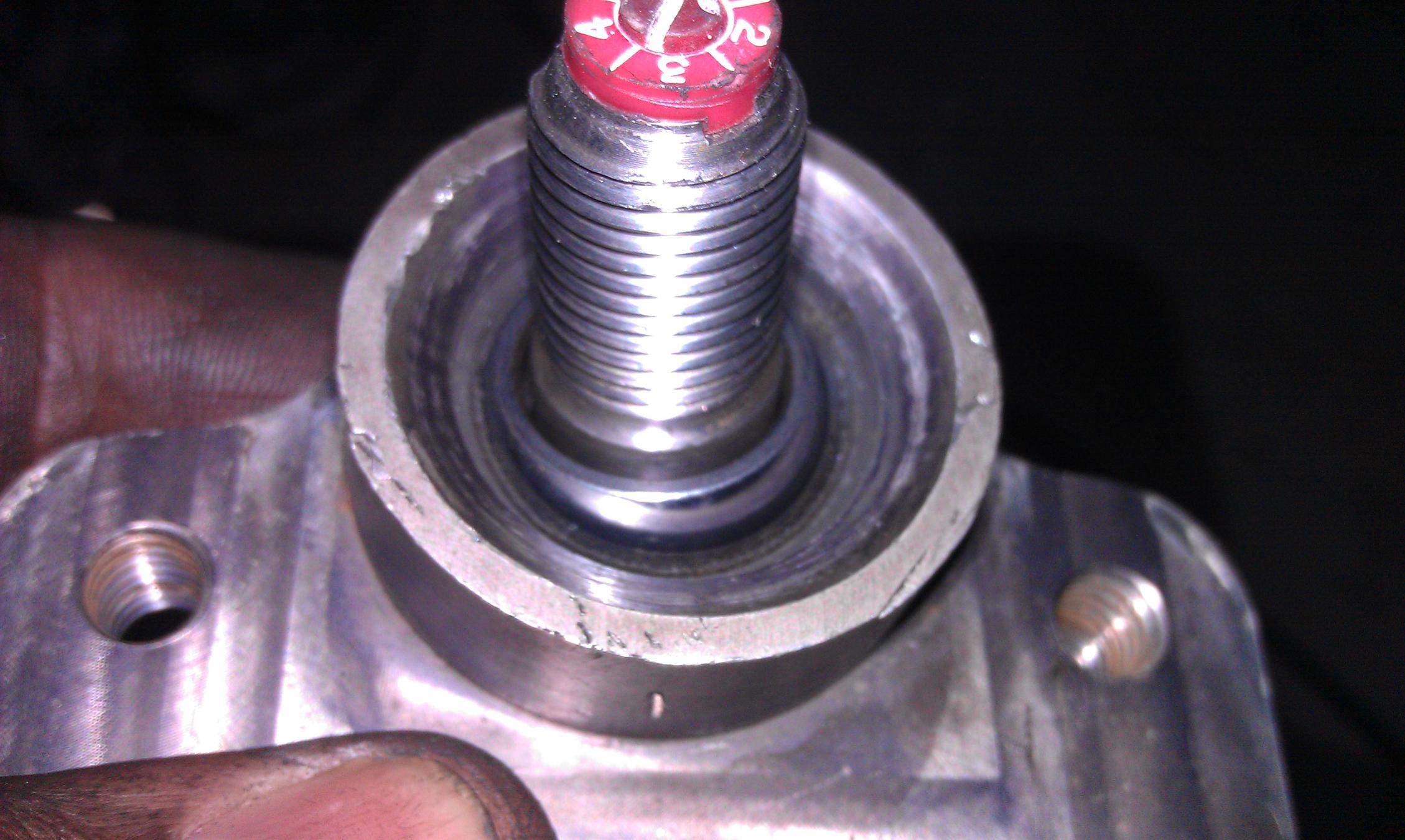

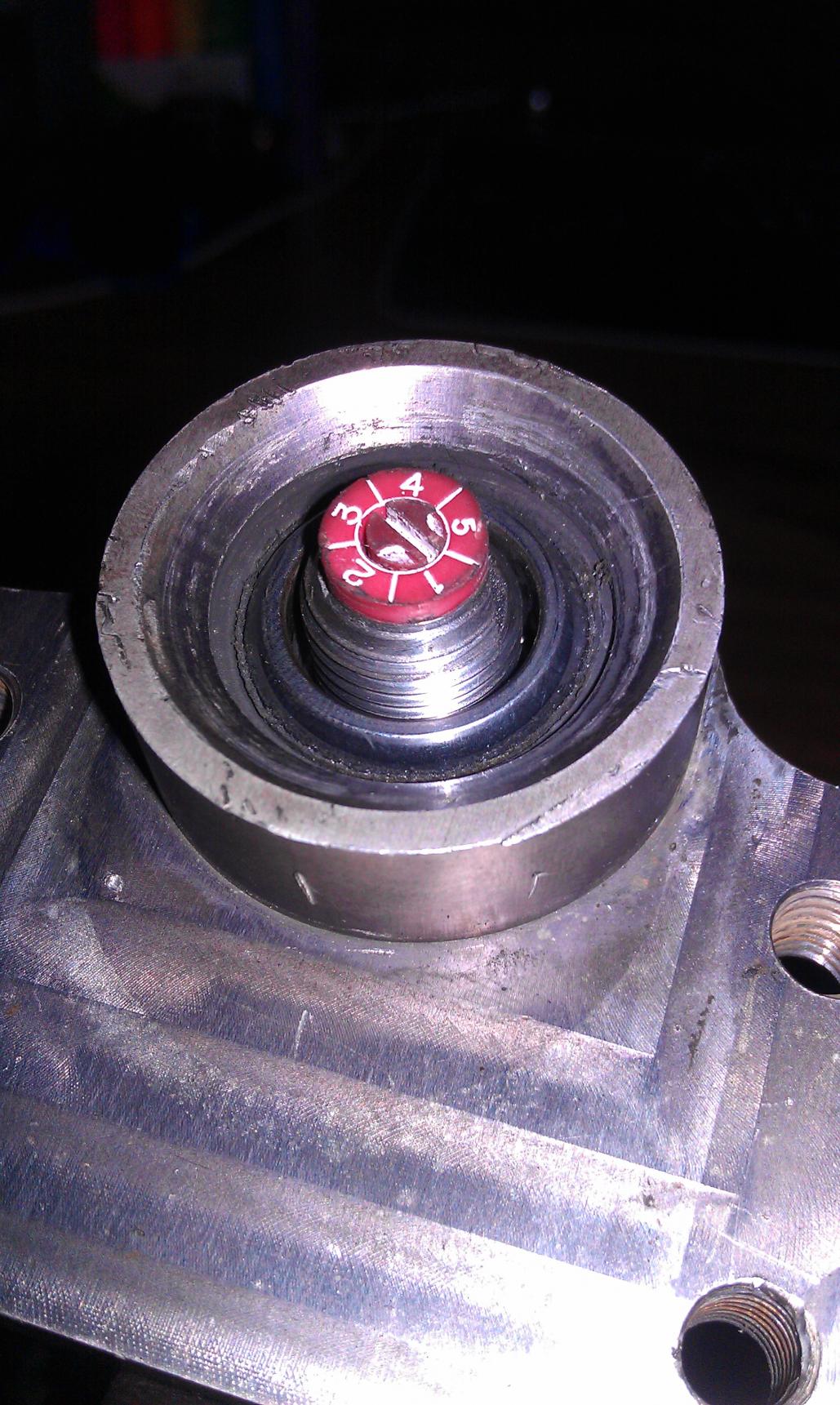

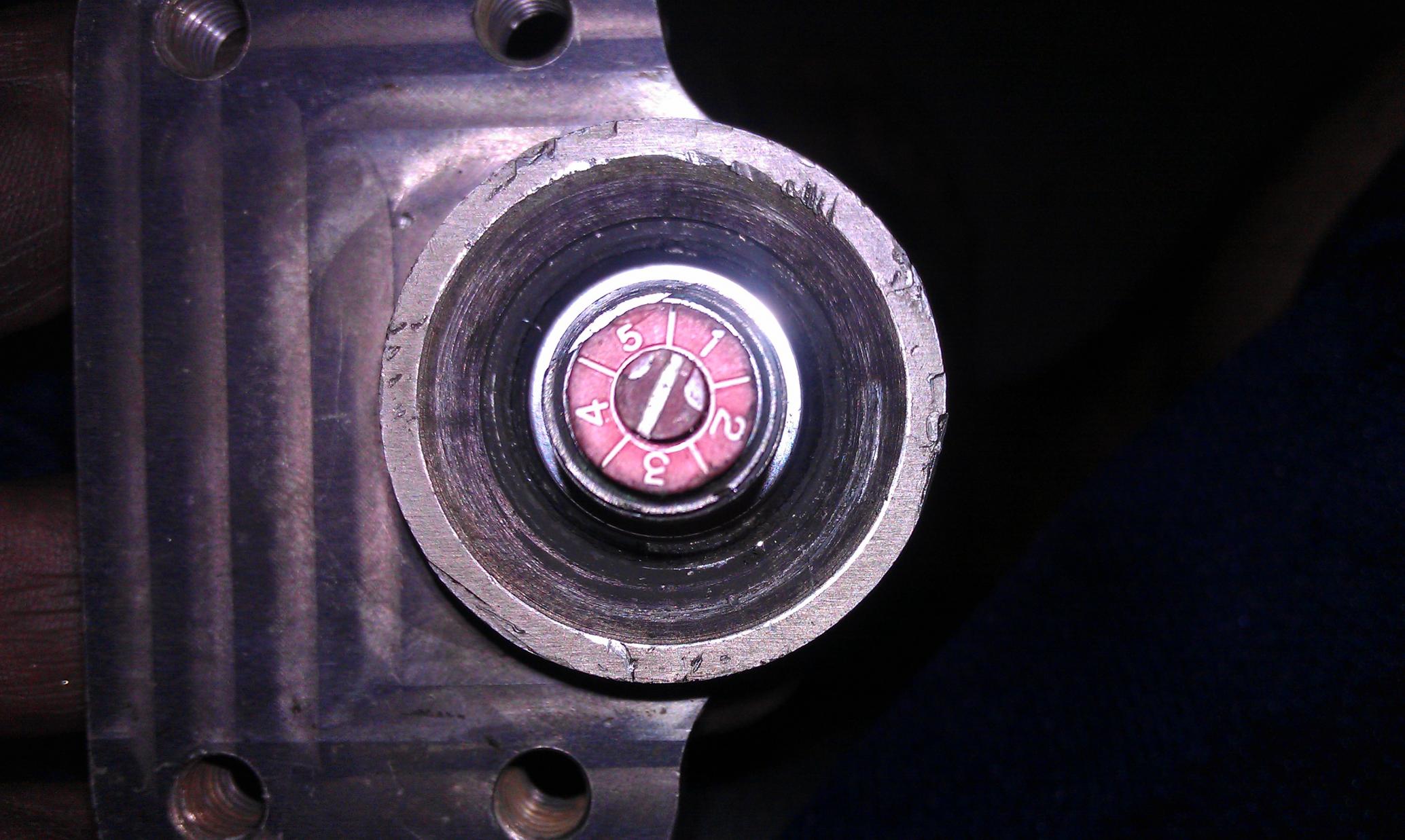

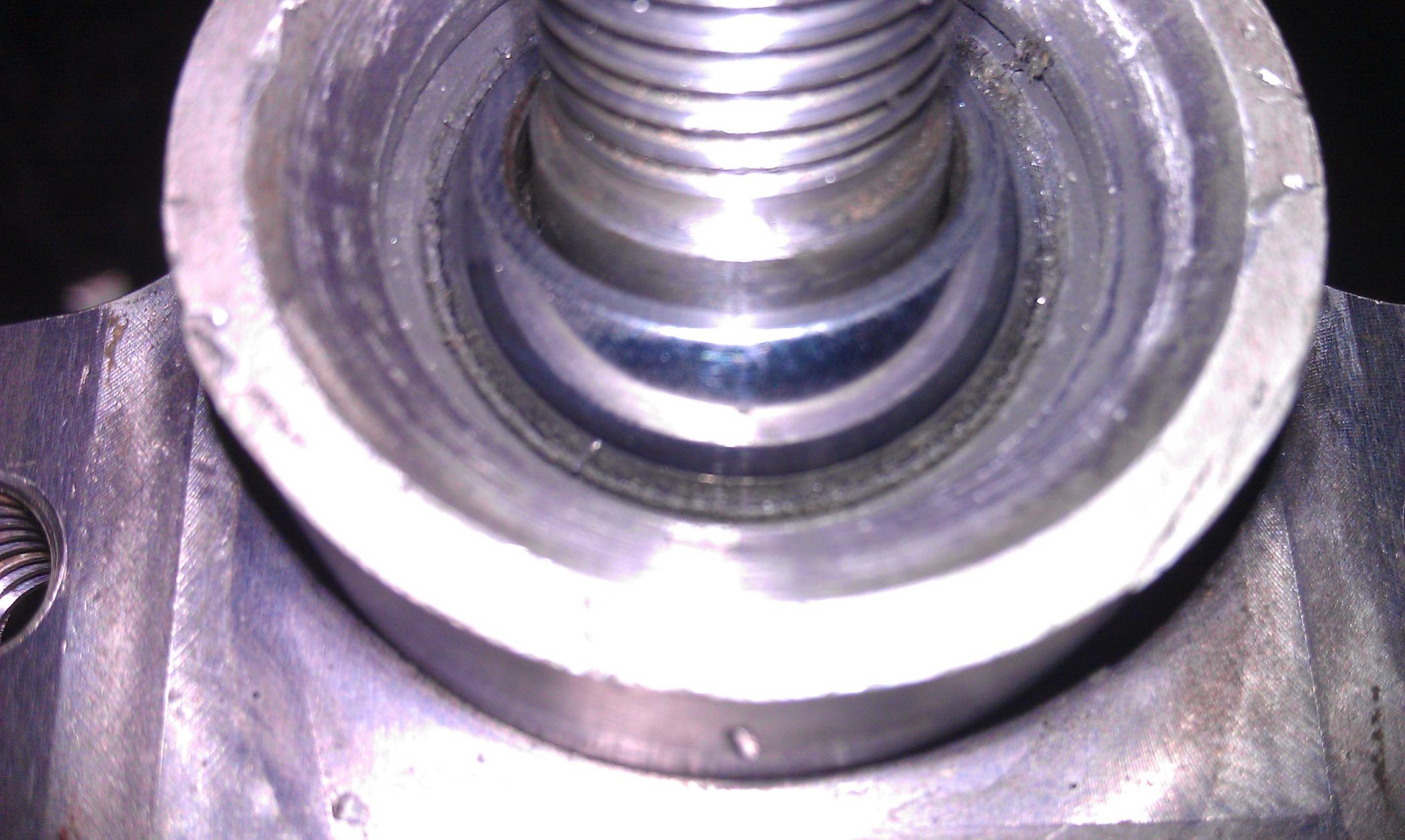

So I picked up some new struts. And, it turns out the bearing isn't bad. These things just fit like ****. The shop that did the install for me put in one Mazdatrix spacer, but not the other hence a clickity clack. They put in one side, but they had to grind the ID out to fit it all the way onto the shank. Anyway here are the picks. None of it fits together... HALP!

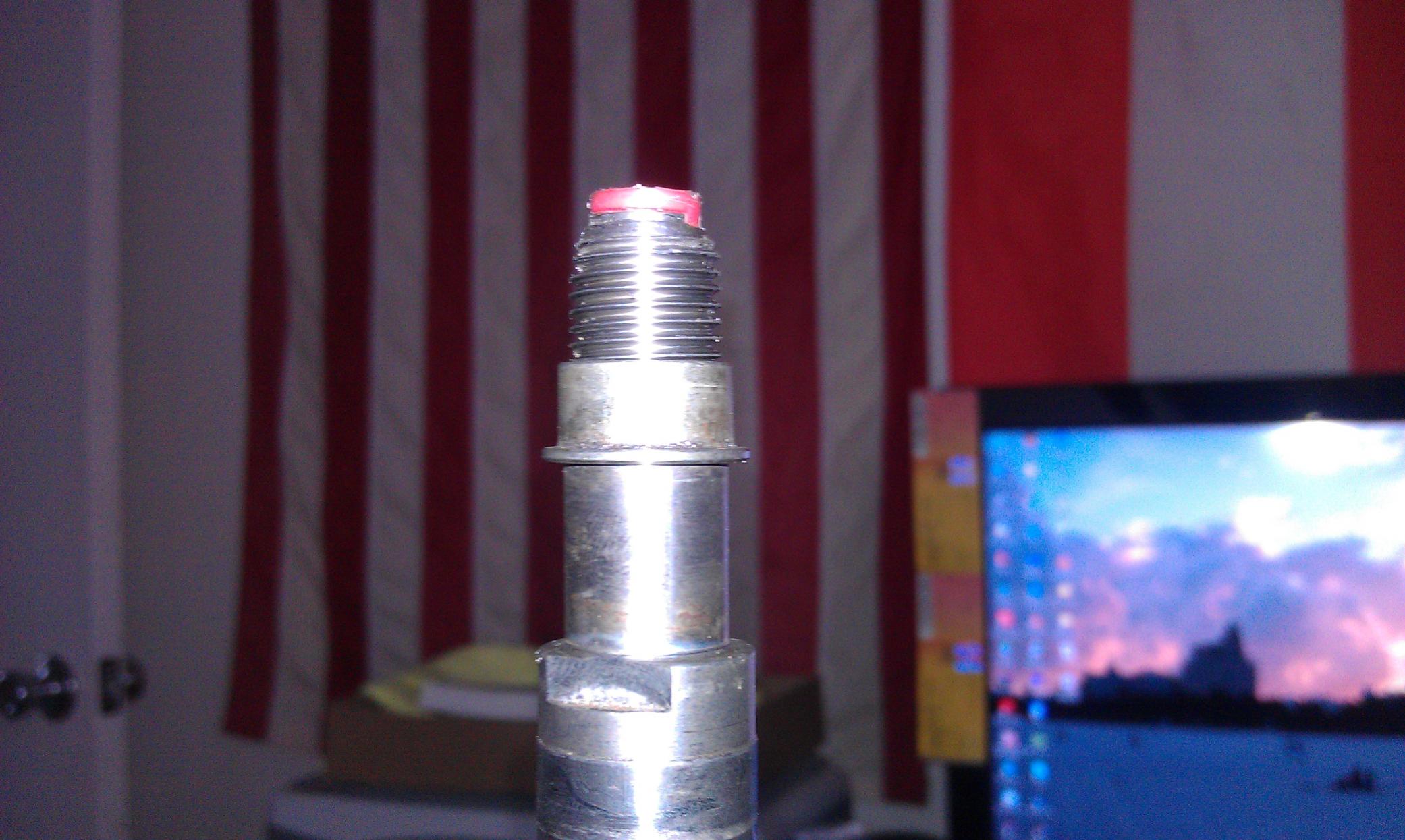

The spacer only fits over the threads. With it on it only allows for about 3 threads on the nut. Is it supposed to be this shitty of fitment?
The spacer only fits over the threads. With it on it only allows for about 3 threads on the nut. Is it supposed to be this shitty of fitment?
