Two Electrical Problems: help please!
#1
Two Electrical Problems: help please!
this is the last thing I have to do before start up. First of all, could somebody please tell me where these wires connect? I can't make sense out of the wiring diagram, and I can't see any connectors. Secondly, where do I mount the bracket that holds the +/- battery cables on their way to the starter?
#3
1st-Class Engine Janitor
iTrader: (15)

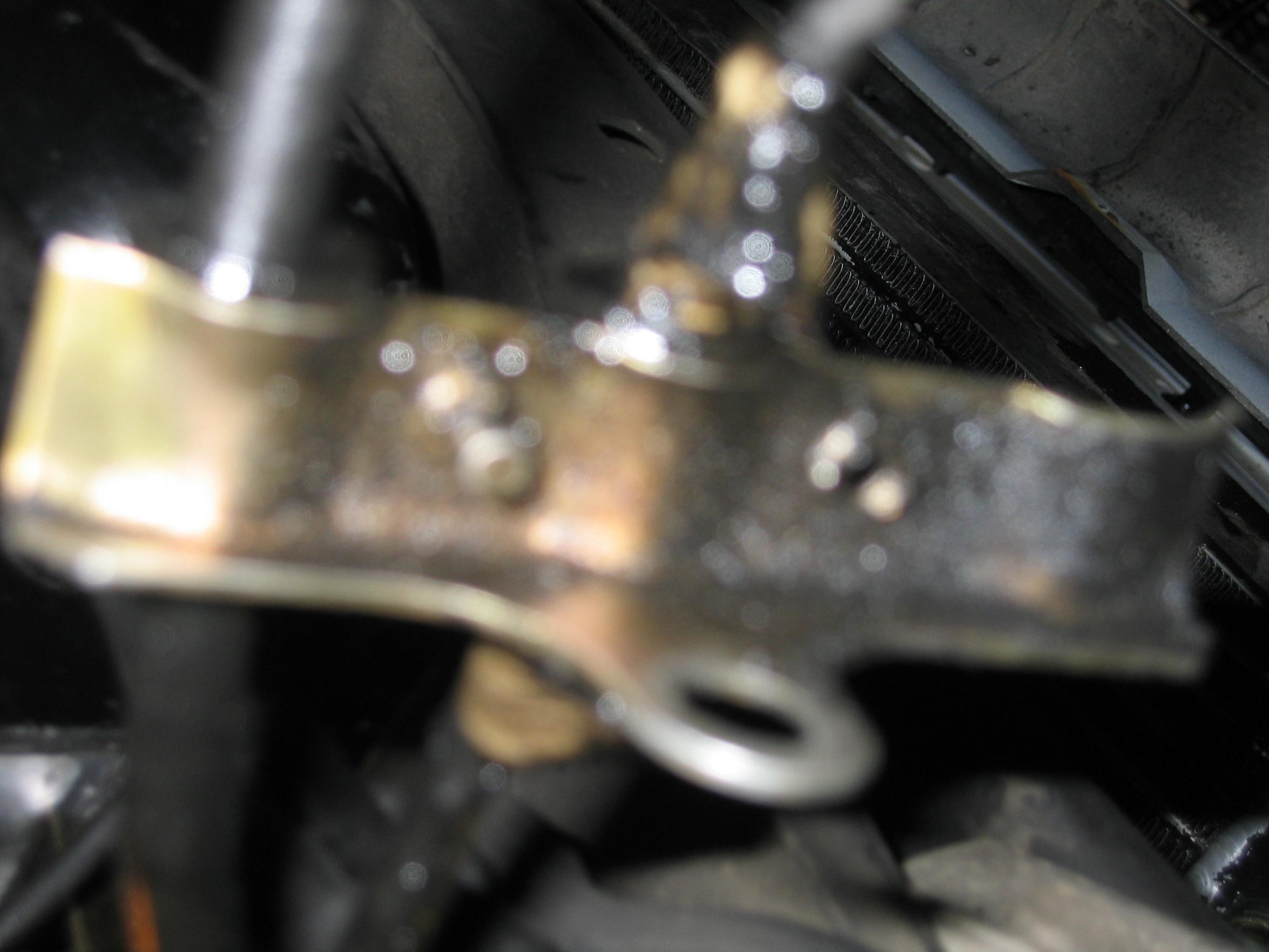

The battery cable bracket bolts to the rear plate/trans bolt just below the heater hose outlet.

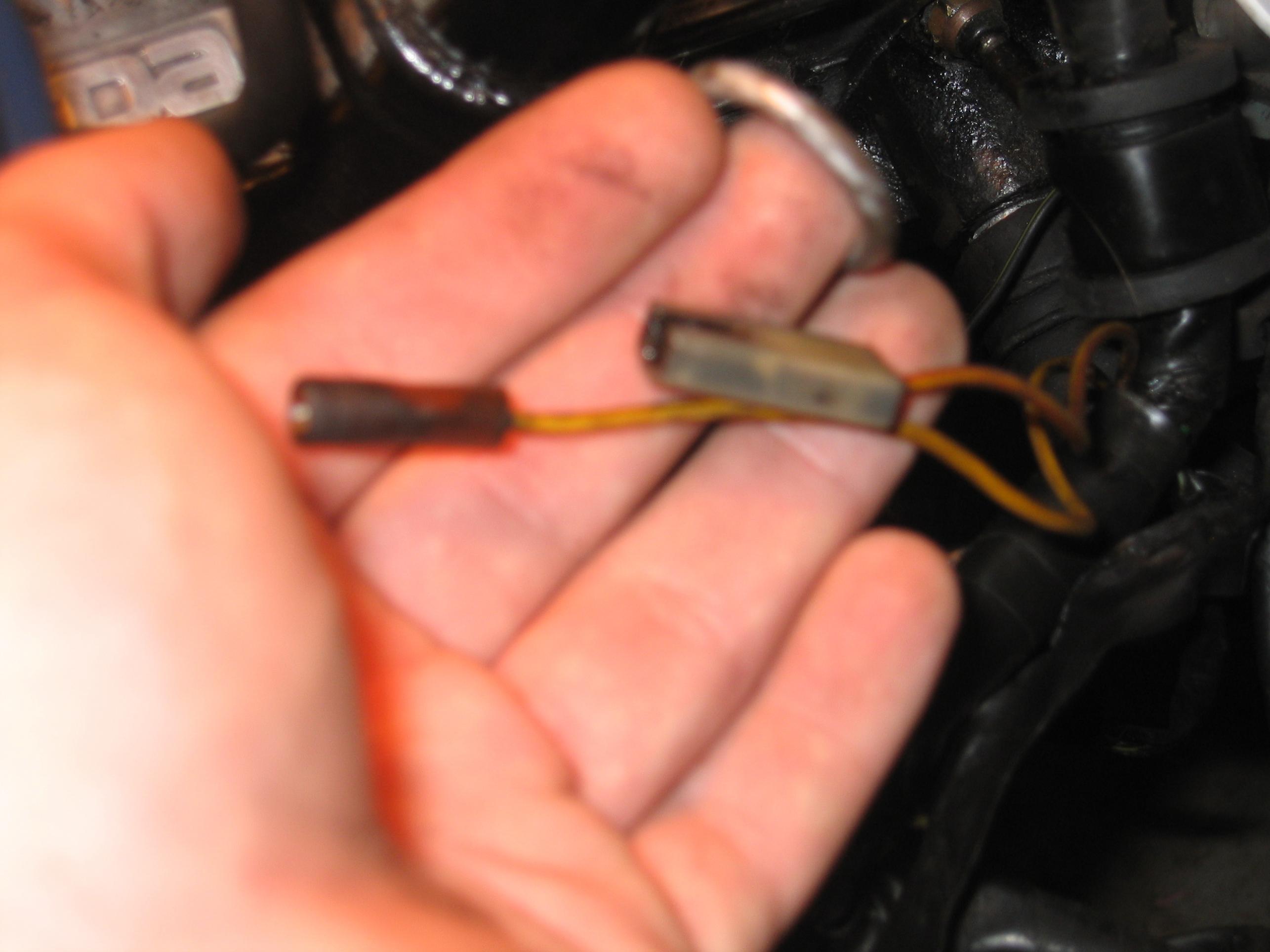

The square connector goes to a temp sensor on the rear plate, below the oil pedestal.
Ther round connector is probably for the oil pressure sender that may car does not have, being only an '80 GS.
The square connector goes to a temp sensor on the rear plate, below the oil pedestal.
Ther round connector is probably for the oil pressure sender that may car does not have, being only an '80 GS.
#7
alright, last post was not clear. I have two more problems.

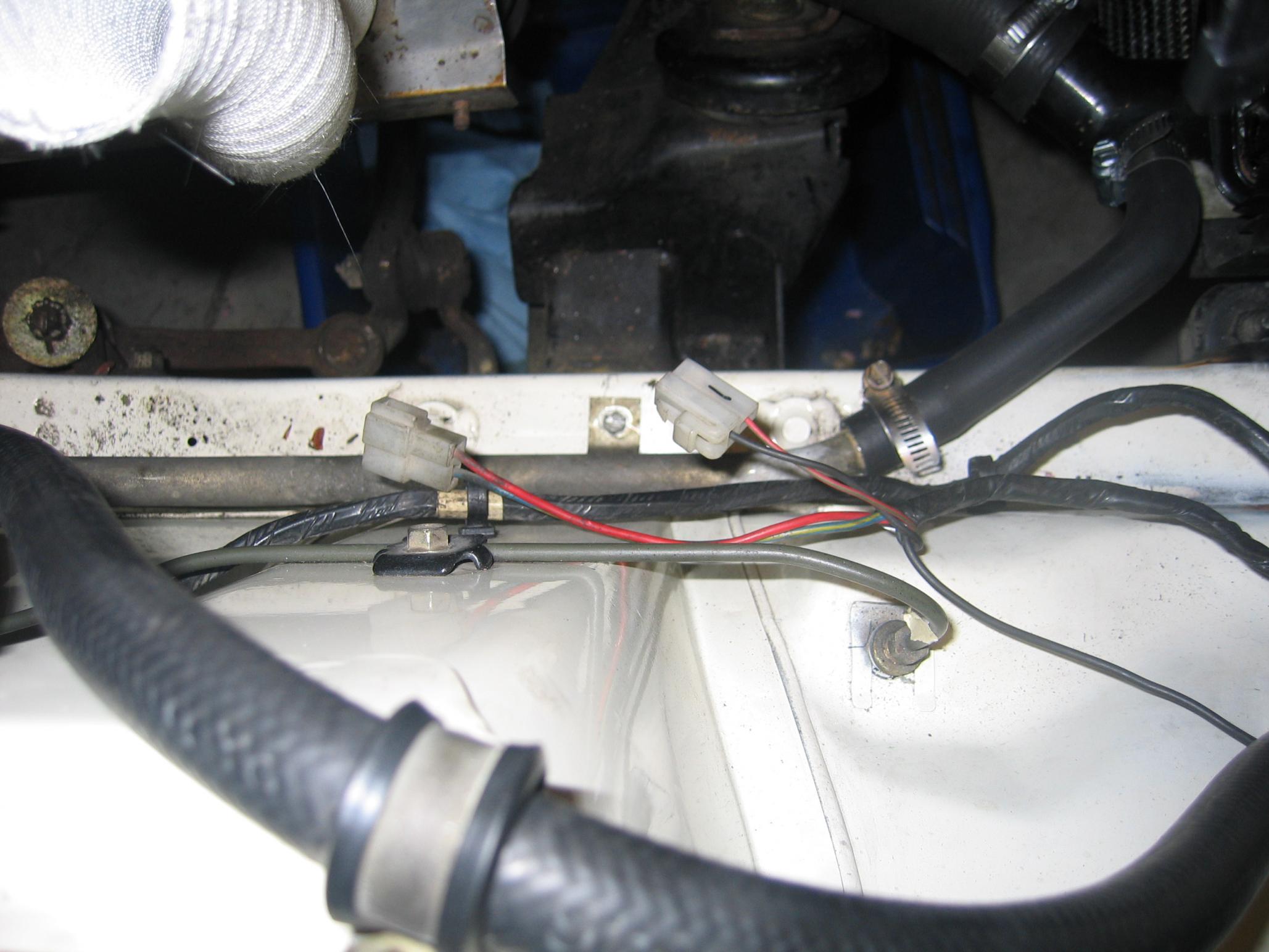

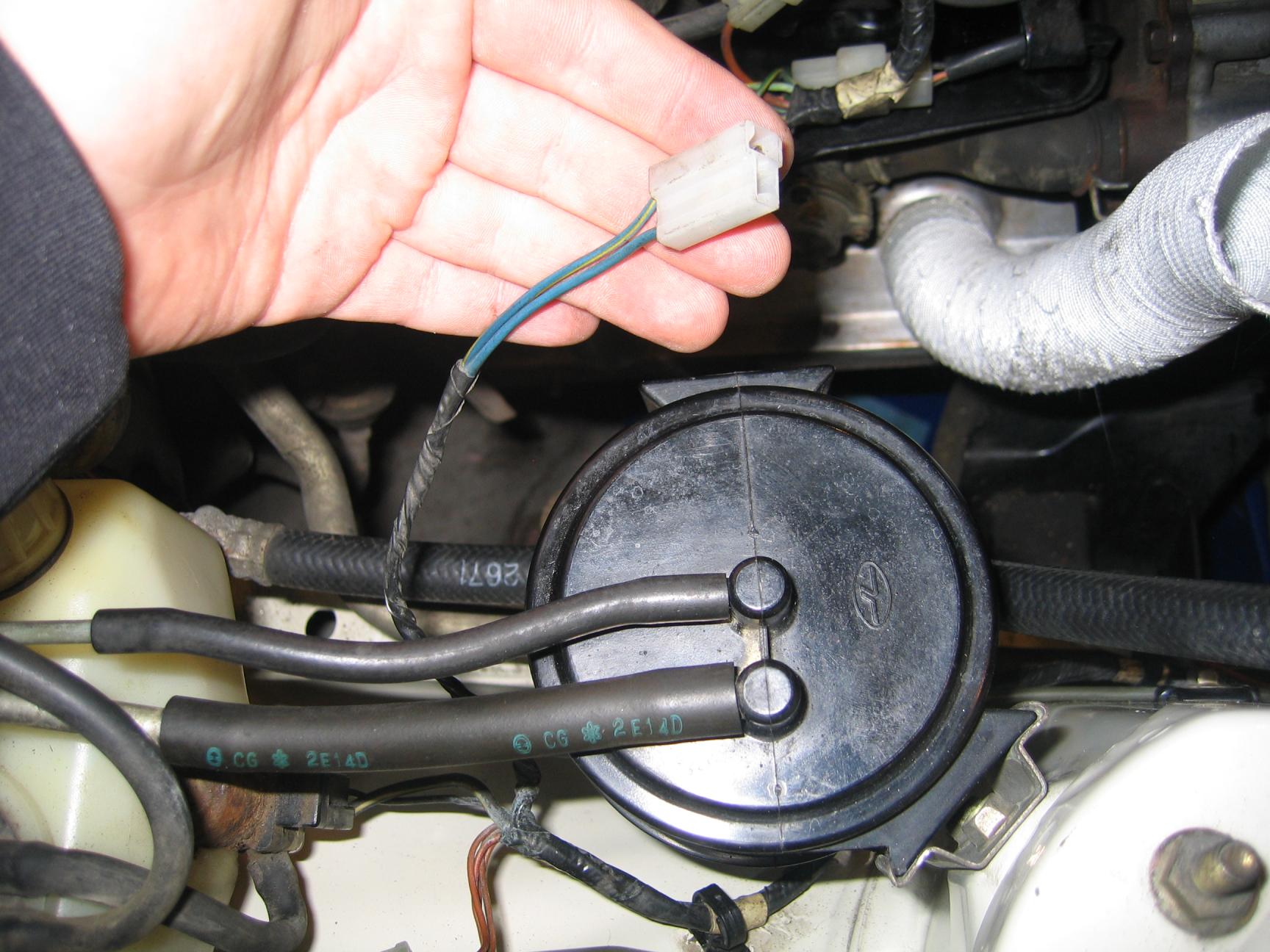

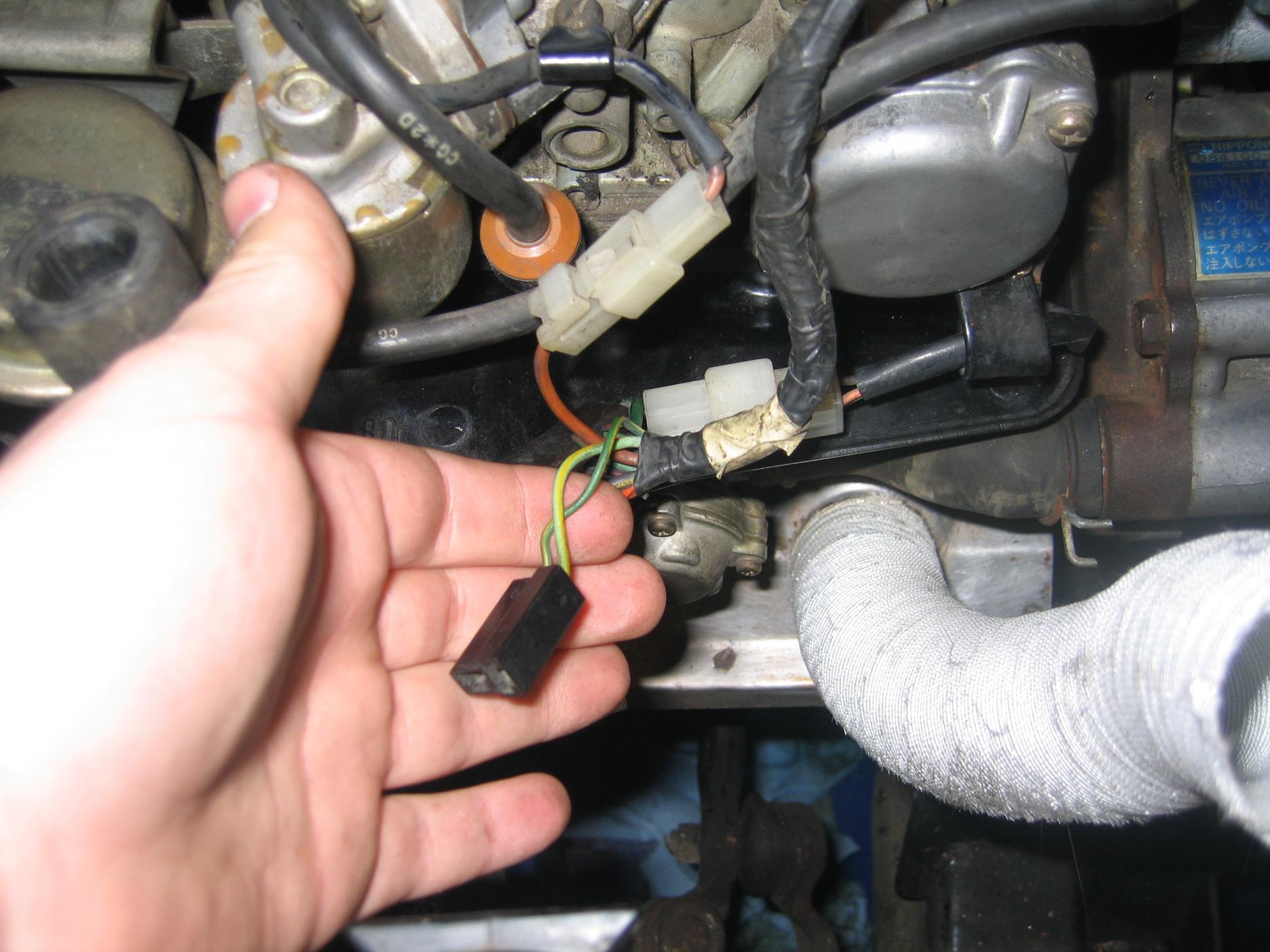

1) When I put the (-) battery cable on the battery, the hot start assist motor activates immediately. I am wondering if I maybe connected something wrong, but the wire goes directly from the motor into the wiring loom, around the front to the passenger side where there are 3 connectors without anything to go into. There's also one on the carb. Any ideas on this?
2) if I disconnect the hot start assist, and turn the key to the accessory position, the windshield wipers turn on. Where is the connection for the wiper motor?
1) When I put the (-) battery cable on the battery, the hot start assist motor activates immediately. I am wondering if I maybe connected something wrong, but the wire goes directly from the motor into the wiring loom, around the front to the passenger side where there are 3 connectors without anything to go into. There's also one on the carb. Any ideas on this?
2) if I disconnect the hot start assist, and turn the key to the accessory position, the windshield wipers turn on. Where is the connection for the wiper motor?
Trending Topics
#10
1st-Class Engine Janitor
iTrader: (15)
There are a few connectors in that area that are the same size and shape, and that can be misconnected; you really need to use the wiring diagram to check the color codes of the wires, to make sure you're hooking A to A.
Trying to do it by trial and error runs the risk of frying something.
Trying to do it by trial and error runs the risk of frying something.
