Transmssion installation... Need Help!
After having a hell of a time getting the pilot bearing out (had to dremel it) I'm finally ready to install the transmission.
I need some suggestions of how to get the transmission lined up to the engine? I have it sort of half *** hanging by the exhaust at the moment. I cant seem to be able to get the transmission input shaft in the flywheel correctly... mostly due to the fact that i cant get it lined up! Its too heavy for me to lay under it and hold it all and line it up..
I need some suggestions of how to get the transmission lined up to the engine? I have it sort of half *** hanging by the exhaust at the moment. I cant seem to be able to get the transmission input shaft in the flywheel correctly... mostly due to the fact that i cant get it lined up! Its too heavy for me to lay under it and hold it all and line it up..
#2
Lives on the Forum
iTrader: (13)
I take it you used a pilot tool to properly install the clutch disc?
Best advice I can give you is go to the hardware store and get some extra long bolts and cut the heads off. Get 2 of them and place them at opposite sides in the engine then lift the transmission up and slide the transmission in place. I have done this before and it works great.
Best advice I can give you is go to the hardware store and get some extra long bolts and cut the heads off. Get 2 of them and place them at opposite sides in the engine then lift the transmission up and slide the transmission in place. I have done this before and it works great.
#3
Junior Member
Thread Starter
Join Date: Apr 2010
Location: iowa
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
The long bolt Idea is great! If I can find some really long bolts to use along with a rolling jack maybe i can get it in!
And yes, I did use the tool when installing the clutch. Its just hard to get that damn transmission in place when your on your back using only tire jacks haha!
And yes, I did use the tool when installing the clutch. Its just hard to get that damn transmission in place when your on your back using only tire jacks haha!
#7
Senior Member
Join Date: Sep 2008
Location: Seattle, WA
Posts: 622
Likes: 0
Received 0 Likes
on
0 Posts
When I did my transmission, I got a proper transmission jack from Harbor Freight. The 400 lb one, screw type, not hydraulic. Has a tilt tray and everything, for proper lining up. It was pretty cheap and made installation a million times easier. Pair that up with long guide studs as Doctor mentioned, and it's a piece of cake. You might need to work the transmission a bit to get the input shaft to go in, and using a proper amount of grease on the splines helps too. The last few mm I had to pull it in with bolts, but by then I knew it was lined up properly, so nothing got damaged.
Trending Topics
#9
Stu-Tron Get Yo Groove On
iTrader: (4)

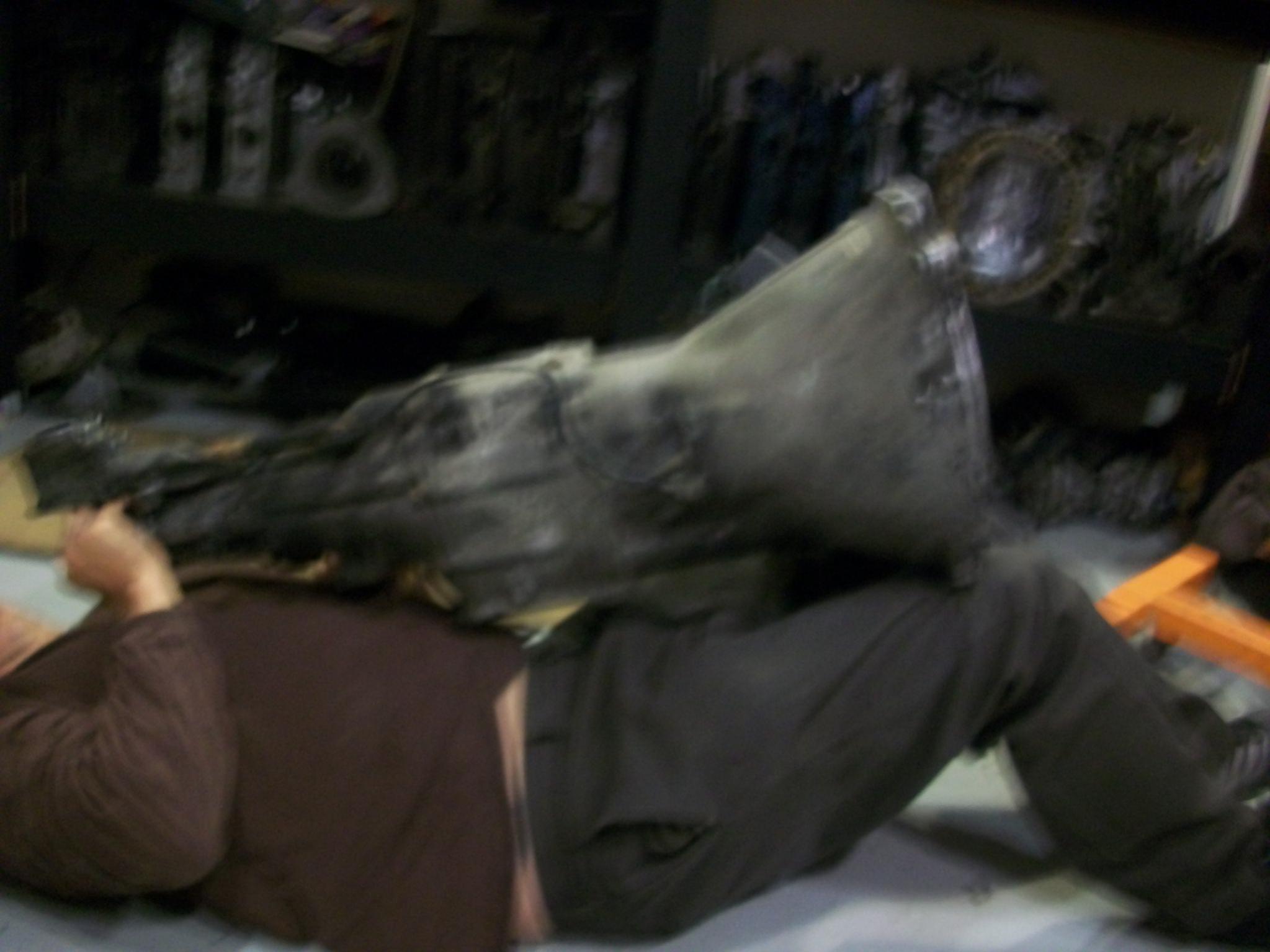

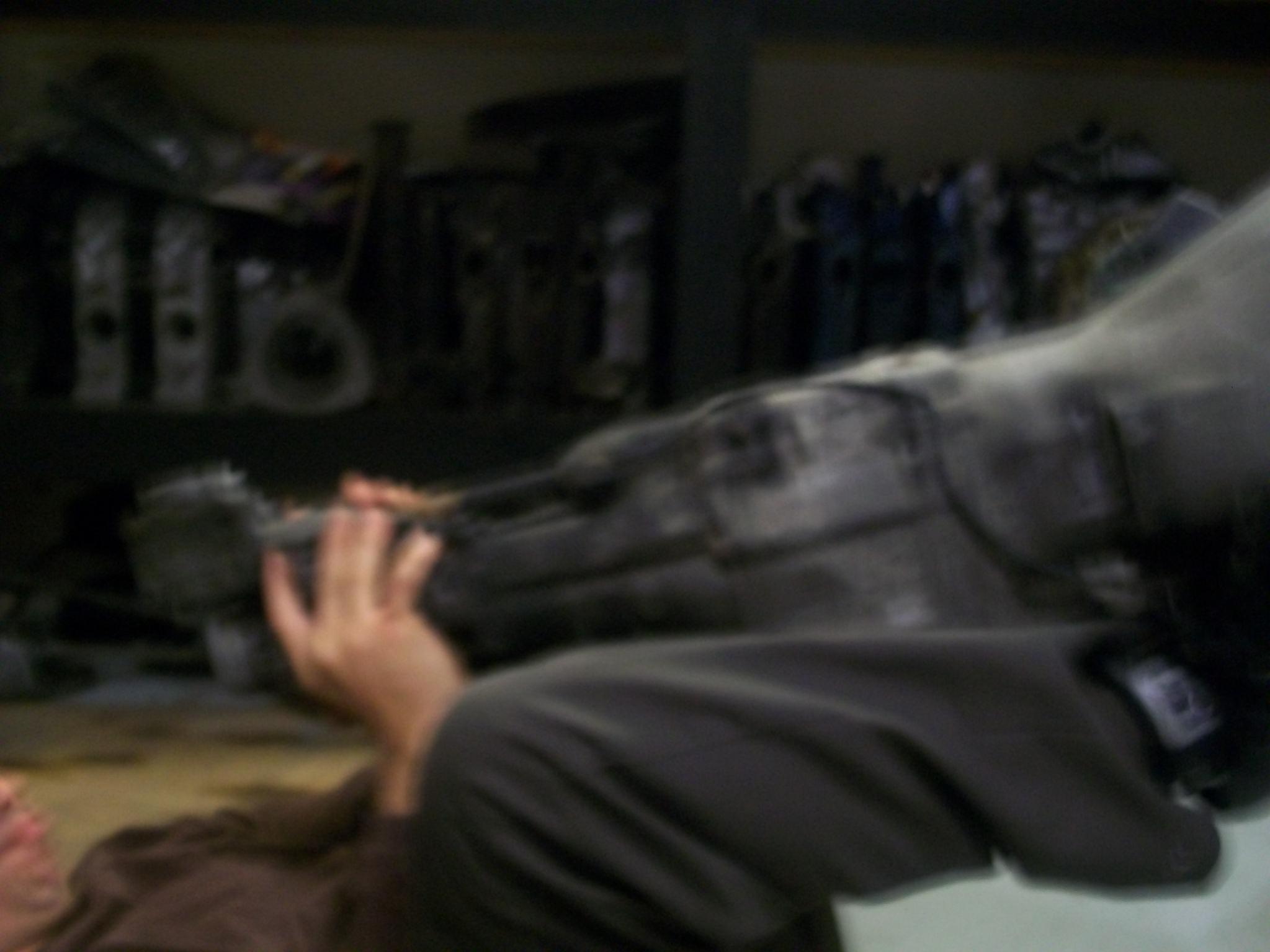

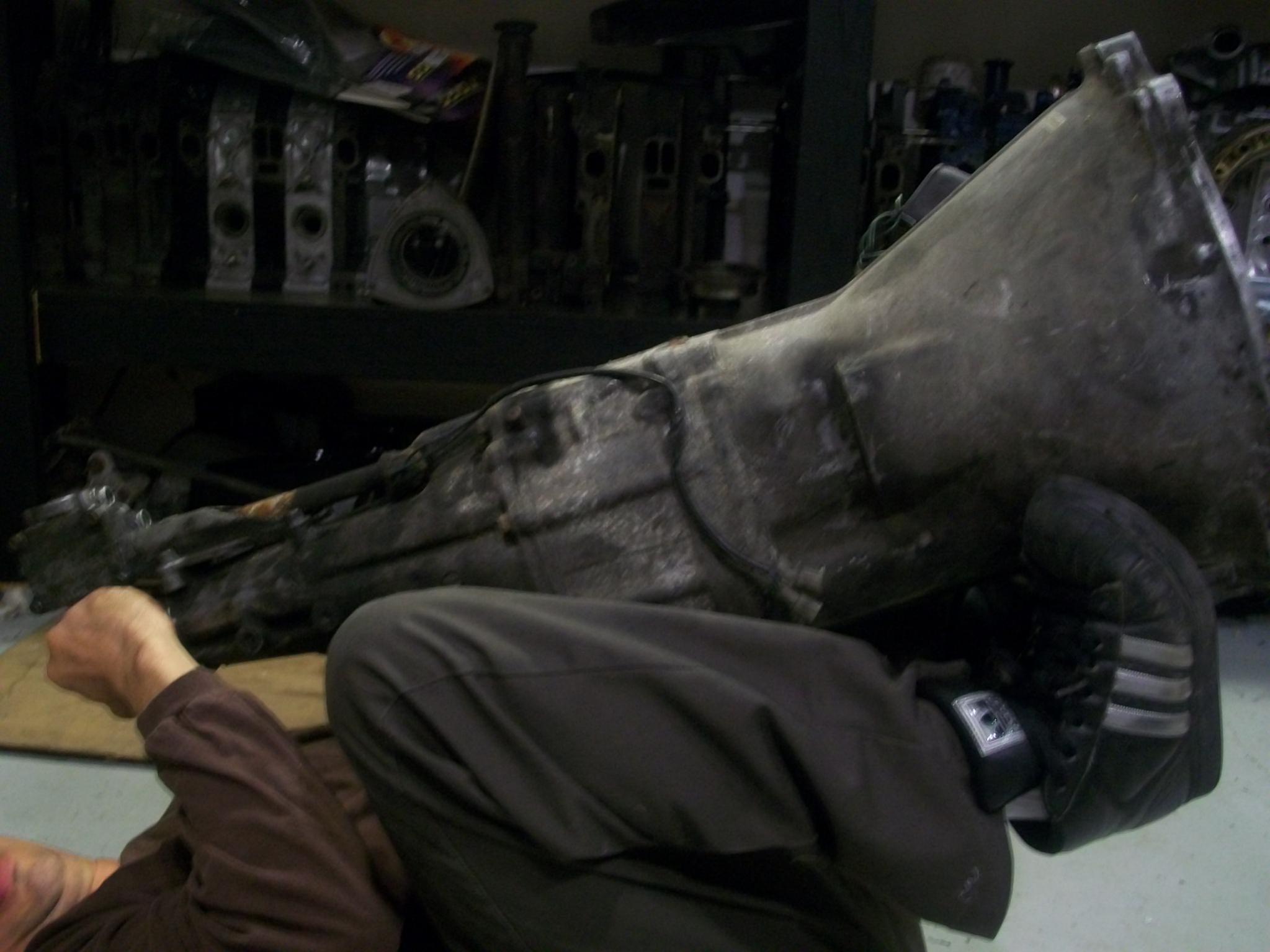

ok...this is how i get my trans in. lay your body facing to the rear roll the trans on your chest ..
Attachment 406530Attachment 406531Attachment 406532
Attachment 406530Attachment 406531Attachment 406532
cap) or you will be drinking some delicious trans oil!
#11
Boosted Soon
iTrader: (1)
$4 schucks butt plug!
Make sure to use a clutch alignment tool. Best tip on using the tool since they are a little loose.... as you tighten down the clutch, make sure you can move the tool in and out effortlessly. Adjust as necessary. This gets the disc more close to center than just shoving it in there and tightening the clutch down.
These trans are light. Do as others said and roll it onto your chest. This is where some good heavy duty jack stands come in handy. Get that car in the air! So you have room to lift it up. Don't rest the trans on it's input shaft.
Roll it up there and jiggle it around. It'll go if you didn't fubar the pilot bearing/seal.
Make sure to use a clutch alignment tool. Best tip on using the tool since they are a little loose.... as you tighten down the clutch, make sure you can move the tool in and out effortlessly. Adjust as necessary. This gets the disc more close to center than just shoving it in there and tightening the clutch down.
These trans are light. Do as others said and roll it onto your chest. This is where some good heavy duty jack stands come in handy. Get that car in the air! So you have room to lift it up. Don't rest the trans on it's input shaft.
Roll it up there and jiggle it around. It'll go if you didn't fubar the pilot bearing/seal.
#12
79 w 13B4port
iTrader: (5)
Do be careful manuvering the trans if you are planning to manhandle it ala rx71king. I did a stupid thing and tried to lift one onto my chest from the wrong position (behind my head as I laid on the floor under the car) and screwed my shoulder up something fierce. Fifteen years later I'm still paying for it.
#14
35r 13b first gen
iTrader: (3)
Join Date: Apr 2002
Location: Richland Center WI
Posts: 1,290
Likes: 0
Received 0 Likes
on
0 Posts
After having a hell of a time getting the pilot bearing out (had to dremel it) I'm finally ready to install the transmission.
I need some suggestions of how to get the transmission lined up to the engine? I have it sort of half *** hanging by the exhaust at the moment. I cant seem to be able to get the transmission input shaft in the flywheel correctly... mostly due to the fact that i cant get it lined up! Its too heavy for me to lay under it and hold it all and line it up..
I need some suggestions of how to get the transmission lined up to the engine? I have it sort of half *** hanging by the exhaust at the moment. I cant seem to be able to get the transmission input shaft in the flywheel correctly... mostly due to the fact that i cant get it lined up! Its too heavy for me to lay under it and hold it all and line it up..
These trannys arent too heavy get a friend to help. if you have the car high enough it shouldnt be too hard. i changed mine twice by myself with no jack... good luck
