Tired of 4 X 110 wheels? Wobble Bolts anyone?
#1
Junior Member
Thread Starter
Join Date: Oct 2007
Location: Charleston, SC
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Tired of 4 X 110 wheels? Wobble Bolts anyone?

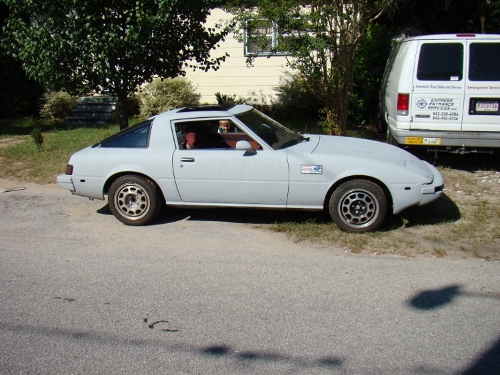

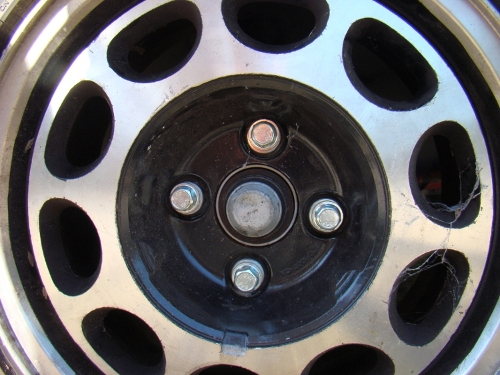

A fellow car guy told me about these a while back. After some research, I decided to give them a try and see if I could mount a set of 4x108 Mustang wheels on a 4x110 1st gen RX-7. I had to make some centering rings to adapt the wheel center to the hub on the Mazda, no one makes them the right size. But low and behold they bolted up and run fine. The bolts came from Lakeshore Wheel and Tire. http://www.lakeshorewheelandtire.com/

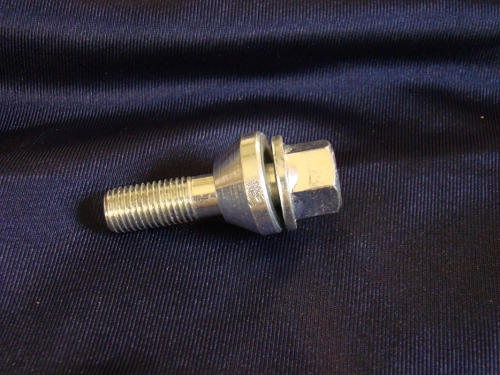

The bolts can make up a 2.4 mm difference in diameter. BTW they aren't cheap. A set of 20 will set you back about $60.00. But they do work. They will also open up a whole realm of wheels for us poor fools that have 1st gen RX-7s.
Edit : I'll add photos as soon as I down size them some.
The bolts can make up a 2.4 mm difference in diameter. BTW they aren't cheap. A set of 20 will set you back about $60.00. But they do work. They will also open up a whole realm of wheels for us poor fools that have 1st gen RX-7s.
Edit : I'll add photos as soon as I down size them some.
Last edited by Toyman01; 08-23-09 at 08:56 PM. Reason: Add
#6
84SE-EGI helpy-helperton
Those bolts are designed for steel wheels that must be trued up to a center hub before cinching down.
I can almost guarantee you that you're going to have bolt breakage within a few hundred miles, and it should be spectacular...
There's a YouBoob video out there of a 3rd Gen owner that thought these would be cool to use on his car to fit wheels for Autocross racing. Once he gets to the first turn, all 4 wheels fly off the car. I would have been pissing my pants laughing.
Don't be 'that' guy. Good luck with those bolts of yours...
Here you go, dude: http://www.youtube.com/watch?v=kyMDNzhfwn0
Watch and learn.
I can almost guarantee you that you're going to have bolt breakage within a few hundred miles, and it should be spectacular...
There's a YouBoob video out there of a 3rd Gen owner that thought these would be cool to use on his car to fit wheels for Autocross racing. Once he gets to the first turn, all 4 wheels fly off the car. I would have been pissing my pants laughing.
Don't be 'that' guy. Good luck with those bolts of yours...
Here you go, dude: http://www.youtube.com/watch?v=kyMDNzhfwn0
Watch and learn.
Last edited by LongDuck; 08-24-09 at 02:01 AM. Reason: Added video for your viewing pleasure!
Trending Topics
#8
1st-Class Engine Janitor
iTrader: (15)
There are things you can fudge, and things you really shouldn't.
Brakes, and anything that holds the wheels on the car, fall into the second category.
It's funny at the autocross track... until you realize that this guy probably drove to the track thru freeway traffic with the exact same rig. Not quite so funny then.
Brakes, and anything that holds the wheels on the car, fall into the second category.
It's funny at the autocross track... until you realize that this guy probably drove to the track thru freeway traffic with the exact same rig. Not quite so funny then.
#9
Needs More Noise
iTrader: (12)
There are things you can fudge, and things you really shouldn't.
Brakes, and anything that holds the wheels on the car, fall into the second category.
It's funny at the autocross track... until you realize that this guy probably drove to the track thru freeway traffic with the exact same rig. Not quite so funny then.
Brakes, and anything that holds the wheels on the car, fall into the second category.
It's funny at the autocross track... until you realize that this guy probably drove to the track thru freeway traffic with the exact same rig. Not quite so funny then.
-billy
#10
The topic has been discussed several times in this section alone. You may not have have found it searching because they were called "loose head bolts" Here is the thread:
loose head bolts?
Oh no not again ----v
This has been nominated for the most-reposted video on RX-7club.com. Guess there will always be people who haven't seen it though.
loose head bolts?
...
- rims with 4*108 pattern will fit. You will need another center ring to properly center the rim to the hub and "loose" head bolts. This is the cheap way, and despite what people say about the bolts beeing "dangerous" and such it works really great. I have been running 16`s for 3 years with this method and never had a problem. The only precaution you must take is to make sure that the bolts have steel heads, not copper! The center ring is also very important, remember, this is the part that actually centers the rim. The bolts only holds it in place!...
- rims with 4*108 pattern will fit. You will need another center ring to properly center the rim to the hub and "loose" head bolts. This is the cheap way, and despite what people say about the bolts beeing "dangerous" and such it works really great. I have been running 16`s for 3 years with this method and never had a problem. The only precaution you must take is to make sure that the bolts have steel heads, not copper! The center ring is also very important, remember, this is the part that actually centers the rim. The bolts only holds it in place!...
There's a YouBoob video out there of a 3rd Gen owner that thought these would be cool to use on his car to fit wheels for Autocross racing. Once he gets to the first turn, all 4 wheels fly off the car. I would have been pissing my pants laughing.
Don't be 'that' guy. Good luck with those bolts of yours...
Here you go, dude: http://www.youtube.com/watch?v=kyMDNzhfwn0
Watch and learn.
Don't be 'that' guy. Good luck with those bolts of yours...
Here you go, dude: http://www.youtube.com/watch?v=kyMDNzhfwn0
Watch and learn.
#11
Lives on the Forum
Sorry, but no shortcuts when it comes to critical stuff like wheels and brakes. Cheap solutions usually end up costing a lot more in the long run that doing it right the first time does.
But pioneers have often been criticized in the past, so feel free to keep us updated on how this works out for you...
But pioneers have often been criticized in the past, so feel free to keep us updated on how this works out for you...
#12
No distributor? No thanks
iTrader: (6)
Join Date: Oct 2003
Location: Outskirts of Road Atlanta
Posts: 3,438
Likes: 0
Received 6 Likes
on
4 Posts
Those bolts are designed for steel wheels that must be trued up to a center hub before cinching down.
I can almost guarantee you that you're going to have bolt breakage within a few hundred miles, and it should be spectacular...
There's a YouBoob video out there of a 3rd Gen owner that thought these would be cool to use on his car to fit wheels for Autocross racing. Once he gets to the first turn, all 4 wheels fly off the car. I would have been pissing my pants laughing.
Don't be 'that' guy. Good luck with those bolts of yours...
Here you go, dude: http://www.youtube.com/watch?v=kyMDNzhfwn0
Watch and learn.
I can almost guarantee you that you're going to have bolt breakage within a few hundred miles, and it should be spectacular...
There's a YouBoob video out there of a 3rd Gen owner that thought these would be cool to use on his car to fit wheels for Autocross racing. Once he gets to the first turn, all 4 wheels fly off the car. I would have been pissing my pants laughing.
Don't be 'that' guy. Good luck with those bolts of yours...
Here you go, dude: http://www.youtube.com/watch?v=kyMDNzhfwn0
Watch and learn.
#13
I need a new user title
Join Date: Oct 2005
Location: Yaizu, Japan
Posts: 2,646
Likes: 0
Received 0 Likes
on
0 Posts
Not going to say they won't work, since that's exactly what they're designed for. But personally, I'd feel safer with a set of these:
http://www.ezaccessory.com/Wheel_Ada.../4110-4450.htm
Or if you'd prefer 4x108 or 4x100, you can custom order a set:
http://www.ezaccessory.com/Wheel_Ada.../4000-4000.htm
http://www.ezaccessory.com/Wheel_Ada.../4110-4450.htm
Or if you'd prefer 4x108 or 4x100, you can custom order a set:
http://www.ezaccessory.com/Wheel_Ada.../4000-4000.htm
#15
Junior Member
Thread Starter
Join Date: Oct 2007
Location: Charleston, SC
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
We'll have to see. Hub rings are dead on. I couldn't find any the correct size commercially so I fired up the lathe and made them myself. Torque will be checked regularly for the first several months. Autocross duty will happen mid next month. I will keep you guys posted as far as problems and issues but I really don't expect any. The bolts don't have any side load on them only tension. There was no binding when tightening, and they torqued normally.
The main reason I was interested in trying these is the limited availability of 4X110 wheel and the abundance of 4X108 wheels. Not to mention the cost difference. The mustang wheels are what I had, left over from last years dead LeMons race car. They make good test wheels.
The main reason I was interested in trying these is the limited availability of 4X110 wheel and the abundance of 4X108 wheels. Not to mention the cost difference. The mustang wheels are what I had, left over from last years dead LeMons race car. They make good test wheels.
#16
Lives on the Forum
Well, I guess you do have a point. Since the rims are hub-centric, the only stress the bolts will receive will be linear. The weight of the car is not actually riding on the bolts, but on the hub. Who knows? I'll be interested to hear how they hold up under the stresses of autocross...
#17
I have a rotary addiction
iTrader: (18)
4x110 wheels are abundant too. You have to look. Just from the picture that dust cap looks off centered from the wheel so it makes it look like they're mounted crooked. It would be safer to just bore out the bolt holes on the wheels (not really that safe at all actually...) or even better take the hubs to a machine shop and have them re drill the bolt pattern to 4x100 or something. You can do an FC hub and brake upgrade pretty easily for about $200.
#18
I need a new user title
Join Date: Oct 2005
Location: Yaizu, Japan
Posts: 2,646
Likes: 0
Received 0 Likes
on
0 Posts
Really? How?
And I would certainly not call 4x110 wheels "abundant". Unless you're talking about Australia or something. The only new ones you can get are Panasport knockoffs, which I don't care for, and the very occasional used set. 4x108 aren't particularly common either, but they're far more available than 4x110.
And I would certainly not call 4x110 wheels "abundant". Unless you're talking about Australia or something. The only new ones you can get are Panasport knockoffs, which I don't care for, and the very occasional used set. 4x108 aren't particularly common either, but they're far more available than 4x110.
#22
I have a rotary addiction
iTrader: (18)
Really? How?
And I would certainly not call 4x110 wheels "abundant". Unless you're talking about Australia or something. The only new ones you can get are Panasport knockoffs, which I don't care for, and the very occasional used set. 4x108 aren't particularly common either, but they're far more available than 4x110.
And I would certainly not call 4x110 wheels "abundant". Unless you're talking about Australia or something. The only new ones you can get are Panasport knockoffs, which I don't care for, and the very occasional used set. 4x108 aren't particularly common either, but they're far more available than 4x110.
#23
On/DEFEAT
Join Date: May 2008
Location: North Pole, AK
Posts: 231
Likes: 0
Received 0 Likes
on
0 Posts
How'd you get yours? how much did they set you back? (i can't imagine that they'd go for any less then a grip of ben franklins)
#24
I need a new user title
Join Date: Oct 2005
Location: Yaizu, Japan
Posts: 2,646
Likes: 0
Received 0 Likes
on
0 Posts
