Bob Holton

Temp sender is where on an 85GS ?the guage does not work , I need to install a new thermostat and want to get it all at one time. any help will be really appreciated. Thanks Bob

GavinJuice

666

cdrad51

:sigh: wonder what is so hard about searching...

Once again, temp sender is here:

vipernicus42

iTrader: (4)

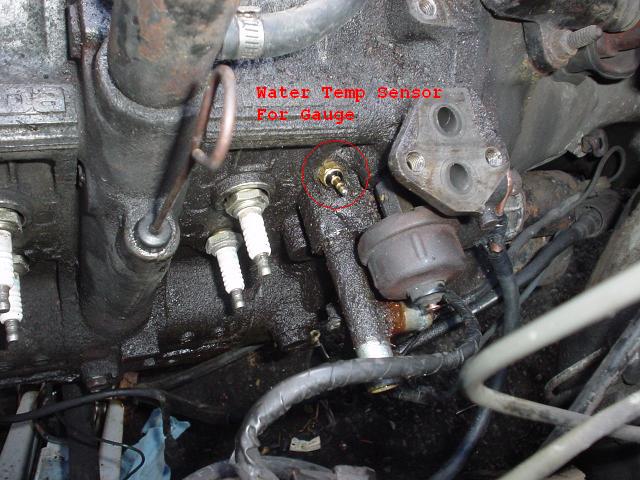

Here's a closer pic of what cdrad is trying to show ya.

It's a 12mm, and it has a bullet connector that's a BITCH to get off. I tried on my engine, and pulled the middle of the sensor right out! I tried on a friend's car and had to cut it loose from the harness because I just couldn't.

It was $32 Canadian to replace it directly from Mazda. I'll dig up the part number in a sec.

Jon

vipernicus42

iTrader: (4)

The Mazda part number is
8569-18-510A

For 1981-1992 original engines

Mazdatrix lists another one for "replacement" rear housings

http://www.mazdatrix.com/o-misc.htm

Translation of Mazdatrix part number to Mazda part number (for rare "replacement housing" version): G607-18-51X0

Jon

cdrad51

In reality, chances are the connection is what is failing, rather than the sender.

vipernicus42

iTrader: (4)

True,

but in trying to disconnect the bullet connector from the sender (to clean it and put it back) I ended up breaking the sender.

On two different engines!

So that's why I gave him the part number.

Jon

vipernicus42

iTrader: (4)

Wow... I tried searching up this thread today, since I remembered posting in it, but since the words "sensor" and "gauge" don't appear in it, it was a *bugger* to find.

So this post should add the words "water temp sensor", and "water temp gauge / gage / guage sending unit" to this thread, to make it easier to search in the future.

And I'm archiving it.

There, that aughta do it!

Jon

Hades12

Says you. Bet people still wont be able to find it.

zlyricist

iTrader: (1)

lol i found it! good info, but mine is a 79 -_-
