Tapping the front cover

were at exactly should i drill and tap on the front cover and what size hole should i drill and what thread size should i tap. i am rebuilding my engine and i want to do this just incase i want to go turbo.
Old 08-23-06, 09:32 PM
  #2
Resident autoglass pro

iTrader: (1)

cds00bsmg's Avatar

Join Date: Jul 2003
Location: edinburg PA
Posts: 1,192
Likes: 0
Received 0 Likes on 0 Posts
https://www.rx7club.com/showthread.php?t=508562

I think this is what your looking for. As far as diameter, Im not sure. Find out what -AN size the turbo oil feed hole is on the turbo, or ask around...
Old 08-24-06, 02:55 AM
  #3
Banned. I got OWNED!!!

gonzz's Avatar

Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes on 0 Posts
1/2" Npt
Old 08-24-06, 04:29 PM
  #4
Old Fart Young at Heart

iTrader: (6)

trochoid's Avatar

Join Date: Apr 2004
Location: St Joe MO
Posts: 15,145
Likes: 0
Received 7 Likes on 7 Posts

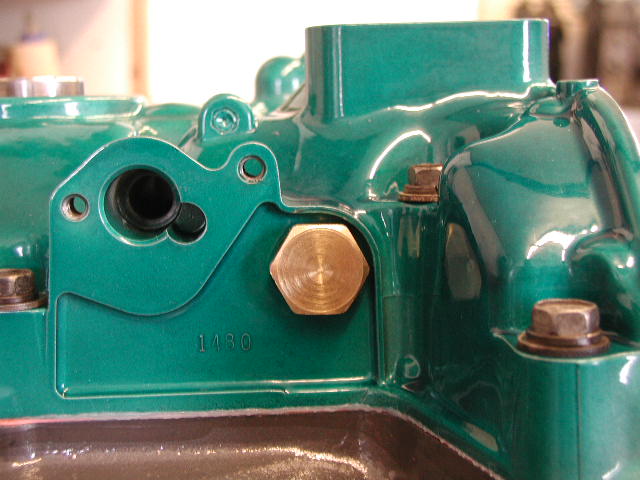

Here is where I tapped mine, then installed a brass plug untill I'm ready for the turbo. There is a circular depression at this spot, perfect for the tap.

Attached Thumbnails Tapping the front cover-p8010066.jpg
Old 08-24-06, 07:14 PM
  #5
my fb is older than me

iTrader: (1)

woodonastick's Avatar

Join Date: Aug 2004
Location: San Jose
Posts: 690
Likes: 0
Received 0 Likes on 0 Posts
wow. that look sperfect...as tho it was meant to be
Old 08-24-06, 08:45 PM
  #6
Never Follow

iTrader: (18)

82transam's Avatar

Join Date: Feb 2002
Location: North Jersey
Posts: 8,306
Likes: 0
Received 67 Likes on 49 Posts
Perfect if you haven't taken all of that room up mounting the enormous S5 electric OMP for your swap
