1st Generation Specific (1979-1985) 1979-1985 Discussion including performance modifications and technical support sections

subwoofer placement

Thread Tools

Search this Thread

Old 12-28-03, 02:23 AM
  #1
Senior Member

Thread Starter

rx78788's Avatar

Join Date: Nov 2003
Location: walla walla washington
Posts: 369
Likes: 0
Received 0 Likes on 0 Posts
subwoofer placement

does anybody know if putting a subwoofer in the bin behind the seats sounds ok, or should i just buy a box.
Old 12-28-03, 04:57 AM
  #2
'84 5-letter

iTrader: (5)

ioTus's Avatar

Join Date: Jul 2002
Location: Washington State
Posts: 3,219
Received 7 Likes on 6 Posts
Personnaly, i would just buy a box!! You want a square box, as far back in the car as you can, firing directly up to hit the rear window.

I have never heard a ride w/ them in the pass bins, but both my current setup and previous setup (in my old 12a blackie) had a box. i loved them. And i just have a shitty box, not firing in the right direction. yeah. anywyas.

Ur in washington! we should get together some time.
Old 12-28-03, 06:47 AM
  #3
Rotary Enthusiast


Lee Lyons's Avatar

Join Date: Jun 2003
Location: Calgary; AB
Posts: 1,288
Likes: 0
Received 0 Likes on 0 Posts
speaker layout

check it out...but you'd need alot of room!!
Old 12-28-03, 06:48 AM
  #4
Rotary Enthusiast


Lee Lyons's Avatar

Join Date: Jun 2003
Location: Calgary; AB
Posts: 1,288
Likes: 0
Received 0 Likes on 0 Posts
s*%$ didn't work oh well!! I had a cool pic anyway.
Old 12-28-03, 08:16 AM
  #5
What?


John64's Avatar

Join Date: Sep 2003
Location: CT
Posts: 3,833
Likes: 0
Received 1 Like on 1 Post
Enclosure

My enclosure turned out awesome, but it was alot of work to do. If you've never done fiberglass it will be a long project. Take a look at my web page. I hit 134db with 600 watts. You need a sub that can fit in small spaces, around .64cuft.

John
Old 12-28-03, 08:51 AM
  #6
Senior Member


Steve Shulz's Avatar

Join Date: Nov 2001
Location: Gig Harbor, WA
Posts: 566
Likes: 0
Received 0 Likes on 0 Posts
Placement of subs will totally depend on you. I had a box that fired up to the glass, now I have a box that sits right behind the seats and fires straight back, and it hits hard (very little room for anything else though). Base is omni directional so placement is like the butt dyno, interprited by you. The further you are away from the source the smoother it will sound. I would like to hear how john64's sound, that just looks too nice.
Old 12-28-03, 09:02 AM
  #7
trainwreck


BigJim's Avatar

Join Date: Jun 2003
Location: Lake, Michigan
Posts: 1,725
Likes: 0
Received 1 Like on 1 Post
What about putting Trebel speakers in the bins, and subs in the back like you 2 have. I dont like the all bass trend. I like to hear the lyrics nad guitar.
Old 12-28-03, 10:35 AM
  #8
Full Member


jbcobra's Avatar

Join Date: Jul 2002
Location: Right around Canton Ohio
Posts: 64
Likes: 0
Received 0 Likes on 0 Posts
There's a nice article on the MazSpeed site that has dimensions for building a hidden sub box for the storage bins. I haven't tired it yet but it seems like a good option if you don't want to fill up the hatch with speakers. I also thought about trying a bazooka style tube sub in one of the bins. Here's a link to the MazSpeed page
Old 12-28-03, 11:23 AM
  #9
I can has a Hemi? Yes...

iTrader: (2)

Directfreak's Avatar

Join Date: Dec 2001
Location: 3OH5
Posts: 9,371
Likes: 0
Received 4 Likes on 3 Posts
Here is a really good thread with info.
Old 12-28-03, 11:27 AM
  #10
'84 5-letter

iTrader: (5)

ioTus's Avatar

Join Date: Jul 2002
Location: Washington State
Posts: 3,219
Received 7 Likes on 6 Posts
You wouldn't want to place treble spekaers (tweaters) out of direct line of sight. Otherwise its just counter productive and a waste of money (treble doesnt pass thru objects as well as bass does), and as mentioned before, you would want the bass wave to be as long as possible before it reaches you.

this is my personal preference.
Old 12-28-03, 12:01 PM
  #11
Full Member

iTrader: (1)

redrx's Avatar

Join Date: May 2001
Location: annapolis, maryland, united states
Posts: 139
Likes: 0
Received 0 Likes on 0 Posts
I have 6/9's in the bins behind seats, and a 10" alpine sub in a truck box about 6" back from my seat, and small speakers up front. It sounds good, but I could use some more treble up front
Old 12-28-03, 12:40 PM
  #12
I can has a Hemi? Yes...

iTrader: (2)

Directfreak's Avatar

Join Date: Dec 2001
Location: 3OH5
Posts: 9,371
Likes: 0
Received 4 Likes on 3 Posts

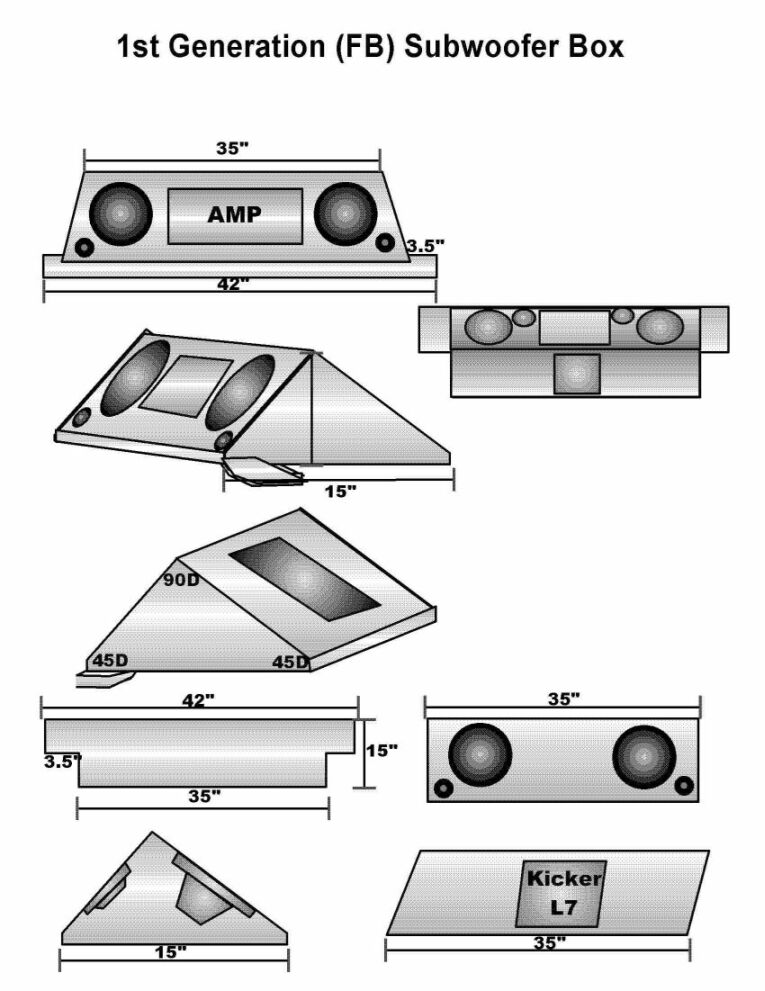

This is what I have been planning for over 2 years. Other "things" have been more important though.

I will likely have to re-design it now because of my cage though.

Old 12-28-03, 02:55 PM
  #13
Full Member


Forgie's Avatar

Join Date: Apr 2003
Location: Edmonton, Alberta
Posts: 127
Likes: 0
Received 0 Likes on 0 Posts
I have my 6x9s in the bins and my subs firing off the back window. sounds awesome. only thing you need to worry about is the height of the box. I had to lay my box on it's back because it was blocking my sight out the rear window.
Old 12-28-03, 05:03 PM
  #14
Full Member


Join Date: Oct 2002
Location: South Bend, IN
Posts: 57
Likes: 0
Received 0 Likes on 0 Posts
Thumbs up Subwoofer install

If you are still looking for 'Sub'suggestions I just completed a really neat installation in my first Gen. Purchased the smaller 'cannon' style Bazooka sub woofer with built in amp. I removed the bin behind the passanger seat and cut an 8"hole in outside end-facing out as directions suggested then cut a hole in the other end so I could access controles on subwoofer-I insulated below bin and added cushion between cannon and bottom of bin so it fit snugly. Then I reinstalled bin and removed drivers side and accessed all the wiring from there. I could even lock the bin after it was reinstalled and best of all it is invisible. I'm sure there are ways to add more base, but when this is combined with 4 really nice infinity speakers installed in stock locations it gives me very good balanced sound- I just don't care for giant speakers in the back of the car asking to be stolen! and it will still shake the car.
Old 12-29-03, 12:25 AM
  #15
The AUTO DOCTOR


BadAssRX-7's Avatar

Join Date: Mar 2001
Location: South Side of ATL. Ga.
Posts: 1,952
Likes: 0
Received 0 Likes on 0 Posts
i have a set of 8" l7 kicker solo's in the far back of my 83... they sit behind the rear carpet and against the tail lights.... stealth and they hit pleanty hard
Old 12-29-03, 02:19 AM
  #16
Lorem ipsum dolor sit ame


cdrad51's Avatar

Join Date: Nov 2003
Location: The Net
Posts: 3,262
Likes: 0
Received 1 Like on 1 Post
Originally posted by rburrer
If you are still looking for 'Sub'suggestions I just completed a really neat installation in my first Gen. Purchased the smaller 'cannon' style Bazooka sub woofer with built in amp. I removed the bin behind the passanger seat and cut an 8"hole in outside end-facing out as directions suggested then cut a hole in the other end so I could access controles on subwoofer-I insulated below bin and added cushion between cannon and bottom of bin so it fit snugly. Then I reinstalled bin and removed drivers side and accessed all the wiring from there. I could even lock the bin after it was reinstalled and best of all it is invisible. I'm sure there are ways to add more base, but when this is combined with 4 really nice infinity speakers installed in stock locations it gives me very good balanced sound- I just don't care for giant speakers in the back of the car asking to be stolen! and it will still shake the car.
I also have 4 Infinity speakers in stock locations, and 10" woofer-passive-radiator with a built in 200 watt amp (Infinity Bass Link) in the trunk space, facing up, next to the passanger side bin. Not invisible, but pretty compact and it delivers.
Old 12-29-03, 05:42 PM
  #17
.............

iTrader: (3)

yayo420's Avatar

Join Date: Nov 2002
Location: Pittsburgh
Posts: 1,785
Likes: 0
Received 0 Likes on 0 Posts
I have 2 solobaric 12's in a teeny *** box w/ the speakers firing back and w/ the box pushed all the way up against the glass......Ive tried just about every position for the subs and this seems to be the best.....BTW David, your 8's aint ****
