SA Clarion Radio Manual
The following users liked this post:
toddk042 (07-24-23)
#2

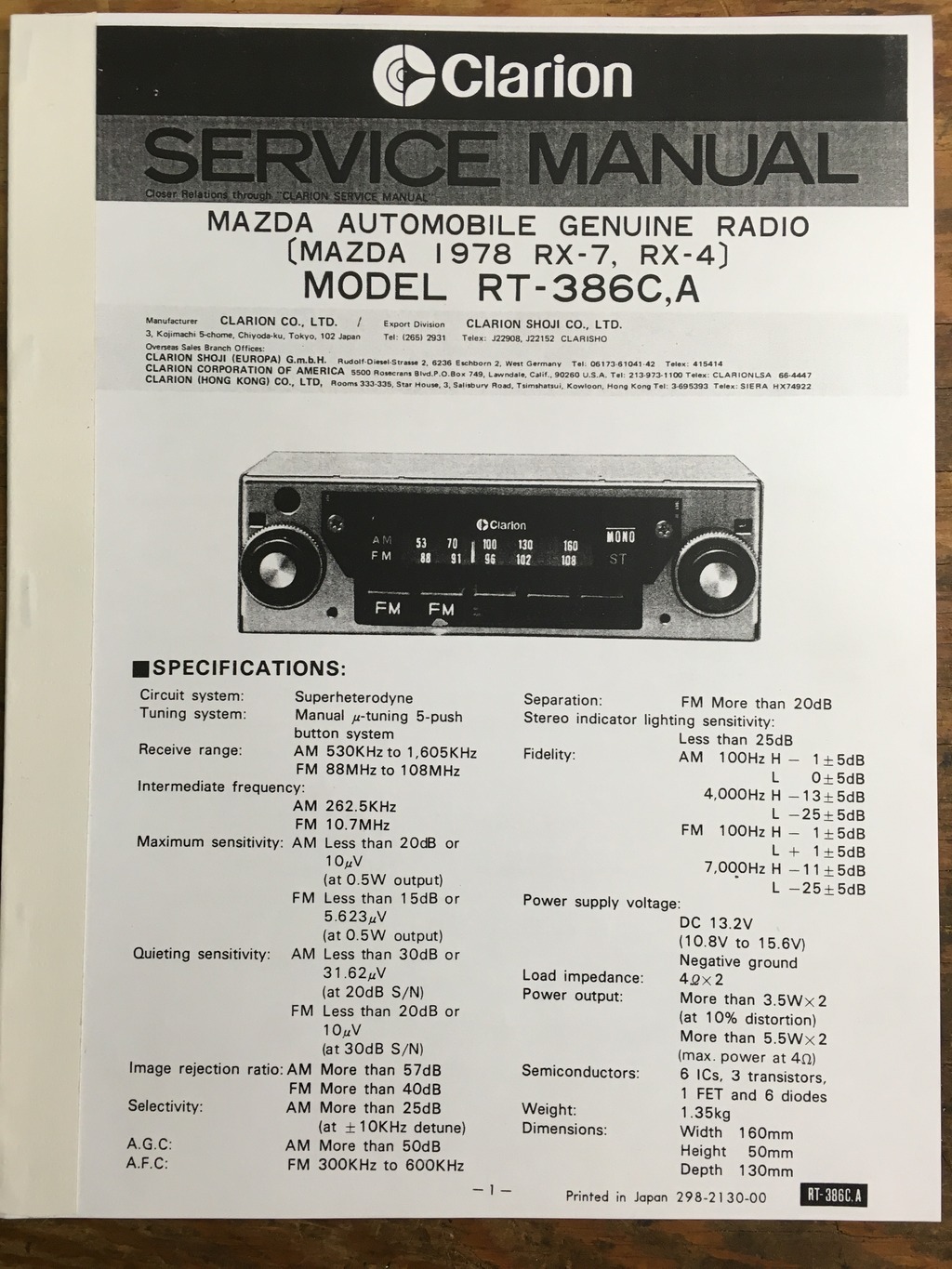

Its 18 pages with schematics, parts list and a troubleshooting guide.
Here is a link:
http://www.stereomanuals.com/man/rep/clarion/index.htm
Here is a link:
http://www.stereomanuals.com/man/rep/clarion/index.htm
Last edited by rwatson5651; 01-13-16 at 04:19 PM.
#3
Waffles - hmmm good
iTrader: (1)
Now thats interesting Robert. Good find. I was wondering what kind of power goes to the speakers.
Followed the link and its not a pdf or downloadable, you have to buy it. So did you buy one?
Followed the link and its not a pdf or downloadable, you have to buy it. So did you buy one?
Last edited by t_g_farrell; 01-14-16 at 07:26 AM.
#7
Driven a turbo FB lately?
iTrader: (1)
I need a schematic for my 1983 GSL radio. The power antenna doesn't work. Know it's probably a open transistor or something. But without a schematic I wasn't going in there looking. I jump the power antenna wire to ground at the radio three pin plug antenna works perfect. But anyway: might swap in a single DIN in there if I can find that DIN to RCA Pinout. Like use the EQ and Amps.
