Re-Speed Brake kit rubbing

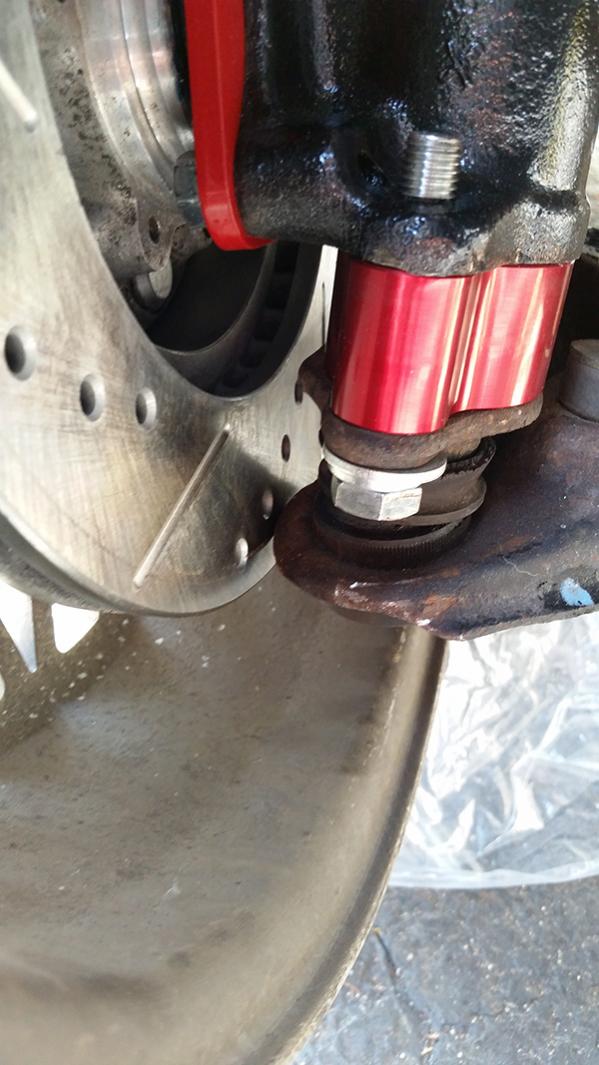

Has anyone else experienced this when installing the Re-Speed big brake kit? Lower control arm rubbing the rotor... Maybe I'm missing something?
#5
Rotary Lifer
Thread Starter
iTrader: (8)
Join Date: Jul 2004
Location: Windsor, Ontario
Posts: 524
Likes: 0
Received 0 Likes
on
0 Posts
I was reading step 3 of the Re-Speed install instructions and it seems that it's possible to use RCA's, in fact you would need to use them to mount the caliper rearward.
Step 3:
Using the factory FB bolts and lock washers secure the new caliper bracket to the spindle. The calipers can be located in front of or behind the axle centerline. In order to mount the caliper in the rearward of centerline position you will need to be using roll center blocks. This is due to clearance of the lower mounting ear will be too tight to fit with the steering arm being spaced down and away.
Would grinding the leading edge of the lower control arm to get the clearance I need be the only option?
Step 3:
Using the factory FB bolts and lock washers secure the new caliper bracket to the spindle. The calipers can be located in front of or behind the axle centerline. In order to mount the caliper in the rearward of centerline position you will need to be using roll center blocks. This is due to clearance of the lower mounting ear will be too tight to fit with the steering arm being spaced down and away.
Would grinding the leading edge of the lower control arm to get the clearance I need be the only option?
Trending Topics
#8
Rotary Freak
iTrader: (3)
Ran into the same issue on my race car build. I am using 4 lug hubs and redrilled 5 lug rotors on my car and the issue is worse for me because the 4 lug hubs are shorter than 5 lug hubs. I am also running 2" spacers on my car.
To solve it I clearanced the end of the control arm and added a 5mm spacer between the hub and the rotor.
To solve it I clearanced the end of the control arm and added a 5mm spacer between the hub and the rotor.
#9
Always Wanting to Learn
iTrader: (49)
A buddy and I were just discussing this, I'm swapping to FC front subframe and want to run TII front calipers with 4-lug front hubs. Can I just re-drill the TII rotors to a 4-lug and bolt on the brake caliper using the 4-lug front hub? If so that's awesome and I'll have to pick up that setup ASAP!
#11
Rotary Freak
iTrader: (3)
A buddy and I were just discussing this, I'm swapping to FC front subframe and want to run TII front calipers with 4-lug front hubs. Can I just re-drill the TII rotors to a 4-lug and bolt on the brake caliper using the 4-lug front hub? If so that's awesome and I'll have to pick up that setup ASAP!
Yes you can but you may have an issue withy the way the hub fits the rotor. In my setup the 5mm spacer I added for rotor clearance also makes everything fit with no issues.
