Racing Beat spring question
#1
Full Member
Thread Starter
Racing Beat spring question
I recently picked up some unused Racing Beat springs. Any one run 205-50\15 with these springs? Wondering how\if the fronts will work out.
I have no rubbing on stock springs..
Cheers
I have no rubbing on stock springs..
Cheers
#7
ancient wizard...
Are those 205/50/15 tires on the wheels now?
If so there will be no contact on RB spring.
Ideal offset for non SE suspension is +20 mm.
RB spring will drop car @1/3”-3/4” in front.
How close is tire to fender lip in straight ahead position,looks to be ok but hard to judge with wheels turned like in pic.
If so there will be no contact on RB spring.
Ideal offset for non SE suspension is +20 mm.
RB spring will drop car @1/3”-3/4” in front.
How close is tire to fender lip in straight ahead position,looks to be ok but hard to judge with wheels turned like in pic.
Trending Topics
#8
I just threw on some RB springs and have stock GSL-SE wheels and tires, which are 205/60/14, which are slightly bigger than 205/50/15 (comparison). So as mentioned above, sounds like offset is most important since your tires will be smaller than stock GSL-SE. Waiting for the springs to settle to get some pics (finally got them in yesterday).
Last edited by FBPersimmon; 05-24-20 at 10:48 AM.
The following users liked this post:
thirteenbees (05-24-20)
#10
84SE-EGI helpy-helperton
Classic WEDS Bavaria wheels, man. Those are period correct for the car and those look to be pristine.
I'm running 15x7 wheels with 38mm offset (*tires are 205/55 Yoko) which is just shy of the stock GSL-SE offset of 40mm (14x5.5). Your offset is putting the centerline of the wheel inboard from where it should be, which is adding to your risk of contact with the spring. Lowering the car changes the geometry, but only slightly, and not enough to provide much more clearance, unless you install adjustable camber plates and run them zero to positive, which ruins handling. Unfortunately, the tire sizes you're looking at are likely to scrub the springs unless you go with a narrower width, like 195. Modern tires include some widening efforts like rebated bead seats to help with wheel curb rash, which only adds to your problem.
First step is to get an alignment and then measure carefully from under the car when it's on tracks and weighted like you'd drive it. Give extra clearance for cornering forces and turning radius. Don't take any chances and don't allow any contact - it's not worth totalling the car or driving off a cliff due to a blow-out.
I'm running 15x7 wheels with 38mm offset (*tires are 205/55 Yoko) which is just shy of the stock GSL-SE offset of 40mm (14x5.5). Your offset is putting the centerline of the wheel inboard from where it should be, which is adding to your risk of contact with the spring. Lowering the car changes the geometry, but only slightly, and not enough to provide much more clearance, unless you install adjustable camber plates and run them zero to positive, which ruins handling. Unfortunately, the tire sizes you're looking at are likely to scrub the springs unless you go with a narrower width, like 195. Modern tires include some widening efforts like rebated bead seats to help with wheel curb rash, which only adds to your problem.
First step is to get an alignment and then measure carefully from under the car when it's on tracks and weighted like you'd drive it. Give extra clearance for cornering forces and turning radius. Don't take any chances and don't allow any contact - it's not worth totalling the car or driving off a cliff due to a blow-out.
#11
Full Member
Thread Starter
Classic WEDS Bavaria wheels, man. Those are period correct for the car and those look to be pristine.
I'm running 15x7 wheels with 38mm offset (*tires are 205/55 Yoko) which is just shy of the stock GSL-SE offset of 40mm (14x5.5). Your offset is putting the centerline of the wheel inboard from where it should be, which is adding to your risk of contact with the spring. Lowering the car changes the geometry, but only slightly, and not enough to provide much more clearance, unless you install adjustable camber plates and run them zero to positive, which ruins handling. Unfortunately, the tire sizes you're looking at are likely to scrub the springs unless you go with a narrower width, like 195. Modern tires include some widening efforts like rebated bead seats to help with wheel curb rash, which only adds to your problem.
First step is to get an alignment and then measure carefully from under the car when it's on tracks and weighted like you'd drive it. Give extra clearance for cornering forces and turning radius. Don't take any chances and don't allow any contact - it's not worth totalling the car or driving off a cliff due to a blow-out.
I'm running 15x7 wheels with 38mm offset (*tires are 205/55 Yoko) which is just shy of the stock GSL-SE offset of 40mm (14x5.5). Your offset is putting the centerline of the wheel inboard from where it should be, which is adding to your risk of contact with the spring. Lowering the car changes the geometry, but only slightly, and not enough to provide much more clearance, unless you install adjustable camber plates and run them zero to positive, which ruins handling. Unfortunately, the tire sizes you're looking at are likely to scrub the springs unless you go with a narrower width, like 195. Modern tires include some widening efforts like rebated bead seats to help with wheel curb rash, which only adds to your problem.
First step is to get an alignment and then measure carefully from under the car when it's on tracks and weighted like you'd drive it. Give extra clearance for cornering forces and turning radius. Don't take any chances and don't allow any contact - it's not worth totalling the car or driving off a cliff due to a blow-out.
#12
Full Member
Thread Starter

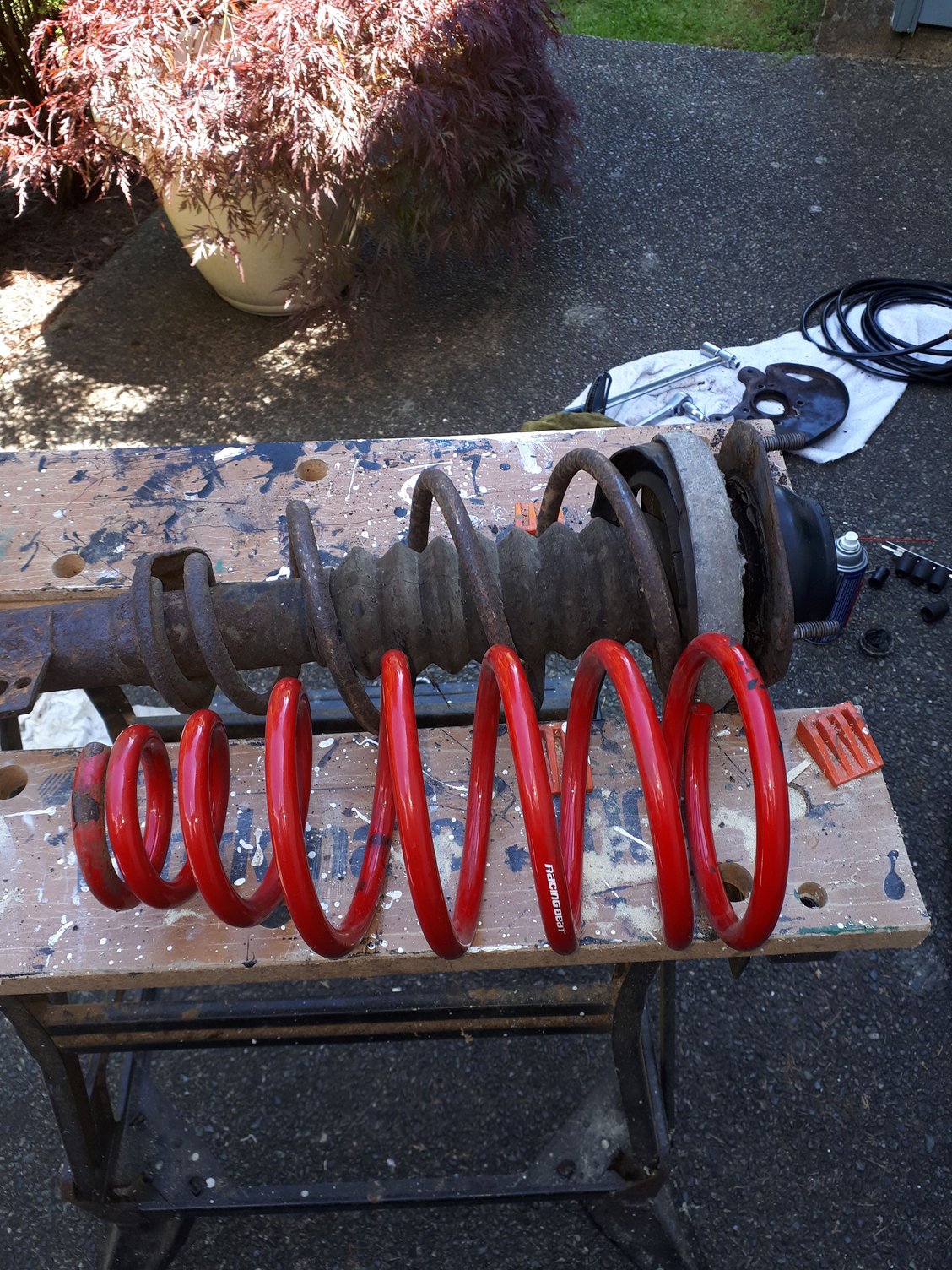

Soooo, I pulled a front strut out to do some other work and it looks like the original owner cut the coils. The whole flat part of the top of the stock spring is gone.
The spring lengths look to about the same, the RB ones may even be a hair longer. With this in mind I suspect there shouldn't be any clearance issues.. what say yee...
The spring lengths look to about the same, the RB ones may even be a hair longer. With this in mind I suspect there shouldn't be any clearance issues.. what say yee...
The following users liked this post:
peejay (06-14-20)
The following users liked this post:
peejay (06-14-20)
#21
Full Member
Thread Starter
Yes it is.
Fit and finish is pretty good only odd thing is the braided brake line hanger for the strut doesn't work right with the rx7 strut.
You'll have to get creative if you want a backing plate and don't forget the lug nuts if you want to run the studs.
Also I was only sent the inner bearings not the outer, fortunately I had new ones in my parts supply.The ones in the kit say "Made in China".....
Fit and finish is pretty good only odd thing is the braided brake line hanger for the strut doesn't work right with the rx7 strut.
You'll have to get creative if you want a backing plate and don't forget the lug nuts if you want to run the studs.
Also I was only sent the inner bearings not the outer, fortunately I had new ones in my parts supply.The ones in the kit say "Made in China".....
Last edited by thirteenbees; 06-02-20 at 08:15 PM. Reason: ADDING ON
#22
Always Wanting to Learn
iTrader: (49)
Yes it is.
Fit and finish is pretty good only odd thing is the braided brake line hanger for the strut doesn't work right with the rx7 strut.
You'll have to get creative if you want a backing plate and don't forget the lug nuts if you want to run the studs.
Also I was only sent the inner bearings not the outer, fortunately I had new ones in my parts supply.The ones in the kit say "Made in China".....
Fit and finish is pretty good only odd thing is the braided brake line hanger for the strut doesn't work right with the rx7 strut.
You'll have to get creative if you want a backing plate and don't forget the lug nuts if you want to run the studs.
Also I was only sent the inner bearings not the outer, fortunately I had new ones in my parts supply.The ones in the kit say "Made in China".....
Not surprised about the "Made in China", most bearings are manufactured there anyways. Let us know how the kit goes!
#23
Full Member
Thread Starter
Add to the two a fore mentioned issues above, the 4 bolts in the kit to fasten the calipers to the spindle bracket are to large and won't fit.
They won't pass through the caliper or thread into the bracket.
They won't pass through the caliper or thread into the bracket.
