It's been a while since I've posted any info on my car so I figured I'd give a progress report on what I've been up to lately.

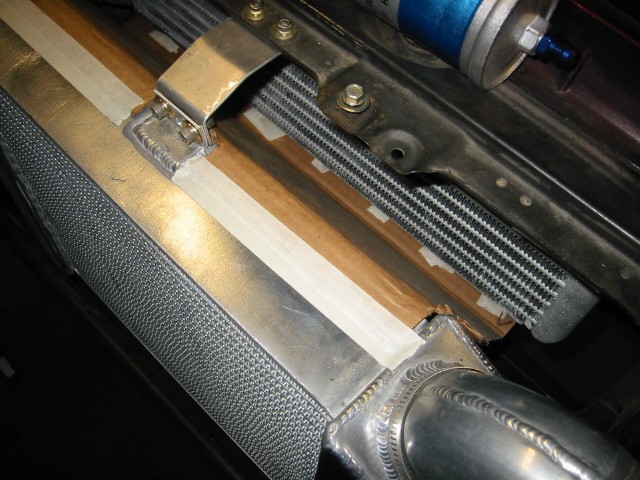

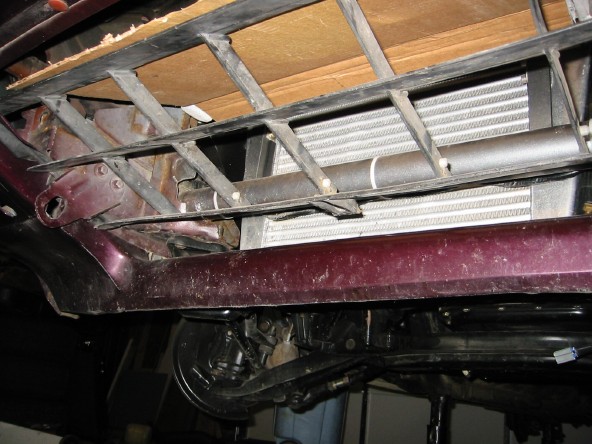

I found out early on that my under the headlight oil cooler idea wasn't going to work so now I switched back to a factory -SE oil cooler. Since I use a -SE radiator and my intercooler takes up the room where the oil cooler sits factory I had to get creative. I mounted it in front of the intercooler and now I'm in the process of manking ducting to get air to it and away from it without hot air hitting my intercooler. The cardboard shows how I'm going to bend up a sheet of stainless for ducting.
What do you think? Will it work?
-Cam
I found out early on that my under the headlight oil cooler idea wasn't going to work so now I switched back to a factory -SE oil cooler. Since I use a -SE radiator and my intercooler takes up the room where the oil cooler sits factory I had to get creative. I mounted it in front of the intercooler and now I'm in the process of manking ducting to get air to it and away from it without hot air hitting my intercooler. The cardboard shows how I'm going to bend up a sheet of stainless for ducting.
What do you think? Will it work?
-Cam
03-06-04, 09:46 PM
#6
I think you're onto something there setzep. Be sure and put ducting to draw air from the right and left of the oil cooler. to maximize all the airflow through the nose.
seeing that the oil cooler is not as wide as the nose opening, the ducting i mentioned will draw air from a larger area and flow it into a smaller area. creating a venturi effect if you will and therefore SPEED up the airflow. That is a very good thing for cooling!!!!!!!!!!!!! it also maximizes the use of air and prevents air from flowing AROUND the cooler.
be sure the front lip ducting sticks out and down enough to catch air. can you give us a parallel to the ground, straight on shot of the nose?
seeing that the oil cooler is not as wide as the nose opening, the ducting i mentioned will draw air from a larger area and flow it into a smaller area. creating a venturi effect if you will and therefore SPEED up the airflow. That is a very good thing for cooling!!!!!!!!!!!!! it also maximizes the use of air and prevents air from flowing AROUND the cooler.
be sure the front lip ducting sticks out and down enough to catch air. can you give us a parallel to the ground, straight on shot of the nose?
03-06-04, 09:54 PM
#7
Rotary Freak
Thread Starter
Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes
on
0 Posts

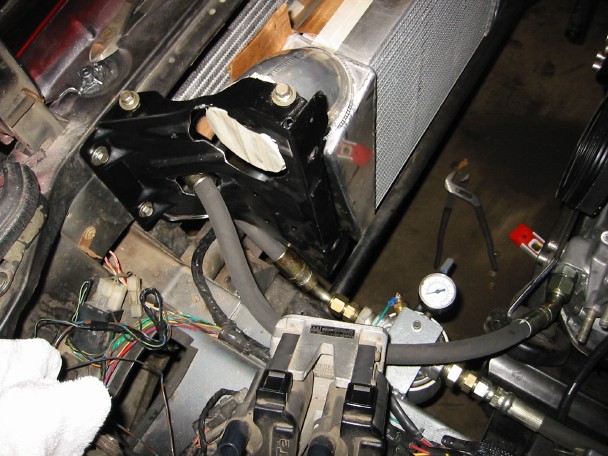

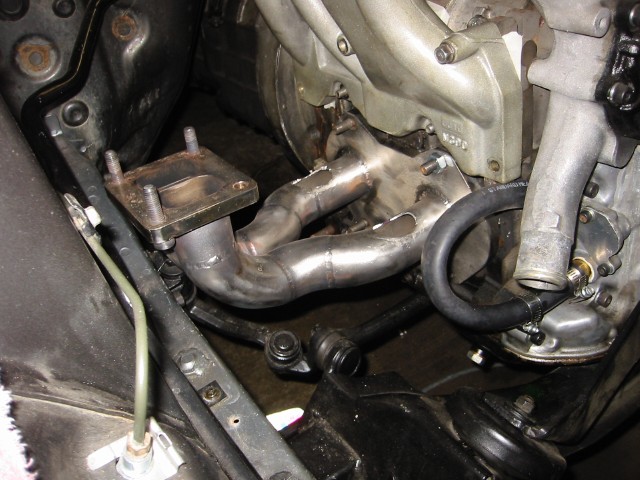

Thanks Gonzz. I also have a few other things I'm doing. I'm TIG welding -6 fittings to the stock 13b-re fuel rails, putting a walbro 255l/h high pressure pump in the tank (external bosch was too loud and didn't flow enough) and finally I'm reworking my exhaust manifold. The pic shows where I cut out the old wastegate tubes from the manifold. The wastegate will be remotely mounted off the turbine housing.
Trending Topics
03-06-04, 10:14 PM
#8
Rotary Freak
Thread Starter
Join Date: Feb 2001
Location: MN
Posts: 2,524
Likes: 0
Received 0 Likes
on
0 Posts
Drivefast- I hear what you're saying 100% I just roughed in the ducting with a piece of cardboard I had. The real duct will have better sides and will be wider in the front to catch all that air you talk about

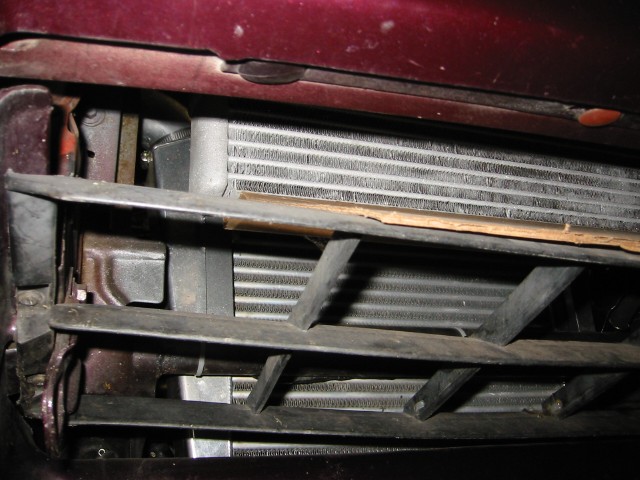

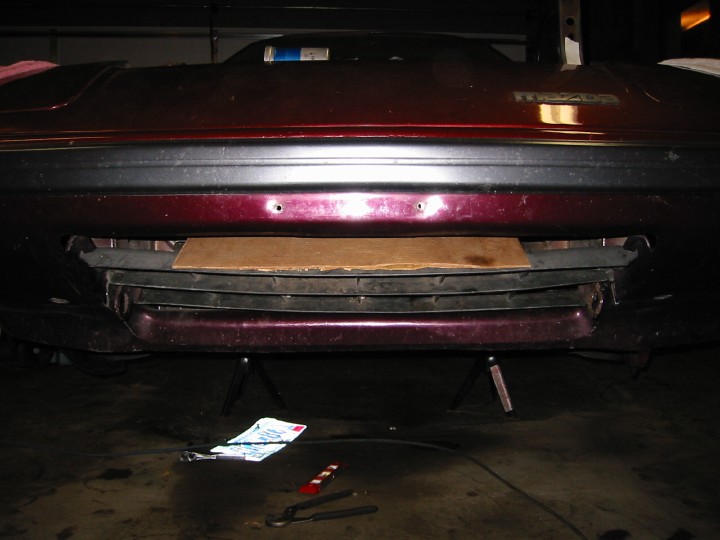

Here is the pic you requested.
