Pipes leading into automatic transmission
10-15-20, 07:49 PM
#1
Senior Newbie Member
Thread Starter
Pipes leading into automatic transmission
Hey guys, The 7's sprung another minor leak.. except it's in a very odd region, the metal pipe that plugs into my auto trans underneath. The fluid drips ( and sprays apparently,, there's gunk all around it) from where it bolts in.. and I can't seem to find a gasket - if there is one- online. any ideas?
10-15-20, 08:31 PM
#2
Check out the 1979-1980 parts manual on foxed.ca. It looks like all of those fluid filled connections have bango bolts.
Page 1-C13
http://www.foxed.ca/rx7manual/manual...000A-1950A.PDF
Page 1-C13
http://www.foxed.ca/rx7manual/manual...000A-1950A.PDF
10-21-20, 03:23 AM
#3
Senior Newbie Member
Thread Starter
Turns out it's not a pipe but the speedometer gear.. now to find a replacement since it leaks lightly from that spot and I have no idea if the O ring on Atkins rotary works.
10-27-20, 01:47 AM
#4
Senior Newbie Member
Thread Starter

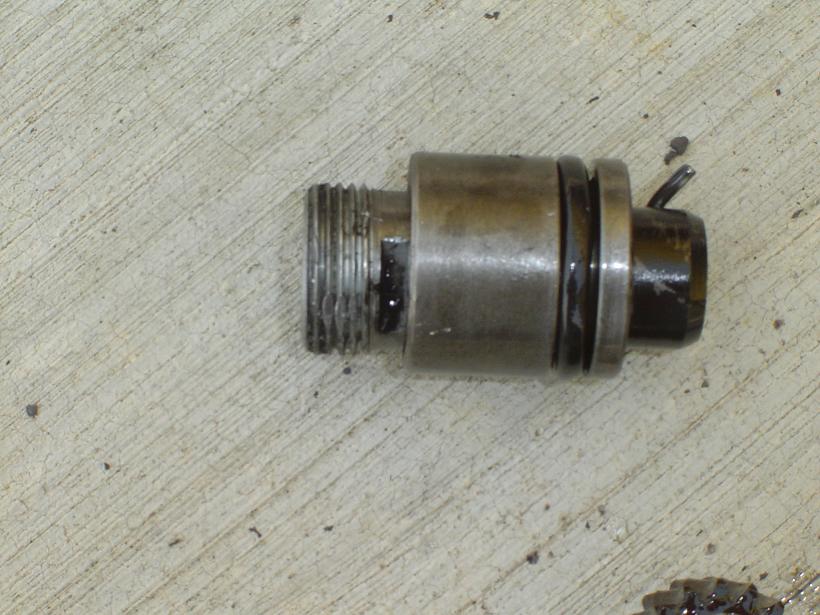

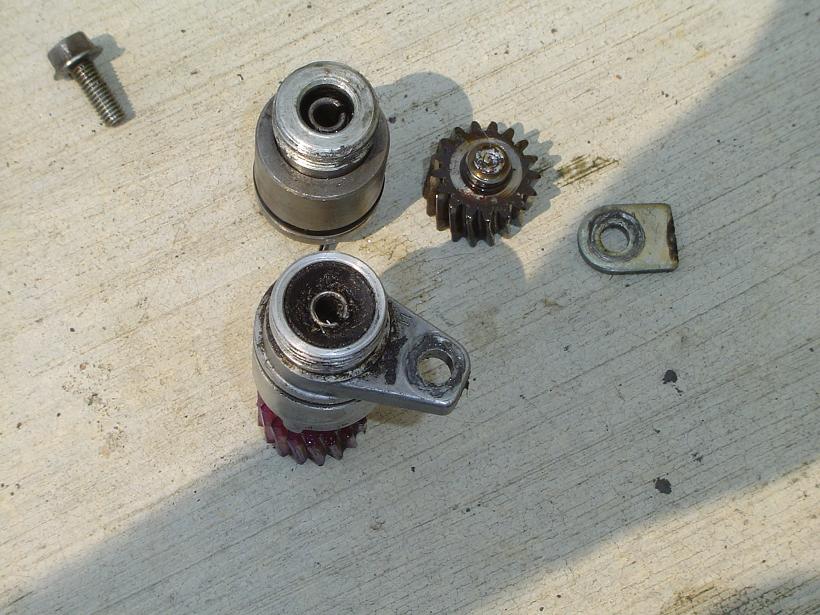

Dumb question but would anyone know where I could get the speedo gears o ring from? Atkins has one but I have no idea if it's the o ring that goes around the assembly that's pictured here ( from a old 2006 thread) of the speedometer gear assembly..
https://www.atkinsrotary.com/store/7...11-17-443.html
or this ?
https://www.atkinsrotary.com/store/7...11-17-443.html
This little leak is driving me nuts.. its staining the driveway with little specks of red ATF. It literally only drips ONE drop, but it's enough to leave a nickel-sized stain every time.
Edit: looked at the FSM, both parts are used, I'm just going to swap the outer o ring first since that's where it appears to be leaking from, if it was the internal one it would be dripping from the middle. 4bucks for a rubber band is kind of pricy but it beats scrubbing the driveway every week.
https://www.atkinsrotary.com/store/7...11-17-443.html
or this ?
https://www.atkinsrotary.com/store/7...11-17-443.html
This little leak is driving me nuts.. its staining the driveway with little specks of red ATF. It literally only drips ONE drop, but it's enough to leave a nickel-sized stain every time.
Edit: looked at the FSM, both parts are used, I'm just going to swap the outer o ring first since that's where it appears to be leaking from, if it was the internal one it would be dripping from the middle. 4bucks for a rubber band is kind of pricy but it beats scrubbing the driveway every week.
Last edited by Frogman; 10-27-20 at 02:09 AM.
The following users liked this post:
Frogman (10-27-20)
10-30-20, 09:02 PM
#6
Years ago I bought a O ring replacement kit from HF. It has all sizes in it from 1/4 to near 2" and I have used them to replace speedo seals on many vehicles, without a problem. For what it costs it is worth a try. It comes in a maroon box about 6" X 10" X 2" high
The following users liked this post:
Frogman (11-11-20)
06-01-21, 02:31 AM
#7
Senior Newbie Member
Thread Starter
I saw that yesterday ! Im going to pick one up , they have one with seals made of a compound thats not rubber . My trans no longer leaks in the driveway after I re tightened the pan but it does indeed leak from that area and every week I have to add like a tenth of a quart of fluid . Stupid design tbh .
Trending Topics
06-01-21, 08:43 AM
#8
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,852
Received 2,616 Likes
on
1,853 Posts
Dumb question but would anyone know where I could get the speedo gears o ring from? Atkins has one but I have no idea if it's the o ring that goes around the assembly that's pictured here ( from a old 2006 thread) of the speedometer gear assembly..
https://www.atkinsrotary.com/store/7...11-17-443.html
or this ?
https://www.atkinsrotary.com/store/7...11-17-443.html
This little leak is driving me nuts.. its staining the driveway with little specks of red ATF. It literally only drips ONE drop, but it's enough to leave a nickel-sized stain every time.
Edit: looked at the FSM, both parts are used, I'm just going to swap the outer o ring first since that's where it appears to be leaking from, if it was the internal one it would be dripping from the middle. 4bucks for a rubber band is kind of pricy but it beats scrubbing the driveway every week.
https://www.atkinsrotary.com/store/7...11-17-443.html
or this ?
https://www.atkinsrotary.com/store/7...11-17-443.html
This little leak is driving me nuts.. its staining the driveway with little specks of red ATF. It literally only drips ONE drop, but it's enough to leave a nickel-sized stain every time.
Edit: looked at the FSM, both parts are used, I'm just going to swap the outer o ring first since that's where it appears to be leaking from, if it was the internal one it would be dripping from the middle. 4bucks for a rubber band is kind of pricy but it beats scrubbing the driveway every week.
