hey peeps i have a racing beat intake and holley carb i was wondering where car i put the oil meter lines with out putting them over the carb i seen people with a plate under the carb where can i find that plate or where can i put the oil meter lines at... thanks



on the holly, there is a small hole where the choke linkage goes through the body. you can delete the choke option and run the two lines through the now open hole.

hobbytown usa sells small oil resistant line that you can plumb through there. use a small drill bit and drill a hole in the air horn on the primary side of the carburater.

the hole should be the same size as the oil line you use. the fit should be snug enough to not allow the lines to come out of their respective holes.



What side of the carb is this hole you speak of? And i can run both OMP lines into it? Thanks, Nick



i have mine feeding into the primary float bowl.

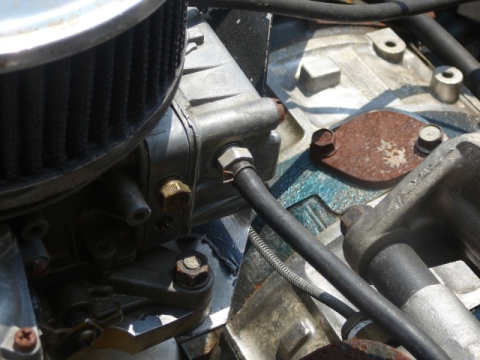

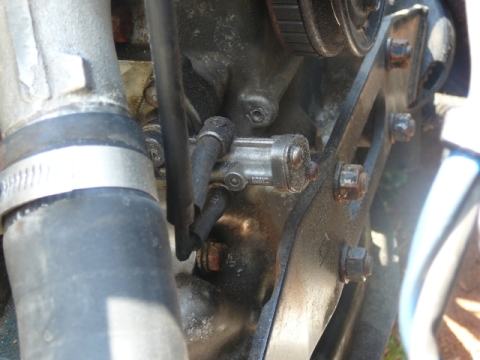

i was on another comp with my last post. here's pics of how i did my omp lines.



Mine also looks like that. That is how RB said to do it.



IMO, that's the best way to do it.



I put them in the manifold on a weber intake. Seems to work fine.



For the guys who are plumbing it into the float bowls, are you also wiring open your OMP?



You might want to check your oil level more often with a wired open OMP. Seems to me the oil consumption goes up. Better check it.



Me? Yeah, I've been checking it. Added half a quart a few days ago.
