No Relay's? What was Mazda thinking?
#1
No Relay's? What was Mazda thinking?
So here goes. '82 GSL. Always had trouble with the ignition switch. Sometimes the engine would run but wouldn't power the trailing coil or tach till you bumped the key. Radio would cut in and out. Voltage would rarely be above 12.
Got the alternator sorted out. Bought a brand new ignition switch from Mazda. 6 months later the voltage didn't climb higher than 11, alternator was putting out 14v and all grounds were excellent. Battery cables replaced, fuse links replaced with box of real fuses, etc.
Check voltage into the switch, 14v. Out of the switch, 12v!!!! I pulled the switch apart and all the contacts were almost arc-ed to nonexistance! I took my old switch apart, and it was just like the power window switches, in good shape but corroded. Cleaned the contacts and soldered the rivets to the wire leads since I noticed on the new switch, you could spin the wire around the rivet. Finally I got 13.5v on the gauge and only .5v drop! month later, back down to 12.
Why did Mazda decide to run ALL the power through these horribly designed switches?
So I got my hands on 4-70amp relays from work and installed them to handle the load of the switch for the 4 switched leads. I turned the switch into a negative relay trigger lead. I ran a new high strand count 8ga wire in place of the white/red stripe feed wire.
Finished up today.
13v on the gauge (so the gauge def doesn't work right) as I have 14.7V at the relays in/out. The windows work faster, the blower motor blows harder, and the car actually increased in idle from 750 where I had it tuned, to 1100!!!!! Amazing what happens when the ignition coils get full voltage! Efficiancy!
I'll post pictures later this week. Just wanted to post about this! I did searches and didn't find anyone with ignition switch problems like this!
Got the alternator sorted out. Bought a brand new ignition switch from Mazda. 6 months later the voltage didn't climb higher than 11, alternator was putting out 14v and all grounds were excellent. Battery cables replaced, fuse links replaced with box of real fuses, etc.
Check voltage into the switch, 14v. Out of the switch, 12v!!!! I pulled the switch apart and all the contacts were almost arc-ed to nonexistance! I took my old switch apart, and it was just like the power window switches, in good shape but corroded. Cleaned the contacts and soldered the rivets to the wire leads since I noticed on the new switch, you could spin the wire around the rivet. Finally I got 13.5v on the gauge and only .5v drop! month later, back down to 12.
Why did Mazda decide to run ALL the power through these horribly designed switches?
So I got my hands on 4-70amp relays from work and installed them to handle the load of the switch for the 4 switched leads. I turned the switch into a negative relay trigger lead. I ran a new high strand count 8ga wire in place of the white/red stripe feed wire.
Finished up today.
13v on the gauge (so the gauge def doesn't work right) as I have 14.7V at the relays in/out. The windows work faster, the blower motor blows harder, and the car actually increased in idle from 750 where I had it tuned, to 1100!!!!! Amazing what happens when the ignition coils get full voltage! Efficiancy!
I'll post pictures later this week. Just wanted to post about this! I did searches and didn't find anyone with ignition switch problems like this!
#2
RX HVN
iTrader: (2)
obv you are a bit of an electrical Wiz!
I think it is safe to say that, barring some European cars of The Day, most manufacturer's electrics were marginal to the multi-tasking they were asked to perform. I was stunned to find some dozen+ relays neatly laid out (in one place, what a concept!) in my 82 SAAB that protected virtually _every_ circuit!
Congrats on chasing down what for many (well, me anyway) would be a Heroic task. PLEASE! do detail what and how you did it so we electric-newbies can follow and benefit!!!
Thanks for sharing. This is what makes this forum so amazing...
Stu Aull
80GS (no electric issues - yet!)
Alaska
I think it is safe to say that, barring some European cars of The Day, most manufacturer's electrics were marginal to the multi-tasking they were asked to perform. I was stunned to find some dozen+ relays neatly laid out (in one place, what a concept!) in my 82 SAAB that protected virtually _every_ circuit!
Congrats on chasing down what for many (well, me anyway) would be a Heroic task. PLEASE! do detail what and how you did it so we electric-newbies can follow and benefit!!!
Thanks for sharing. This is what makes this forum so amazing...
Stu Aull
80GS (no electric issues - yet!)
Alaska
#7

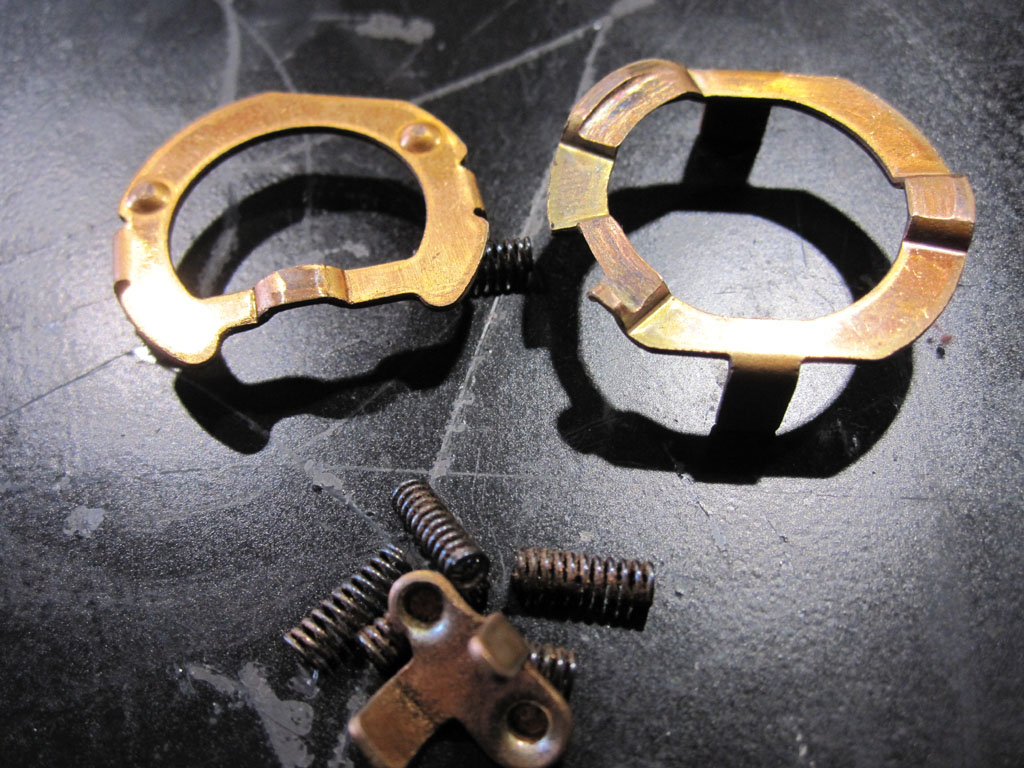

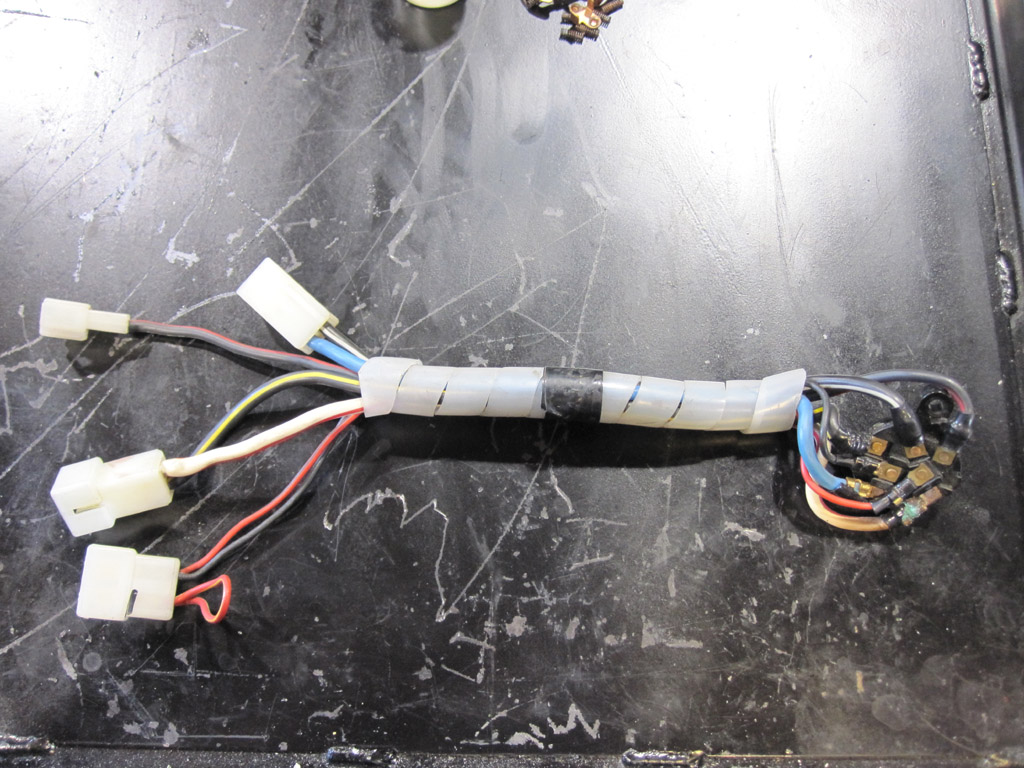

So here are some pictures of what we are trying to avoid. Keep in mind this is an OEM Mazda switch brand new 6 months ago. Semi Daily driven and always garaged.

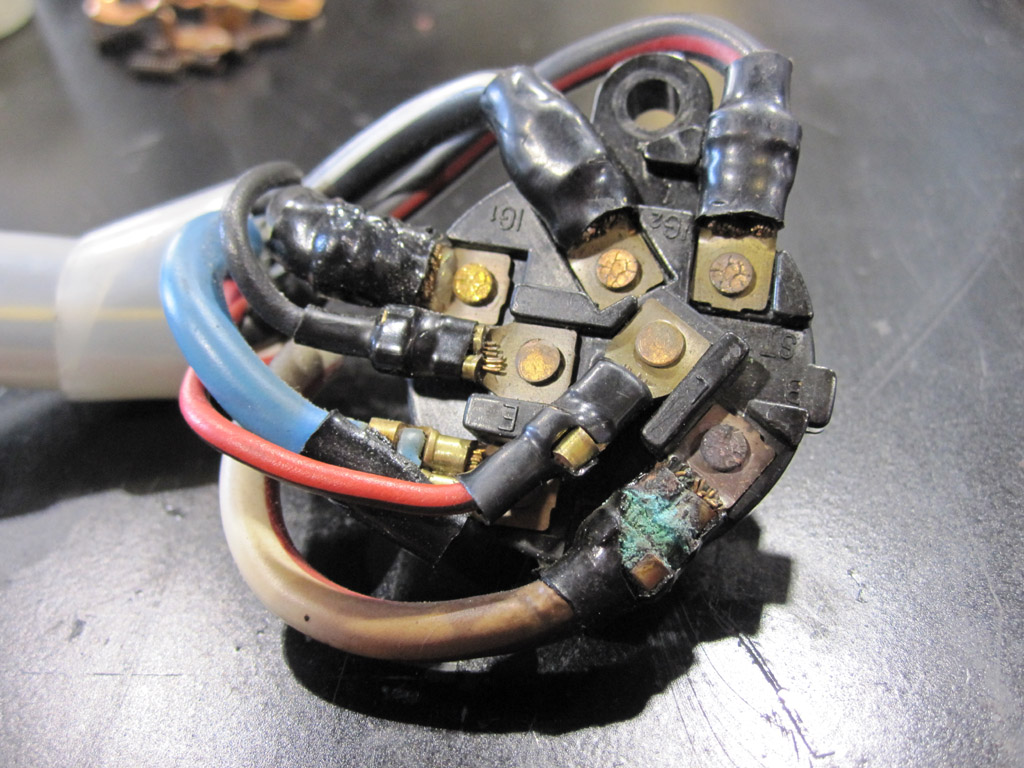

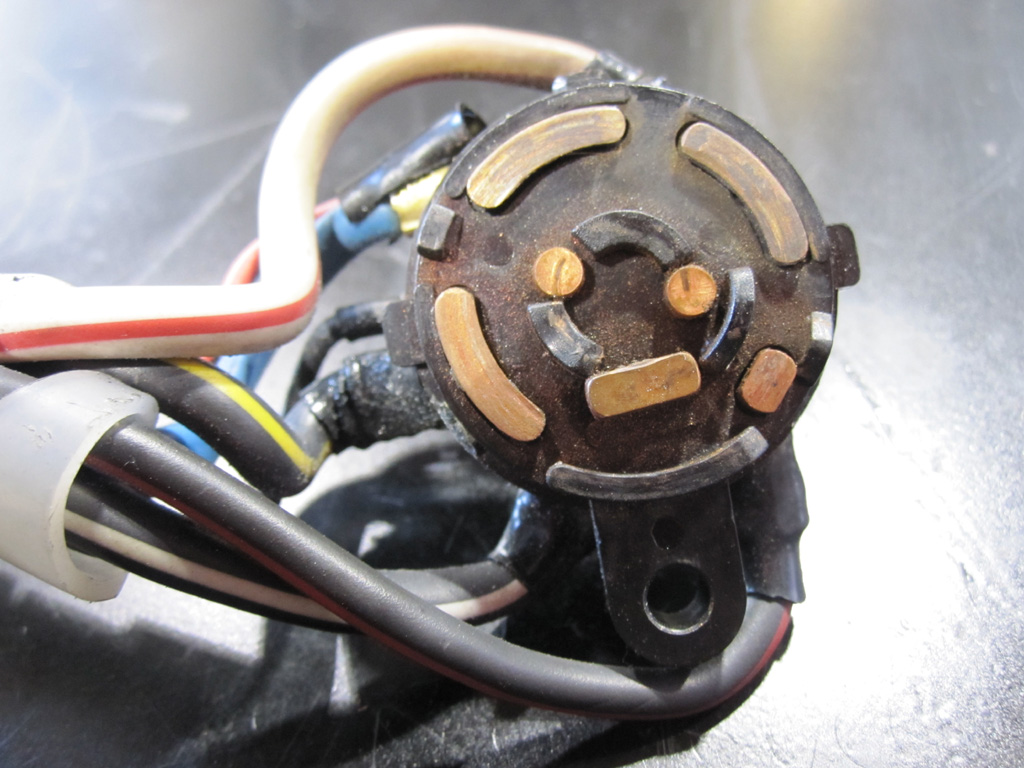

The Copper contacts are worn almost through, and the leads on the back that are riveted through, could spin. Not good for electrical connections.
The Copper contacts are worn almost through, and the leads on the back that are riveted through, could spin. Not good for electrical connections.
Trending Topics
#8

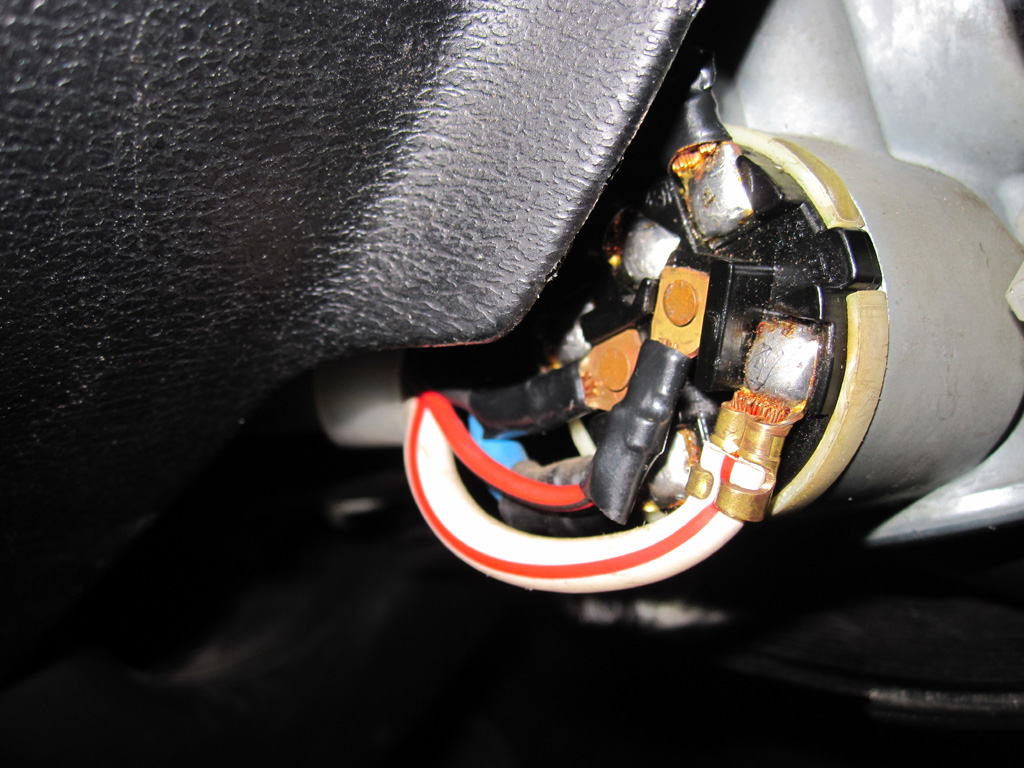

So I soldered the rivets in place. You'll need a high wattage iron for this. It's alot of heat and you want the heat to get there fast so you don't soak the part and melt the plastic.
Carefully take the plastic white switch cover off. Hold the white cup downward, thatway all the copper components stay in place and come off with it. Take pictures, then take each piece off and use some light sand paper to clean the corrosion off. Add some dielectric grease for protection and lubrication and reassemble.

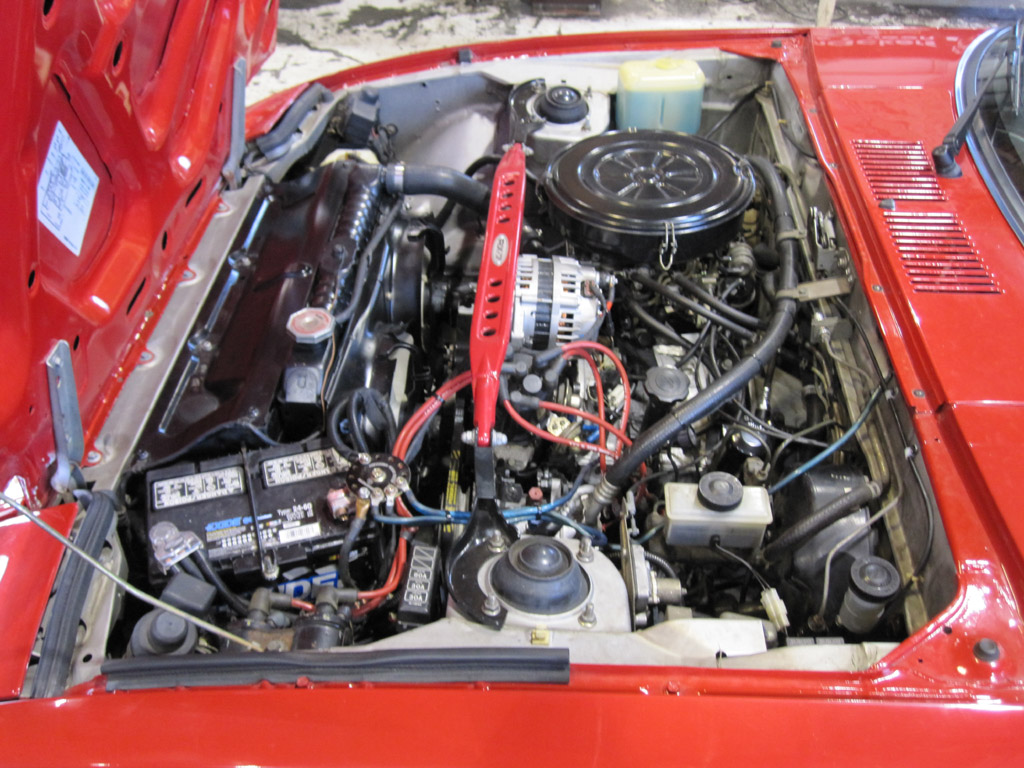

Here's a picture of the Fuse Box I installed after reading up on the 2nd gen box. This one is from a B2200 Carbed Mazda Truck and fit perfectly with a little bracket I made off the stock plug wire bracket.
I replaced the white/red striped "MAIN" wire from that fuse box, with a car amp 8ga multi strand power wire.

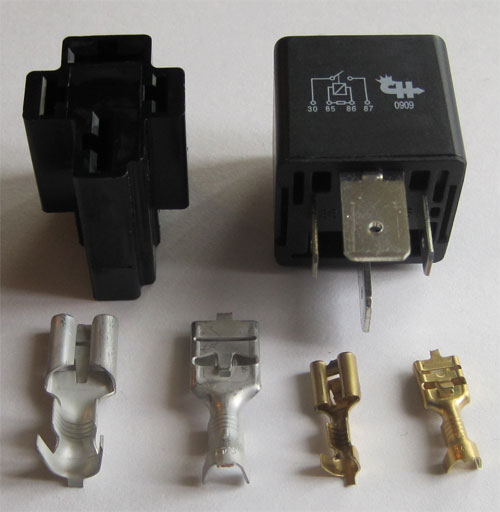

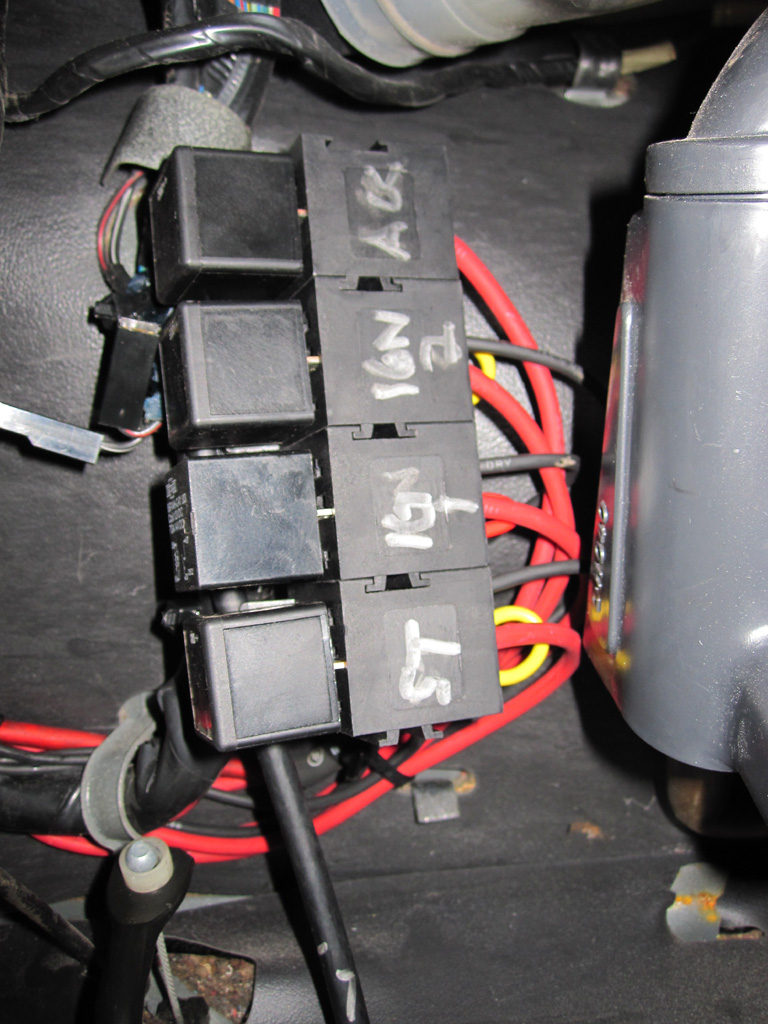

The relay Boxes are COLE HERSEE (I can get part numbers at work tomorrow) and the Relays are 4 post, 70amp relays. They have two LARGE leads to handle more load than your usual 30/40 amp relays. The 8 GA wire from the fuse box splits into 4-10 ga leads one for each relay. And then from the relay 10ga wire to the original switch output leads. (Diagram to come).
Carefully take the plastic white switch cover off. Hold the white cup downward, thatway all the copper components stay in place and come off with it. Take pictures, then take each piece off and use some light sand paper to clean the corrosion off. Add some dielectric grease for protection and lubrication and reassemble.
Here's a picture of the Fuse Box I installed after reading up on the 2nd gen box. This one is from a B2200 Carbed Mazda Truck and fit perfectly with a little bracket I made off the stock plug wire bracket.
I replaced the white/red striped "MAIN" wire from that fuse box, with a car amp 8ga multi strand power wire.
The relay Boxes are COLE HERSEE (I can get part numbers at work tomorrow) and the Relays are 4 post, 70amp relays. They have two LARGE leads to handle more load than your usual 30/40 amp relays. The 8 GA wire from the fuse box splits into 4-10 ga leads one for each relay. And then from the relay 10ga wire to the original switch output leads. (Diagram to come).
#9
Right near Malloy
iTrader: (28)
Join Date: Dec 1999
Location: Behind a workbench, repairing FC Electronics.
Posts: 7,841
Received 510 Likes
on
345 Posts
Archiving.
I have seen relay threads regarding the power windows and threads regarding the headlights...
This is the most extensive use of relays I've seen.
I never looked through the first gen electrical schematic, but I had assumed it had a main relay.
Good work.
I've subscribed and will update the archive as more info gets added.
Now:
I believe you can go to more commonly available 40 amp relays instead of the 70 amp units.
I don't believe everything in the car takes 70 amps.
Starter should only run the starter solenoid; solenoid should handle the power to the starter itself. (Which takes many hundreds of amps.)
Ign 1 and 2 might warrant the 70 amps.
ACC runs the stereo and cigarette lighter. Not much draw there.
Also, you can use the FC fuse block which has been discussed in other threads. It's about the only thing that FCs are good for aside from ignition components.
I have seen relay threads regarding the power windows and threads regarding the headlights...
This is the most extensive use of relays I've seen.
I never looked through the first gen electrical schematic, but I had assumed it had a main relay.
Good work.
I've subscribed and will update the archive as more info gets added.
Now:
I believe you can go to more commonly available 40 amp relays instead of the 70 amp units.
I don't believe everything in the car takes 70 amps.
Starter should only run the starter solenoid; solenoid should handle the power to the starter itself. (Which takes many hundreds of amps.)
Ign 1 and 2 might warrant the 70 amps.
ACC runs the stereo and cigarette lighter. Not much draw there.
Also, you can use the FC fuse block which has been discussed in other threads. It's about the only thing that FCs are good for aside from ignition components.
Last edited by Pele; 09-13-10 at 09:17 PM.
#10
I used 70 amp relays because if you add up the total potential amperage (IE The fuse totals) you get close to or over 40 amps. I wanted the safety. AND being in the industry for years, those little 30-40 amp relays die more often than the larger 70 amp relays.
In addition, the starter solenoid itself can run upto 70amps itself. Why not build it overkill if you're going to do it?
ACC also runs the blower motor! 20amp fuse, and the defroster 15amp fuse, power antenna/radio 20amp fuse, both wiper motors 10amp each. See what I mean, the "potential" adds up quick. The small 10ga wire powering all bits of the car except the headlights is rediculous.
IGN 2 has the power windows 30amp, mirrosr 10 amp,
I'm sure you could use any fuse block. I used was was easy and accessible. FCs are non-existant in yards around here.
In addition, the starter solenoid itself can run upto 70amps itself. Why not build it overkill if you're going to do it?
ACC also runs the blower motor! 20amp fuse, and the defroster 15amp fuse, power antenna/radio 20amp fuse, both wiper motors 10amp each. See what I mean, the "potential" adds up quick. The small 10ga wire powering all bits of the car except the headlights is rediculous.
IGN 2 has the power windows 30amp, mirrosr 10 amp,
I'm sure you could use any fuse block. I used was was easy and accessible. FCs are non-existant in yards around here.
#11
I should point out this is on my '82 GSL 12A Carbed. Wiring might be different for other years but the concept is the same.
The relay blocks from CH also interlock together which is nice.
If wired like this, you'll need to come up with solder butt connectors of appropriate sizes to do what you need to do. Also, this way allows the ignition switch to be replaceable like stock (Not that you'll need to now) but it utilized the original connectors so it just unclicks and removes.
The relay blocks from CH also interlock together which is nice.
If wired like this, you'll need to come up with solder butt connectors of appropriate sizes to do what you need to do. Also, this way allows the ignition switch to be replaceable like stock (Not that you'll need to now) but it utilized the original connectors so it just unclicks and removes.
#12
Full Member
Join Date: May 2001
Location: Newark, NY, USA
Posts: 116
Likes: 0
Received 0 Likes
on
0 Posts
crappy contacts... well ok, but do remember that your ride is now 28 yrs old... and only really designed to work until the 3 year warranty was up.
Good job on the rewiring writeup. A relay stuck on is the last thing you want, so always error on the larger side. And remember the inrush current on the headlights is about 10x the rating when warm (35W lamp @ 12V = 2.9A, inrush will be over 30 per lamp).
Good job on the rewiring writeup. A relay stuck on is the last thing you want, so always error on the larger side. And remember the inrush current on the headlights is about 10x the rating when warm (35W lamp @ 12V = 2.9A, inrush will be over 30 per lamp).
#16
Wrkn Toyota, Rootn Wankel
Join Date: Sep 2007
Location: "Haystack" Hayward, CA
Posts: 1,642
Likes: 0
Received 1 Like
on
1 Post
I think you are on to something and I can't wait to try this on my own car.
I have a couple questions though, not trying to be critical just curious. You said that Ignition Switch is only 6 months old? Was it a new part? Because the corrosion on the white wire with a red stripe is pretty nasty for just 6 months inside of the car and away from any battery acid, ect ect. Also, I couldn't help but notice those springs look rather rusty and corroded also.
Maybe I am just presumptuous in thinking that since it is inside the care it shouldn't corrode/rust up as bad as something in the engine bay would for six months.
I have a couple questions though, not trying to be critical just curious. You said that Ignition Switch is only 6 months old? Was it a new part? Because the corrosion on the white wire with a red stripe is pretty nasty for just 6 months inside of the car and away from any battery acid, ect ect. Also, I couldn't help but notice those springs look rather rusty and corroded also.
Maybe I am just presumptuous in thinking that since it is inside the care it shouldn't corrode/rust up as bad as something in the engine bay would for six months.
#17
Full Member
Join Date: May 2001
Location: Newark, NY, USA
Posts: 116
Likes: 0
Received 0 Likes
on
0 Posts
I think you are on to something and I can't wait to try this on my own car.
I have a couple questions though, not trying to be critical just curious. You said that Ignition Switch is only 6 months old? Was it a new part? Because the corrosion on the white wire with a red stripe is pretty nasty for just 6 months inside of the car and away from any battery acid, ect ect. Also, I couldn't help but notice those springs look rather rusty and corroded also.
Maybe I am just presumptuous in thinking that since it is inside the care it shouldn't corrode/rust up as bad as something in the engine bay would for six months.
I have a couple questions though, not trying to be critical just curious. You said that Ignition Switch is only 6 months old? Was it a new part? Because the corrosion on the white wire with a red stripe is pretty nasty for just 6 months inside of the car and away from any battery acid, ect ect. Also, I couldn't help but notice those springs look rather rusty and corroded also.
Maybe I am just presumptuous in thinking that since it is inside the care it shouldn't corrode/rust up as bad as something in the engine bay would for six months.
Last edited by djs2571; 09-15-10 at 11:00 AM. Reason: mis-typed a few numbers
#18
That switch was 100% brand new from Mazda. 6 months after installation it looked like that. It's not rust, it's actually the arcing dust and copper dust. There's nothing there to rust. That corrosion is on the feed wire. The reason it corrodid so bad was the excess draw through it with unacceptable load carrying contacts, as well as the rivet was not clamped enough to make a tight connection. Think of it as driving around with loose battery cables, it'll work for the most part but it will corrode like a son of bitch!
I "raced" my friend at work. And by race, I mean we counted down and raced who's power window rolled up then down again fastest. His car is a '00 Nissan Sentra. I whooped his butt! :O) Before this, my windows were SLOW.
I "raced" my friend at work. And by race, I mean we counted down and raced who's power window rolled up then down again fastest. His car is a '00 Nissan Sentra. I whooped his butt! :O) Before this, my windows were SLOW.
#19
1st-Class Engine Janitor
iTrader: (15)
Don't forget that that "new" switch also probably sat in a hot, dusty warehouse for anywhere from 17 to 27 years before you bought it "new."
Manufacturers generally only make spares for 10 years or less after the production year. The few "new" OEM parts we can still buy have been on the shelf for decades, unless it's one of the parts also used in other models, or high-turnover parts made by 3rd-party suppliers.
Your relay mod makes perfect sense & is really well done, & will add life to any switch by removing contact load & putting the wear on a replaceable relay instead... but comparing the control electronics found in modern cars ($20k-$30k a unit & up selling price, production runs in the millions typically) to those used in the 70's and early 80's ($7k-$9k selling price, production runs in the tens to hundreds of thousands) isn't really fair.
What Mazda was thinking was probably reduction of production cost & weight, and a planned vehicle lifespan of under 5 years.
Adding a relay for the ignition main would have maybe added $10-$20 per-car to the production cost (once you figure in the design cost, relay, wire, socket, mounting point, install labor, documentation, etc).
If you make half a million cars, that's $5million to $10million off the bottom line over the model life.
Oh, and my 30-year-old SA is still on the original ignition switch. The lock's wearing out, but the switch is doing just fine so far.
Just sayin'.
Manufacturers generally only make spares for 10 years or less after the production year. The few "new" OEM parts we can still buy have been on the shelf for decades, unless it's one of the parts also used in other models, or high-turnover parts made by 3rd-party suppliers.
Your relay mod makes perfect sense & is really well done, & will add life to any switch by removing contact load & putting the wear on a replaceable relay instead... but comparing the control electronics found in modern cars ($20k-$30k a unit & up selling price, production runs in the millions typically) to those used in the 70's and early 80's ($7k-$9k selling price, production runs in the tens to hundreds of thousands) isn't really fair.
What Mazda was thinking was probably reduction of production cost & weight, and a planned vehicle lifespan of under 5 years.
Adding a relay for the ignition main would have maybe added $10-$20 per-car to the production cost (once you figure in the design cost, relay, wire, socket, mounting point, install labor, documentation, etc).
If you make half a million cars, that's $5million to $10million off the bottom line over the model life.
Oh, and my 30-year-old SA is still on the original ignition switch. The lock's wearing out, but the switch is doing just fine so far.
Just sayin'.
#22
Waffles - hmmm good
iTrader: (1)
The SA ignition switches and FB for that matter are fragile. I rememebr having to
work on mine back in the 90s and ended up replacing it with new. The relays are
a great mod, I have the headlights relayed but didn't do the rest of the acc or
ign stuff. Maybe someday.
work on mine back in the 90s and ended up replacing it with new. The relays are
a great mod, I have the headlights relayed but didn't do the rest of the acc or
ign stuff. Maybe someday.
#23
Can You Wankel?
iTrader: (12)
Also to add to this list no one has mentioned the fuel pump relay, it may be something to add to your "List of things to do."
A diagram and instruction gor this are found in post #35 onwward in this thread https://www.rx7club.com//showthread.php?t=529605
Originally Posted by Kentetsu
Okay, now this is interesting. When I first installed the Carter fuel pump, I reused all of the original wiring. I noticed that when I had my turn signal on, I could hear the noise from the pump cycling along with the turn signal which made me think that maybe it wasn't getting quite enough juice to run at full speed all the time. So, today I installed all new wiring, utilizing a relay triggered by the original wiring. Not too difficult. The pump no longer changes sound when the turn signal is on, and I can feel a difference in power at high rpms so that's great. But what I didn't expect was that my pump would get a hell of a lot quieter! Now, when I get to a stop light or something, I can barely hear my fuel pump. WTF? Those of you who are complaining of how loud your pump is might want to look into this. Maybe the loud noise is just a symptom of an insufficient power supply? I don't know....
#24
Wrkn Toyota, Rootn Wankel
Join Date: Sep 2007
Location: "Haystack" Hayward, CA
Posts: 1,642
Likes: 0
Received 1 Like
on
1 Post
Like I said before, I was probably just assuming that the switch would have fared better, which It obviously did not!
#25
Right near Malloy
iTrader: (28)
Join Date: Dec 1999
Location: Behind a workbench, repairing FC Electronics.
Posts: 7,841
Received 510 Likes
on
345 Posts
Anyone ever notice how when you first connect or disconnect something... Anything... and it's drawing a large amount of power, there's a spark at the connection point.
Go ahead and turn on the blower fan on high, then pull and reinsert the fuse. You'll note a nice blue spark. Take a look at the fuse and you may notice a slightly blackened area, pitted at the point where the spark occurred. Same thing happens in your ignition switch if you leave the blower... Wipers... Rear defrost... on...
Now, turn off the blower... Pull and reinsert the fuse. No spark because no power is flowing.
I think you'll find varying degrees of damage to the switches according to how the owner operated the vehicle.
Turn off all your accessories before parking and turning off the ignition.
Wait till the car is running before turning on the accessories.
No more sparks in your ignition switch.
This won't stop me from installing this mod though.
Go ahead and turn on the blower fan on high, then pull and reinsert the fuse. You'll note a nice blue spark. Take a look at the fuse and you may notice a slightly blackened area, pitted at the point where the spark occurred. Same thing happens in your ignition switch if you leave the blower... Wipers... Rear defrost... on...
Now, turn off the blower... Pull and reinsert the fuse. No spark because no power is flowing.
I think you'll find varying degrees of damage to the switches according to how the owner operated the vehicle.
Turn off all your accessories before parking and turning off the ignition.
Wait till the car is running before turning on the accessories.
No more sparks in your ignition switch.
This won't stop me from installing this mod though.
