Need help to ID an unknown relay!
What exactly does this relay in front of the battery control? When i got my car i rescued it from a field where it was parked for 10 years and apparently critters ate the wiring and the plug for this relay and i need to find out what it controls...

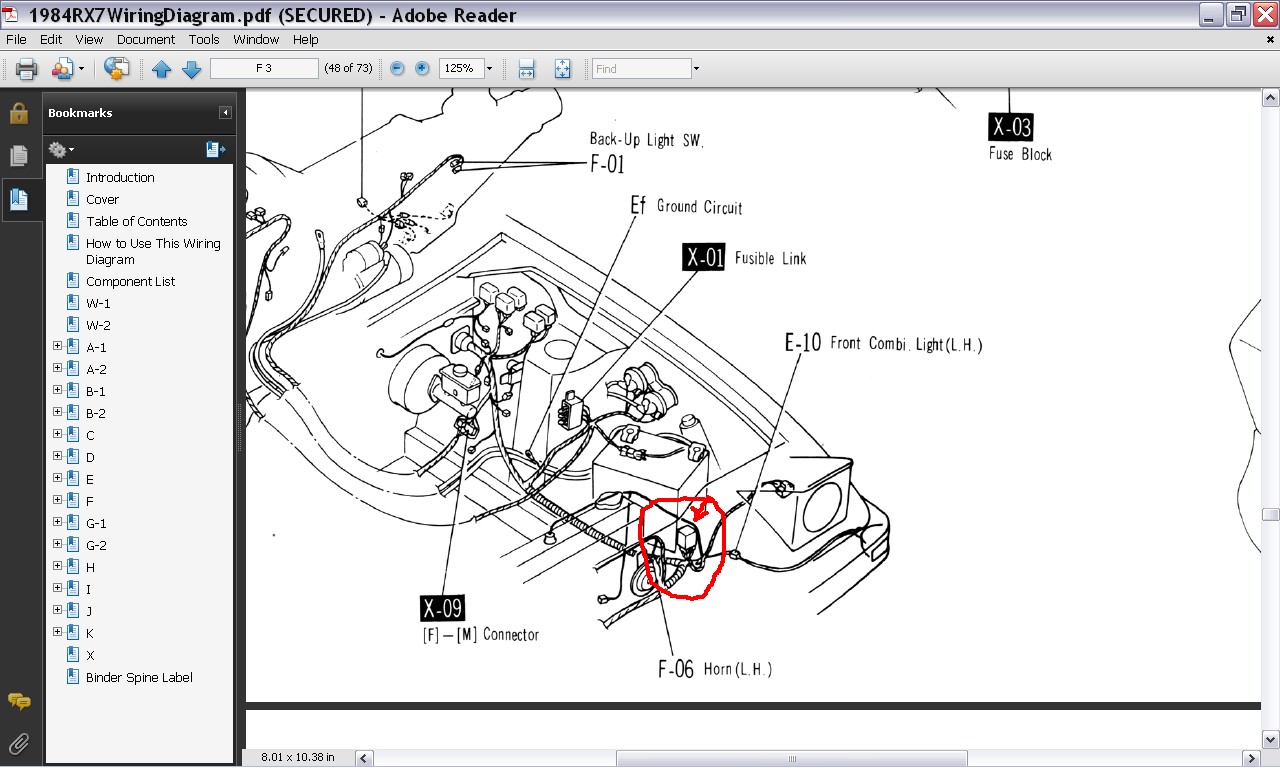

Please see the picture attached. The relay in question is circled in RED. I am still digging through the 84 wiring diagrams to find out what it is but i figured someone would know off hand.
Thank you all in advance!
Please see the picture attached. The relay in question is circled in RED. I am still digging through the 84 wiring diagrams to find out what it is but i figured someone would know off hand.
Thank you all in advance!
#4
#7
84SE-EGI helpy-helperton
Good luck finding one - about 10 years ago, I replaced the Oscillator in my 84SE from Larry Miller Mazda in Glendale, AZ, and the parts guy had to order it. He also commented that there were only 5-6 in the US at that time, and that was 10 years ago.
Some good news; I installed it based on the wiring diagram and to this day have no idea whether it works or not. The diagram shows it working in conjuntion with some kind of warning buzzers behind the dash, but not the tach over-rev buzzer, as that always worked just fine, even after my Oscillator was totally corroded by battery acid...
So, you may not need one, afterall. Knowing what I know now - I wouldn't have replaced mine at about $50 cost!
Some good news; I installed it based on the wiring diagram and to this day have no idea whether it works or not. The diagram shows it working in conjuntion with some kind of warning buzzers behind the dash, but not the tach over-rev buzzer, as that always worked just fine, even after my Oscillator was totally corroded by battery acid...
So, you may not need one, afterall. Knowing what I know now - I wouldn't have replaced mine at about $50 cost!
