Well i showed a while back my carb hat, which was not finished. Well i now have it done and installed. You can really hear it suck through that 4 inch ducting, and that huge K&N. Well the other day i was installing my new fan and slipped and put a hole through the radiator, so i had to get a new one. I finally have gotten it all back together and wired the fan on a thermostat relay. Well here are some pics of the carb hat and new electric fan. Robert

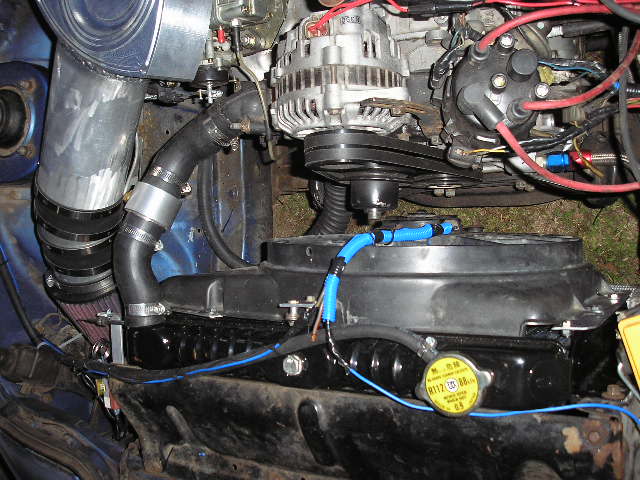

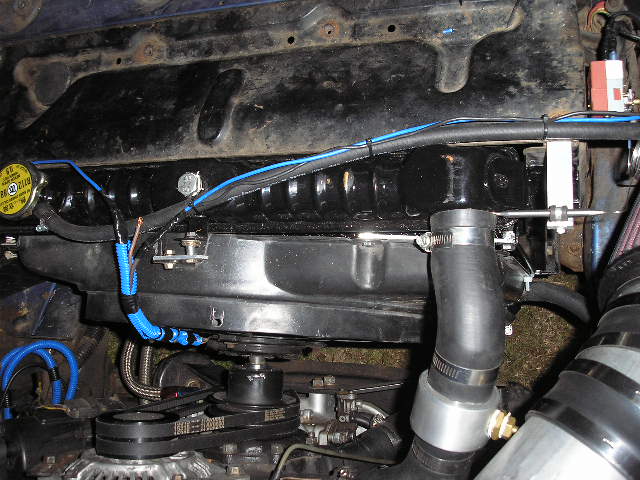

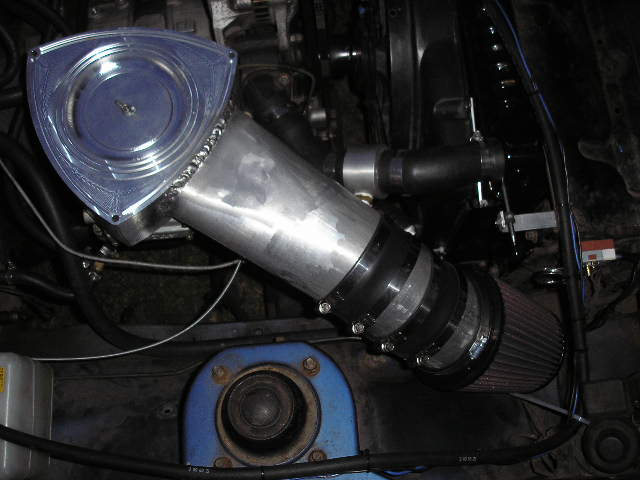

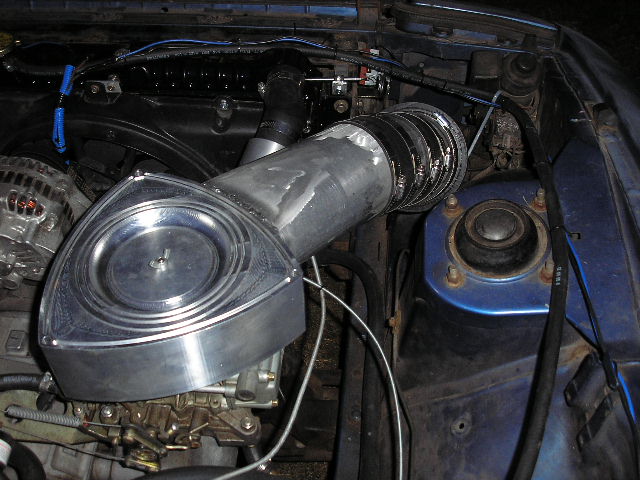

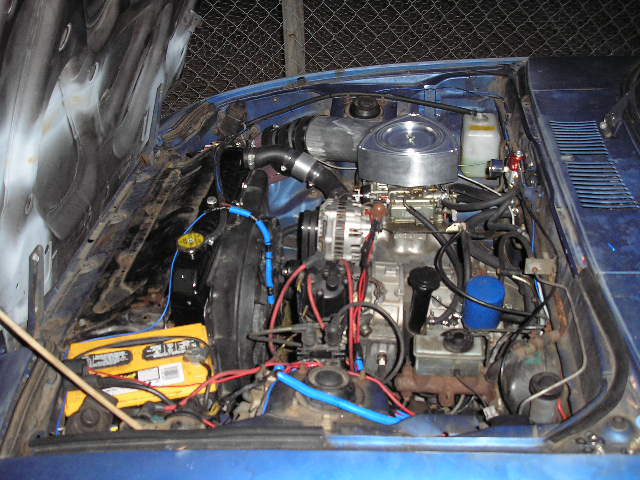

PS the first 2 are of the new electric fan, the next 2 are of the carb hat and the last one is just a over view



Nice, are you gonna dyno it with the carb hat on?



i plan on cutting some louvers in the radiator sheet metal as well as under the light to allow cold air to hit the filter better. and if i dyno it i will probably put a fan infront to simulate the air flow, i might dyno it this summer.



I never saw pics of that carb hat, that thing is badass! See what I miss for not coming around that often?

~T.J.



it looks good where'd ya get it from? whats the break in the cooling hose? also I noticed you got a new radiator.
^
^
^
^
J/K.., looks mean-Erik



All you need now is the rotary oil cap to match the card hat.



i made the carb hat at work, i made it for my co-op project. I work in a machine shop and i dont have enough credits so my school is having me do a co-op with my current company. Yeah i am thinking of making a oil cap too to match the hat. I machined the carb hat out of solid aluminum and the duct work is 4.5 inch OD and 4.25 ID. its beefy to say the least. Yes that is a new radiator i put a hole through the other, and it only have a few thousand miles on it, oh well **** happens. As far as the thing in the top radiator hose its a water temp manifold. it splices in the hose and its machined to fit and allow maxium flow and also has a drill and tapped hole for a mechanical water temp sender. Works great i also made some that go in the heater hose. robert



thats cool you could probaly make some money making thehats..You'd take my doller.



i plan on getting a patent on it, i think it would sell nicely, if not still plan on getting it patented.



well i just got the 7 cranked up and man is that electric fan nice and also you can hear the filter suck in the air not driven it yet plan on driving it around locally tommorow to double check my handy work
