diabolical1

iTrader: (3)

dude, you can't come on here talking about a rotary Lotus and not show pics. what's the matter with you? spill ...

Keeble

iTrader: (3)

...i agree with diabolical. a rotary lotus and no pics?

like what your doing, got a good chance at beating those s2000's

diyman25

By popular demeand , Guess which one is my Rotary Lotus ?






http://www.youtube.com/watch?v=MwU3hrcj57s

http://www.youtube.com/watch?v=wbmSMI1zOjY

OneRotor

iTrader: (3)

nope, check out my post in the thread below. That is what a set of Enkei Mesh wheels looks like.

https://www.rx7club.com/showthread.p...ighlight=Enkei


I'm going to go with Rinkin.

dj55b

iTrader: (2)

That is pretty sweet ... I'm still waiting for the day that someone puts a rotary in an Ariel Atom







and a neat video about it

http://www.youtube.com/watch?v=WaWoo82zNUA

Thats on one of my todo lists

blwfly

iTrader: (4)

wow really kept up in the corners in that race mate tho he had a bit of gain in the straights

FB_drifter_X

Those rims look like old skool volks to me my buddy has a set of gold ones like that and his are volks...

Keeble

iTrader: (3)

nice, a lotus super seven, cant go wrong with them, they are pure sports cars

djessence

My neighbor who got me into rotaries has ordered the atom without an engine and is going to try and stick a T2 into it.

ProChemBroTCM

If you put the 13bt into an Ariel Atom, wouldn't you have to mount it transversely? Would that work well?
I would hate to try to find the transmission to work with that setup...

85 FB

Wow, I'm digging the rotary Lotus. Simple awesome.

dj55b

iTrader: (2)

Not as hard as you might think ... how to do you think all the guys with rotary beetles manage

diyman25

Guys enought Atom.... Atom is not the only Light weight car in the "World" . I dont like people all the suddenly talk Atom that Atom in this....
But I have to make my self clearly. I am big fan of ATom. infact I know this company way back in 200 or 2001. it get full feacture of Atom in Weekly "Auto Car". back them design still the same Is wonderful design !!! I love it . but the "Chassic and Suspension" was No match with Classic Seven....... took them almost 5 years to come to this stage..
Every body start talk about them... When "Top Gear" have that infamous Video clip.

Any how

mount my RA1 to my wheels. and did a aligment .. Going to test new setup on this car.

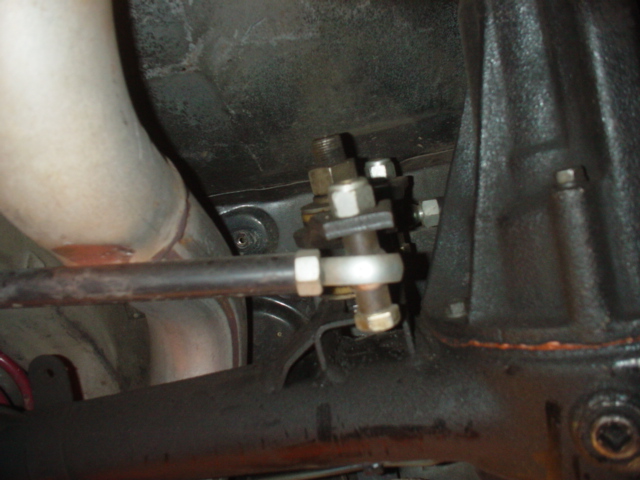

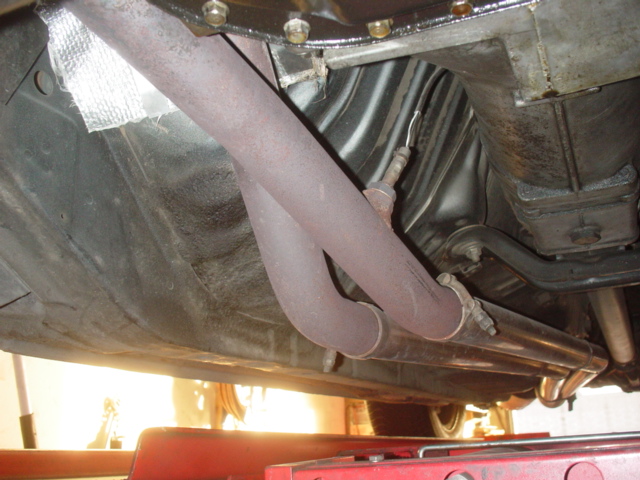

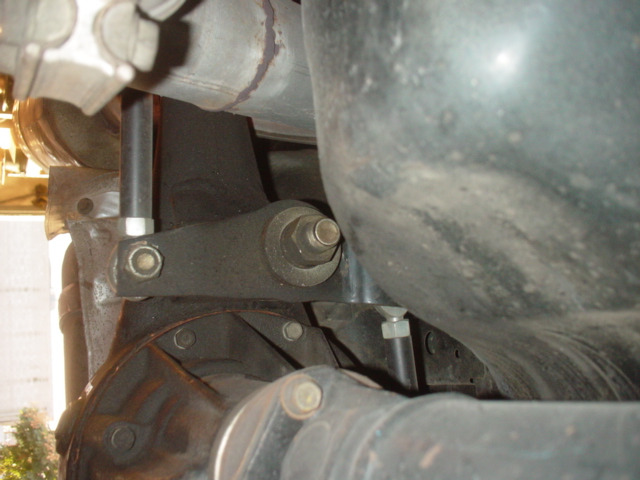

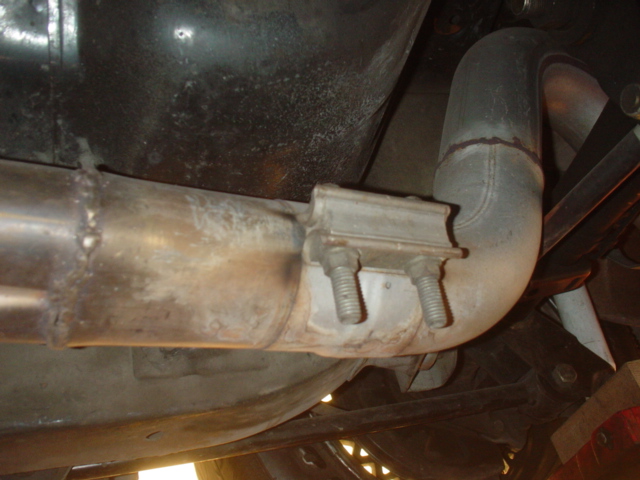

and take few pic of my exhuast and Watt link

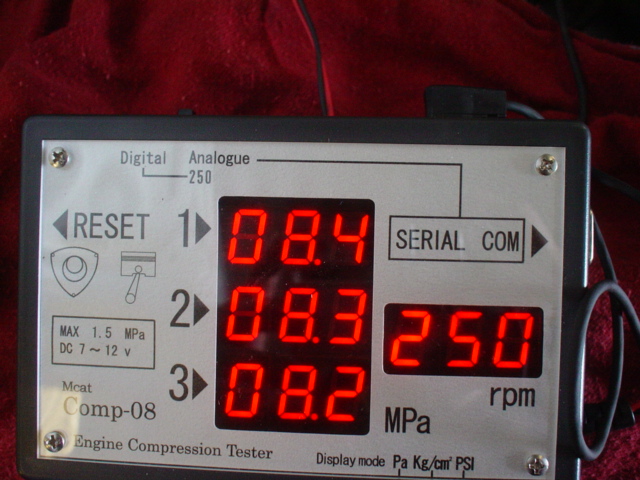

Oh last but more importanly.. Went to "MazdaTrix" to have engine Compression check , I do that on all the car I plan to track and I will try to do compression check every 6mo.

diyman25

Did some Calcuation. about the possible chance to use 3th gear on slowest turn in street of willows. cause i dont really like the Short shifter that is on the car now. it work Ok in solo2. but is kind da hard to shift from 2th to 3th

My Control is, a my friend's 1997 BMW 3.2 weight 2700lb(600lb lighter then stock). did 1:29.xx and have 3.15 final drive. with 220WHQ and I know he use 3th gear on slowest turn in Street of willow
so here is how I can the number out

2700/2.2= 1227KG

1000kg/1227kg=0.81

220WHQ X 3.15(final drive)=693WHQ that is a on wheel Tq with final drive

693x0.81=561.33

Here are number of my car. 1981 MAZDA RX-7 weight 2200(fully weight) 4.076 final drive with 141WHQ

2200/2.2=1000KG

1000KG/1000kg=1.0

141WHQ X 4.076(Final Drive)=574WHQ

574x1.00=574WHQ

So on paper I should be use 3th gear on the slowest turn in street of willow
For comparsion

Honda S2000 weight 2800LB(fully load) have 150engine HQ asscume 15-20% loose =127.5 with 4.15 final drive

3000/2.2=1272KG

1000/1272=0.78

127x4.15=527WHQ

527x0.78=411WHQ

ProChemBroTCM

A rotary Beetle...

j9fd3s

iTrader: (3)

you need to know what MPH you're at in that turn. that tells you the rpm you're at in 3rd, and then you can look at the dyno chart....

diyman25

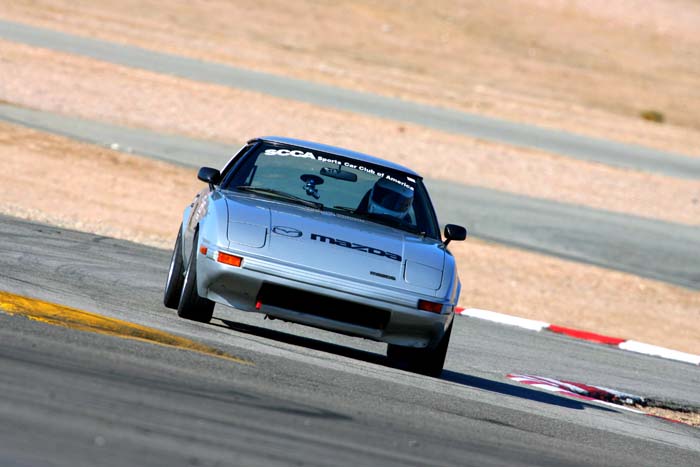

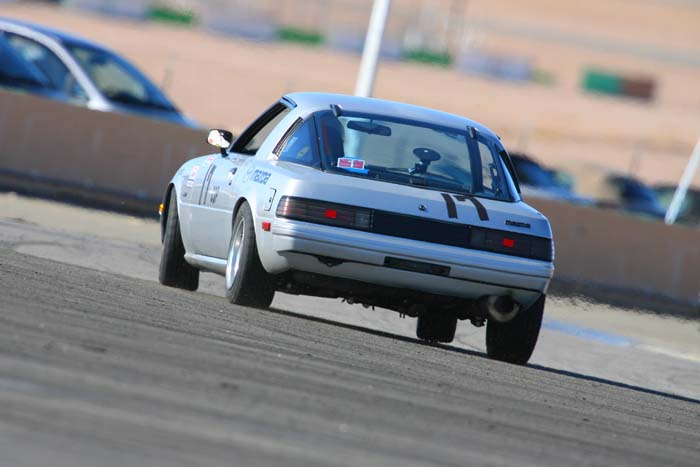

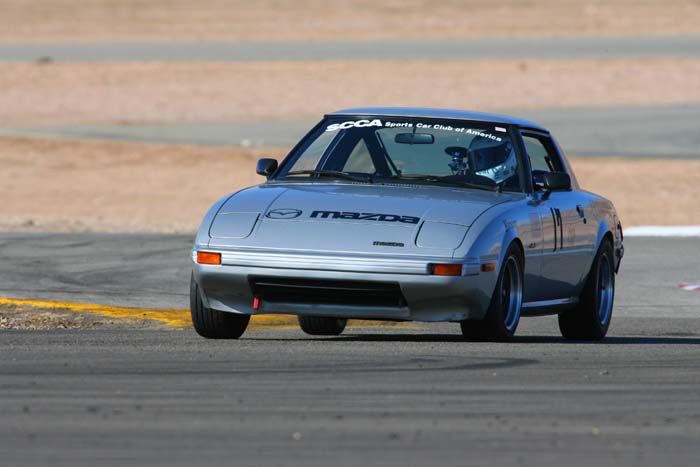

some pic, of today's shake down test . Did pretty well. 1:31.5. that mean I am faster then fastest Stock S2000 or I should fastest Street able Import without any Aero !! . I will post complete write out later tonight

For referance you can check http://www.speedventures.com/results/Default.aspx
go check result From SOW CW ( street of willow Colck wise)

diyman25

http://www.youtube.com/watch?v=_gcvwPTxA-M

the car need better brake and brake balance for a car that weight 2200lb. cause in Solo event. brake is kind da for weight transfer.(Tire do a lot of stoping and cornering). for this event I turn more bias to brake so I Counter clock wise turn the valve
Rear sway bar.most of Solo2 First gen Rx-7 took them off.I think the reason is to reduce Over steer.
but I suffer understeer in some corner!! with lift inside wheel !! that's why you see some of corner I need to turn wheel almost more then half turn...
I think with better brake and rear sway bar I can get down to 1:30 or under easy

dj55b

iTrader: (2)

Looking great out there. What are you looking at for better braking? ReSpeeds brake upgrade? Also for the sway bar, they do remove it for that snap over steer. But if you wish to have something a bit better look into putting on a ReSpeed tubular front sway bar paired with a rear Racing beat one.

What is the car running for struts and springs? How many lb are the springs f/r.

diyman25

As brake for now. I will want to use Racing brake now mabe swap to bigger brake later . like hawk blue. or Portfield R-4. now this car have R-4 street now. and stock at back...


As suspension

Tokico Illumia, the MR2 strut. with ERS 450LB. and Eibach sbring wih cut off coil...
ST swap bar at front.

I think the car is not very stable at hight speed the car will flap around, I need to be extra careful on the steering input, . due to the Hight ride hight. and Spring is too stiff for the shocks. I think I will put back rear sway bar too see. what car will react !!

dj55b

iTrader: (2)

you might also want to look into the brake Pad that G-force engineering offer. And also for a different disk brake(lighter) ones and supposebly stronger, check you kcraceware.com

fcdrifter13

Uhh a beetle isnt transversely mounted, and they make an adapter kit for it. As far as the Atom, I have seen a 13b mated to a civic d series trans so a k series wouldnt be to much harder.

But back on topic.

I really really enjoy builds like this. Sure high HP builds are nice and all but this is just plain cool. Now i want another FB to track lol.

diyman25

Wont be able to shake down the car. until 2008 jan. in the mean time. the car have some misc upgarde need to be done.

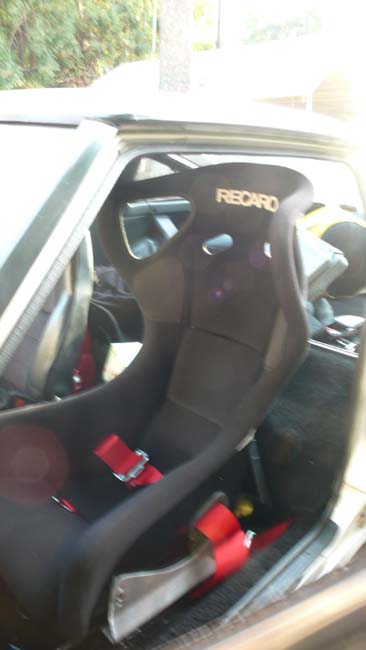

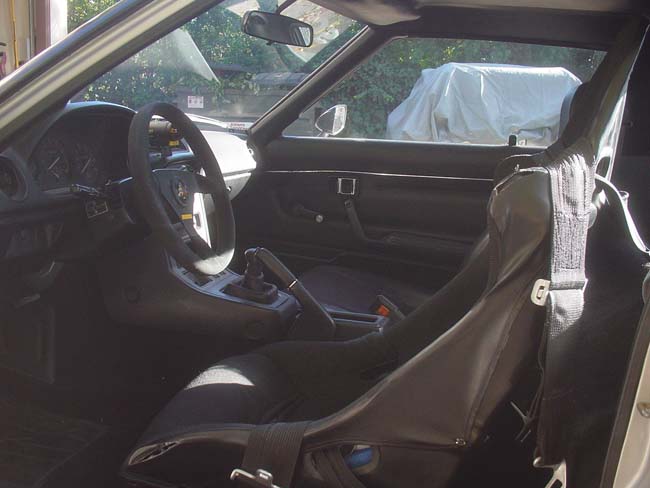

First . Swaping the seat. one key element of Tracking driving. is a Seat postion. so here i am try to fit Recaro SPG racer( i am a big fan of RECARO seat. I personaly try almost all the seat in the market. MOMO, Sparco, OMP, Cobra, Bride and recaro) into a tiny SA.... is pretty much a bolt on job... but you have to watch the gap between the head proticion and glass. I guess you wont have this problem when you install none SPG racer seat.

Over all I love it. good seating postion. the clutch feel easier... Not too much blind spot. and good support from the seat...

Next would be improve rear brake performance, and install GSL-SE sway bar

diyman25

First event of 2008. I guess the Track day lord... (more)
Added: January 05, 2008
First event of 2008. I guess the Track day lord is on our side(aleast for today)Suppose to be raining !!. today is mostly Dry condion. beside first and sec session... The Weather still cold. Ground temp in 3th session is only 41F, and the highest it get is about 67.....

As for my HSF. I put back Rear sway bar. Dial in more camber on front. re adj rear brake balance. the car feel much better in hight speed session, like turn one, I dont have to lift as much... but the car still suffer heavey understeer... in slow session. the worst session is skip pad.... and turn one

I try so hard... Finally get to 1:30.30x( i was slower then before most of session) but finally in last session I improve 1.3 sec compare to last testing........ I dont think i ever drivethis hard before...... Today the car handel funny ?

The brake still sucks..... to a point I dont believe it .... I really need to improve that big time.
.

I think I blow my right front shocks.... The car suffer massive lean on Left corner.. and will throw car into snap over steer condion...... and when I jack the car up I can see water like oil on the shock shaft

Almost cause a 3 car accident chaos.... I guess drive your DOT tires to race track. pick up a lot of grease on the road.. that really really scare...

here are the youtube video for last session of the day

diyman25

forget to post the video http://www.youtube.com/watch?v=frYg7nT6PAE
